10Mm2 PVC Insulated H07V-K Power Cable

  • 1000-4999 Meters
    $0.91
  • 5000-9999 Meters
    $0.86
  • >=10000 Meters
    $0.81
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Jiukai
Model Number:
H07V-K
Type:
Insulated
Application:
Electrical installation and connections, Electrical installation and connections
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Conductor:
Stranded Bare copper or tinned copper
Color ID:
In accordance with HD402 Standard
Application Standard:
HD21.3 S3,VDE-0281 Part-3,CE Low Voltage Directive,73/23/EEC,93/67/EEC
Features:
Easy-peeling,easy-cutting,convenient for installation
Conformity Approval:
RoHS CE
Rated Voltage:
450/750V
Min. bending Radius(Fixed/Movable):
12.5*D(Cable OD)
Temperature Range(℃):
Fixed Installation:-20to+70;Movable Installation:-5to+70
Norminal Section(mm2):
1.5/2.5/4/6/10/16/25/35/50/70/95/120/150/185/240

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X30X20 cm
Single gross weight:
2.0 kg
Package Type:
Packaging Details:1.Plastic/Wooden Drum or Roll:100M/Roll,500M/Roll,1000M/Roll 2.According to customer requirement. Delivery Detail:7~15 days
Picture Example:
package-img
Lead Time :
15
Product Description


10Mm2 PVC Insulated H07V-K Power Cable

Nominal Section(mm2)
Conductor Class
Insulation Thickness(mm)
Max. Ave. OD(mm)
Cable Weight(kg/km)
Conductor Max.DC resistance at 20℃(Ω/km)
Min. Insu. resistance at 70℃(MΩ.km)
Non electroplating
Electroplating
H07V-K 1.5
5
0.7
3.4
21.3
13.3
13.7
0.010
H07V-K 2.5
5
0.8
4.1
33.8
7.98
8.21
0.0095
H07V-K 4
5
0.8
4.8
50.3
4.95
5.09
0.0078
H07V-K 6
5
0.8
5.3
71.6
3.3
3.39
0.0068
H07V-K 10
5
1.0
6.8
122.1
1.91
1.95
0.0065
H07V-K 16
5
1.0
8.1
184.7
1.21
1.24
0.0053
H07V-K 25
5
1.2
10.2
286.2
0.78
0.795
0.0050
H07V-K 35
5
1.2
11.7
395.5
0.554
0.565
0.0043
H07V-K 50
5
1.4
13.9
539
0.386
0.393
0.0042
H07V-K 70
5
1.4
16
730
0.272
0.277
0.0036
H07V-K 95
5
1.6
18.2
900
0.206
0.21
0.0036
H07V-K 120
5
1.6
20.2
1135
0.161
0.164
0.0032
H07V-K 150
5
1.8
22.5
1410
0.129
0.132
0.0032
H07V-K 185
5
2.0
24.9
1845
0.106
0.108
0.0032
H07V-K 240
5
2.2
28.4
2270
0.0817
0.0817
0.0031

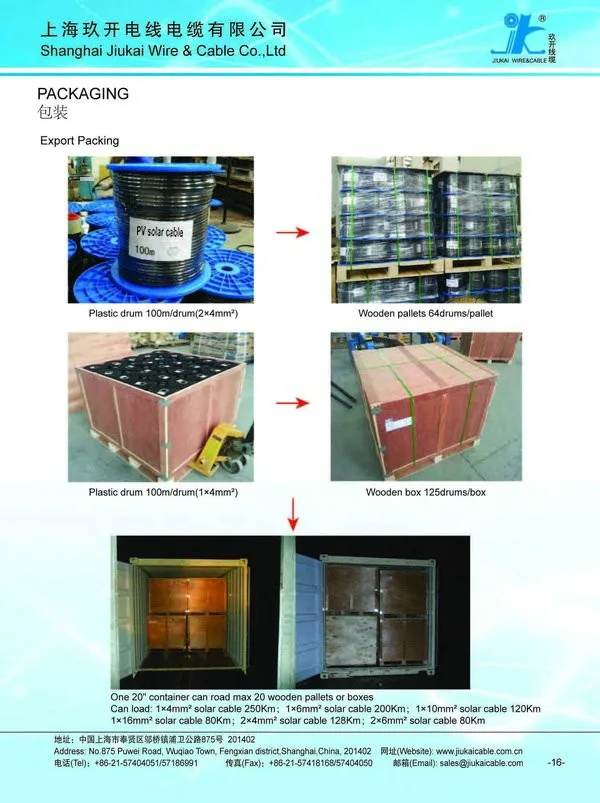

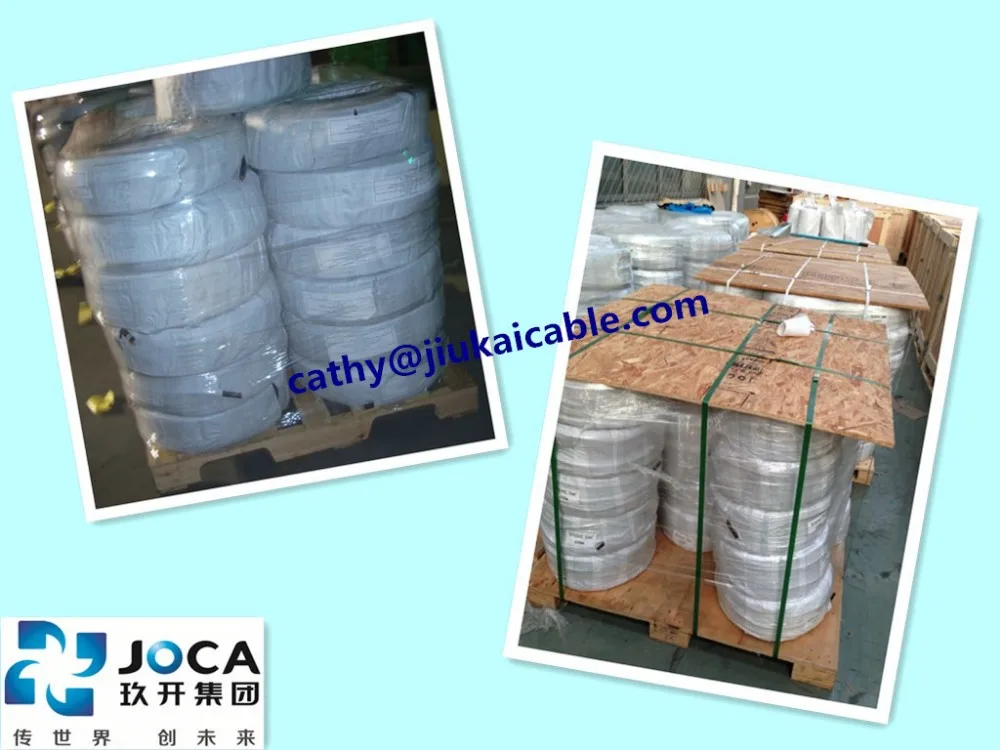

Packaging & Shipping

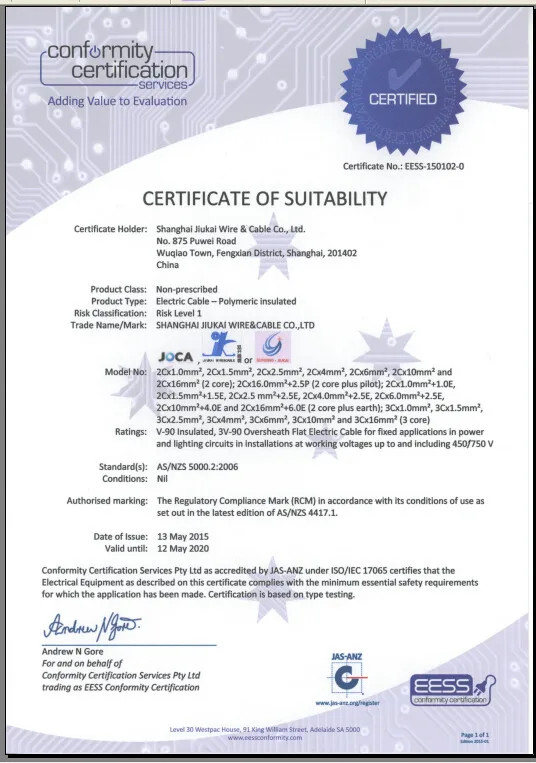

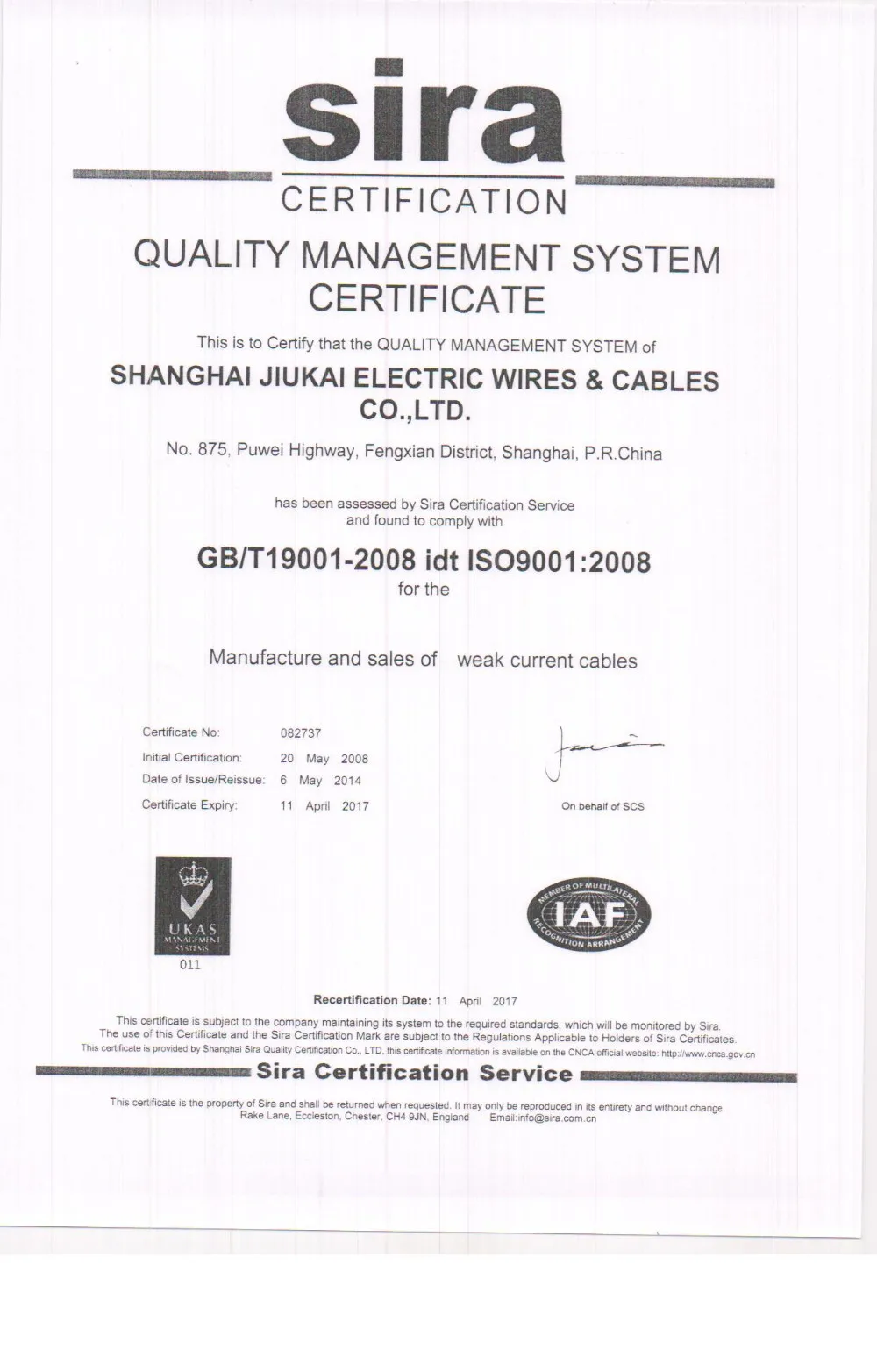

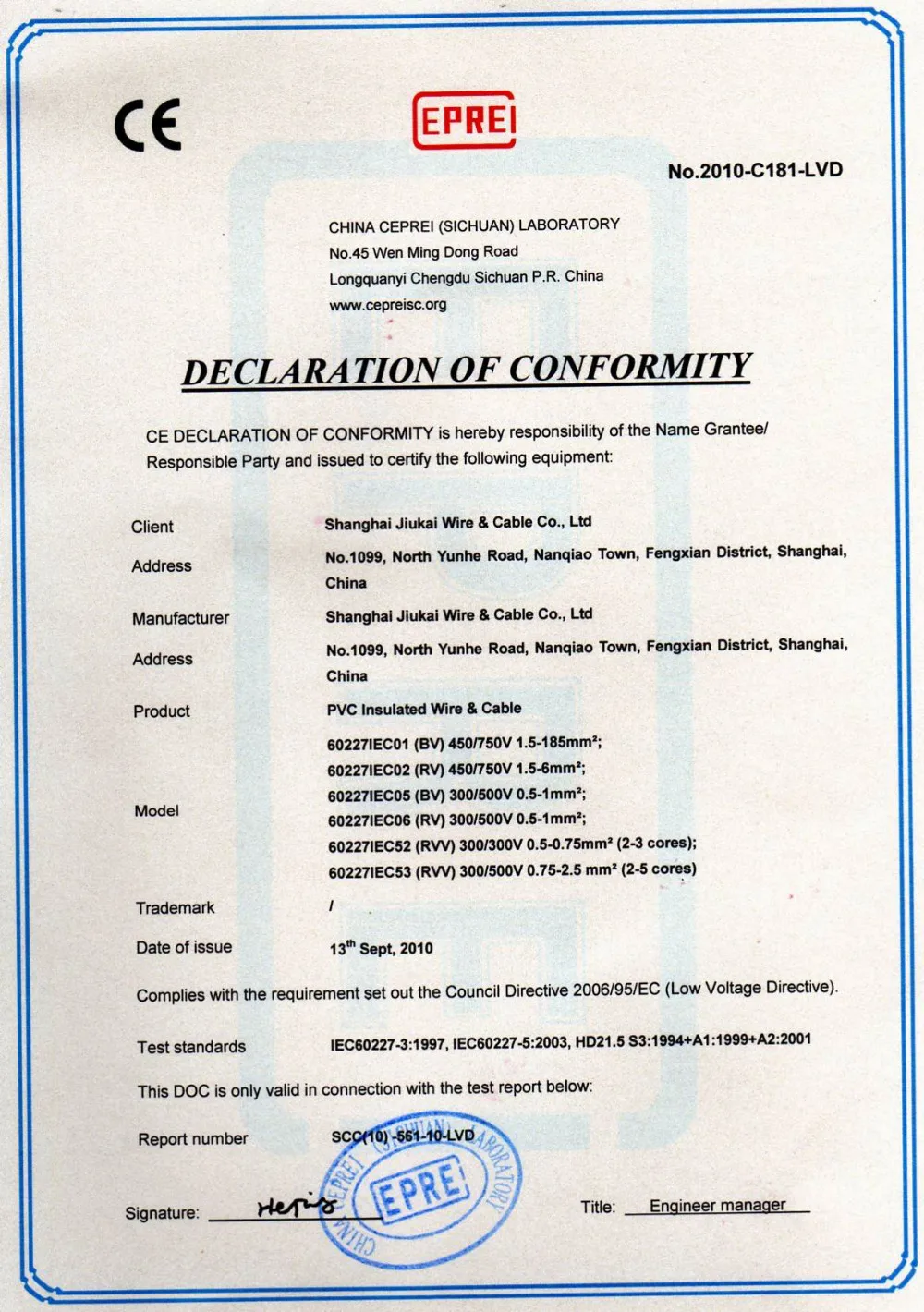

Certification
Why Choose Us

We are a professional wire and cable manufacturer

1.Jiukai sends all the items with Outgoing Quality                   Inspection Report;
2.The copy of TUV certification will be sent along with the  products;
3.We guarantee100% good quality when the products are   sent out of factory;
4.We ship the goods by the fastest way of EMS,UPS,DHL     and TNT,reaching most countries within 7 days;

5.Jiukai is ship to world wide;
6.Once we shipped the products,our after-sale service will  send you the tracking number;
7.If your item is not as described or faulty when you receive it, we will send replace it for you with no additional charge;
8.If the item is found non-defective,the item will be sent       back to the buyer at buyer's expense.

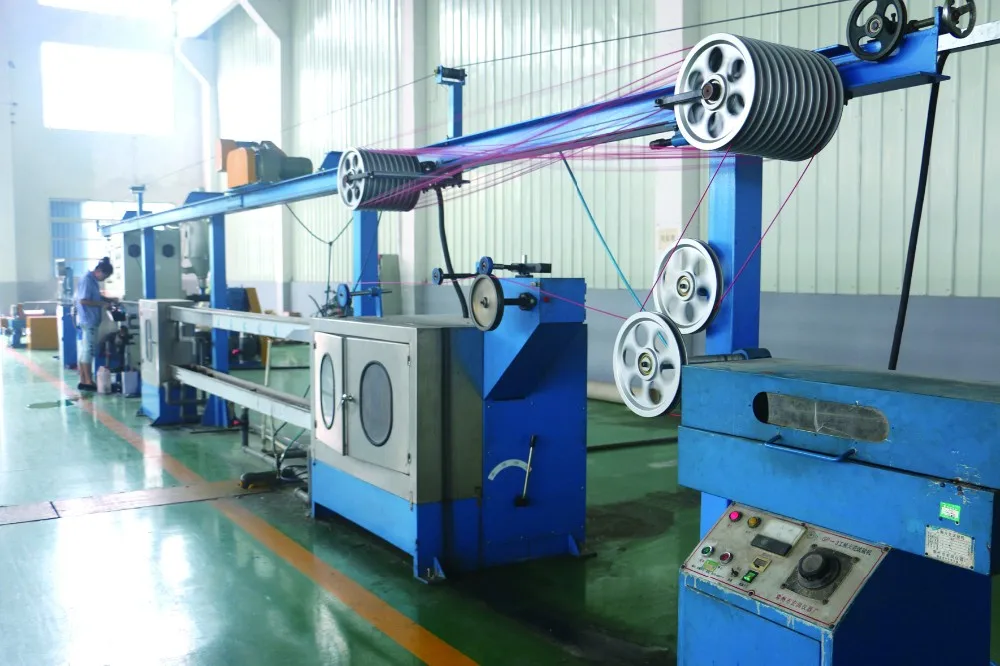

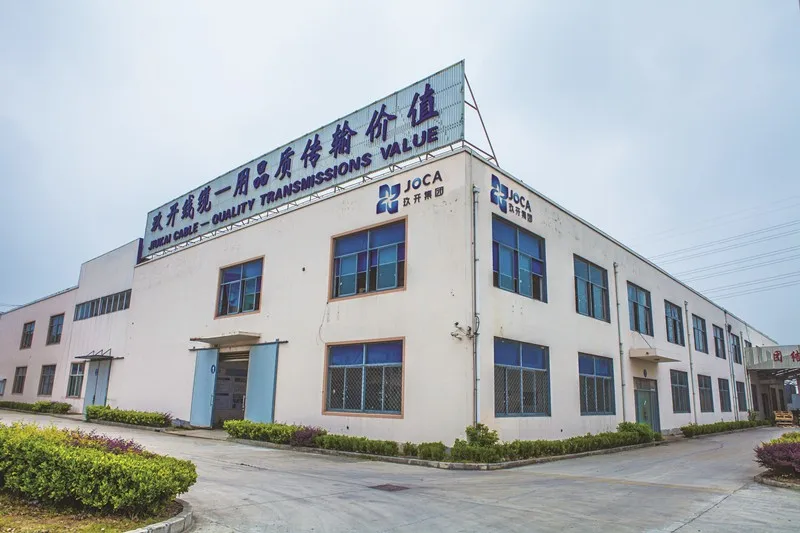

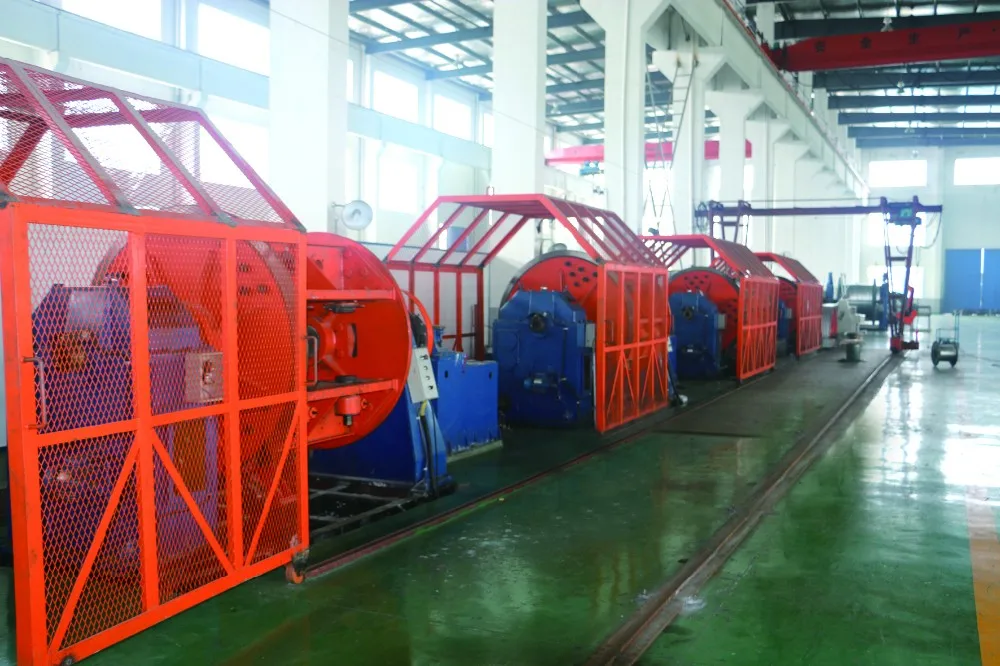

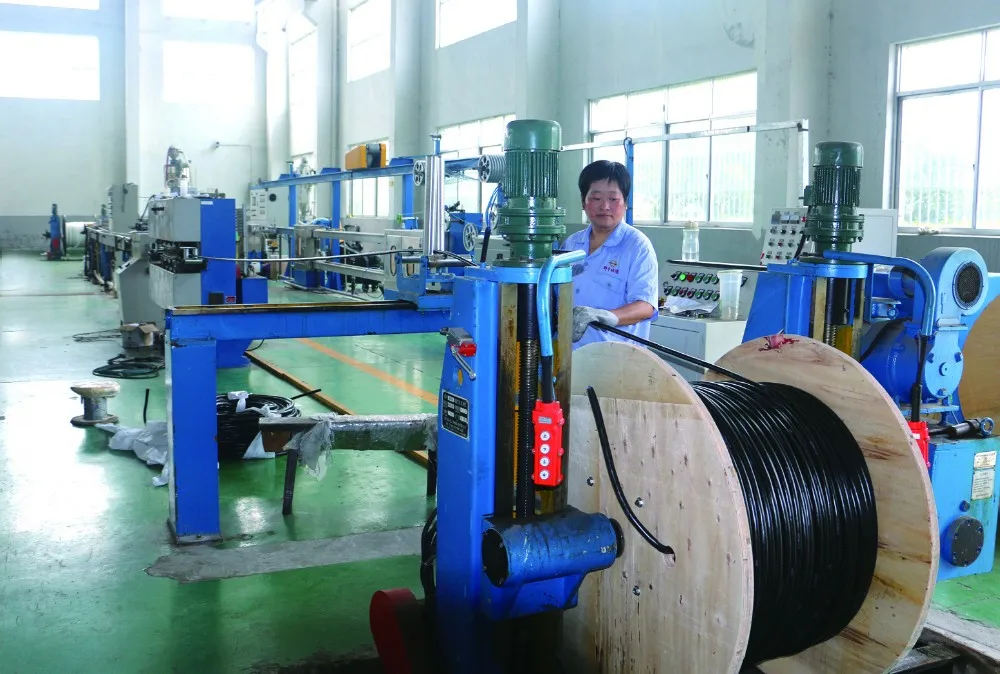

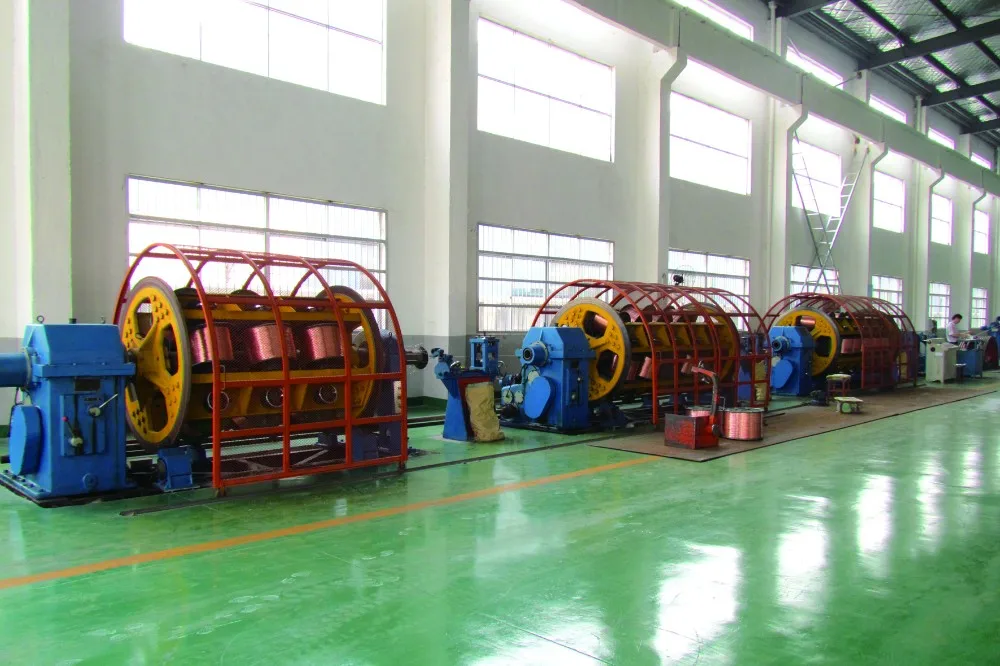

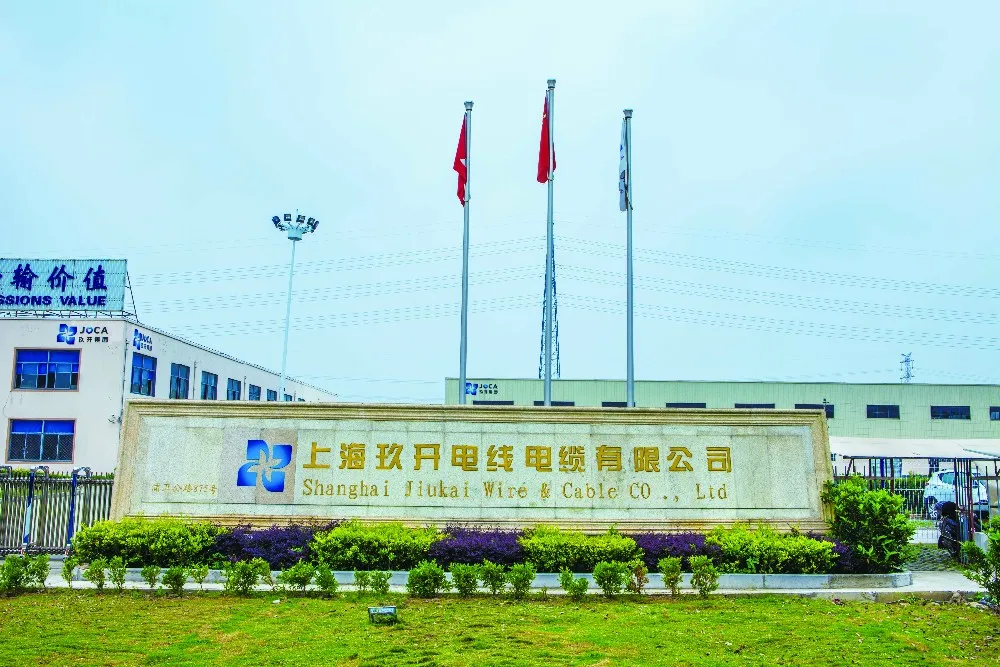

Company Information

Shanghai Jiukai Wire & Cable Co., Ltd

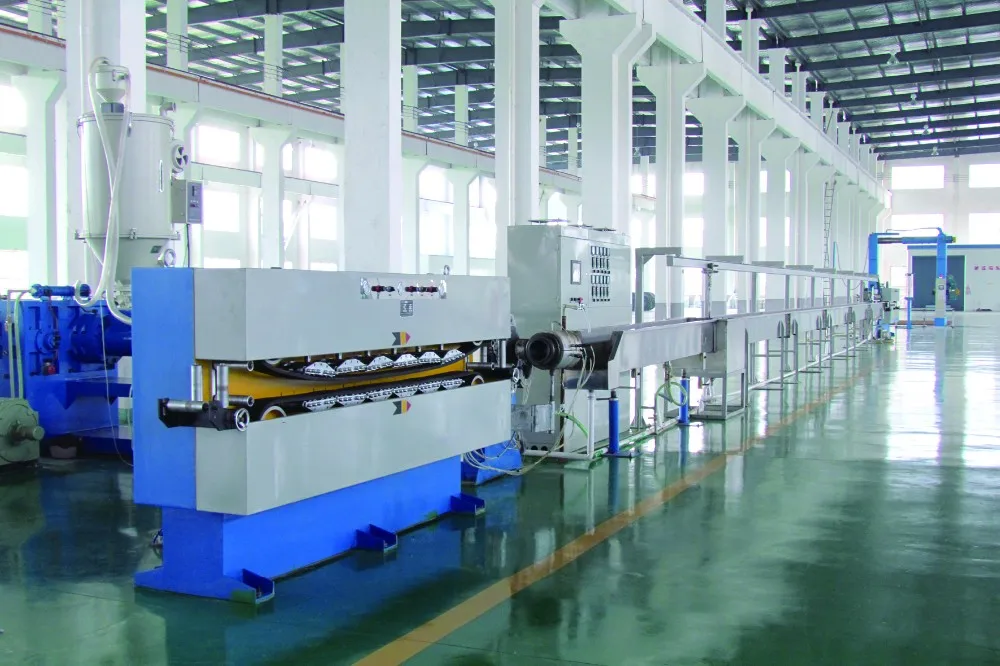

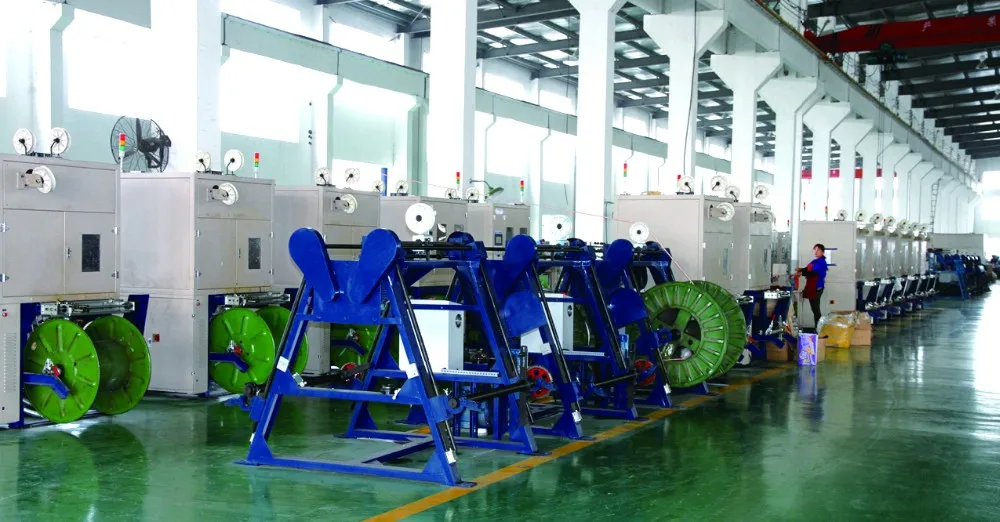

Our company is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.


Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.


Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.

Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ”,”Measurement Qualified Enterprises” , “China Top Brand” and “China Cable Manufacturer TOP 100 ” and so on.


Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico.


Q:How long is the product's service life?
A: Very long service life more zhan 25 years at 90℃

Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility
