12V 24V 36V 48V 60V 72V 84V golf car battery charger for lithium lifepo4 lead acid battery

  • 1-49 Pieces
    $88.00
  • 50-99 Pieces
    $87.50
  • 100-149 Pieces
    $86.50
  • >=150 Pieces
    $85.00
Color:
Classic Black Classic Silver
Socket Standard:
Other
$
- +
available
EU/AU/UK/US
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized Function (Min. Order: 2 Pieces)

More

Customized packaging (Min. Order: 1000 Pieces) Less
Samples: $88.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $88.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Electric
Brand Name:
YunYang
Model Number:
UY900
Use:
lithium ion/Lifepo4/lead acid battery/golf cart
Output Power:
according to charging voltage
Is LED Lamp Illumination:
No
Place of Origin:
Guangdong,CN
Color:
Black or Sliver
Power:
900W
Material:
Aluminium Alloy
Warranty:
1 Year
Input Voltage:
90-130V OR 200-260vac
Package:
Paper Box
Size:
220*135*70mm
Charging efficiency:
85%
Weight:
3kg
Logo:
Custom Logo
Input:
110/220V/25A
Output:
as specification
Function:
see below

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X23X12 cm
Single gross weight:
5.0 kg
Package Type:
4 Pieces/Carton Carton Size: 48*31*25CM G.W:About 12KG Subject to receipt of goods
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5000 5001 - 30000 30001 - 50000 >50000
Est. Time(days) 10 12 15 To be negotiated



Contact Winnie<<

Product Description

12V 24V 36V 48V 60V 72V 84V golf car battery charger for lithium lifepo4 lead acid battery

Specification Detailed

Parameter

12V 24V 36V 48V 60V 72V 84V charger for lithium ion/li-ion/lipo battery and electric forklift

AC Input90-130 or 200-260V AC, 47 to 63H,could custom made a switch for 100-240VAC
Out Power900WEfficiency>85%
Dimension220*135*70mmNet WeightAbout 3kg,±0.5kg
LED indicatorred and green, double color instructions, red charging green finish or standby
Protect characteristics

Short-circuit protection,Over-current protection,Over-voltage protection,

Reverse polarity protection,Over temperture protection

Working conditions1.Ambient temperature: -5 to 40°C
2.RH: 5-95%
3.Maximum altitude: 2000 meters
4.Cooling: UY series chargers use of forced air cooling system
5.Under dustless and ventilated conditions, the full load temperature rise not exceeding 40°C
Storage conditions1.Ambient temperature: -40 to 70°C
2.RH: 0-95%
3.Maximum altitude: 10000 meter


Model

Nominal Voltage

Constant Current

Switching Current

 Li

(8%)

 Lead-acid

(25%)

1

12 V

40A

3.2

10

2

24 V

25A

2

6.25

3

36 V

20A

1.6

5

4

48 V

15A

1.2

3.75

5

60V

12A

0.96

3

6

72V

10A

0.8

2.5

7

84V

8A

0.64

2

Can customized other voltage and current,welcome to contact us.←Click here

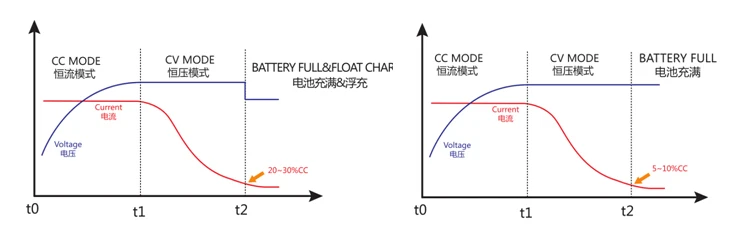

Charging Curve

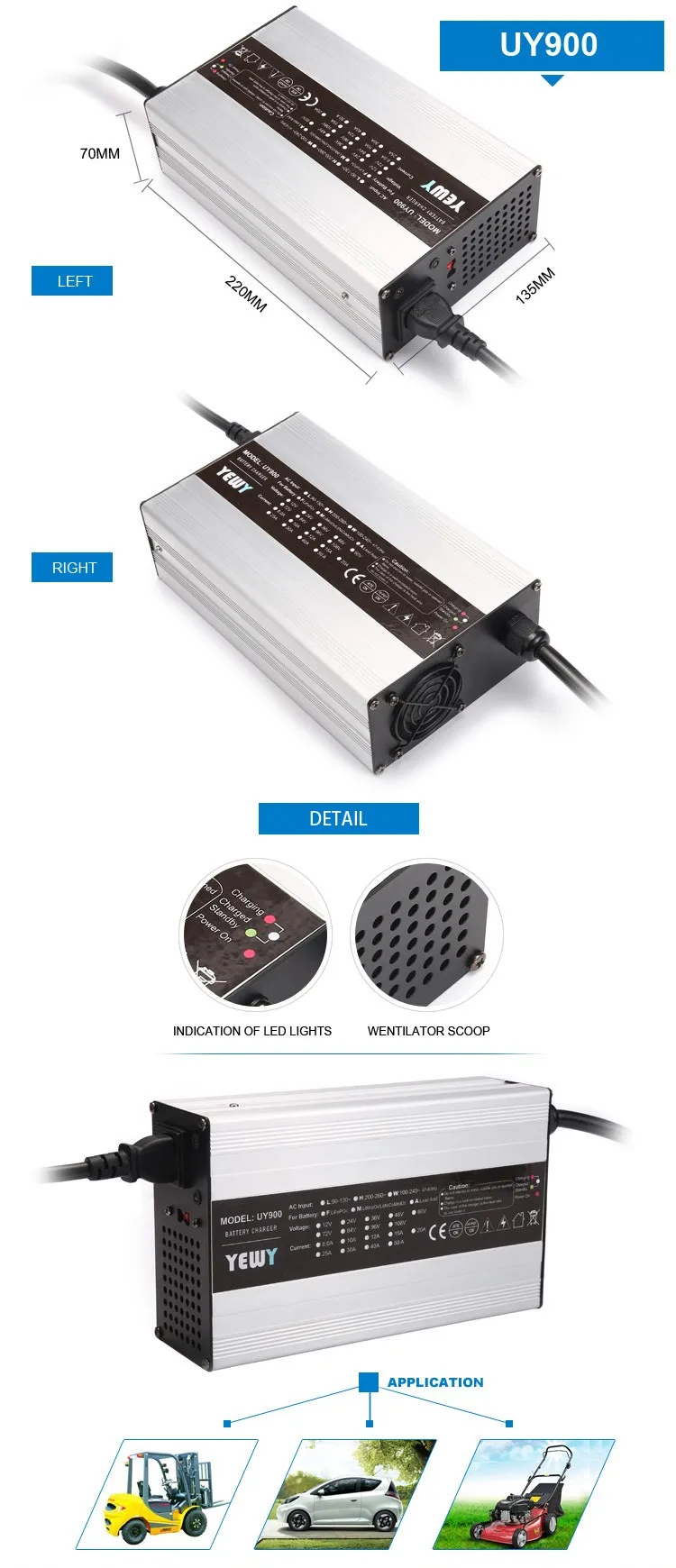

Product Images

 The pictures only supply the reference, please take the actual product as the standard.

UY900


UY900 is  widely uesed for: Electric bicycles, electric scooters, golf carts, electric motorcycles, electric vehicles,

unmanned aircraft, Washing machine ,electric motorcycle , two wheeled vehicle, electric tricycle ,patrol car,

sanitation vehicle, Electric cars , electric forklift , electric pallet truck, electric four wheeled vehicles, electric tools,

sightseeing cars, diplopod sweeper, etc.



Packing
Package Contents
1.UY900 battery *1 pc
2.User Manual *1 pc
3.AC Input Connector *1pc
4.4pcs UY900 chargers in one carton,Gross Weight is about 12KG
5.Carton Dimension is 48*31*25cm

AC and DC Connector

*Below are the more common using typs of connector, we can also provide other connectors

as per customer's request to fit with the battery.

00 (5)

If you have any furture question,please feel free to contact Winne<<



Company Information

Guangzhou Yunyang Electronic Technology Co.,Ltd,established in Nov,2005.

Relative Certifications

Exhibition & Customer Visiting






After-sales support:

1:Quick response for any questions.

2:Responsible attitude,not just sell products.

3:Send engineer to client's loation if need.

Related Products



ModelAC Input12V24V36V48V60V72V84V96V
UYmini100-240V6A3A2.5A2A////
UY120100-240V6A4A2.5A2A1.5A///
UY180110/220V8A5A4A3A2.52A//
UY240110/220V10A7/8A5A4A3A2.5A//
UY360110/220V18/20A12A8A6A5A4A3A/
UY600110/220V25A20A12A10A7A6A5A//
UY900110/220V40A25A20A15A12A10A8A/
UY1200110/220V50A30A25A20A15A12A10A10A
UY1500110/220V70A45A30A25A20A16A14A12A
UY2000110/220V90A60A40A30A25A20A18A16A
UY2500110/220V/70A45A38A28A23A20A18A
Waterproof Charger Series
UY240LP100-240V10A7A5A4A3A2A//
UY360LP100-240V18A12A8A6A5A4A//
UY600LP100-240V25A20A12A10A8A6A//
UY1000LP100-240V40A25A20A17A12A10A//
UY1200S100-240V50A35A25A20A15A12A//
UY1500S110/220V55A40A30A2520A16A//

Can customized other voltage and current,welcome to contact us.←Click here
