12v car cctv dvr system with gps tracking 3g wifi gprs gps mobile dvr

  • 1-99 Sets
    $287.00
  • 100-499 Sets
    $276.00
  • 500-999 Sets
    $265.00
  • >=1000 Sets
    $254.00
Type:
DVR
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Sets)
Customized packaging (Min. Order: 200 Sets)

More

Graphic customization (Min. Order: 200 Sets) Less
Samples: $287.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $287.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
OEM
Model Number:

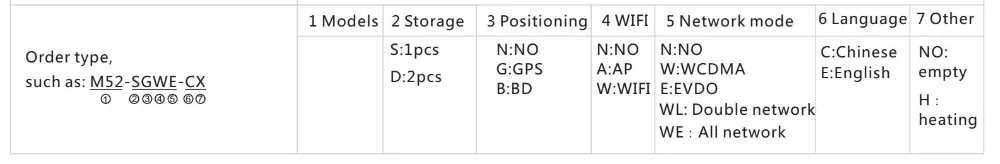

M52-DGWE.L
OS:
Linux
Security:
User password, Administrator password management
Input/output:
8 channel video input, 1 channel video CVBS output; 1.0Vp-p, 75Ω
Compression:
H.264 High Profile Compression
Live:
1 channel/Quad live;
Resolution:
D1/CIF adjustable
Storage:
Support 1pcs 2.5'HDD up to 2TB and 1pcs SD card up to 256G
3G/4G/WIFI:
Support 3G/4G ; built-in WIFI, support hotspot
GPS(option):
Support GPS, option/BD/GLONASS
Warranty:
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X7X18 cm
Single gross weight:
3.500 kg
Package Type:
Standard packing ( 8 sets / carton ) / OEM package.
Lead Time :
Quantity(Sets) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 10 15 20 To be negotiated
Product Description

12v car cctv dvr system with gps tracking 3g wifi gprs gps mobile dvr

M52 is a professional 8CH H.264 mobile DVR specially designed for vehicle surveillance application. It adopts high speed processor hardware and embedded Linux system. The state of the art mobile DVR use the latest IT technologies, such as H.264 codec, data flow streaming, A/V noise reduction,module-style design, anti-vibration technology, wide-range voltage design. It can supports up to 8 channel analog . This powerful mobile DVR has robust hardware for anti-shock and rich interfaces with simple deploy and reliable work.

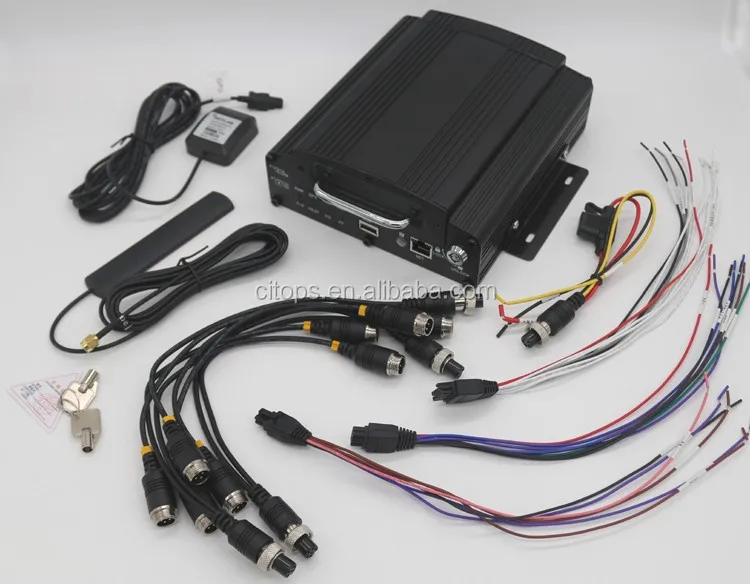

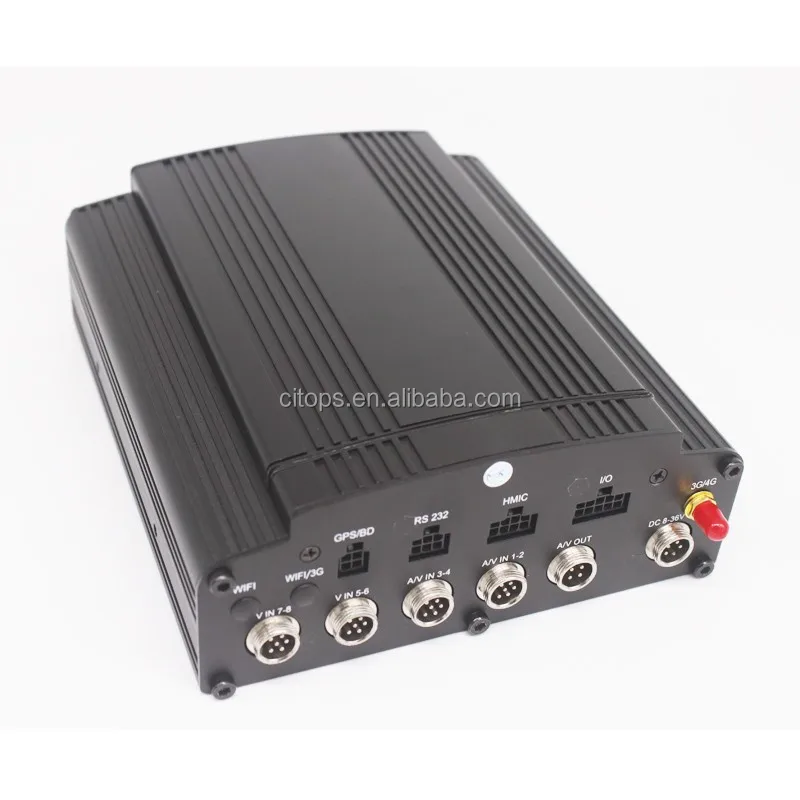

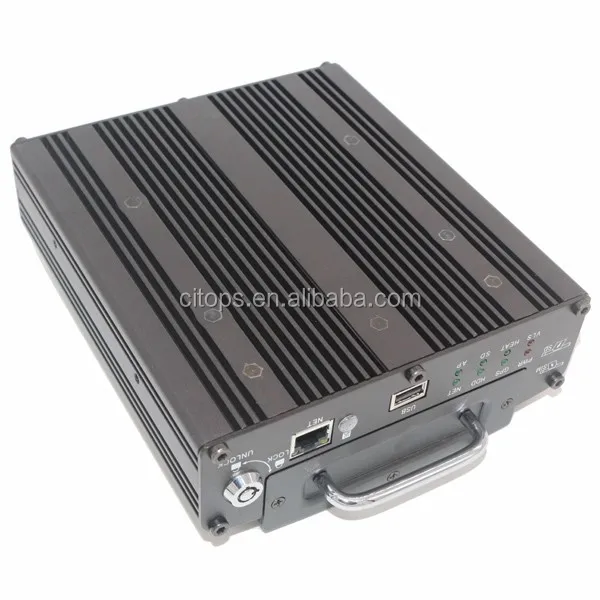

Product Pictures

Key features

1. Industrial-grade design with special vehicle port for reliable working on harsh environment Wide

2. voltage support over-load ,short circuit ,reverse connect protection
3. UPS power for continual work
4. Support hard disk 2TB+ SD card 256G for record storage 4G/WIFI transmit; multiple grade image

5. quality transmitting option GPS/BD/GLONASS global positioning
6. Powerful software platform including remote live, playback, broadcast, talk and more
7. IP communication PTT group talk function

Specification
OS
Linux
User interface
Support E-set , remote controller, remotely operation, SD card ,etc to configure
Language
English,Chinese (option customized)
Security
User password, Administrator password management
Video & preview
Input/output
8 channel video input, 1 channel video CVBS output; 1.0Vp-p, 75Ω
OSD
Overlays letters... like date /time, vehicle ID,GPS,etc into the video
Compression
H.264 High Profile Compression
Dual stream
Record with HD video and remotely live view with lower stream
Live
1 channel/Quad live; support events trigged to full screen and video switch
Speed(frame rate)
PAL: 200 fps, each channel 25 fps; NTSC: 240 fps, each channel 30 fps
Resolution
D1/CIF adjustable
Image quality
High, middle, and low option
Video rate
CIF: 384 kbps/512 kbps/768 kbps/1024 kbps/1536 kbps, 5 grades adjustable
D1: 512kbps/768kbps/1024kbps/1536kbps/2048kbps, 5 grades adjustable
Audio
Audio input/output
4 channel audio input/1 channel audio output; independent handheld talk MIC port
Compression
G.726
Record
Storage
Support 1pcs 2.5'HDD up to 2TB and 1pcs SD card up to 256G
Format
ASF/FAT32
Record strategy
Default power-on record, also support time schedule record, alarm record and events trigger record
Alarm
Input
4 channel level signal and 2 channel analog signal input
Output
1 channel level signal output
Communication port
Serial Port
Support RS232
Network
10M/100M network port
3G/4G/WIFI
Support 3G/4G and compatible with GPRS,EDGE, etc; built-in WIFI, support hotspot
G-Sensor
Built-in G-Sensor
GPS(option)
Support GPS, option/BD/GLONASS
Firmware upgrading
SD card; remotely upgrade; HDD upgrade; USB pen driver upgrade
Power supply & consumption
Power manage
ACC on/off; delay off; time schedule off
Voltage
DC:+8V ~ +36V
Voltage output
Cameras: +12V@ 2.5A, Other device: +5V@1A
Power failure protection
UPS technology to ensure the record completely when power failure suddenly;
Consumption
Working: <10W; Standby: <0.5W
Work Environment
Temperature
-25℃ ~ +70℃
Humidity
10% ~ 95%
Size
160(W) x 62(H) x 180(D) mm
Weight
Net weight: 2.2KG; Gross weight: 3.50KG
Related Products

Mobile DVR M51

Mobile DVR M12H


Mobile DVR M52

Our Company

    Shenzhen Citops Communication System Inc. (Short as Citops System) is the leading integrated video communicated system solution provider, incorporates search and development, design, production and sales. Providing advanced overall security monitoring products and premium service.
    Devoted to providing Citops solution based on video security monitoring for different fields such a Finance, Public transportation, Transport, Education, Consumer, Justice system, Telecom, Police, etc.
    Serve customers all over the world with best efficiency, highest security and best service.




Our Exhibition

Our customer

Certifications


Application diagrams, all our products can integrated with our CMS:

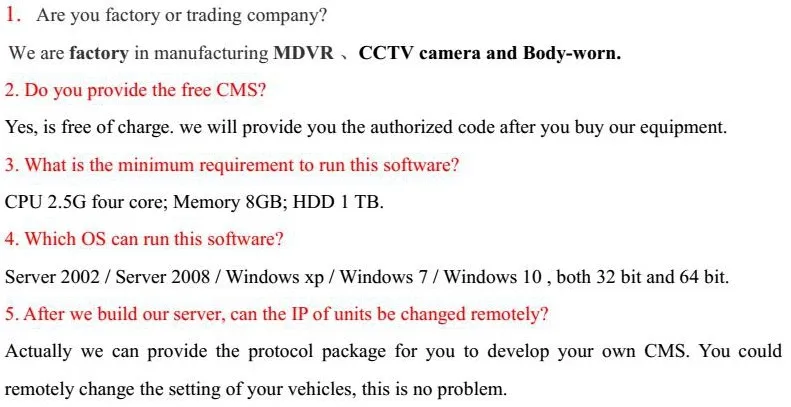

FAQ
