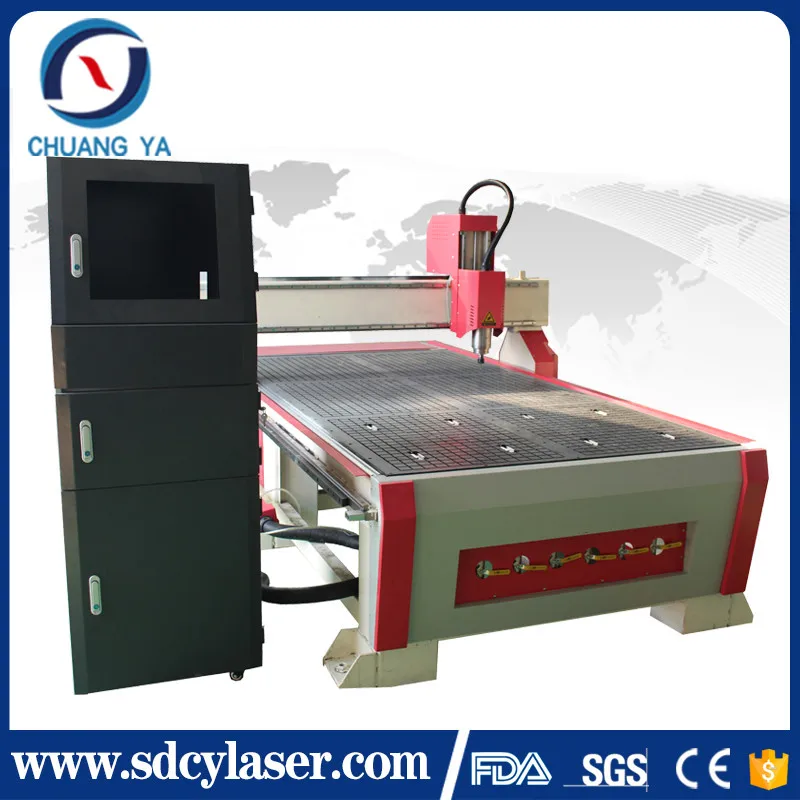

1325 cnc router woodworking cutting equipment machine for carving wood

Feedback Ratings
  • 1 Sets
    US $3400.00
  • >=2 Sets
    US $3200.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
ChuangYa
Model Number:
CY-CM1325
Voltage:
220V/380V
Power(W):
3.0KW
Dimension(L*W*H):
1300*2500*200mm
Weight:
1200kg
Certification:
CE ISO FDA
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
1325 cnc router woodworking cutting equipment machine for carving wood
Body frame:
steel structure
Control system:
Ncstudio Control System(option)
Inverter:
Fuling Inverter/Delda inverter
Motor:
YASKAWA servo motor/other stepper motor (option)
Table:
T-slot table and vacuum
Spindle power:
3kw Water Cooling Splinde
Spindle:
Italy HSD Spindle/China CS Spindle
Ball screw:
TBI ball screw/Hiwin ball screw
Driver:
YASKAWA driver(option)
Product Description
                                                          1325 cnc router woodworking cutting                                      equipment machine for carving wood
CY-CM1325
What is the detail :
Quick Introduction

The wood cnc cutter is suitble for wooden Industry, furniture industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.



The cnc router machine is designed for large area engraving work such as wooden Industrial, mdf industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



In addition, it can be upgraded to be installed a rotational axis.



Features:

1.Three axes adopt imported high precision widening linear HIWIN guide rail,self-lubricating sliding block.This ensures equal force in all directions and accuracy and strength of the machine.

2.Intelligent processing limit switch function can prevent mechanical impact caused by the improper files or operation.

3.Tool sensor (Automatic tool calibration pad)allows easy and accurate “Z” zero position for single and multiple tool changes through the program.

This can automatically measure the distance between the tool head and the material.

4.The machine supports recover carving point after breaking or disconnecting power,and the function of forecasting process time.




Technical Parameters:

ModelCY-CM1325      (CY-CM1530, CY-CM2040 OPTION)
Working area1300*2500*200mm
X Y axisrack drive / Taiwan Hiwin guide
Z axisball screw made in Germany
Driver motorstepper system (option: servo)
Table surfaceT-slot or vacuum table(T-slot vacuum table)
Spindle power3.0KW (option)
Spindle speed0-24000rpm
VoltageAC220V/50/60Hz,3PH(Option:380V)
CommandG code
Operating systemDSP system (Ncstudio/Mach3 PC software)
Computer interfaceUSB
Flash memory128M(U Disk)
Max rapid travel speed22000mm/min
Max working speed15000mm/min
Repositioning positioning accuracy±0.03mm
Warrantyone year
our  Advantages :

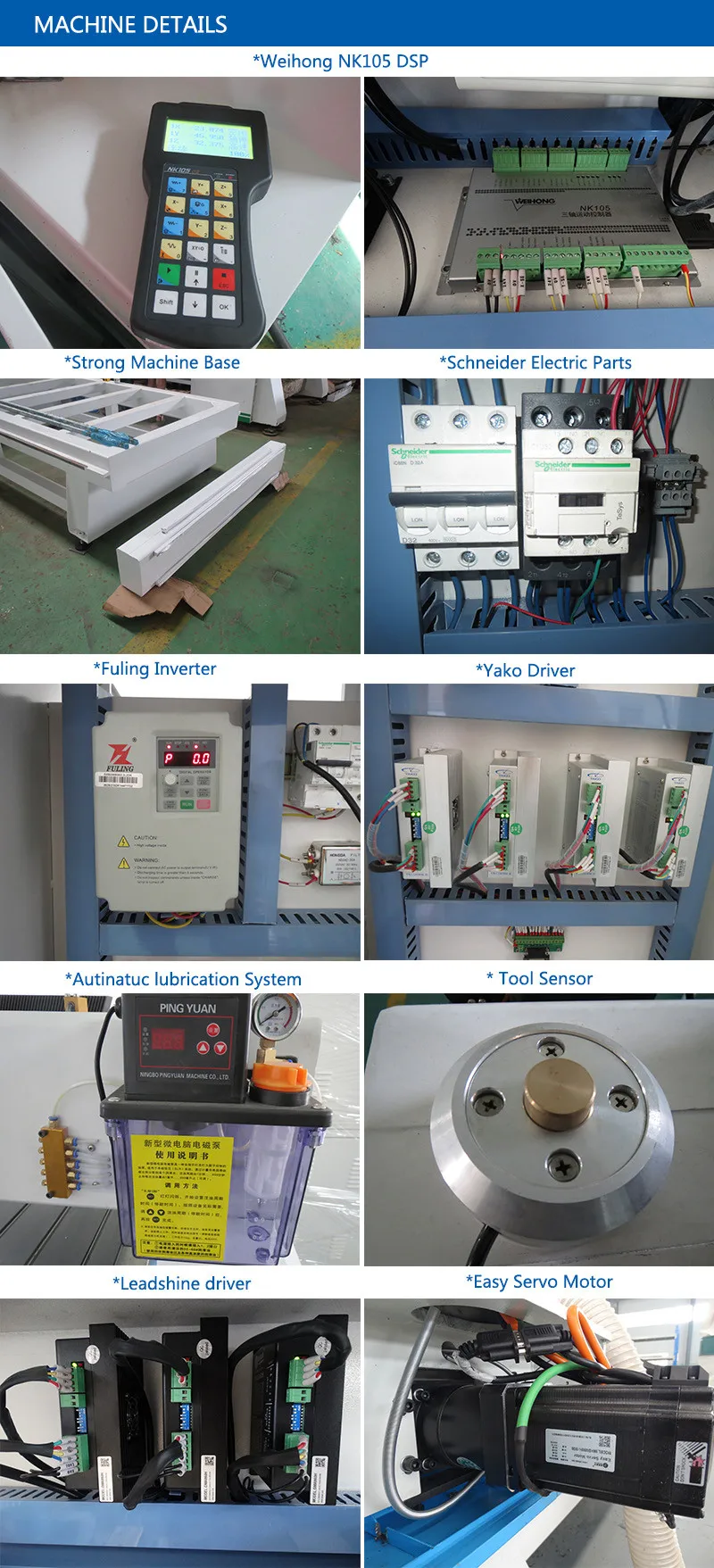

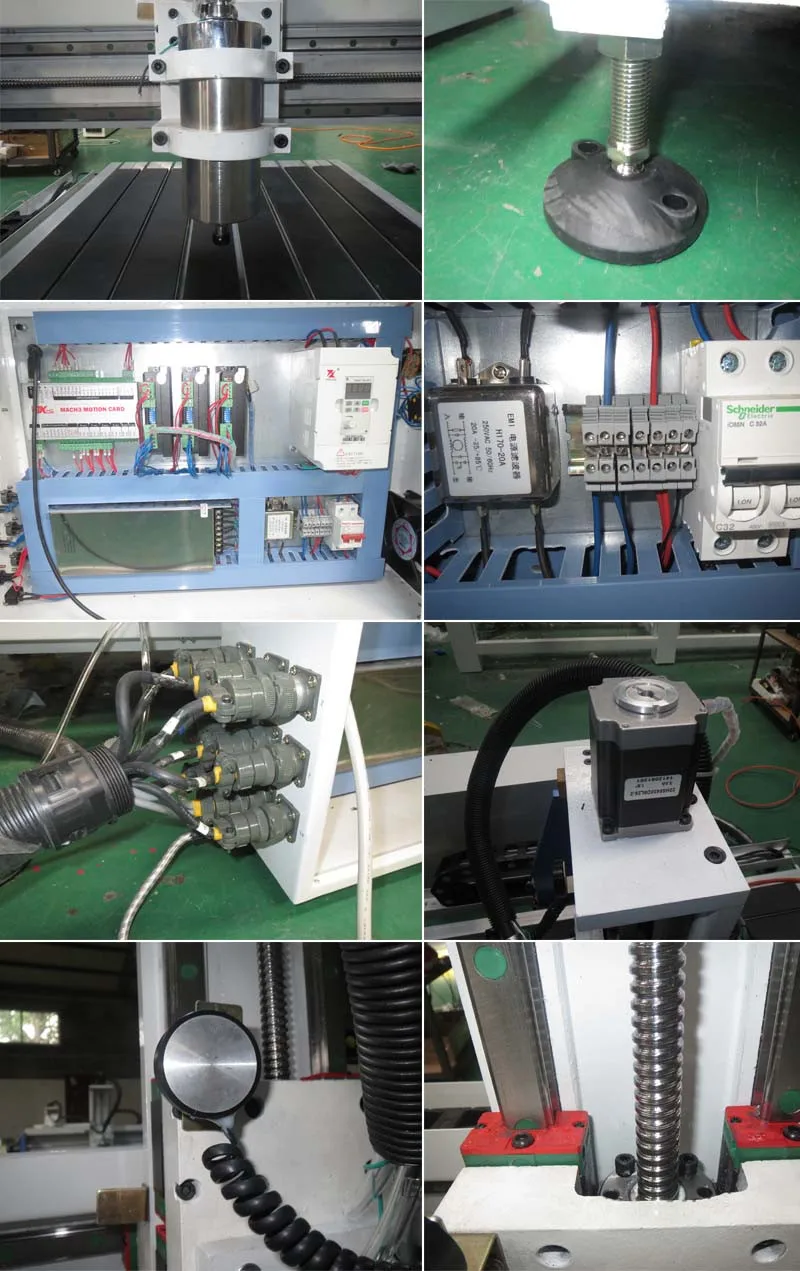

Machine parts

Advantages

1300*2500*200mm work area

Standard size.

big and thick square tube heavy duty T structure, welded steel

More stable and stronger, even you use for many years, it won’t change

shape.

3kw Italy HSD air cooling spindle

Top brand in world, high quality, global warranty

3.7kw Taiwan DELTA inverter

The best brand in Asia

DSP  control system

Support offline operation, do not have to connect to the computer

Taiwan HIWIN or PMI 20mm square

linear guide way for X,Y,Z axis

Very famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than common rail way.

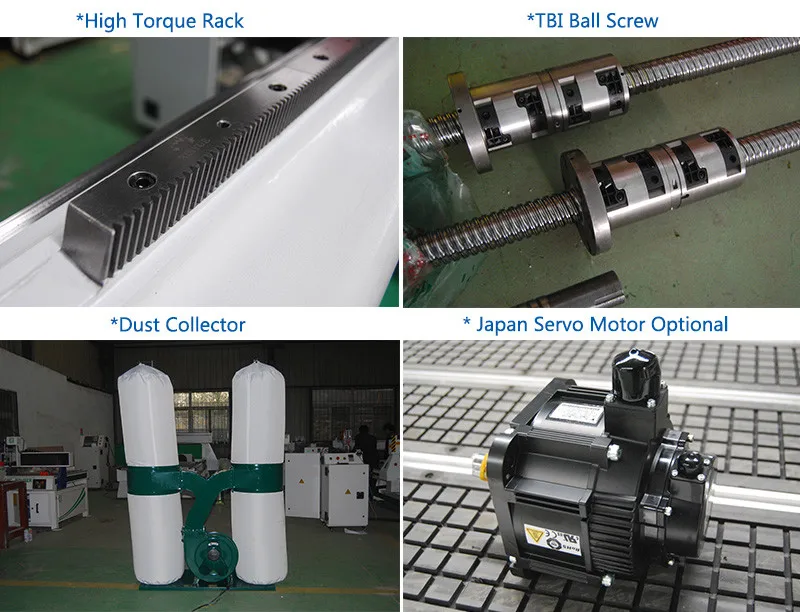

Helical rack and gear 1.25M

transmission for X,Y axis

Bigger loading capacity, stronger biting force, makes sure the machine is

stable, with long lifetime.

Taiwan  TBI  ball  screw 2510 transmission for Z axis

Famous brand, high quality, can make sure very accurate precision.

Vacuum & T-slot combined worktable

Double use: Vacuum table can use big absorbing power to absorb big

material like wood board, very convenient; T-slot table can help fix small materials by clamps.

Stepper motor FL118 with YAKO

2811

4 sets in total, double motors for Y axis, very powerful in stepper system,

also very popular among customers.

Control cabinet is under the table

Saving space and it has 2 doors: left door and right door, can Prevent

electrostatic interference.

Manual lubrication system

Help lubricate the rail way, maintaining machine.

Automatic tool sensor calibration

Help find working home position.

Japan OMRON limit switch

3 pieces for X, Y, Z axis, helping each axis go back to working home

position.

rubber bumpers

2 pieces for X axis and 4 pieces for Y axis, helping stop axis in case the

machine axis is out of control.

Highly  flexible  towline,fire-resitant

double-sheathed cable

Shanghai CARDIFF brand, China best brand. Long life, could be bent

300000 times. Also can prevent the interference of static electricity.

Type3 or Art cam software

We will give them in the CD.

Accessory:

1 Tool Box 1

2 Woodworking Knife All type 21 Different size

3 water pump for cooling spindle

4 collet 4 (3.17, 4, 6, 12.7mm)

5 DSP control

6 data line 1

7 Allen wrench M6 1

8 Open-end wrench 27-30 45-52 2

9 Certificate 1

10 Warranty card 1

11 clamp 6

12 Inverter manual Type B 1

13 CD with software and Manuel 1

14 Adjustment screw 4

Samples pictures





Packaging & Shipping



Shipping& Package

Outside package: Standard marine export plywood cases

Inner package: Stretch film and plastic film for humidity

Shipping: i suggest you choose sea shipping, can save shipping cost

We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax

What information need for delivery the item to you

Please email us your phone number after you pay for the item only for delivery purpose



Our Services



After-sale service:

for stone cnc router aluminum t-slot table
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine
7, Free training course in our factory
8. Machine will be adjusted before it is delivered , operation disk/CD was included.

Warranty:

12 months for stone cnc router aluminum t-slot table



Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.



Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.




Technical support

1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

FAQ

 1.Are you a factory or trading company?
We are the manufacturer and we have 13 years factory experience .As only the machine made by ourself  ,

quality can be trusted,  and most important thing is we can do better service after sales.

we know how to fix the problem in each parts easliy. so welcome to visit to our factory

2. How long is the delivery time?

For standard machines, it would be 7-10 working days; For non-standard machines and customized machines

according to client s specific requirements, it would be 15 to 30 working days.

3. How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production.

when the machine is ready , we will take pictures to you, and then you can do the ballance.after we got your payment.

We will send the machine to you.
4. How about your service after sales ?  can your engineer speak fluent english ?
We offer the service from you got the machine,  including how to install the machine,how to use machine.

how to let machine work. and so on.  usually we will teach you how to do by emailor by skype .

our engineer has many years of experience for cnc machine service .  he can speak very good english ,

so he can slove the problem in short time.

5. How about the documents after shipment?

Aftershipment, we would send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L,

and other certificates as required by client.
