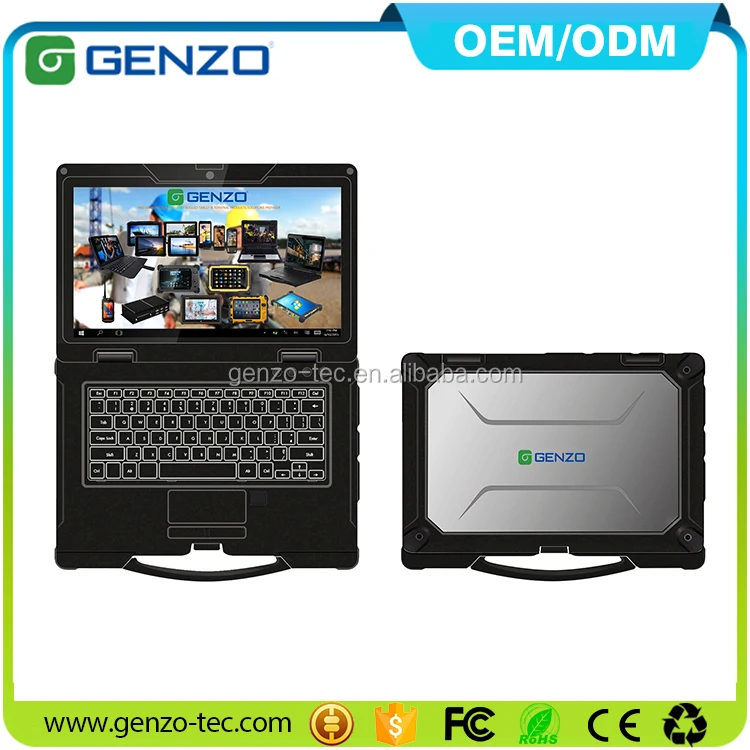

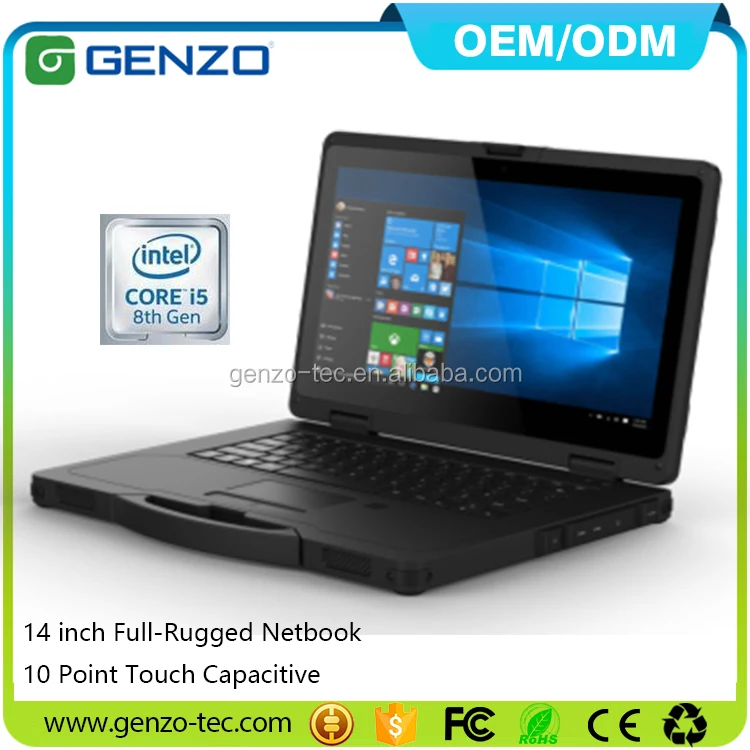

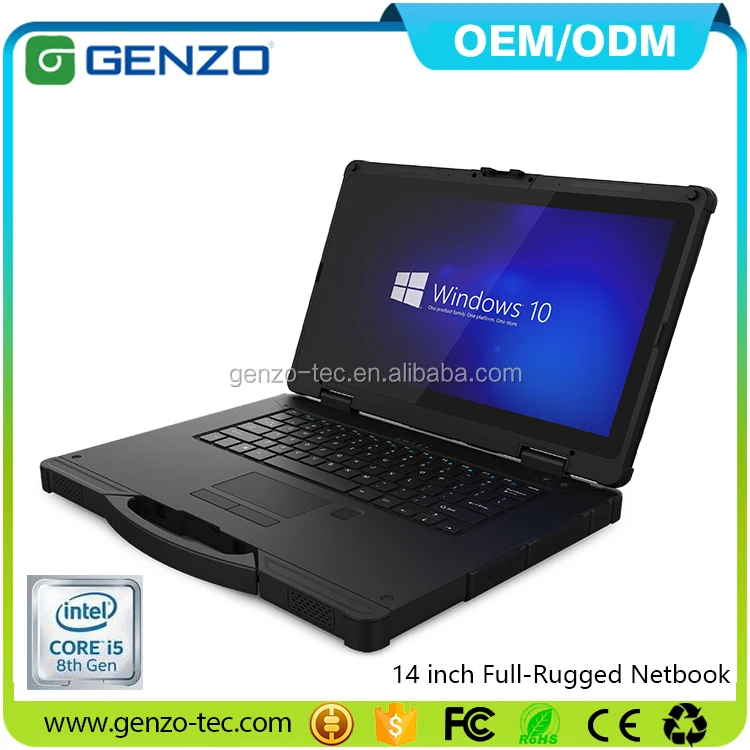

14 inch IP68 Fully Rugged tablet notebook industrial computer laptop Computer with Fingerprint and RS232 DB9

$1,315.00 / Piece | 1 Piece (Min. Order)
Color:
Black
Hard Drive Capacity:
128GB
Model Number:
GZ-X14
$1,315.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples: $1,250.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $1,250.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GENZO
Screen Size:
14"
Weight:
1.5KGS
Memory Capacity:
8GB
Processor Type:
8th Generation KBL-R Intel Core i5-8250U
Graphics Card Type:
Dedicated Card
Optical Drive Type:
DVD-ROM
Processor Main Frequency:
1.60 GHz, max3.40 GHz
Processor Manufacture:
Intel
Product name:
Rugged laptop with Fingerprint
CPU:
8th Generation KBL-R Intel Core i5-8250U
RAM:
8G DDR4L
SSD:
128GB NGFF SSD
LCD:
14" ,1920(H)*1080(V),300cd/㎡
Camera:
Front 2.0MP
Speaker:
Built-in 8Ω/1W x2
Battery:
Built-in 2000mHA+External 6300mHA/7.4V
Sensor:
G-sensor
USB connector:
Micr usb3.0*1 ,usb2.0*2
Products Status:
Stock
Type:
MID, Netbook, Notebook, UMPC

Packaging & Delivery

Selling Units:
Single item
Single package size:
68X58X38 cm
Single gross weight:
8.0 kg
Package Type:
1xCharger,1xColor Box,1xUsb Cable 1:Unit size:305*205*16.5 mm (Host), 2:Gift box size:385*225*64mm, 3:product weight:1015 g/pc, 4:total weight:1900g/pc 5:10pcs/ctn,CTN Size:66*40*25cm 6:22KGS/CTN
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description

14 inch IP68 Fully Rugged tablet notebook industrial computer laptop Computer with Fingerprint and RS232 DB9

The Pacemaker in Rugged PDA/Tablet/Notebook and Industrial Solutions Provider

Product Description

Features:

1.Intel® 8M CPU i5-8250U,Built-in TPM security chip
2.Support Windows 10 system;
3.More interfaces,Support extension dock;
4.Support 3G/4G,Ublox GPS high accuracy positioning,Optional Beidou;Dual freguency WIFI;BT4.2.
5.Rugged IP65 protection level;
6.Design of double wide temperature battery,Support 6200mAh hot pluggable battery;
7.Support High - intensity Corning gorillas glass touch panel,handwriting input.



Specification
CPU8th Generation  KBL-R Intel® Core™ i5-8250U
OSwindows 10 HOME 64bit    (Windows 10Pro OS,  WIN10 IOT Enterprise Optional)
LCD

14“ ,1920(H)×1080(V),300cd/m2

TP

G+G,Corelle gorilla,hardness over 7H,

scratch resistant,TP thickness:1.1mm,COF,support windows ink,support spray/ salt mist/capacitance pen/touch gloves

RAM8G DDR4
SSD128GB  NGFF SSD    256GB Optional,   Support SDHC/SDXC, Max:64G
Wi-FiWIFI 802.11(a/b/g/n/ac) frequency2.4G+5.8G Dual frequencyWIFI
CameraFront 2.0MP
BTBT4.2 (BLE) class1 Transmission distance:10m
Battery

2000mHA+6300mHA/7.4V ,  Removeable Battery,

5 hours (default 50% volume, default 200 lumens brightness, play 1080p HD video)

SpeakerBuilt-in 8Ω/1W  x2 waterproofBOX horn
SensorG-sensor Bulit-in,  gyroscope Bulit-in,  Compass Bulit-in, Honeywell switch--Hall
3G/4G

Optional: 3G:MU709s-2 Mini PCIe(UMTS/HSPA+ 900/2100MHz),MU709s-6 Mini PCIe(UMTS/HSPA+ 850/1900/2100 MHz),4G:EU Standard:ME909S-120 Mini Pcle,
China: ME909s-821 Mini Pcle,

GPSU-blox NEO-7,support:GLONASS,QZSS,GPS;Capture sensitivity:-160 dBm;Cold start time:<30second,Hot start time:<28second,frequency:0.25 Hz … 10 MHz (configurable)

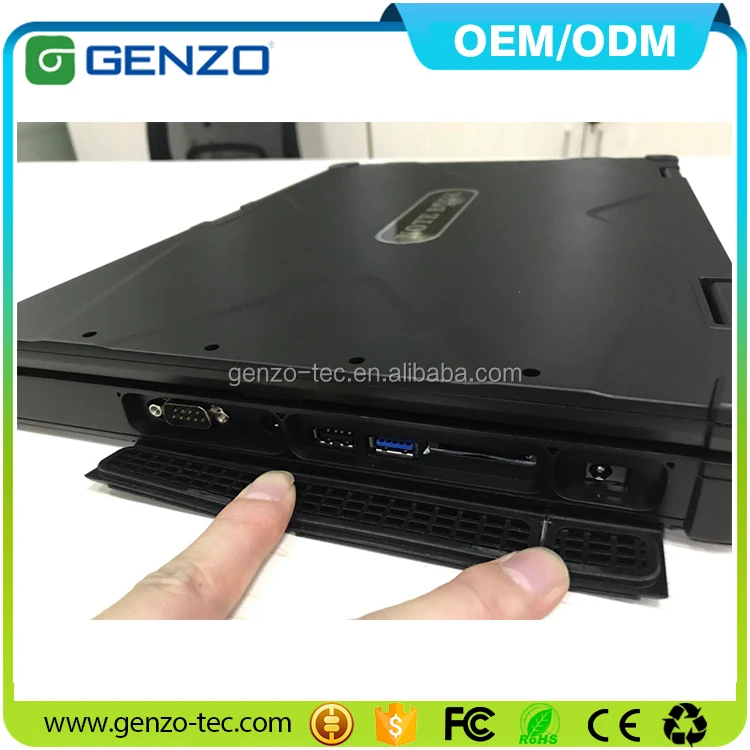

Interface PortUSB3.0*3, USB2.0*1, 3.5mm standard heaphone portx1 host, HDMI Cx1 host, SIM cardx1host, DC 19V 3.42A power jack  x1,Kensington x1
Interface PortGPS_SMA x1,  DB9 (RS232,RS485) ×1,  RJ45:x2(10/100/1000M Self-adaption) I219+I210,Heat dissipation air outlet(Right) x1,POGO PIN*1
KeyPower key,  Volume+_,  Windows home,   System keyboard
keyboard78 key IP65  waterproof keyboard
OptionalFingerprint ×1, SPI fingreprint(Power on login), NFC, SLR Sunlight Visible Film
IP65

IP65 report: Waterproof test: IP-x5, dustproof test: IP-6X.
a.ozzle bore: 6.3mm;

b. water flow: 12.5 + 0.625L/min;
c.Water pressure: according to the regulation of water flow regulation;
d. the main part of the main flow: a circle about 40mm in diameter from the nozzle 2.5m;
e.Shell surface water per square metre: About 1min;

f. test time: at least 3min;
g.Nozzle to shell surface distance: 2.5 ~ 3m.
After test, the sample is not flooded

Fall height120cm floor,  boot status,Sample work well.
Work Temperature: -20 °C to 60 °C  -4 °F to 140 °F,
 Storage Temperature-30 °C to 70 °C / -22 °F to 158 °F
Humidity95% Non-Condensing
Product Pictures

213675 Other Modles 3M-3M

















Packaging Shipping






Company Pntroduction






Factory Pictures






Certificate




Our Service

OEM&ODM:

We accept OEM&ODM for customer's request. It includes:


1. Burn customer's logo name as Boot Animation name.

2. Print customer's logo on shell or do customer's logo sticker.

3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR  file for customer's own design.

4. Usuer Manual,customer can choice different languages and put them together.

5. Customer's Master Carton design are acceptable.



6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.





Warranty:

For all our products,we offer 24 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.



Why choose us?


1. We are China leading
Rugged Tablet & PDA  manufacturer.


2. Alibaba Gold Supplier.


3. Inspected by the inspection of Bureau Veritas Certification.


4. 100% QC inspection before shippment.


5. Best quality & service with competitive price.



FAQ



1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").


2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.


3.Q: How can I get some samples?
   A: We are honored to offer you samples.


4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our
        factory has gained CE, FCC, ROHS,IP65,IP67 certifications and so on.
