18w 30x30cm 2.4g wireless zigbee dmx rgb rgbw dimmable led panel light

Feedback Ratings
  • 1-199 Pieces
    US $21.50
  • 200-499 Pieces
    US $20.50
  • >=500 Pieces
    US $19.50
Lamp Power(W):
18
Model Number:
PL-3030-18W-RGB
Emitting Color:
RGB
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
Epistar SMD5050
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Lamp Luminous Flux(lm):
90
Lamp Luminous Efficiency(lm/w):
1620
CRI (Ra>):
80
Color Temperature(CCT):
Red,Green,Blue,White,Yellow,Violet
Working Temperature(℃):
-25 - 70
Working Lifetime(Hour):
55000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP20
Certification:
CE, EMC, FCC, GS, LVD, PSE, RoHS, SAA
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lightman
LED Qty:
78pcs
Size:
295x295x11mm
Beam Angle:
>120°
Output Voltage:
DC12V-24V
Light Guide Plate:
Mitsubishi 3.0T
Accessory:
RGB Controller and Remoter
Installation Way:
Recessed/Suspended/Surface Mounted
Application:
KTV,Shopping Mall,Store,TV Station etc
Product name:
led panel rgb
Feature:
30x30 cm led panel light

Packaging & Delivery

Selling Units:
Single item
Single package size:
72X47X29 cm
Single gross weight:
1.5 kg
Package Type:
30pcs RGB&RGBW led panel lights use one carton in 72x47x29cm.
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 15 To be negotiated

18w 30x30cm 2.4g wireless zigbee dmx rgb rgbw dimmable led panel light

Specification

You are here: Home > Product Categories > RGB LED Panel Light> RGB-300x300 LED Panel Light



Note: UK Warehouse, speeds up shipping!

1). Warehouse in UK. Stocked items can be shipped to European countries from our UK warehouse with lower freight and shorter delivery time. Ordered items will be despatched within 24 hours after the payment is received.

2). Items will generally reach UK buyer within 1-2 working days, reach EU buyer within 3-4 working days.





                18w 30x30cm 2.4g wireless zigbee dmx rgb rgbw dimmable led panel light



30x30 cm led panel light

30x30 cm led panel light



30x30 cm led panel light



The Specifications of RGB LED Panel Light

Model No

PL-30120-40W-RGB

PL-60120-48W-RGB

PL-3030-18W-RGB

  Power Consumption

40W

48W

18W

Dimension (mm)

     295*1195*11mm

595*1195*11mm

295*295*11mm

LED Qty (pcs)

       182pcs

182pcs

84pcs

LED Type

SMD5050

Color

Multi Colors

Beam Angle (degree)

 >120°

CRI

  >80

LED Driver

Constant Voltage LED Driver

Output Voltage

DC12-24V

Input Voltage

AC 85V - 265V, 50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and PMMA

IP Rating

IP20

Operating Temperature

-25°~70°

Dimmable Way

RGB dimming

Installation Option

Recessed/Suspended/Surface Mounted

Life span

50,000hours

Warranty

3Years



What are the advantages of Lightman RGB LED Panel Light?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• Lightman LED panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
The beam angle of led panel light is120°.

• RGB dimmable led panel light is Red/Green/Blue multi-colors change.
• Innovated structure heating design.
• EVA foam protects the light guide plate from reshaping.
• Lock cable DC plug for RGB led panel light.

• Eco-friendly, no UV radiation, no mercury and IR etc.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.

Product Details

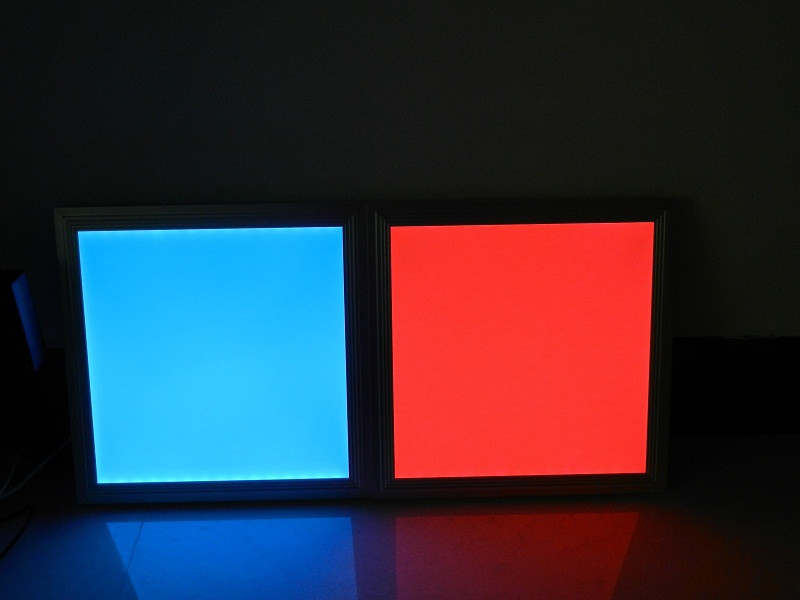

30x30 cm led panel light



30x30 cm led panel light



30x30 cm led panel light



Product Application

led panel rgb

Installation&Packing

led panel rgb

Company Information

led panel rgb


Certifications

led panel rgb

Our Services

led panel rgb

FAQ

Q1: What is the type of your LED resources?
A: We use Epistar SMD2835 for led light source with high brightness and low decay, and SMD5050 for RGB led panel light and RGBW led panel light with different color termperature for your option,such as 2700-3200K,4000-4500K,5000-5500K,6000-6500K. And led CRI is more than 80, and beam angle is biger than 120°.



Q2: What is the material of your LGP?
A: Our LGP is PMMA, and the thickness has 3mm and 4mm for option, which are from ChiMei Optoelectronics Corp or Japan Mitsubishi Corporation.



Q3: What is the material of your led panel light frame and diffusion plate?
A: Our led panel light frame is 6063 aluminum alloy with better heat dissipation. We use 1.5mm anti-fire PC diffusion plate.



Q4: What are your available led panel light sizes?
A:
We have many different led panel light shape and size such as:
Round led panel light size: 90mm,120mm,145mm,160mm,180mm,200mm, 240mm,300mm etc;
Glass led panel light size: 120mm,160mm,200mm,240mm etc;

Square:295x295mm, 595x595mm etc. Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
And if you need, we can make customized led panel light size.


Q5: Do you have dimmable led panel lights?
A: Yes,we have several types of dimmable LED panel lights, triac dimmable, 0-10v dimmable, 24VDC & CCT
& RGB dimmable LED panel light with remote controller or DMX.


Q6: How do you guarantee your product quality?
A: From material purchasing to production finishing, we have a full set of strict inspection process to ensure exceptional quality problem, including IQC, QC&A, OQC. Moreover, before production, our technology department engineers will assess the production process to ensure each process in the right way.



Q7: Can you make customized products?
A: Yes, most of our products can be made to fit your individual application. OEM and ODM are accepted.



Q8: Can you offer cheap shipping cost to import to my country?

A: we have long-standing forwarder which can offer the most competitive price for your reference. Normally, For small order, express will be best .And for bulk order, it is better to by sea but need much time.



Q9: How about your packing?

A: We have two packing solutions for your choices:

Packing OptionsPCS/CTNCarton SizeG.W
Option 1 for 300x300 led panel light  10PCS/CTN70x25x65 cm 24KG
Option 2 for 300x300 led panel light 20PCS/CTN76x26x68 cm 45KG





Q10: Hong long warranty time do you offer?

A: We offer 3 Years and 5 Years Warranty according to customers' requirements with price adjustment.

situation 1

Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, Lightman will provide free new or repaired products based on the proof-documents.

situation 2If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, Lightman will provide paid maintence within warranty period.
