19mm Aluminum Plating IP67 Push Button Piezo Igniter

Feedback Ratings
  • 40-999 Pieces
    $7.70
  • >=1000 Pieces
    $6.50
1 batch = 20 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $7.70 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Daier
Model Number:
PZ19C-10
Protection Level:
IP67
Max. Current:
5A
Max. Voltage:
250VAC
Item:
19mm Aluminum Plating IP67 Push Button Piezo Igniter
Function:
Momentary
Led:
Without
Mounting hole:
19mm
Terminal:
Wired leads
Front head:
Concave
Material:
Stainless Steel/Aluminum Plating
Housing color:
Silver/Black/Red/Yellow/Blue/Green
Operating Temperature:
-20°C ~+55°C
Electric life:
50,000 cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X13X6 cm
Gross weight per batch:
1.0 kg
Package Type:
20pcs PZ19C-10 of 19mm Aluminum Plating IP67 Push Button Piezo Igniter
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 2000 >2000
Est. Time(days) 7 To be negotiated
Product Description
Model
19mm Aluminum Plating IP67 Push Button Piezo Igniter
Rating
5A 250V
Function
Momentary
IP Degree
IP67
Material
Stainless Steel/Aluminum Plating
Housing Color
Red/Blue/Green/Yellow/Black/ Sliver
Wire Size
22AWG

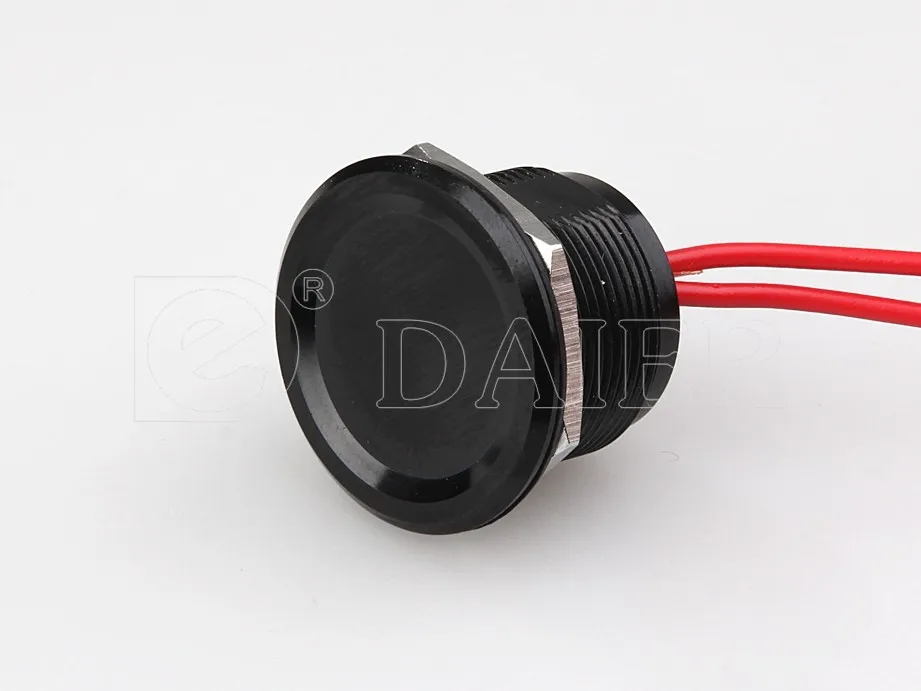

Product Show

PZ19C-10

19mm Aluminum Plating IP67 Push Button Piezo Igniter

Specifications:
1. Rating: 5A 250VaC
2. Function: Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N


Piezo switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
