2017 P10 outdoor wholesales RGB 16x32dots led module/HD P10 DIP full color 16x32 led display module video screen billboard

$298.30 / Square Meter | 1 Square Meter (Min. Order)
- + Square Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
LM-P10 Full Color Video LED Display
Tube Chip Color:
Full Color, FULL COLOR
Module size:
192mm x 96mm
3mm, 10mm
Display Function:
Screen Dimension:
576mmx576mm / 640mmx640mm / 800mmx800

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
65.0 kg
Lead Time :

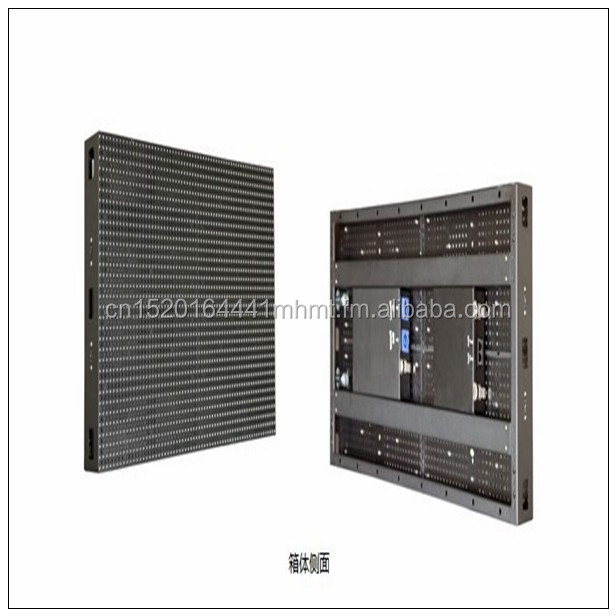

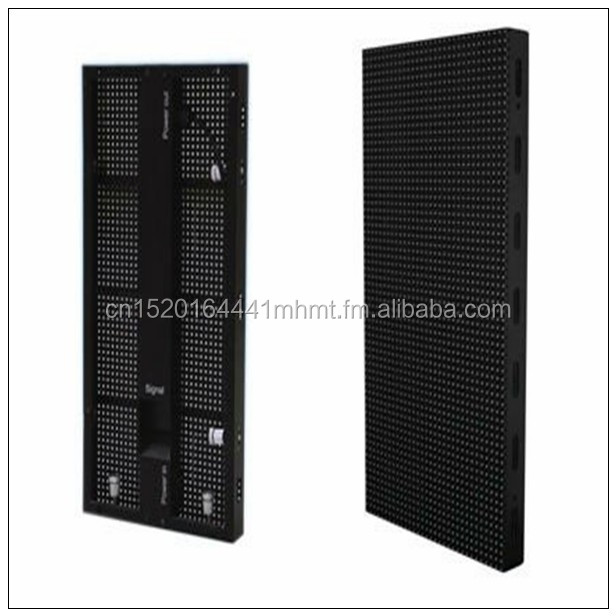

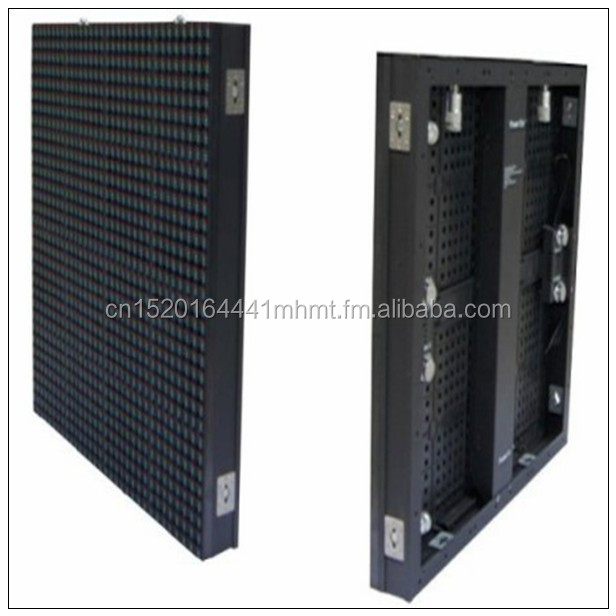

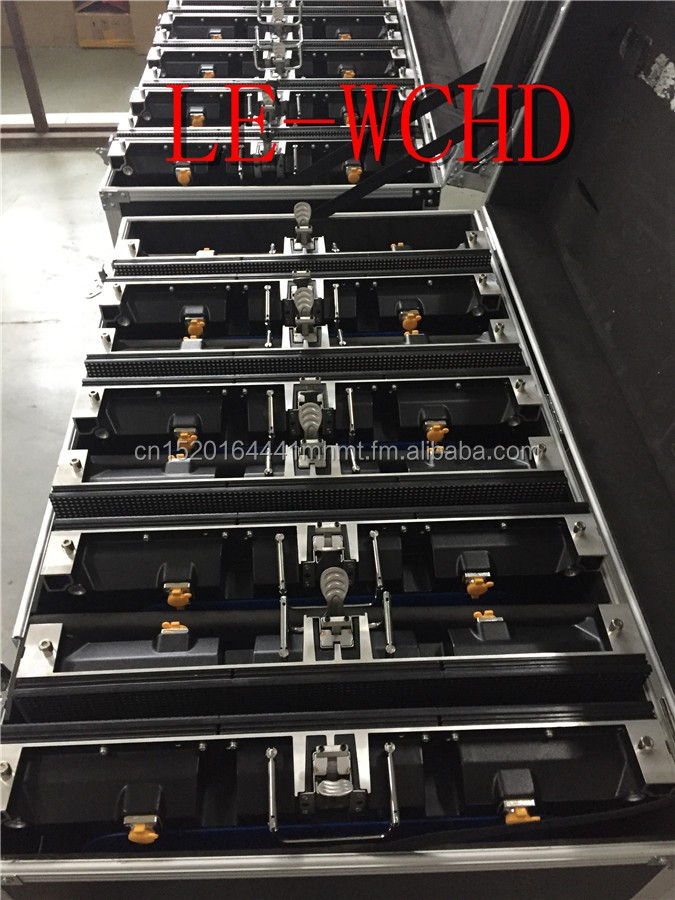

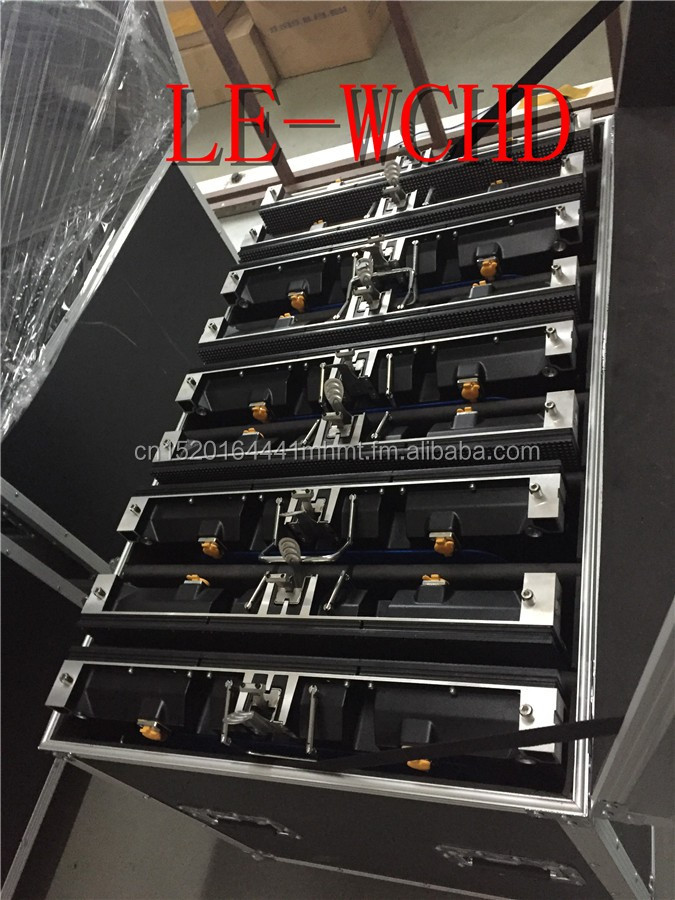

 Rental Ultra-thin & Lightweight Outdoor Die-casting Aluminum LED Display Screen series:

              Outdoor Die casting Aluminum Rental SMD LED Display 640mm x 640mm
Module size/mm288x288320x320320x320320x320
Density of pixel/(dots/m2)27,77722,47815,62510,000
Led encapsulationSMD 3535SMD3535SMD3535SMD3535
Resolution of module48X4848X4840X4032X32
Optimum viewing distance6-50m7-75m8-75m10-150m
View angle / °160 H,120 V160 H,120 V160 H,120 V160H,120V
Max power consumption/W/M21000110010001000
Size of cabinet/mm576x576640X640640X640640X640
Resolution of cabinet96x9696x9680x8064x64
Weight of cabinet/kg11121212
Driving method1/8 scan constant current1/8 scan constant current1/4 scan constant current1/4 scan constant current
Refresh rate Hz/S≥2000≥2000≥2000≥2000
Luminance of white balance≥8000 nits≥7500 nits≥7000 nits≥6500 nits
Operation of Environmental Temperature/°Cbelow 30  to  above 50
Working vlotage110-220 VAC/+/- 10%
Grey scale/colordisplaying colors≥16.7M(synchronized)
Brightness adjustment256 levels of each color(manually),100 levels of each color(automatically)
Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control systemlinsn(sending card,receiving cards and Hubs)
Average of non-failure life>50,00h
Life span>100,000h
Defect dot rate<0.0001


1. CNC + Die Casting process cabinets

The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.


Advance of Die-casting rental outdoor led screen


1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.

2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

5) PCB Board: adopt 4-layer design.

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.6.jpg7.jpg8.jpg9.jpg10.jpgIMG_1707_.jpgIMG_1708_.jpgIMG_1710_.jpgIMG_1711_.jpg
