4 electropads,2 lead wires,1detection pen, 6 alligator wires
Packaging & Delivery
Single package size:
Single gross weight:
gross weight: 3 kg(Acupuncture device)
1 - 1
To be negotiated
2019 new arrival acupoint detector electronic acupuncture device with auto point position for body health care invented in China
The GY-KWD808 Acupuncture Stimulator is a professional level acupuncture apparatus designed for detection of acupuncture points, massage (TENS), and for applying acupuncture (electro-needle therapy) and magneto-therapy.

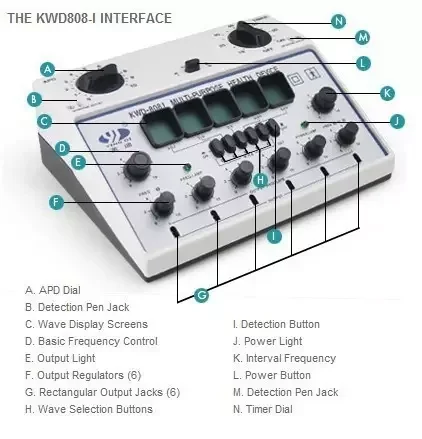

GY-KWD808 features a built-in timer and can output 5 different kinds of waveforms, each indicated by a symbol which lights up when selected. However, unique features specific to only this model include 2 detection jacks, 6 outputs, and a design tailored chiefly for clinics and hospitals.
USES FOR THE GY-KWD808
Provides electro-needle therapy
Alternative to Hand Massage
Enables needle-less acupuncture-pulse electric therapy
Assists the detection of acupoints
Multi-Purpose Health Device
Adjustable frequency and intensity
Adjustable sensitivity probe point Locator
Five wave form selection buttons with illuminating wave form graphics
2 independent indicator lights for frequency and power
Use with adaptor or 6 "C" batteries
Operating output protection with error signal tone for incorrect use
6 outputs, plus 2 detection outputs

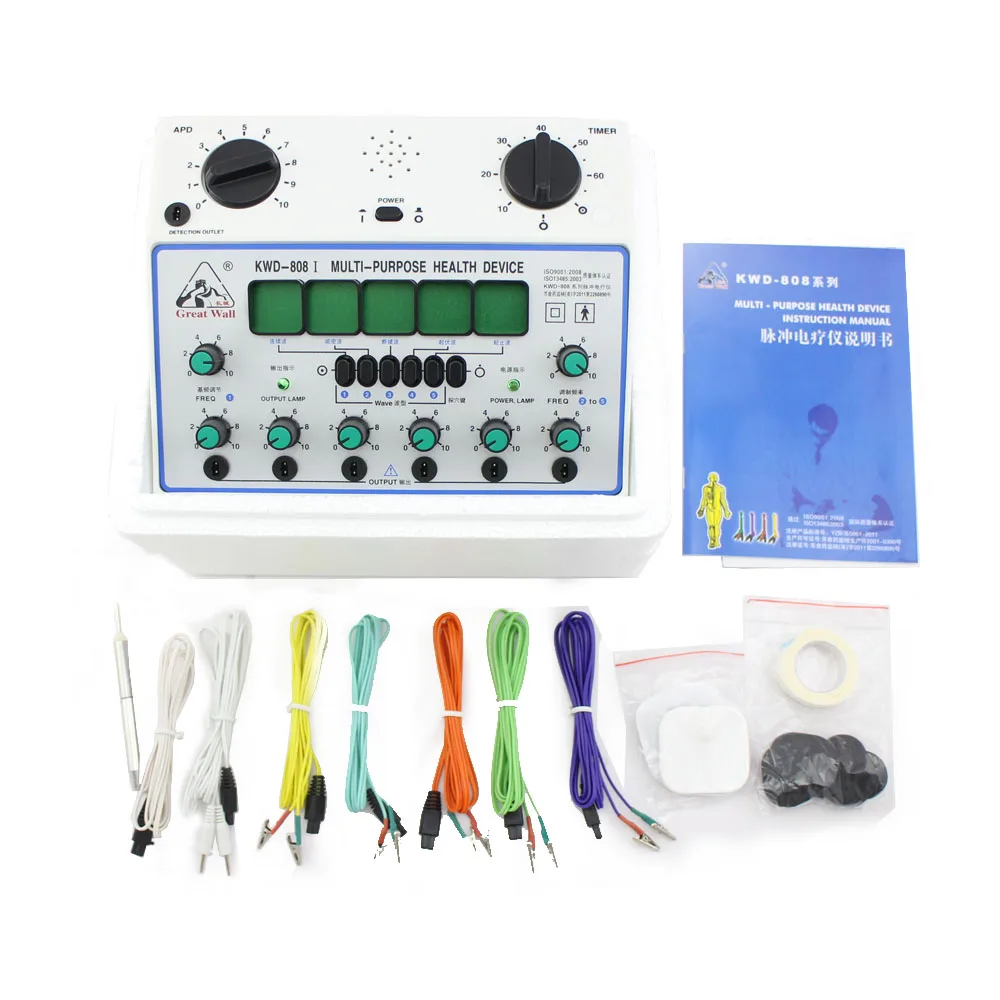

Includes adhesive electrode pads and lead wires, acupoint detecting pen, and output wires.
THE 5 PULSEWAVE FORMS FOR THE GY-KWD808
This acupuncture stimulator features five kinds of wave forms, all very safe, with low frequencies equal to that of the human body. The following five wave forms may be used at the same time or separately, and the output of each one may be regulated independently. For increased effect, two or more outputs can be used simultaneously.
Continuous Wave Pulse duration r = (0.5 +/- 0.15) ms; Repeated pulse frequency: f1=( 1+/- 0.5 ) Hz to ( 100 +/- 10) Hz. and FREQ1 can be regulated continuously, Max Output pulse amplitude: 40V +/- 10V (Load 500 O.)
Dense-Disperse Wave Dense & disperse waves display altern¬atively. Disperse frequency: f1 (same with base wave); Dense frequency: 100 Hz. Pulse duration: 0.5ms. FREQ2 regu-lates the frequency f2 of (10 +/- 3) to (50 =/- 10) cycles per min. Max Output pulse amplitude: 40V +/- 10V (Load 500 O.)
Intermittent Wave Pulse shows at regular interval at the same frequency.
Ripple Wave Amplitude increases to maximum then drops to zero suddenly, and repeats. Frequency: (10 +/- 3) to (50 +/- 10) cycles /min. The Max output plus ampli¬tude range is over 5V to 30V (load 500 O.).
Respiration Wave Amplitude increases first, then drops quickly to zero, and repeats. At 1kO load Vp3 = 24V, other pulse data are same as above.
A/C 110V, D/C 9V
MAX POWER CONSUMPTION
6 "C" Size Batteries
222mm x 172mm x 75mm
ACUPOINT DETECTION OUTPUTS
Tone (song) sounds on error
4 electropads with 2 lead wires, 1 detection pen, 6 alligator clip output wires
