2019 new solar product Wellsee brand 12V/24V 10A 100 w 200W solar system PWM charge controller 12V 10a solar regulator

  • 10-99 Pieces
    $11.50
  • >=100 Pieces
    $9.80
Rated Voltage:
12/24V
Maximum Current:
10A
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples: $11.50 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $11.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
WELLSEE
Model Number:
WS-C2415
Application:
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller, solar charge controller, Solar system
Type:
PWM
Work Time (h):
48hours
Max PV Voltage:
48V
Max PV Power:
360W
Commodity:
PWM solar charge controller 10a
Charge mode:
3 Stage PWM Charging
System voltage:
12v/24v Automatic Recognition
Display:
LED Screen
Battery type:
LiFePO4/ Lithium/Li-NiCoMn /Sealed Lead Acid
Function:
Electronic Multi Protective Function
Warranty:
2 Years
Color:
Black
Keywords:
Solar Charger Controller PWM

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X12X5 cm
Single gross weight:
0.5 kg
Package Type:
50picecs/carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated

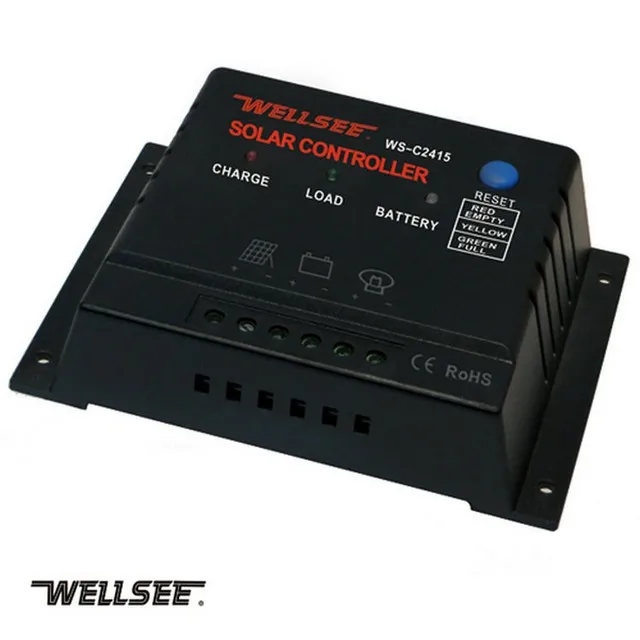

WELLSEE 2019 new solar product Wellsee brand 12V/24V 10A 100 w 200W solar system PWM charge controller 12V 10a solar regulator

Brand:

WELLSEE

Dimension:

134*100*31mm

Name:

Solar charge and discharge controller

Weight:

280g

Model:

WS-C2415

Package:

50pcs/carton



WELLSEE solar controller (WELLSEE charge controller,solar regulator,solar charge controller) applies in solar photovoltaic systems, which coordinates the working of solar panels, batteries and loads. It adds some protection functions, so that the entire system can be in efficient and safe operation.

 WS-C2415

WS-C series solar controller applies to all types of photoelectric panels and various types of batteries, MCU (Micro-ProcessingController) has PMW (Pulse Modulation Wide-frequency) 0~100% variable duty cycle process. According to the types and actual charging situation of the battery, WS-C series solar controllercan provide the fast and best charging voltage and electricity from the PV panel. C30 and C60 series are equipped with advanced man-machine interactive function, so the user can adjust the charging voltage.



Functions

1. Automatic recognition of input voltage

2. Applying with various types of durable batteries

3. Micro processing controller Pulse Modulation Wide-frequency PWM charge

4. Setting the voltage of low voltage cut-off/resuming connection of the DC output of the load port

5. Temperature sensor for charging a battery in compensation

6. Protective circuit of PV from reverse-charging.

7. Overloading protection

8. Overcharge protection

9. Short circuit protection

10. The temperature compensate

11. Reverse polarity connection protection

12. Converse discharge protection

13. Thunder protection

14. Low voltage protection



TECHNICAL INDEX:

Model



WS-C2415 10A



Rated Voltage

12V / 24V   Automatic voltage recognition

Max Load current



10A

Input voltage range

12V---17V / 24V---34V

Length≤1m

 Charge loop drop

0.25V

Length≤1m

Discharge loop drop

0.05V

Over voltage protection

17V / 34V

Full charge cut

13.7V / 27.4V

Low voltage cut

10.5~11V / 21V~22V

Temperature compensation

-3mv/°C /cell

No load loss

≤10mA

Max wire area

2.5mm2

Ambient temperature

-25°C---+55°C



 WS-C2415 01WS-C2415 102322

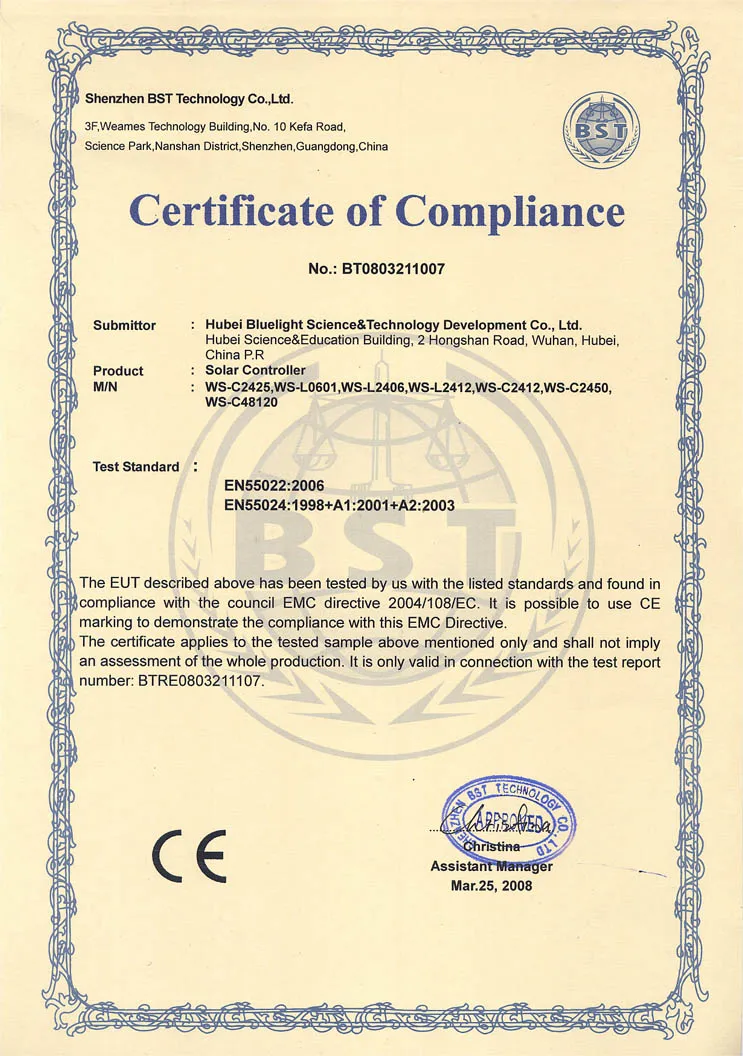

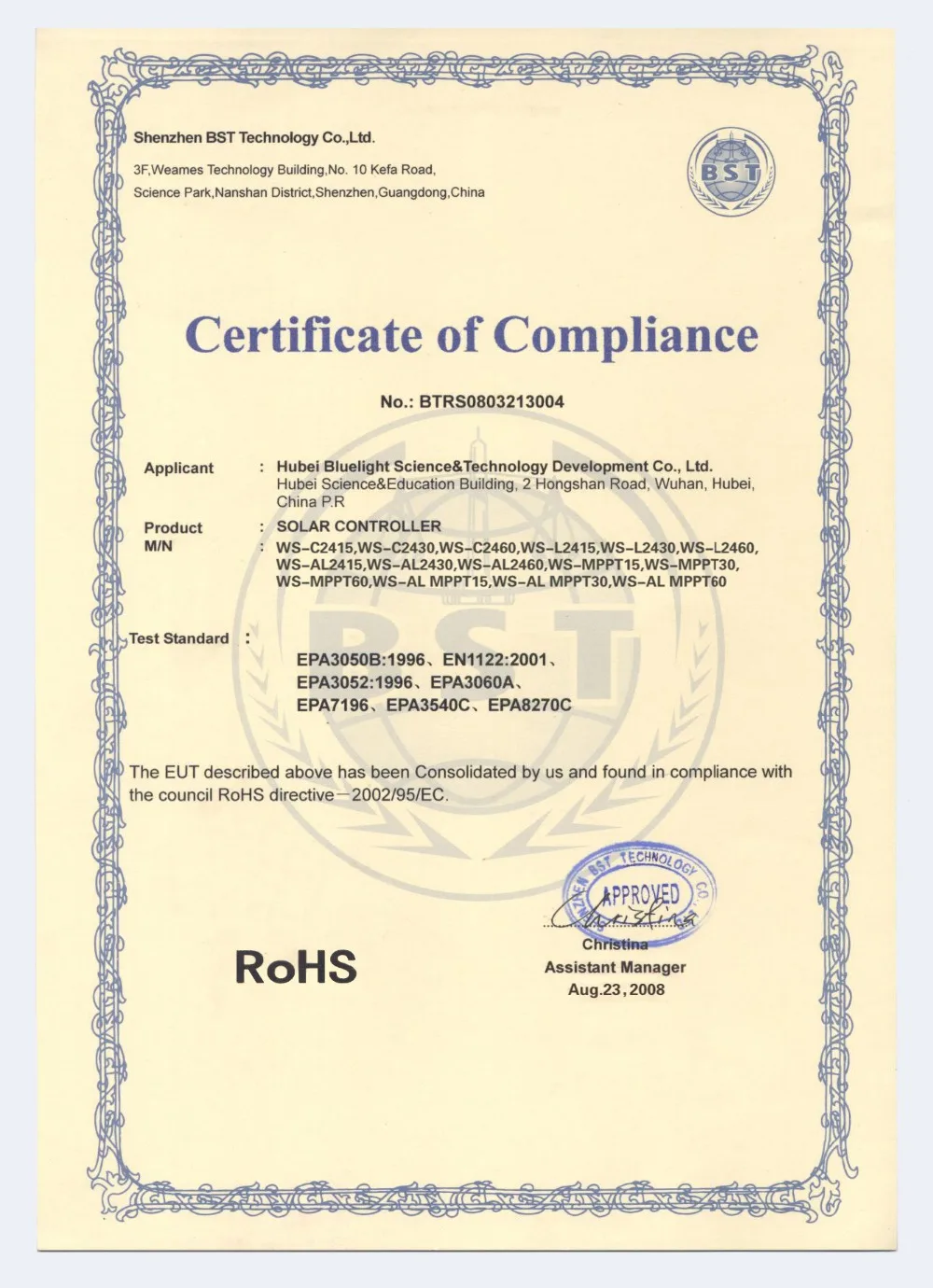

CErohs
