2019 newest mdvr Truck Van 1080p H.265 4ch HDD mobile dvr with 4G WIFI GPS functions

$210.00 / Set | 1 Set (Min. Order)
Type:
DVR
Channels:
4
$210.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Sets)
Customized packaging (Min. Order: 200 Sets)

More

Graphic customization (Min. Order: 200 Sets) Less
Contact Supplier
Samples - $210.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Citops
Model Number:
M51H
OS:
Linux3.18
Input/output:
4 channel video input, 2 channel video CVBS output
Compression:
H.265
Resolution:
1080P/720P /D1
Storage:
Support 1pcs 2.5'HDD up to 2TB and 1pcs SD card up to 256G
IPC:
support
3G/4G/WIFI:
Support 3G/4G and compatible with GPRS, EDGE, etc; built-in WIFI
GPS(option):
Support GPS, option/BD/GLONASS
Warranty:
12 Months
Size:
324.6 x 238 x 116 mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
29.5X23X10.5 cm
Single gross weight:
3.0 kg
Package Type:
1.Standard packing(8sets / carton)/OEM package.
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

1080P ahd gps 4g wifi mdvr vehicle blackbox car recorder mobile dvr

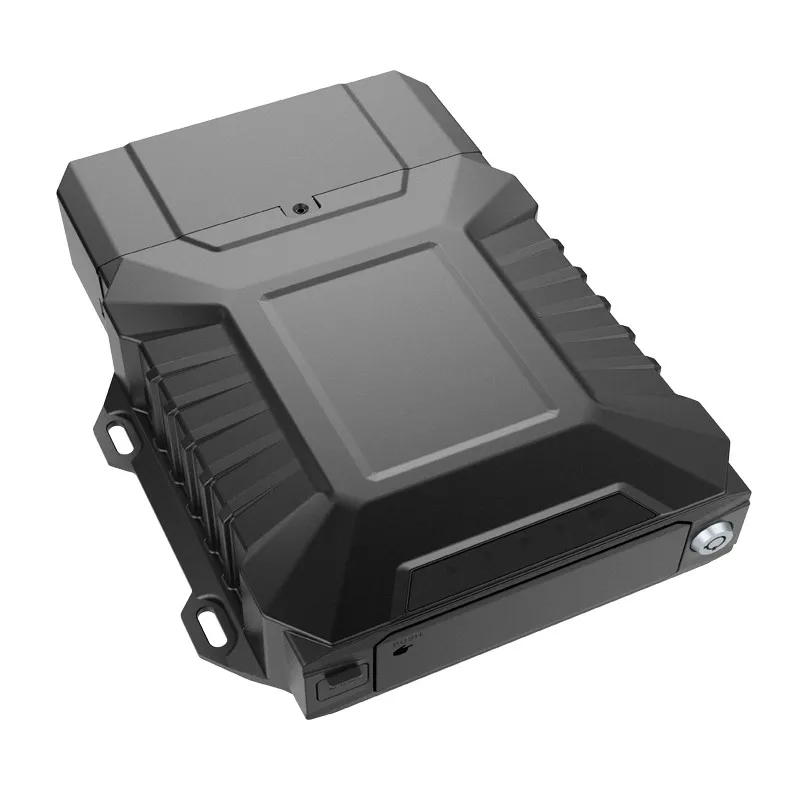

M51H is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor HI3521D and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI. It supports 1080p,720p,WD1,WHD1,WCIF,D1,HD1, CIF resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.

Key features

1. Industrial-grade design with special vehicle port for reliable working on harsh environment.
2. Wide voltage support over-load ,short circuit ,reverse connect protection.
3. UPS power for continual work.
4. Support hard disk 2TB+ SD card 256G for record storage.
5. 4G/WIFI transmit; multiple grade image quality transmitting option.
6. GPS/BD/GLONASS global positioning.

7.Powerful software platform including remote preview, playback, broadcast, talk and more.

8. IP communication.

9. PTT group talk function.

10. Support multiple serial port extension.

11. Could be built-in ADAS.

Specification
Model
M51H
OS
Linux3.18
Operating
Cell phone APP, PC client, Remote controller
Functions Summary
Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition.
Video and Preview
Video Input, Output,Signal standard
AHD input:8ch 1080p/15fps,8ch 720p/30fps,8ch D1/30fps,4ch 1080p/30fps. IPC input:1ch default, externally expandable 1-4ch,support POE; Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional
OSD
Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc.
Video Compression Format
Compression coding. Applying H264/H.265 hi-performance processor.
Image quality
Code stream, frame rate optional
Preview
1/4/6/8/9 channel preview
Resolution
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M

D1:30fps/512K/1M/2M

IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
Audio
Audio Input, Output
4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ
Compression Format
G.711A, G.726
Recording
Storage Medium
Supporting one 2.5" SATA hard drive and one SD card
Video Strategies
Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Alarm pre-recording
0-60min
Alarm recording delay
0-30min
Playback channel
Support local 1/4/6/8 channel playback
Browse mode
Time, channel, event.
Communication Ports
RS232, RS485
ADAS
Built-in (Optional)
Wireless Transmission
3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect.

Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M)
Position
GPS/BD: Positioning, speed detection, time synchronization
Power Supply and Power Consumption
Power Supply
1ACC on/off
Input Voltage
DC:+8V ~ +36V
Output Voltage
+12V@1A; +5V@1A
Power Consumption
Max 25W consumption, about 0W in standby mode
Operating Environment
Temperature
preheating: -20℃ ~ +70℃
Humidity
8% to 90%
Dimensions
324.6x238x116 mm.
Weight
Net: 2KG
Related Products

Body-Worn

Mobile DVR


MDVR

Our Company

    Shenzhen Citops Communication System Inc. (Short as Citops System) is the leading integrated video communicated system solution provider, incorporates search and development, design, production and sales. Providing advanced overall security monitoring products and premium service.
    Devoted to providing Citops solution based on video security monitoring for different fields such a Finance, Public transportation, Transport, Education, Consumer, Justice system, Telecom, Police, etc.
    Serve customers all over the world with best efficiency, highest security and best service.


Certifications

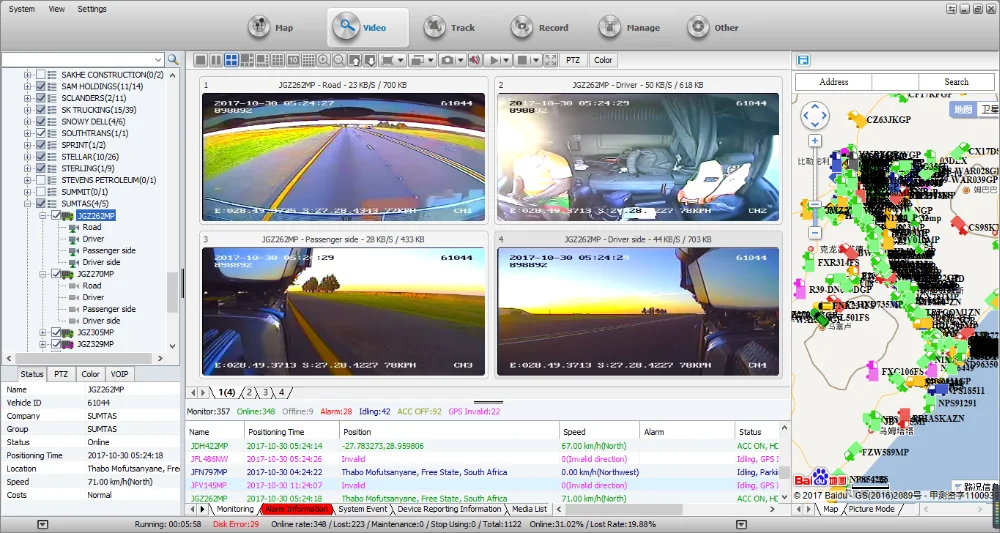

Application diagrams, all our products can integrated with our CMS:
