240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm Quantum Board

$77.98 - $106.44 / Piece | 1 Piece (Min. Order)
Color:
US Plug EU Plug UK Plug AU Plug
Model Number:
301B-3000K
$106.44
- +
available
301B-3000K+660nm
$106.44
- +
available
281B-3000K
$77.98
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Warranty(Year):
1-year
Lighting solutions service:
Grow light
Luminous Efficacy(lm/w):
160
Chip Material:
AlGaInP
Emitting Color:
Warm White
Luminous Intensity:
200LM/W
Luminous Flux(lm):
48000
Optical Attenuation(%):
2
Power:
240W, 240W
Power Dissipation:
240
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
3000K
Operating Temperature(℃):
-20 - 85
Storage Temperature(℃):
-10 - 65
Place of Origin:
Guangdong, China
Brand Name:
LZ
Certification:
CE, RoHS
Product name:
Quantum Board 240W
Application:
Grow Lights
LED Chip:
Samsung LM301B
LED Type:
SMD 3030
LED Quantity:
288pcs
PCB Board Material:
Aluminum
PCB Board Thickness:
1.6mm
PCB Board dimension:
286x174x1.6mm x 2pcs
Heat Sink dimension:
634x195x10mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
66X25X16 cm
Single gross weight:
5.000 kg
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated

More Related Items

Other ptions link below
Product Description

Free Shipping 240W QB288 Full Spectrum Quantum Board PCB Module with LM301B Samsung LED Chips 3000K 660nm for Grow Light

The LZ 240W Quantum Board Module - Made by Samsung LM301B LED with extra Red (660nm), creating tailor-made light recipe with up to 2.8μmol/J high efficacy for medicinal plants. Installed with 24.8×7.9in (63×20cm) large heat sink, WAGO 2060 & 221 splicing connectors and MEANWELL LED driver for lower temperature, higher reliability and longer lifetime. Due to its tailor-made light recipe, high efficacy, low temperature rise and long lifetime, the RX-LM301-312 Series will be a great choice for hobby growers medicinal plants cultivation in small grow tents.


· Super High efficiency white light Quantum Boards

· White Light Full Spectrum for better results

· each board 4pcs High quanlity Wago connector.

· Better canopy light penetration with diffused light

· Perfect performance for veg and bloom

· 5 Year Warranty for board


Package Contents:

1. The LED PCBA

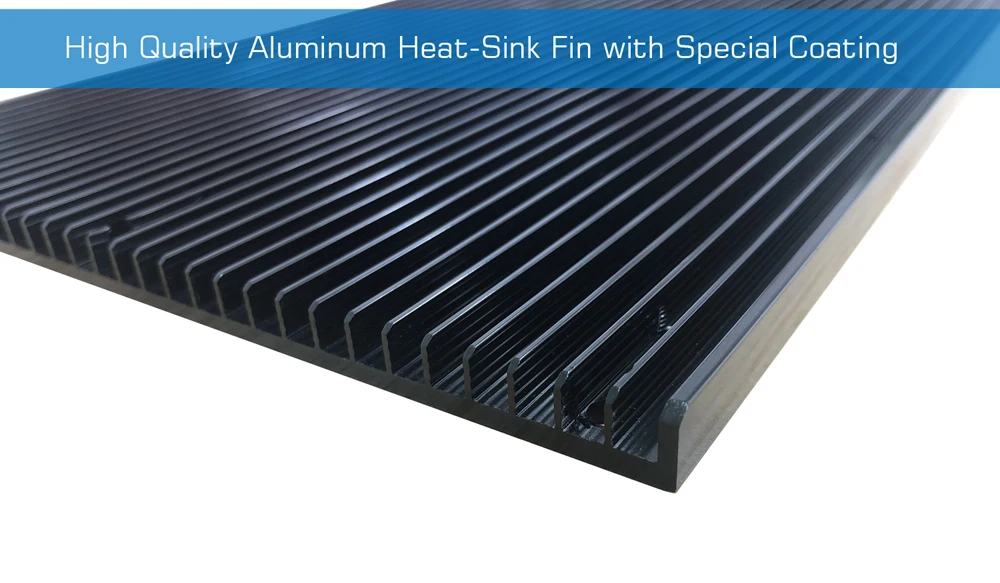

2. Aluminum Heat-sink

3. Meanwell Dimmable Power driver

4. 220V Power Cable (US / UK / EU / AU)

5. Hanging rope x 4

6. Adjustable heavy duty hanger x 2

7. Wago 2P cable connector x 2

8. Ring Screw set for hanging

9. Waterproof  cable connector

Model
LZ-QBM240W-W660
Dimension
24.8×7.9inches (630×200mm)
Spectrum
3000K+Red 660nm
PPFD (µmol/m²/s)
1397.6/0.3m
907.7/0.4m
625.6/0.5m
Illuminance (Lx)
187262.0/0.3m
86947.1/0.4m
70294.2/0.5m
Lumen
43409Lm
System Efficiency
Could reach up to 200lm/w
PPF
647.15umol/s
Surface Temperature Rise
Tc 28K
Operating Temperature
-30°C~40°C
Tolerance Range for Optical and Electrical Data
±10%
Beam Angle
120°
Recommended Hanging Height
 0.2~0.5m (8~32in)
Flowering Footprint
4.5'×4.5' or 5'×5' (2 kits)
Veg Footprint
6'×6' (2 kits)
Part No.
Package contents
Power
Gross Weight
CCT/Wavelength
QB288-LM301B
QB288 Board(16S18P), 1pcs;
Heatsink: 326*195*10mm;
Driver: XLG-150-H-AB;;
Mounting and connecting Accessories
Potentiometer (Optional);
120W
2.9kg


White: 3000K
or
White + Epistar 660nm
QB288x2-LM301B
QB288 Board(16S18P), 2pcs;
Heatsink size: 634*195*10mm;
Driver: HLG-240H-48B;
Mounting and connecting Accessories
Potentiometer (Optional);
240W
4.4kg

Default Shipping
White: 30000K
or
White + Epistar 660nm
QB288x3-LM301B
QB288 Board(16S18P), 3pcs;
Heatsink size: 940*195*10mm;
Driver: HLG-320H-48B;
Mounting and connecting Accessories
Potentiometer (Optional);
300W
6.2kg


White: 3000K
or
White + Epistar 660nm
QB288-LM301B-PCB
QB288 Board(16S18P), 1pcs
120W
0.1kg


White: 3000K
or
White + Epistar 660nm
Detailed Images
Packing & Delivery
The freight may not reliable for big quantity, and please contact us to confirm and revise the freight if then. Thanks.
