30 Channel FXS/FXO over fiber voice PCM multiplexer

Feedback Ratings
US $400.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
photel
Model Number:
PT-50T 1008
E1 number:
4
Power supply:
AC+DC, AC / DC
E1 interfaces:
75Ω or 120ohm
LED Alarm:
support
ETH number:
4*10/100M
voice port:
FXO/FXS/4WE&M/HOT
ETH interface:
10/100M self-adaptive
SNMP:
Support
Warranty period:
2years
OEM:
Support

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X36X12 cm
Single gross weight:
4.6 kg
Package Type:
CARTON
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 5 To be negotiated
Product Description

PT-50T 1008 PCM 30 channel multiplexer

      PT-50T 1008 supports 3 types of networking mode: Optical uplink, E1 uplink or IP uplink are user definable. Total 4 x E1 ports are provided and by default as downlink in transparent connection mode. By management software, those ports can be defined as individual uplink just a point click, such capability increase the system flexibility tremendously as networking equipment with point to multipoint application.

   PT-50T 1008 also provides 4 x 10/100Mb Ethernet switching ports, supports learning bridge and IEEE 802.1q port based VLAN. The Ethernet switching port supports Nx64K configure when make connection to the uplink port. Various type of voice and data interface cards are support for different applications, all voice and data interface cards are equipped with second level surge protector for enhancement of the reliability.

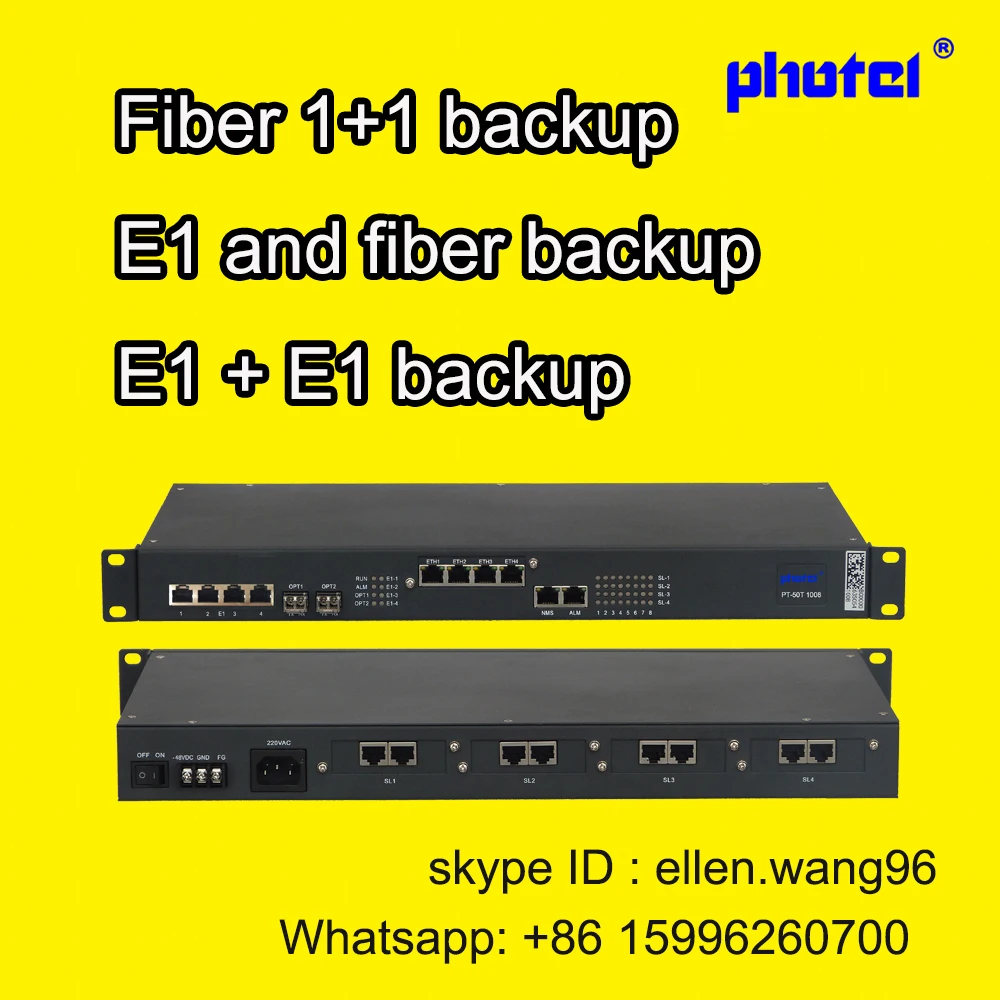

Detailed Images

Front panel interface

1)  There are 4E1 which user can choose 75ohm or 120ohm, each E1 has two working mode. One is as uplink can transfer voice/data.Another mode is as transparent transmission, 4E1 can transmit over Fiber to achive PDH function.
2) There are two Optical fiber interface, support 1+1 backup or independent mode which up to two directions.
User can set which one they need by NMS
3) There are 4*10/100M Ethernet ports. support VLAN.
Ethernet data can transmit over E1 or fiber. Eth-4 can be used uplink transmit media;
4)There one ETH NMS port , one RS232 NMS port and alarm port.


Back Panel

1) We support AC+DC,AC/DC power supply;

2) four business slots, it supports FXS/FXO/4WEM/RS232/HOT/MAG and so on;

3) We support OEM and ODM

FXS
 8 channel/unit card
FXO
8 channel/unit card
Hotline
8 channel/unit card
4WEM
4 /8 channel/unit card
RS232
8 channel/unit card
Ethernet
4 channel/unit card
Main Features

 3 uplink modes are configurable for different networking demand;
 Multi-services with voice / data, E1 and IP over optical link;
 Guaranty 100Mbps bandwidth for Ethernet transport over the fiber uplink;
 Provides 4 x E1 and 4 x 10/100BT Ethernet switching ports;
 Supports 30 x data/voice channels with additional 2 spare voice/data ports;
 RS232 data module is orderable;
 Voice modules include FXS, FXO, Hotline,4WE&M, Magnet and Carrier;
 Second level surge protector are equipped on voice and data cards;
 Hot swappable 1+1 optic link protection;
 Support E3 and E6 line quality alarm on fiber link;
 2.048Mb/s interface adopts high accuracy digital PLL circuit for clock recover;
 In-band management channel for remote control and system management;
 PTNMS supports configure backup, firmware / software onsite upgrade;
 Audible and visible alarm indication for local or remote unit;
 Alarm relay is provided for external alarm facility connection;
 The power supply can be AC220V or DC-48V or AC220V + DC-48V.

Specifications
E1 Interface
 Optical interface
ETH interface (10/100M)
 Power Supply
Bit rate: 2048Kbps ± 50ppm
Bit rate: 150Mbps ± 50ppm
Interface rate: 10/100Mbps, auto
Input voltage: -48Vdc and/or 220Vac
Code type: HDB3 code, G.703 standard
Output optical power: ≥-15dBm
Standard: IEEE 802.3, IEEE 802.1Q (VLAN)
Voltage range: -36Vdc ~ -74Vdc, 165Vac~265Vac
Input impedance: 75Ω or 120Ω (optional)
Receiving sensitivity: ≤-35dBm
Connector: RJ45
Power consumption: <10W
Frame structure: G.704, G.706
Optical wavelength: 1310nm/1550nm
Operation Environment
Compression law: G.711
Optical interface connecter: SFP/LC
Working temperature: -10°C ~ 50°C
Level: ±2.37V ±10%
Working humidity: <=90 % (non condensed)

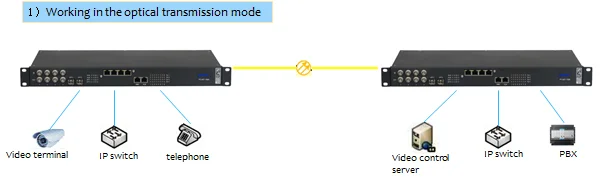

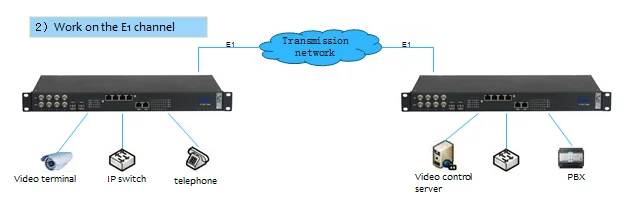

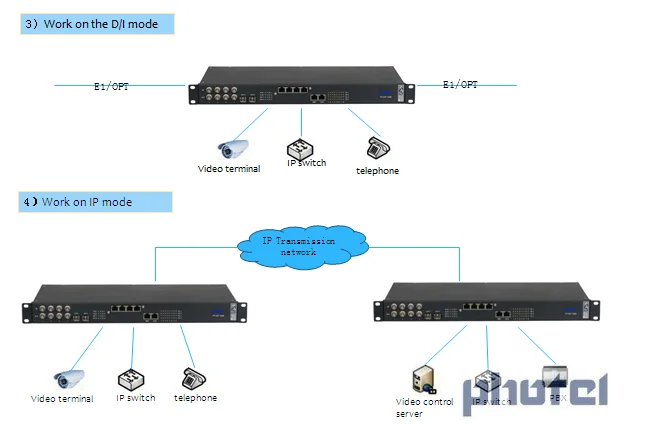

Application
