30W All in one integrated solar power led street light with pole

Feedback Ratings
  • 1-9 Pieces
    US $205.00
  • 10-100 Pieces
    US $200.00
  • >=101 Pieces
    US $197.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Felicitysolar
Model Number:
FL-A2-30W
Power Supply:
Solar
Application:
Highway, parks, street,high way
Lampshade Material:
Toughened Glass, Toughened Glass
Lighting Bulbs & Tube:
Energy Saving, Integrated light source 8W*1PC
Battery:
11.1V 6AH
Color Temperature:
3000-7000k
Dimension:
1040*400*145mm
Lamp Body Material:
Aluminum Alloy
Controller:
waterproof type
Panel:
57W Mono

Packaging & Delivery

Selling Units:
Single item
Single package size:
1155X475X245 cm
Single gross weight:
17.6 KG
Package Type:
carton package
Lead Time :
15
Product Introduction

Brief Introduction

All in one solar street light is the product integrated design with LED light source, high capacity lithium battery, mono-crystalline solar module and automatic controller. It is raised LED light sources which are powered by photovoltaic panels.The photovoltaic solar panels charge the rechargeable battery by intelligent controller, which powers the LED light source during the night. In addition, the all in one light with a body sensor function, when the body through, the lamp becomes brighter. This product widely used in rural road, city streets, gardens, villas and other places.

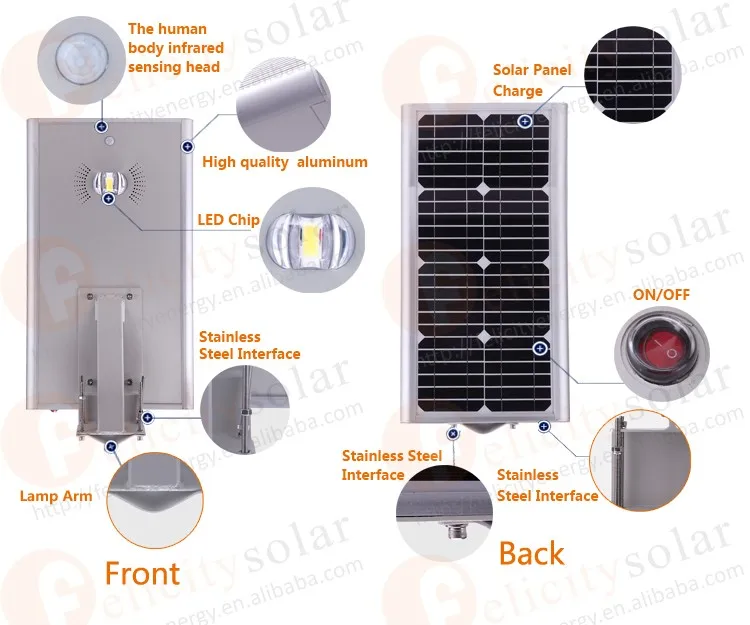

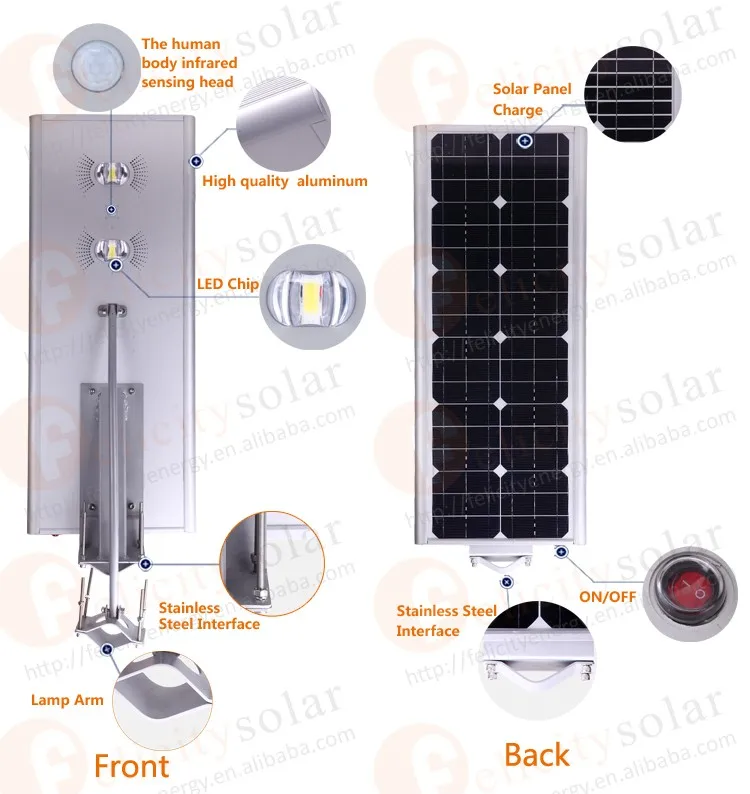

Details Show

Main Advantages

1. No need of cable installation or special light pole, functional components modular design. Installation, maintenance and replacement is convenient and quick .

2. High efficiency solar panel. High transfer rate, charge full quickly.

3. Using high capacity lithium ion battery, high energy, long life, light weight, green and environmental protection, do not produce any harmful substances.

4. Using LED lighting source, no diffuse reflection effect, high light efficiency. Coupled with the unique secondary optical design, exposures to the wider region, This achieve energy saving again to improve the efficiency of light. And the LED light source has a long service life, high luminous efficiency; the advantage of light color uniform, is also a best product of environmental protection.

5. The Shell adopts aluminum, which have a advantage of light weight, corrosion resistance, wear resistance and other characteristics. Ensuring product to adapt to the humid and hydrochloric acid environment.

6. Control system adopts industrial-grade components manufacturing, which can adapt to all kinds of wicked environment and ensure the street light normally on.

Product Parametters
Model
FL-A2-8W
FL-A2-15W
FL-A2-30W
Light source
8W
15W
30W
Solar module
17W(Mono)
36W(Mono)
54W(Mono)
Lithium battery built-in
6AH
11AH
24AH
Light controller and body induction
yes
yes
yes
Luminous flux
All light pattern
780lm
1450lm
2500lm

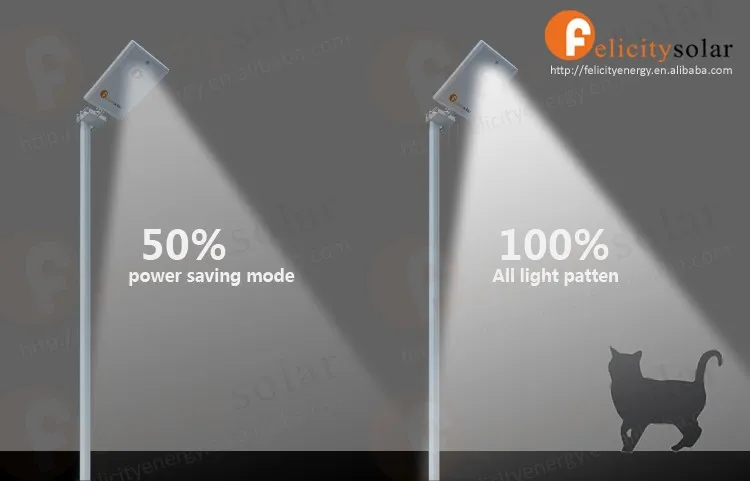

Power saving mode
200lm
200lm
200lm
Working time
All light pattern
≥8 hours
≥8 hours
≥6 hours
Power saving mode
≥12hours
≥12hours
≥12hours
Combined mode
All light pattern 7H
Power saving model 4H
All light pattern 7H
Power saving model 4H
All light pattern 5H
Power saving model 6H
Solar panel charge time
8H strong sunlight
Visual Angle
120°
120°
120°
Color temperature
3000-7000K
3000-7000K
3000-7000K
Induction angle
120°
120°
120°
Storage temperature
0-55℃
Operating humidity
90RH%
Working
temperature
Charge temperature
0-55℃
Discharge temperature
-10℃-60℃
Waterproof level
IP65
Weight
6KG
9.8KG
16KG
Products Dimensions
675*340*140mm
840*475*245mm
1155*475*245mm
Installation height
3-4m
4-5m
5-6m
Light pole diameter
40-76mm
70-114mm
114mm
Recommend light space
8-10m
15-20m
25-35m

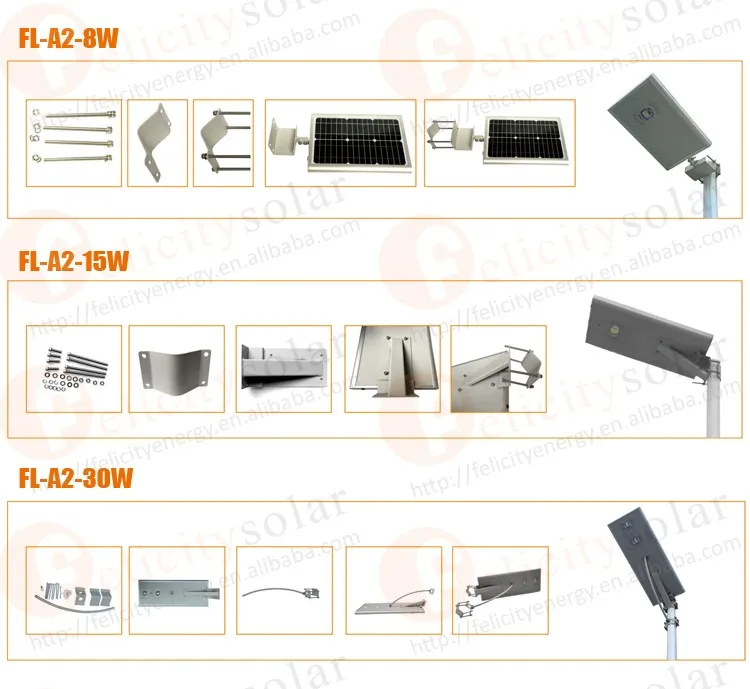

1. Choose the best location to make the light pole, should be used for 3-6m in height, 50-80 - mm in diameter, wall thickness more than 2.0 mm;
2. Please check whether parts are complete or not before opening the package;
3. Turn on the switch on the front side;
4. Set the light into the pole, Use a special tool to tighten the security screw, ensure the light is firm.

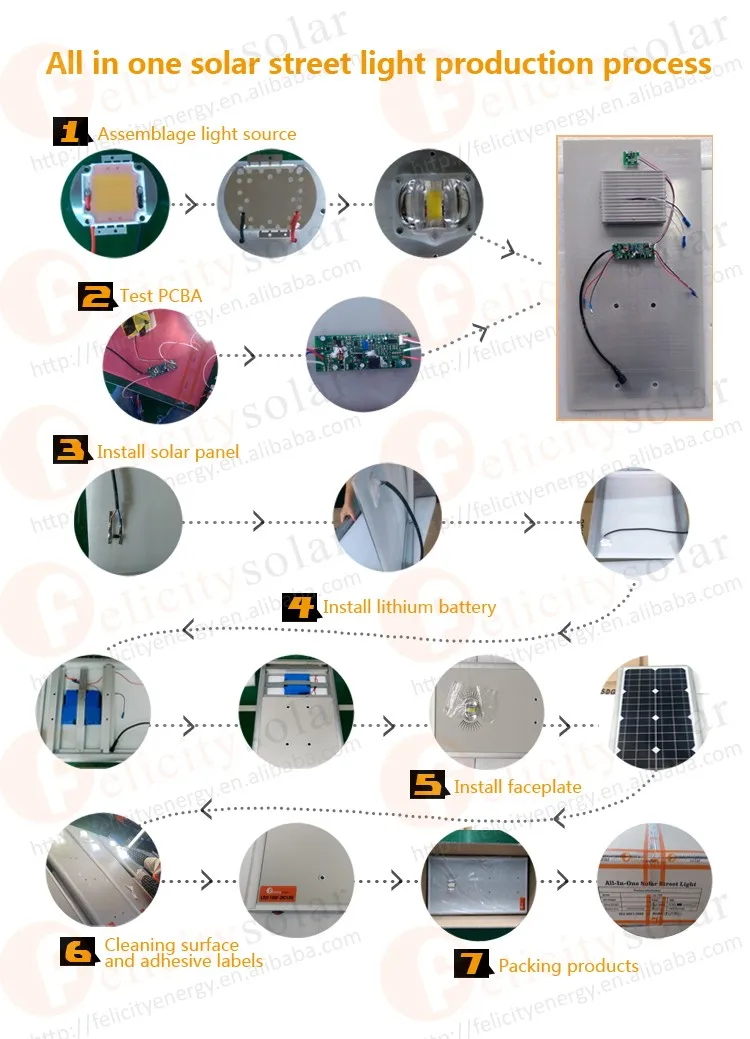

Produce Process

Certification

We have certification of CE, ROHS, ISO, etc.

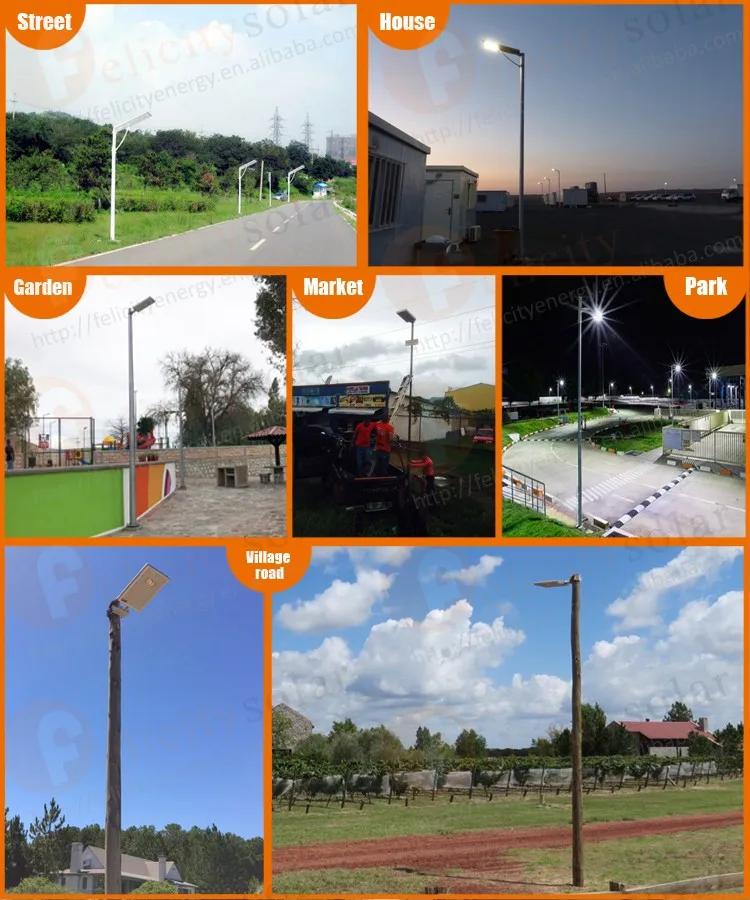

Application Cases
Packing & Delivery

Size:

FL-A2-8W    675*340*140mm

FL-A2-15W  840*475*245mm

FL-A2-30W  1155*475*245mm

Weight:

FL-A2-8W    6KG

FL-A2-15W  9.8KG

FL-A2-30W  16KG

Container loading:

FL-A2-8W 800pcs/20' ; 2000pcs/40'

FL-A2-15W 800pcs/20' ;2000pcs/40'

FL-A2-30W  500pcs/20' ; 1000pcs/40'

Our Company

Company Profile

Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar panel production lines, LED street light production lines and the testing systems for solar power and lighting.


 Read more

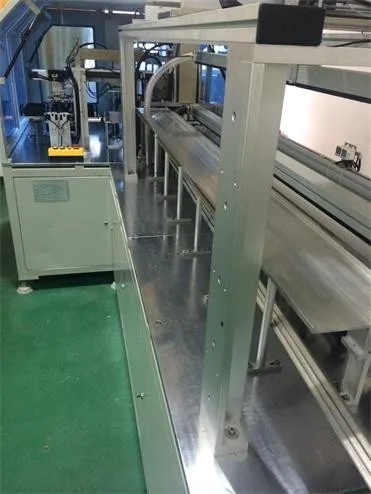

Equipment&Technology

In order to provide the best quality products to our clients, we use high quality equipment to produce the products. And we always focus on our R&D department for finding the newest technology. It helps us leading the solar products in the market.


Read more

Our Service

One of our successful reason is our service.  For giving a good buying experience to our clients, we will try our best to provide the best service. Before-sales service, on- purchase service, after-sales service. We provide life time consultation 24H every day.


Contact us

FAQ

Q:How long is the all in one solar street light working time?

A:The all in one solar street light working time is about 11 hours.

Q:How long is the all in one solar street light charge time?

A:The all in one solar street light charge time is 8 hours in strong sunlight.

Q:What kind of the type of the battery inside?

A:We using the high capacity lithium ion battery, high energy, long lifespan.

Q:What kind of certification of the all in one solar street light you have?

A:We have ISO9001,CE, ROHS TUV, etc.


Q:What is MOQ of the all in one solar street light?
A:The MOQ of the all in one solar street light is 10 pcs.

Q:What is the warranty for the all in one solar street light?

A:For the all in one solar street light, we offer 1 years warranty for free,  the second and third years will charge cost of maintenance.

Q:What is the terms of payment?

A:T/T, L/C,western union, paypal, trade assurance or cash; 30% for deposit, the balance 70% before shipment.

Q:What is the delivery time?

A:3 work day with stock after receiving the payment. No stock, 20 work days after receiving the payment.
