48 Ports 10/100/1000M POE Midspan 24 port Gigabit POE Injector for CCTV

Feedback Ratings
  • 1-9 Pieces
    $128.00
  • 10-99 Pieces
    $122.00
  • >=100 Pieces
    $115.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Contact Supplier
Samples - $150.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Ports:
≥ 48
Transmission Rate:
10/100/1000Mbps
Function:
POE
Communication Mode:
Full-Duplex & Half-Duplex
Certification:
CE FCC RoHS
Switch Capacity:
48Gps
Brand Name:
GXCOM
Model Number:
PJ124G
Place of Origin:
Guangdong, China (Mainland)
PoE Standard:
IEEE802.3af /IEEE802.3at
PoE Ports:
1-24 Port Support PoE

Packaging & Delivery

Selling Units:
Single item
Single package size:
65X35X5 cm
Single gross weight:
5.0 kg
Package Type:
carton
Lead Time :
Quantity(Piece) 1 - 10 11 - 100 >100
Est. Time(days) 5 15 To be negotiated
Product Description

Introduction:

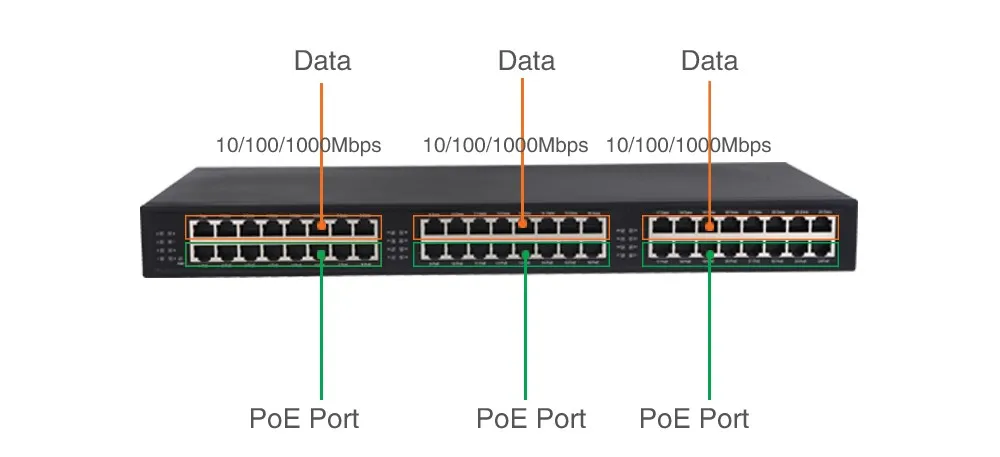

This 24 Ports 10/100/1000M POE Injector also are called Power over Ethernet midspans devices, the 24 Ports 1000M PoE Injector are based on the existing network interface and embed PoE function. This midspans have 24x2 Standard RJ45 network ports, one group of network ports are used for uplinking ethernet switches or other network devices, the other group of network ports support POE power+data output.

PoE Injector provides a simple, economic, high-performance, intelligent Ethernet power supply and data communication solution. Simple to use, easy installation, superior performance, cost-effective. It is an ideal choice for customers to improve the quality of the project.



Features:
Supply power to wireless access points and surveillance cameras over cat-5 cabling.
24 -Port 10/100/1000Mbps "Data input"
24 -Port 10/100/1000Mbps "Data + Power output"
lightning protection for Power supply input port and network port
Complies with IEEE 802.3af/AT
Supports PoE power up to 30W
Remote power feeding up to 100 meters
1U rack design, suitable for cabinet-mounted

Scalable Solution
The 24 Ports 1000M POE Injector support up to sixteen Ethernet terminals. Multiple midspans can be mounted in a wiring closet to support additional terminals, providing  a simple, cost effective method for expanding the network.

Easy to Use
The 24 Ports 10/1000M POE Injector are plug-and-play products. Once turned on, they automatically detect all Power over Ethernet terminals and supply inline power.

Standard Compliance
24 Ports 10/100/1000M POE Injector are fully compatible with IEEE 802.3af standard.


Oder Information
Product Model: PJ124G
Description: 24 Port 10/100/1000M PoE injector,  IEEE 802.3af, 15.4W per port, Total power consumption: 350W

Technical specs
description
interface
24x10/100/1000M RJ45 data
24x10/100/1000Mbps rj45 POE out
Standard
IEEE802.3AF IEEE802.3AT
poe power per port
40watts
Poe Power supply
100-240VAC 50/60hz input, 52vdc, 7.5A output
LED indicator
POE act, power
Working temperature
0-50℃
safety
CE FCC ROHS
dimension
430x250*45mm, 1u rack mount
weight
4kg
