50 LED/String DC5V RGB WS2812B WS2812 Pre-wired LED Chip & Heatsink 10cm RGB Wire for LED DIY Decoration Lighting

Feedback Ratings
  • 1-10 Sets
    US $6.89
  • 11-49 Sets
    US $6.40
  • >=50 Sets
    US $6.16
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Lamp Power:
0.3W/pcs
Lamp Luminous Flux(lm):
0
CRI (Ra>):
90
Color Temperature(CCT):
Red:600;Green:1200;Blue:300
Working Temperature(℃):
-40 - 80
Working Lifetime(Hour):
50000
Lamp Body Material:
Plastic
Certification:
CCC, CE, RoHS
Emitting Color:
Changeable
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WS2812B
Model Number:
SR5363
LED Chip Color:
White
Wire Color:
RGB



Product Description
50 LED/String DC5V RGB WS2812B WS2812 Pre-wired LED Chip & Heatsink 10cm RGB Wire for LED DIY Decoration Lighting
Item Detail---------------------------------------------------------------------------------------------------------------------------------------------------------

Product Description

Description
Brand new and high quality
Enegry saving, low heat
Long service life, more than 500,000 hours
Used for lighting decoration in shopping malls, home decoration, cove lighting, lighting box, signage lighting, backlighting & channel lighting, etc.

Specifications:
1)Working Input Voltage: 5VDC
2)Output power: 0.3W /pc,
3)cable length : about 6meter/strip
4)Emitted Color: 5050 RGB WS2812B
5)LED Quantity: 50LED/strip,50Pixel/strip
6)Wave length(NM):R-650mcd, G-520mcd,B-460mcd
7)Signal: WS2812 chip
8)Protection Rate: Non-Waterproof
9)Dimension about:6000*10*3mm
10) View angle:120 degree
11) Working Tempreture: -20~50°
12)Warranty: 2 Year
13)Package: 50 Leds with wire

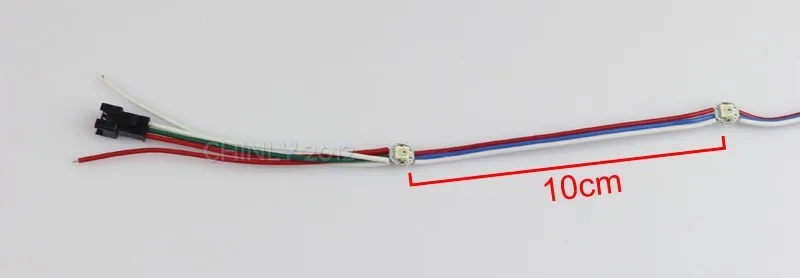

14)Wire length:10cm



PIN function

NO.

Symbol

Function description

1

VDD

Power supply LED

2

DOUT

Control data signal output

3

VSS

Ground

4

DIN

Control data signal input



Absolute Maximum Ratings

Prameter

Symbol

Ratings

Unit

Power supply voltage

VDD

+3.5~+5.3

V

Input voltage

VI

-0.5~VDD+0.5

V

Operation junction temperature

Topt

-25~+80



Storage temperature range

Tstg

-40~+105



Electrical Characteristics(TA=-20~+70,VDD=4.5~5.5V,VSS=0V,unless otherwise specified)

Prameter

Smybol

conditions

Min

Tpy

Max

Unit

Input current

II

VI=VDD/VSS

——

——

±1

µA

Input voltage level

VIH

DIN,SET

0.7VDD

——

——

V

VIL

DIN,SET

——

——

0.3 VDD

V

Hysteresis voltage

VH

DIN,SET

——

0.35

——

V

Switching characteristics(TA=-20~+70,VDD=4.5~5.5V,VSS=0V,unless otherwise specified

Prameter

Symbol

Condition

Min

Tpy

Max

Unit

Transmission delay time

tPLZ

CL=15pF,DIN→

DOUT,RL=10Kω

——

——

300

ns

Fall time

tTHZ

CL=300pF,OUTR/OUTG/OUTB

——

——

120

µs

Input capcity

CI

——

——

——

15

pF

I.Features and Benefits

l         Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.

l         The control circuit and the LED share the only power source.

l         Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.

l         Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.

l         Built-in electric reset circuit and power lost reset circuit.

l         Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.

l         Cascading port transmission signal by single line.

l         Any two point the distance more than 5m transmission signal without any increase circuit.

l         When the refresh rate is 30fps, cascade number are not less than1024 points.

l         Send data at speeds of 800Kbps.

l         The color of the light were highly consistent, cost-effective..



II.Applications

l         Full-color module, Full color soft lights a lamp strip.

l         LED decorative lighting, Indoor/outdoor LED video irregular screen.

III.General description

WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre-nt control part, effectively ensuring the pixel point light color height consistent.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN  port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch,   the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade  pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.

    LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED   above becoming more simple circuit, small volume, convenient installation.

Package Included:

50Pcs WS2812B Chip Built-in Heatsink Board and 10cm wire(50led/string)
