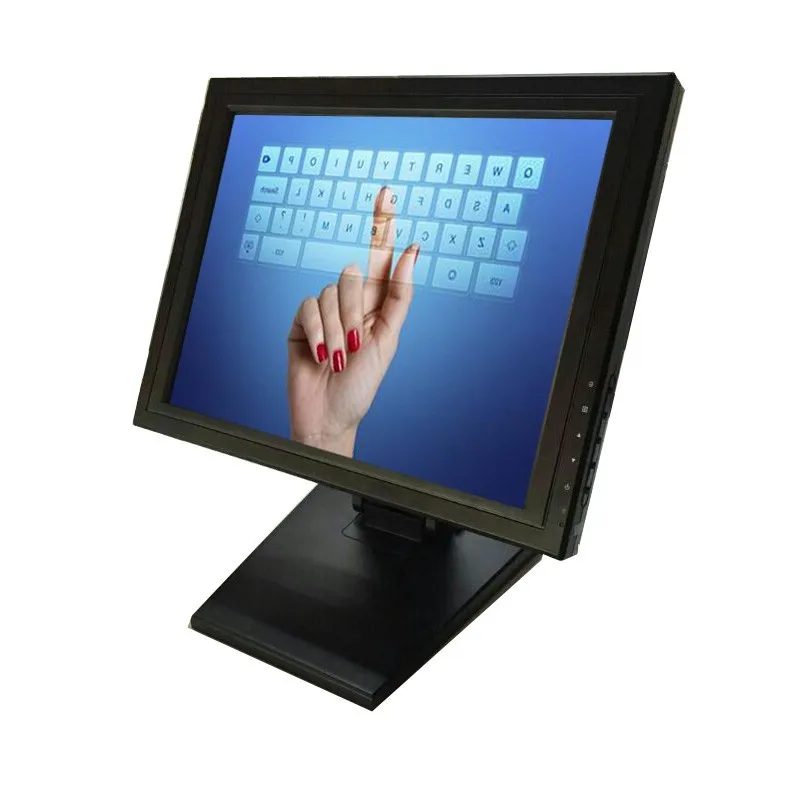

8,10,15,17inch TFT Touch Screen Touch Panel VGA Monitor for PC POS System Display LCD

  • 2-9 Pieces
    $95.00
  • 10-49 Pieces
    $92.50
  • >=50 Pieces
    $90.00
Model Number:
OTM-1501
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
4 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
15"
Type:
Resistive, Resistive
Interface Type:
D-Sub, DVI, Serial, USB, hd,bnc
Resolution:
1024 x 768
Brand Name:
OSCY
Place of Origin:
Guangdong, China
Product name:
desktop touch screen
Keywords:
TFT LCD Display HMI Touch Screen Monitor
Application:
ATM.POS.Open Frame Machine ...etc
Interface:
USB/RS232 Serial
Operating System:
Window os 7/8,Liunx
Size:
15inch
Touch points:
Single-touch
Color:
Black
Certificate:
CE,ROHS

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X20X44 cm
Single gross weight:
4.5 kg
Package Type:
2 pca/carton 8,10,15,17inch TFT Touch Screen Touch Panel VGA Monitor for PC POS System Display LCD
Lead Time :
Quantity(Piece) 1 - 1 2 - 20 21 - 30 >30
Est. Time(days) 2 4 6 To be negotiated
Product Description
Name
OEM LCD PC Display 15 inch Industrial Touch Screen Monitor
Display area
304*228mm
Standard Resolution
1024*768
Number of Colors
16.2M
Brightness
300cd/m2
Response time
5ms

View angle
Horizontal:160°
Vertical:140°
Contrase ratio
20.83402778
Video input format
(analog) RGB

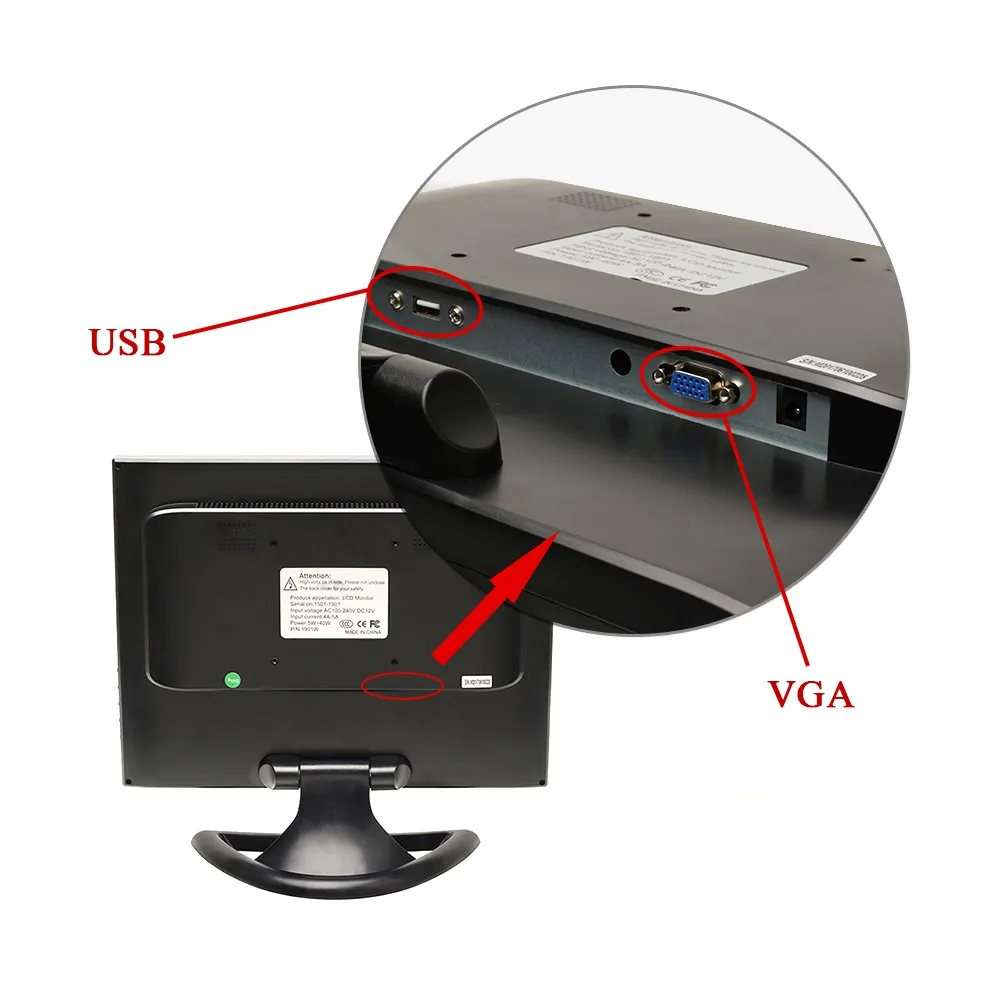

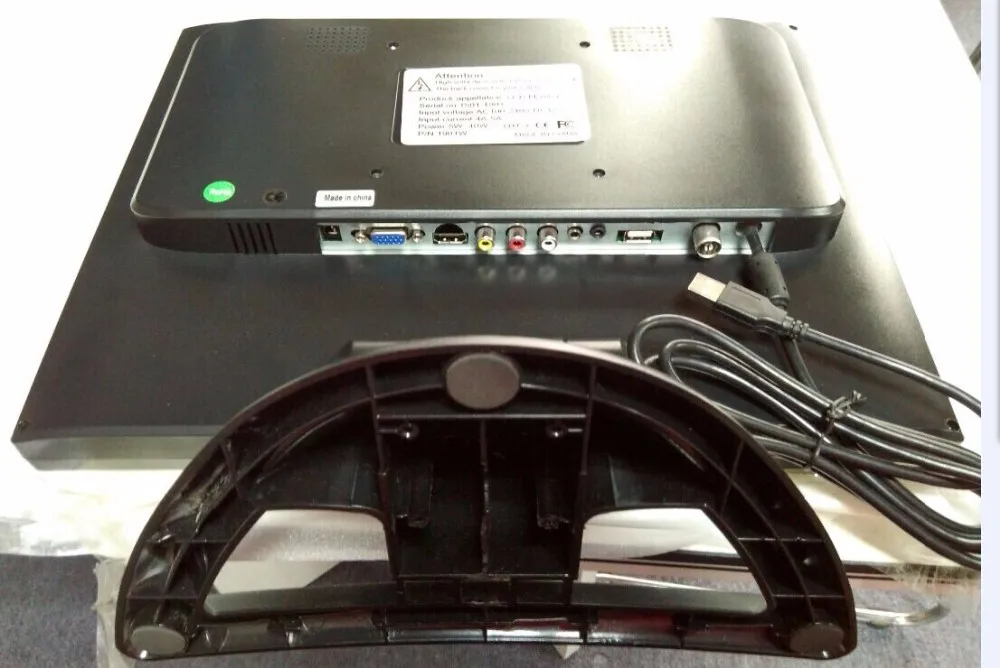

Connector
VGA for video signal
USB (or RS232) for touch
Frequency
30~80KHz/60~75Hz
Power supply
External Power Supply:100 to 240V  (DC 12V)

Operation Environment
Workable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model
 5 wire resistive touch or capacitive touch
Duration
50000hours
touch validity
>1,000,000
Net weight
6.0 Kgs/pcs,include stable mental base
Gross weight
6.5 Kgs/pcs,include stable mental base
Power consumption
Max 30W

Setup (optional)
1) provide wall brackets for wall-mounting, VESA 75mm&100mm

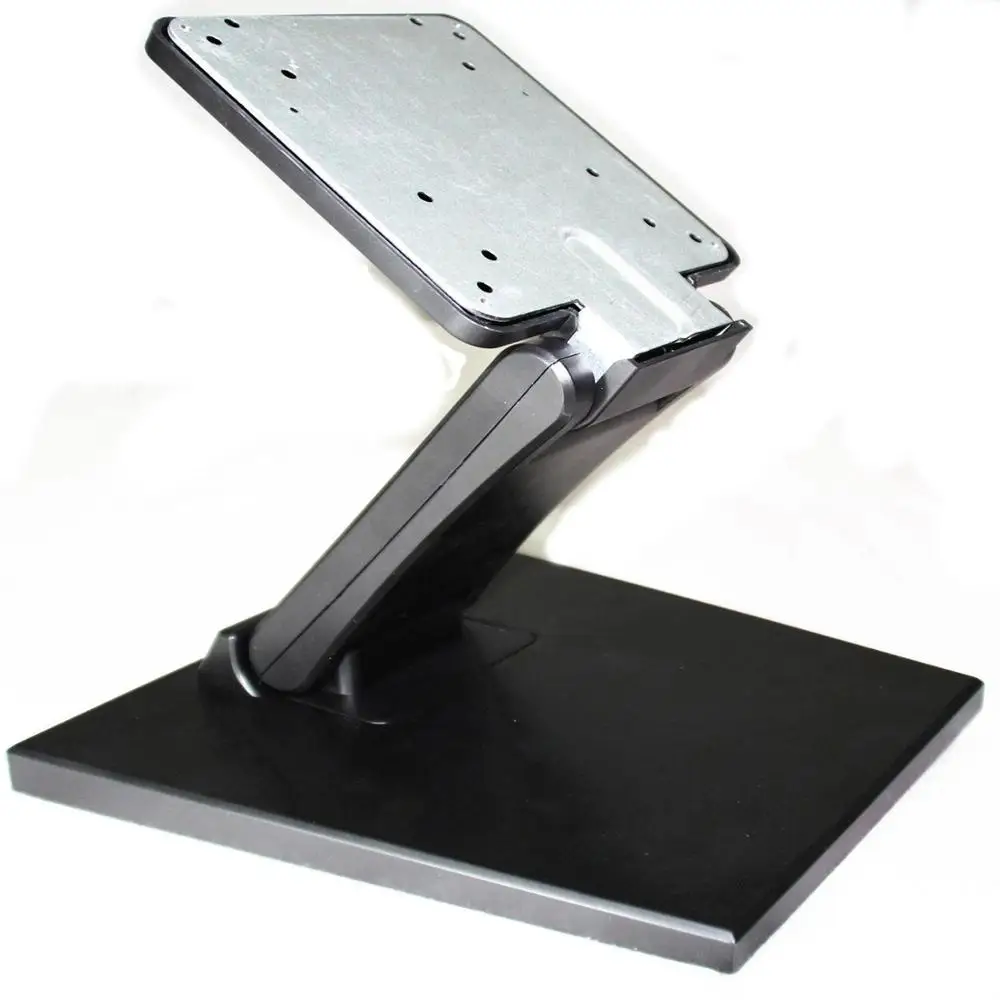

2) provide stable mental base to support the monitor

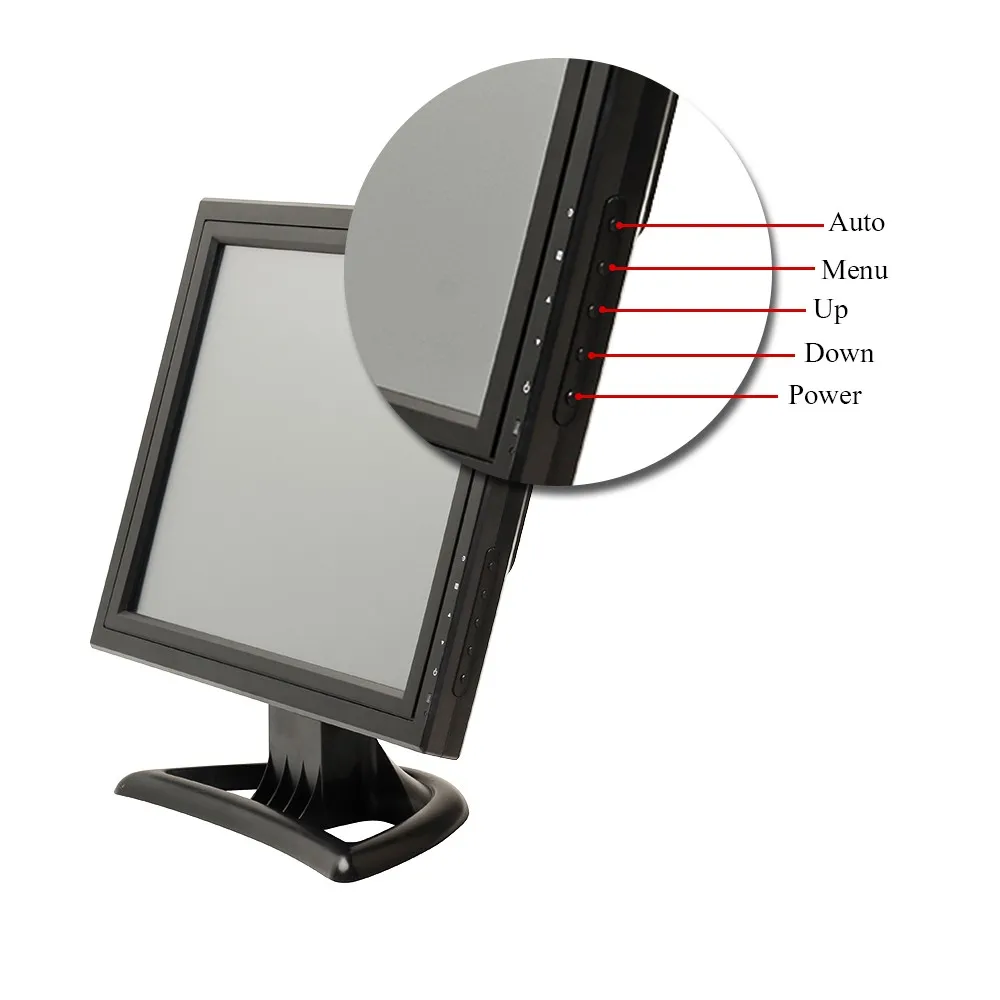

OSD  control
AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function, Install,reset
Touch interface
USB or RS232 optional
Touch response time
2ms
Certificate
CE, ROHS
Warranty
1-2 years,provide spare parts

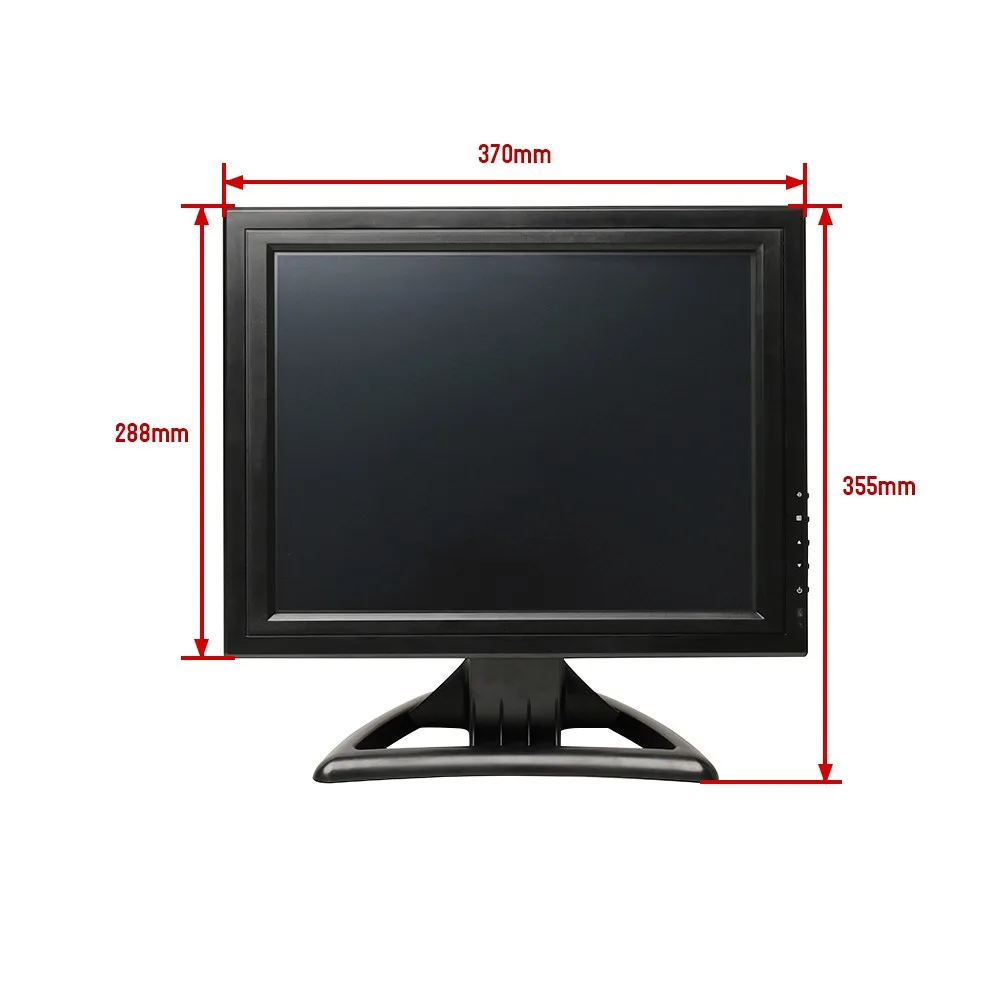

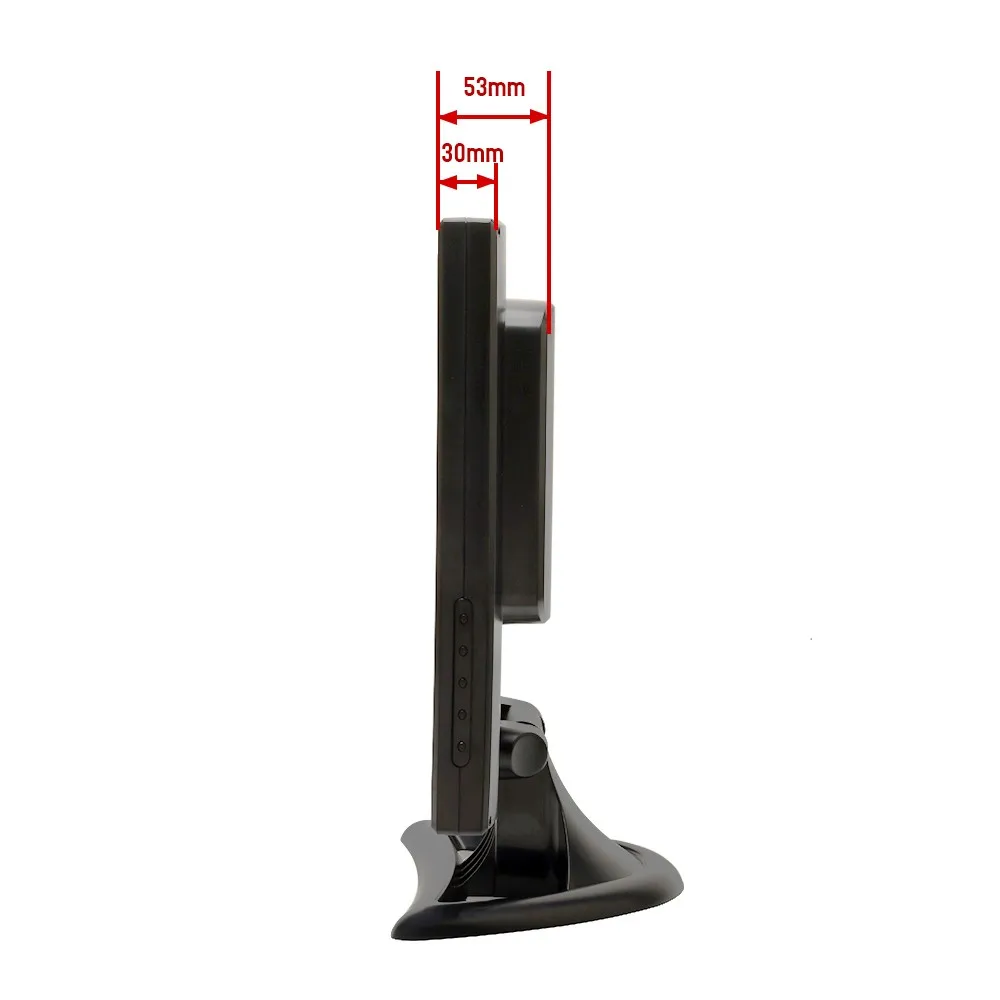

Monitor size(not include base)
375*285*55mm
Each unit box size
420*370*155mm

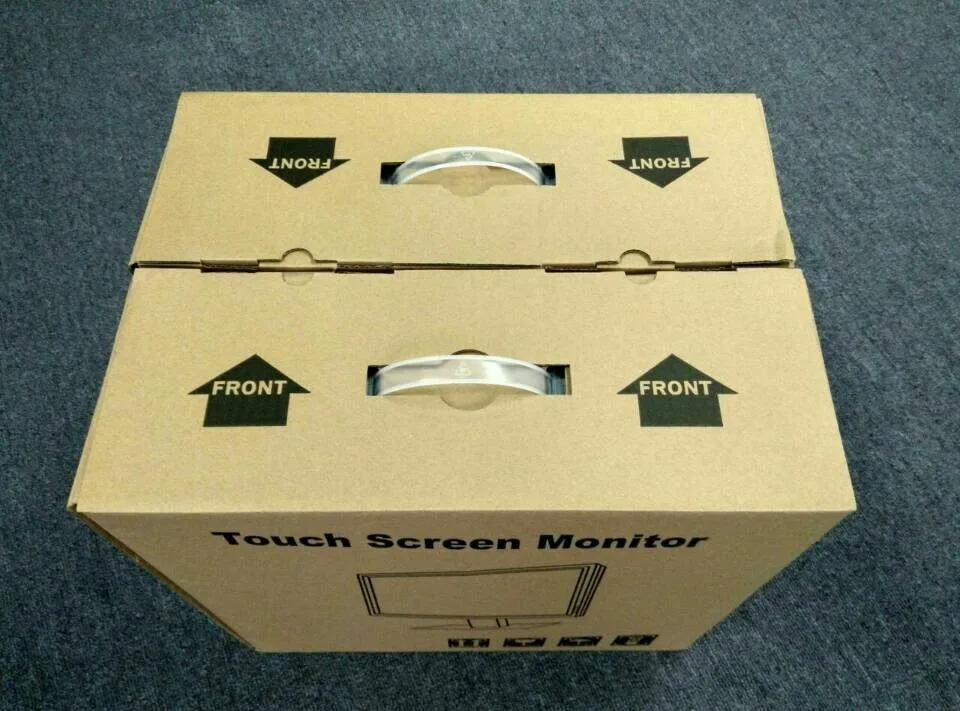

Package size
2pcs in a carton
Operation system
Windows,Linux,Mac.

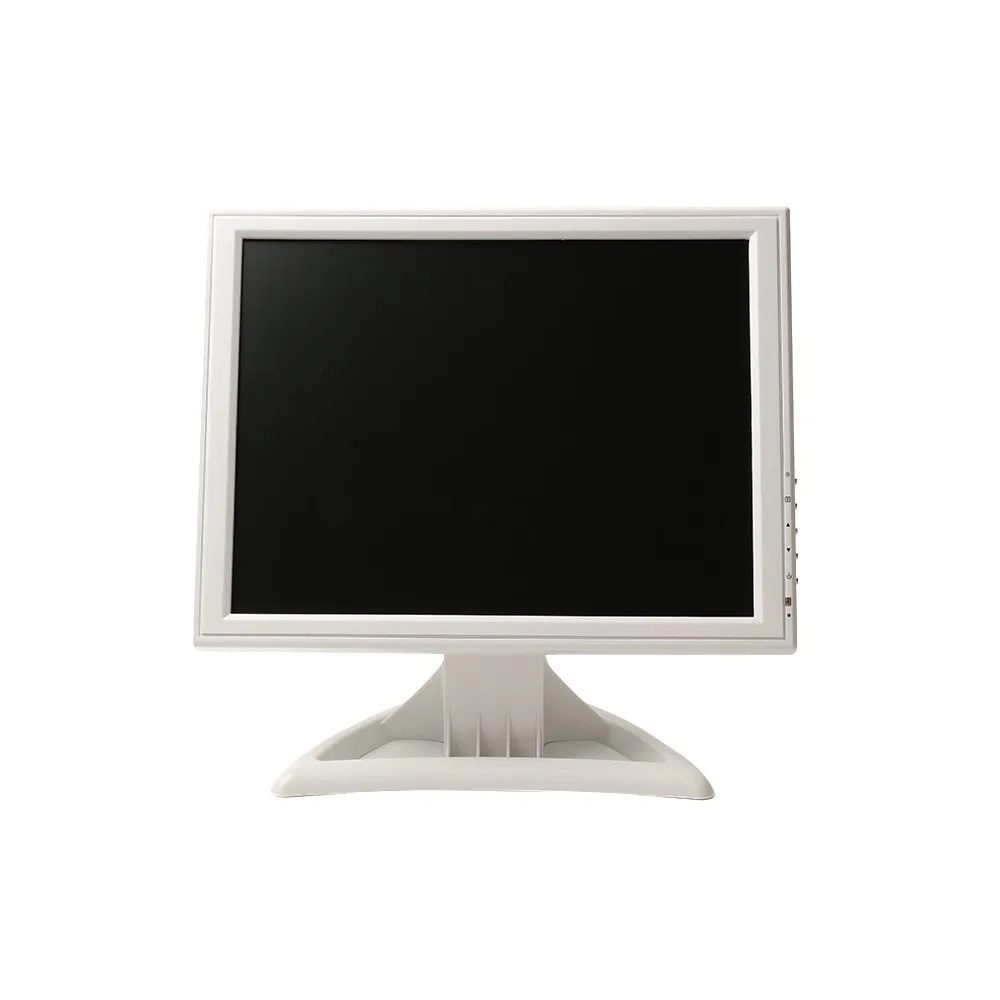

White color optional:

Half metal
