A02 5-50ML Pneumatic tooth paste filling machine

Feedback Ratings
$199.00 / Set | 1 Set (Min. Order)
Power:
0
Model Number:
SGY-A02QDGZJ00001V0
$199.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Packaging Type:
Cartons
Packaging Material:
Paper
Type:
Filling Machine
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Automatic Grade:
Semi-Automatic
Driven Type:
Pneumatic
Voltage:
0
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Vervor Filling Machine
Dimension(L*W*H):
35*25*15
Weight:
20
Certification:
CE Certificate
After-sales Service Provided:
Online support, Field installation, commissioning and training
Name:
A02 Pneumatic Liquid Paste Filling Machine
Keywords:
tooth paste filling machine
material:
304
High Filling Accuracy:
(+/- 1%)
Price:
According to your quantity

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X25X25 cm
Single gross weight:
20.0 kg
Package Type:
Carton well packed A02 Pneumatic Liquid Paste Filling Machine For Cream Shampoo Cosmetic 5~50ml USA
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

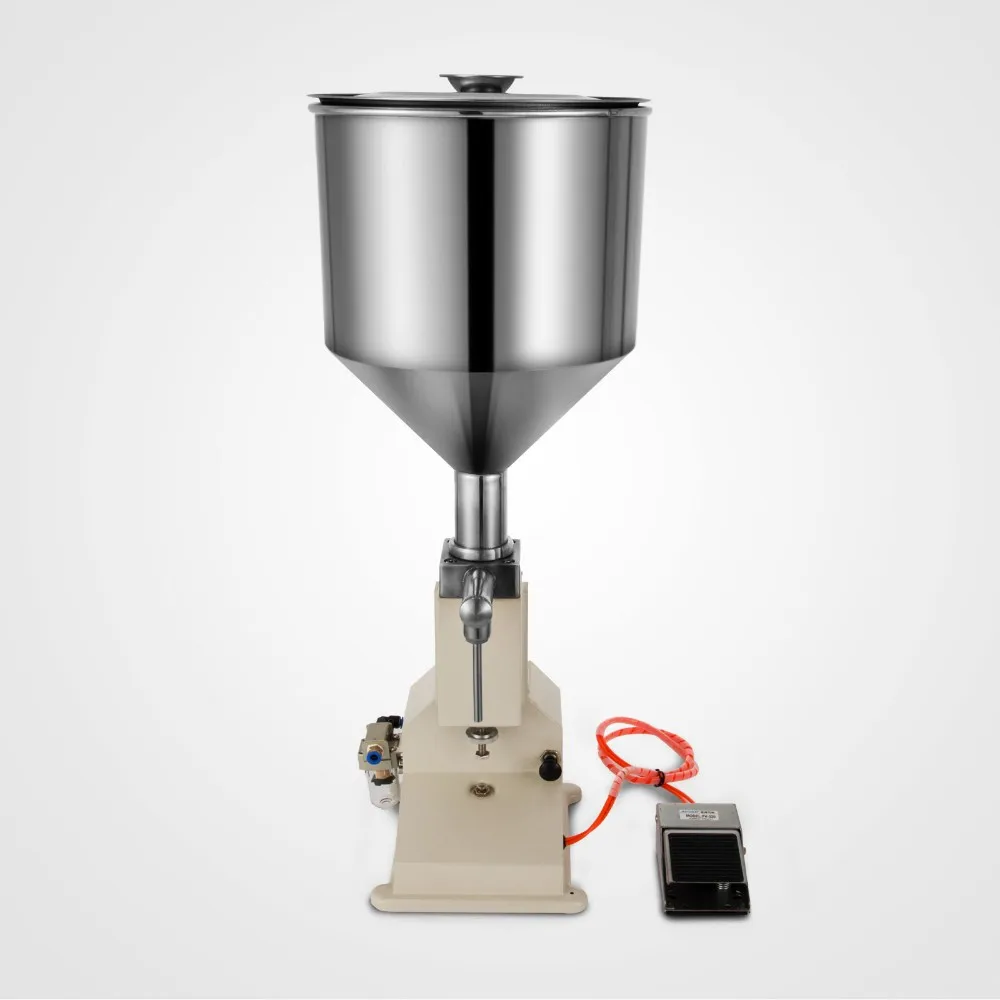

A02 Pneumatic Liquid Paste Filling Machine For Cream Shampoo Cosmetic 5~50ml USA

 Equipment introduction
New A02 pneumatic filling machine adopts a piston type structure, the liquid, paste and other materials for 5-50 ml quantitative filling. Filling of liquid, oil, shampoo, liquid substance, with paste liquid filling machine function. Applicable to the pharmaceutical, cosmetic, pesticides and special industries, and also can be used for sealing the hose has the quantitative filling, is the ideal paste liquid filling equipment.

This pneumatic filling machine has been especially designed by our factory for medium or small size enterprises including laboratories,hospitals,and beauty parlors.Its design is compact,efficient, and easy to use.All parts of the machine that touch the material being filled are Made of stainless steel and Polytetrafluoroethylene .On average the machine can fill 40 bottles per minute (depending the operation speed,product density, draw length, and fill speed).the machine is suitable for filling low to high-density liquids (0-10,000 cps). Stainless steel construction, a rugged rotary valve system,and a completely pneumatic operation design serve toextend service life.The silica gel O-ring system can withstand 392° Fahrenheit heat. Piston feed speed is adjustable and a no-drip option is included.The machine is extremely accurate (+/- 1%) and simple to operate.It is also very easy to clean and maintain thanks to sanitary stainless steel quick disconnect fittings.

Equipment characteristics

The machine has simple and reasonable structure, convenient manual operation, without any energy.
With the filling volume regulator knob, quantitative discharging, filling rate and filling speed can be controlled pneumatic.
The material contact part uses the 304 stainless steel material, suitable for use under acidic medium, to meet the food, pharmaceutical production and health requirements.
The machine hopper capacity of 10 kg, the user can be set on the filling capacity.

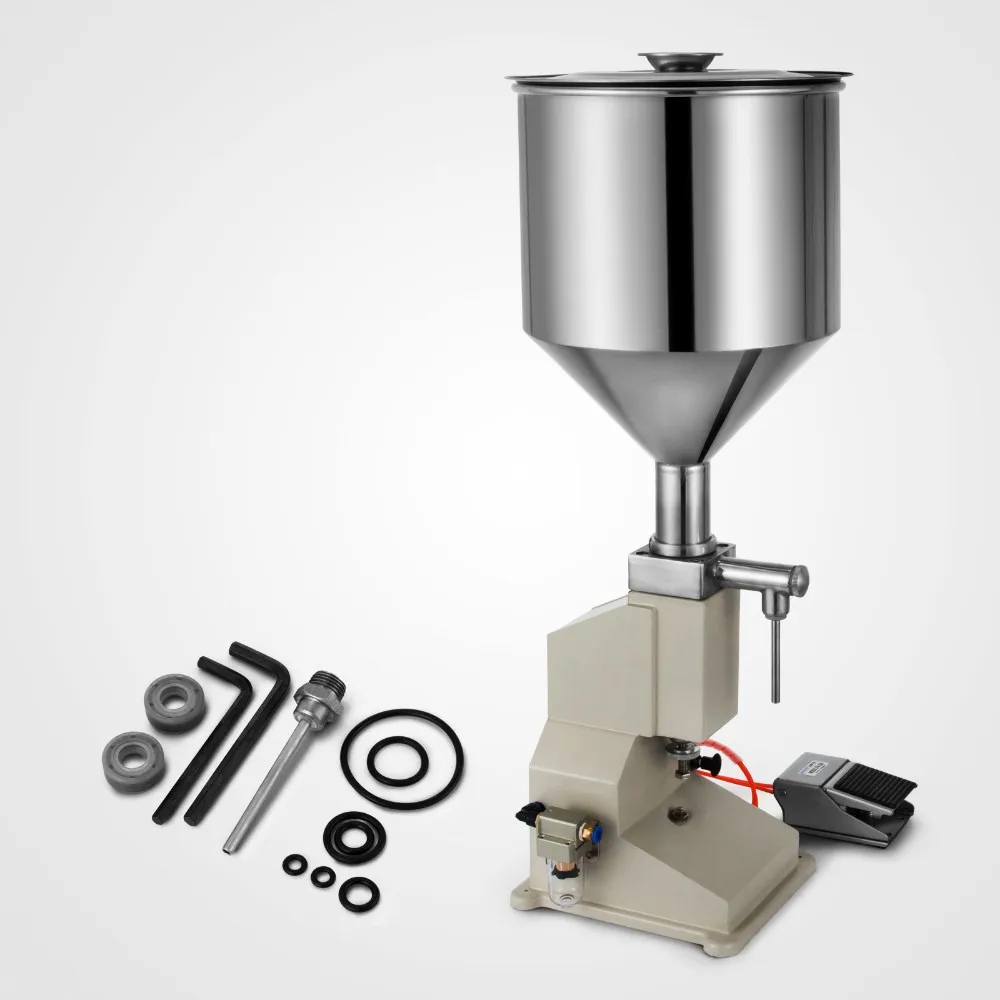

Package Content
1 x Funnel
1 x Paste and Liquid Filling Machine
1 x Set of accessories (As shown in the picture)

Main Features

 Suitable to fill low to high-density liquids (0 – 10,000 cps).
All Parts in Contact with Product are Food Grade (SS 304/316).
Stainless Steel Construction.
40 bottles/min (depending on operator speed, product density, draw length, a fill speed, among others).
Rugged Rotary Valve System Design.
Pneumatic Operation.
Silica gel O-ring System (cam bear 200 Celsius degree).
Piston Feed Speed Adjustment.
No-drip Option Included and Installed.
High Filling Accuracy (+/- 1%)
Extremely Easy to Clean and Maintain.
Sanitary Stainless Steel Quick Disconnect Fittings.
Extremely Easy to Operate.
Quick Connect/Disconnect Pneumatic Fittings.
Easy to assemble/disassemble Pneumatic parts
Air Pressure Gauge
Air Intake Pressure Adjustable
Filling Volume Adjustable
Completely Pneumatic, no electric.

Detailed Images

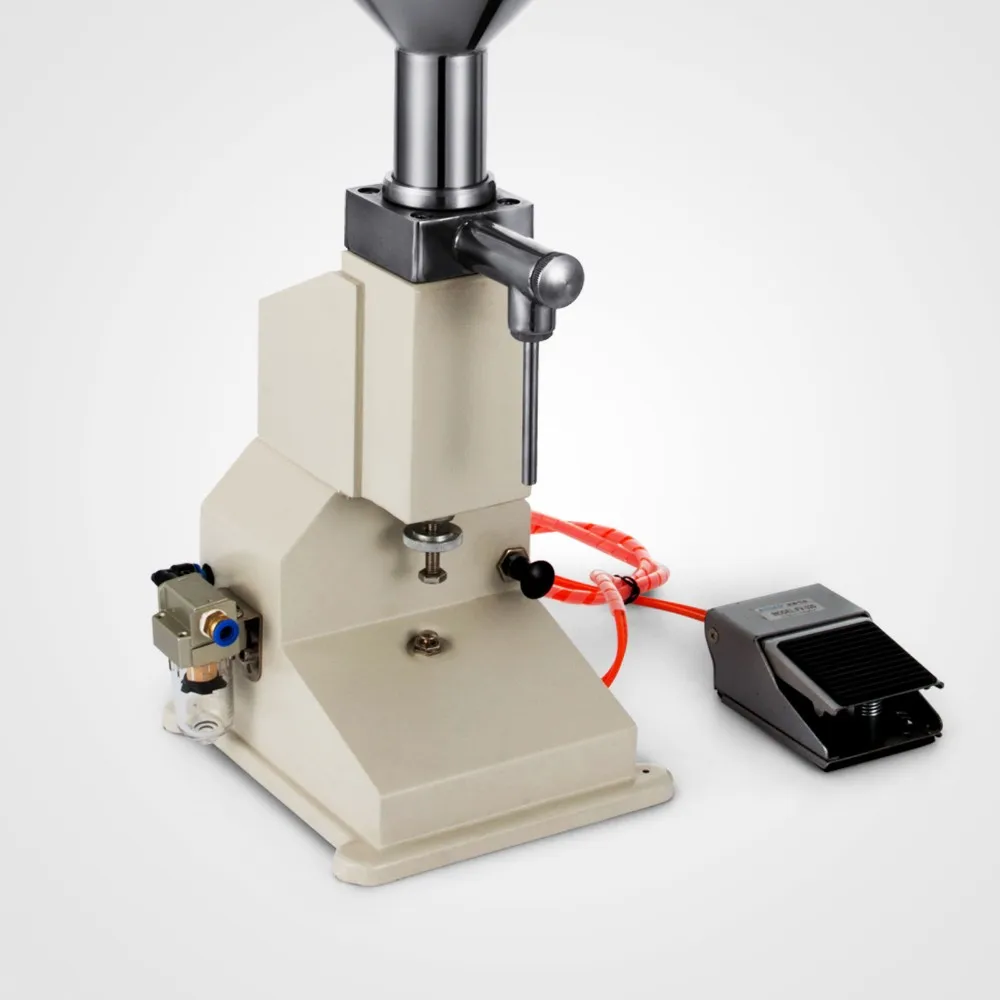

Machine Parts

 Condition: New

Type: Pneumatic

Model: A02

Working power: pneumatic

Main Features

 Advantage: save both time and labour

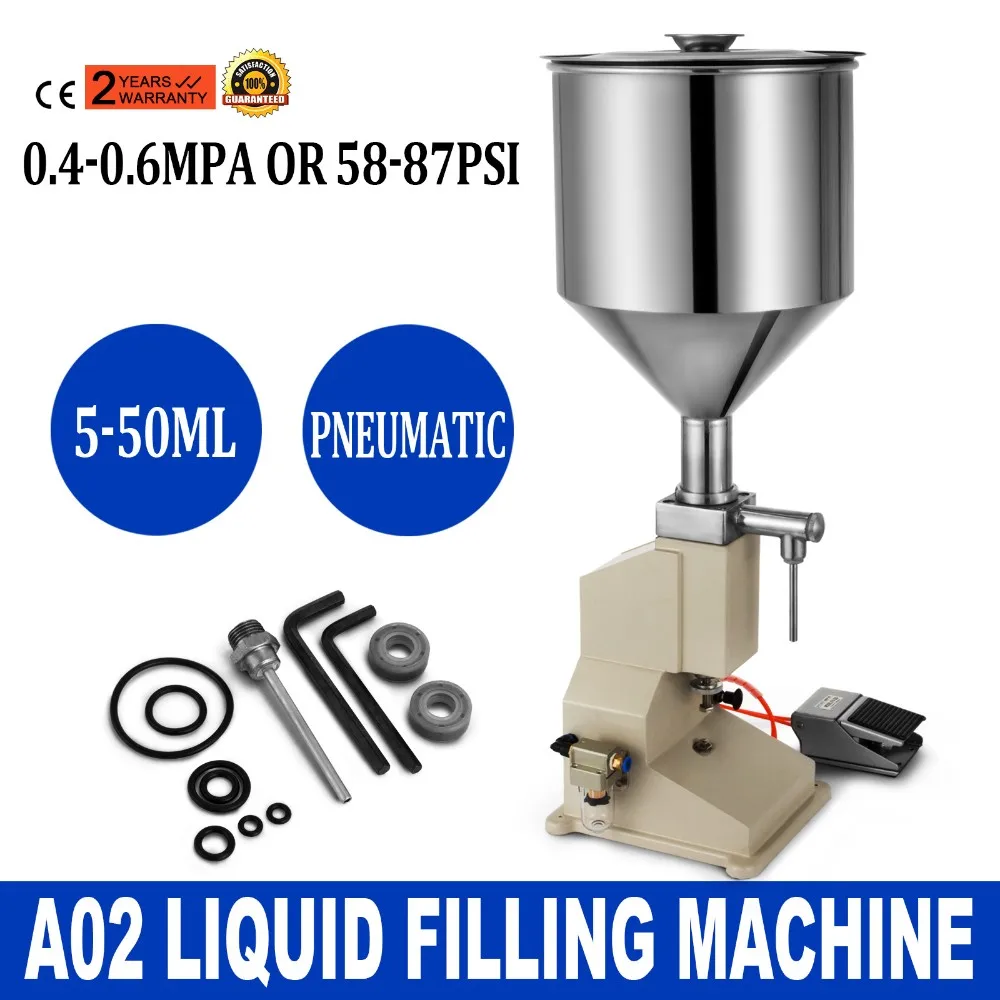

Working pressure: 0.4-0.6MPa or 58-87PSI

Speed: 20-60 times/minute

Filling material:Liquild

Machine Parts

 Bottle diameter range:3-15 mm

Filling range: 5-50ml (adjustable)

Filling accuracy: ±0.2-1ml

Hopper volume: 10L

Main Features

 Height range:7.87"/200mm

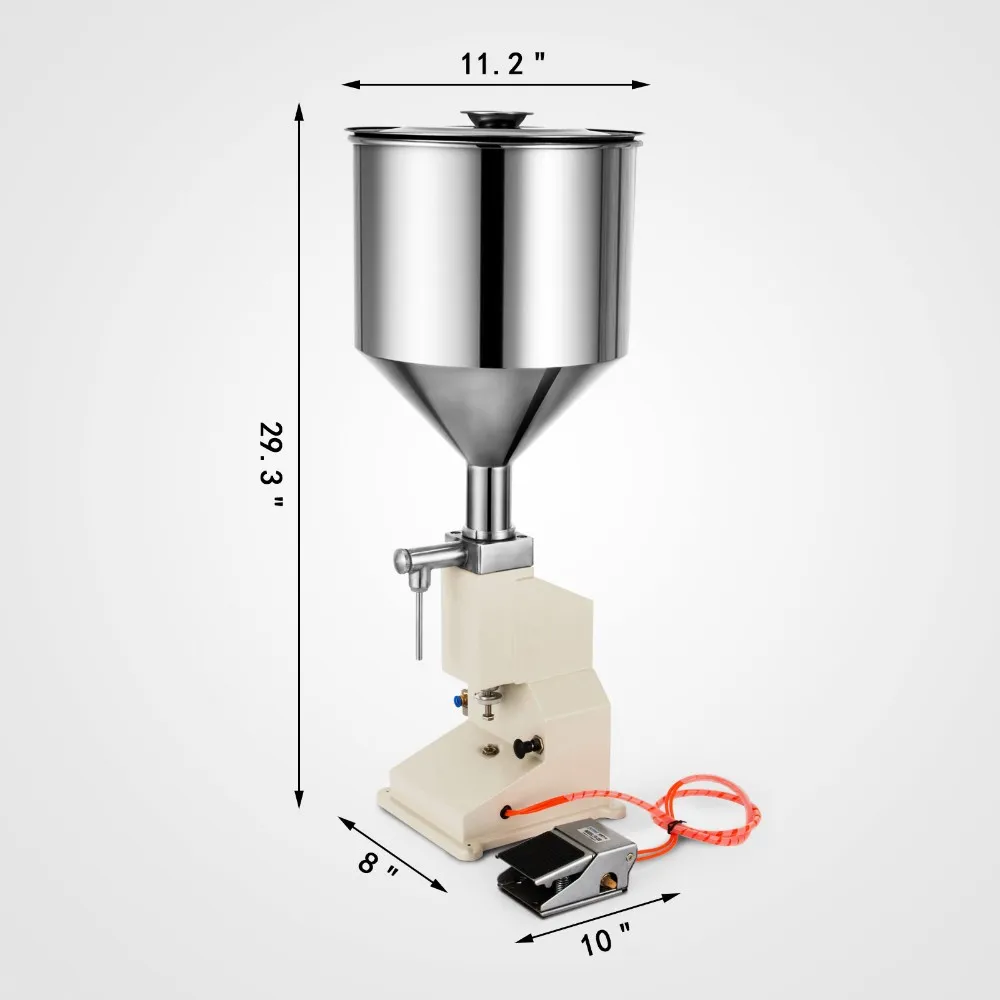

Package size(L*W*H): 34*34*77cm (14*14*31inch)

Gross weight: 10kg (22lbs)
