Advanced Technology Automatic Trommel Rotary Drum Screen Machine for Food Waste Water Treatment Ssolid Filtration

  • 1-2 Sets
    $6,800.00
  • >=3 Sets
    $6,500.00
Model Number:
ZG
Processing Capacity:
>95%
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
35 day(s) after payment received
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $6,800.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $6,800.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops, Sewage Treatment Plant
Place of Origin:
Jiangsu, China
Brand Name:
BOEEP
Material:
Plywood Case, SS304/316
Weight:
200-1500kg
Size:
different as each model
Power:
0.75-3
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Product name:
automatic drum screen
Certification:
SGS/CE/ISO 9001
Grid gap:
0.5mm-5mm
Water flow rate:
80-250m3/h
Drum diameter:
600-2600mm
Drum length:
600-2400mm
Operation:
automatic
Motor:
Sew or Customize
Electrical component:
Schneider/Omron/Customize

Packaging & Delivery

Selling Units:
Single item
Single package size:
200X80X70 cm
Single gross weight:
200.0 kg
Package Type:
automatic drum screen usually plywood case, other packing methods also can be satisfied
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 50 >50
Est. Time(days) 35 To be negotiated
Video Description

Why choose you?

Advanced Technology Automatic Trommel Rotary Drum Screen Machine for Food Waste Water Treatment Ssolid Filtration

What product catagories do you supply?

Sludge DewateringVolute Screw PressScrew Press Sludge Dehydator
Pre-thikening Screw Press
Belt Filter PressHigh-Duty Belt Press
Gravity Belt Press
Rotary Drum Belt Press
Gravity Belt Thickener
Wastewater Mechanical ScreenExternal Rotary Drum Filter
Multi Rake Bar Screen
Trash Rake Coarse Screen
Drum Fine Screen
Static Screen
Travelling Band Screen
Accessary EquipmentChemical DosingAutomatic Dosing
Manual Dosing
ConveyorScrew Coveyor
Belt Coveyor
Hopper
Other Solid-liquid Separation EquipmentGrit RemovalGrit Classifier
Vortex Grit Chamber
SBR Floating Decanter



What about this product?

BOEEP Rotary drum fine screen is widely applied for wastewater treatment projects such as urban wastewater, industry wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after pressing. It can be used for wastewater treatment engineering such as high precision process, small screen gap and low depth of channel.



Product Namerotary drum screen
MaterialSS304/316
Grid gap0.5mm-5mm
Water flow rate80-250m3/h
Drum diameter600-2600mm
Drum length600-2400mm
PackagePlywood case
MotorSEW/NORD/Customize
Warranty1 year
CertificationSGS/CE/ISO 9001

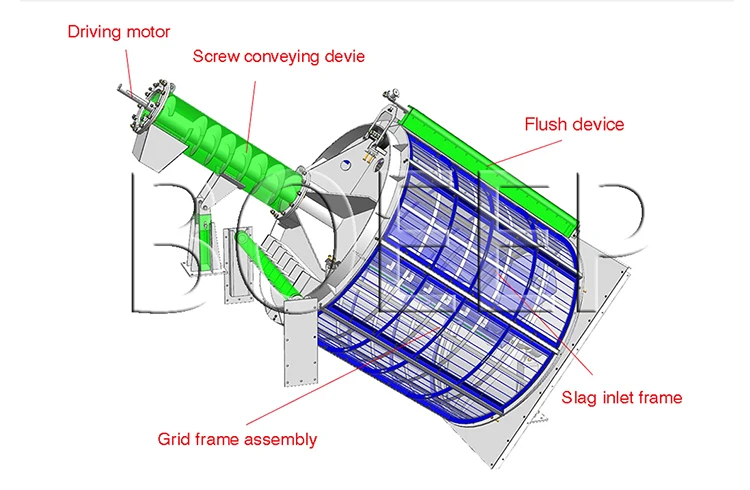

The Rotary Drum Fine Screen has four functions such as intercepting dregs, getting rid of dregs, spiral lifting and pressing dewatering. It is mounted in the channel with the angles of 35 degrees, and the wastewater flows into the drum from the port of the drum, and the grid can intercept the dregs. Then the drum rotates at a fixed speed, and the nylon brush and flush water spray nozzle above the drum can get rid of dregs and export them through spiral lifting. The dewatered and pressed dregs will be delivered to the container or the transportation equipment. The whole process is clear and no smell.



What are the product features?

  1. Little hydraulic loss, high efficiency, and large treating capacity
  2. Whole stainless steel structure, convenient in maintenance and long service life.
  3. The device can clean itself during working.
  4. Compact structure.

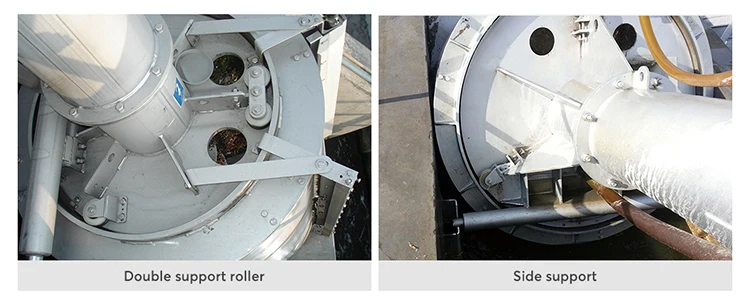

Can you show the product details ?

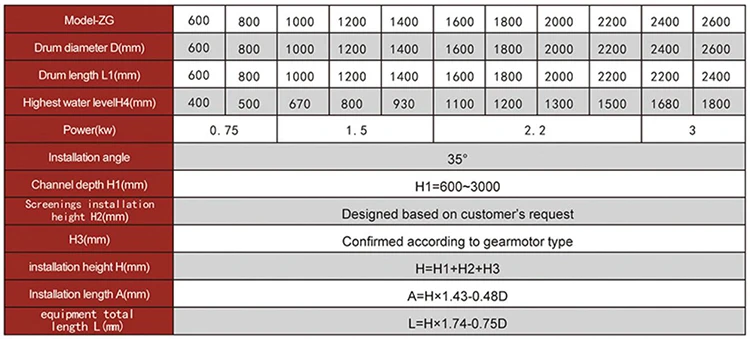

What about the technical specification?

Model600800100012001400160018002000220024002600
Liquid speed(m/s)1.0
Water flow rate(m3/h)Screen Gap(mm)0.580135240310450585745920113013802080
112522037051072095512101495180021503280

2

1903305607651100144018302260273032504530
32304006859351340176022352760333039705450
424043072010101440205027003340403046806230
525047079511101570220029353600436052206750

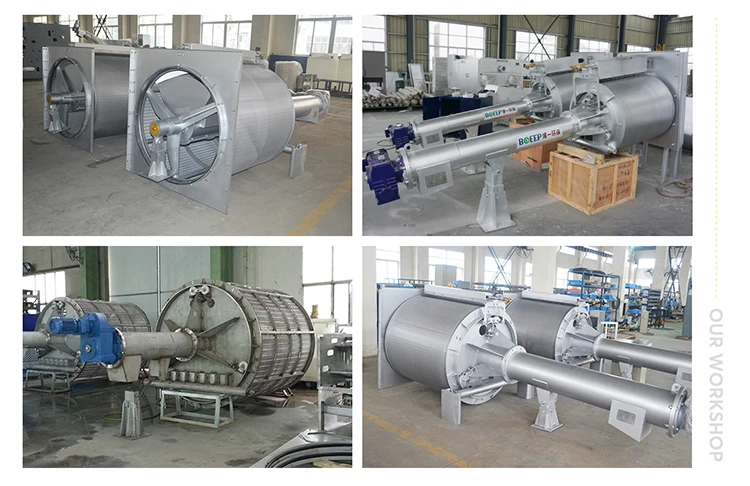

How about your production site?

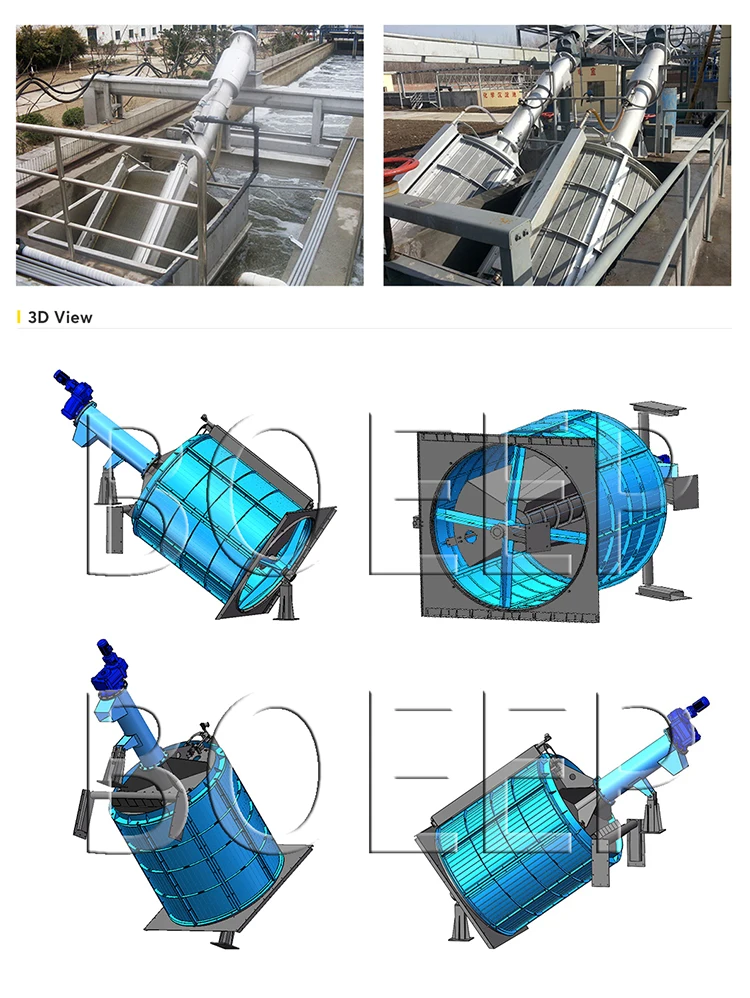

Can you show the photos of your actual project site ?
