All In One Integrated Solar Led Street Light Module

  • 50-99 Sets
    $17.50
  • 100-499 Sets
    $16.50
  • >=500 Sets
    $15.50
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
110/220
Lamp Luminous Flux(lm):
2600
CRI (Ra>):
70
Working Temperature(℃):
-40 - 70
Working Lifetime(Hour):
5000
IP Rating:
IP68
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
SUNSHINEOPTO
Model Number:
SUN-LD151X92
Product name:
All In One Integrated Solar Led Street Light Module
Lens size:
151x92mm
Viewing angle:
70X126degree
Lens Material:
PMMA
Transmittance:
93%
Operating temperature:
-40~+70'C
Aluminum pcb:
7 series 4 parallel, 14 series 2 parallel
Match led:
Luexon,Edison leds
Item Type:
Street Lights
Warranty(Year):
2
Color Temperature(CCT):
Cool White
Lamp Body Material:
Aluminum Alloy
LED Light Source:
1w high power led
Lamp Power(W):
28
Lamp Luminous Efficiency(lm/w):
110

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X33X38 cm
Single gross weight:
20.0 kg
Lead Time :
5

    All In One Integrated Solar Led Street Light Module

Product Description



Place of Origin

Shenzhen,China

Brand Name

Sunshineopto

Model No

SUN-LD151X92

Main parts

28W Lens+ Silicone gasket + AL PCB mounting 1w high power led

Lens Material

PMMA Optical

Lens size

151x92x11mm

Lens Beam Angle

70x126degree

Match Led

Lumileds, SSC, Edison LED

PCB Size

130.5x75mm

PCB Circuit

7 series 4 parallel ,14 series 2 parallel or 28 in series

Led Driver Size:

180x39x30mm

Certificate

ROHS, SGS

Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

Main market

Europe, South America,North America, Asia



About SUN-LD151X92:

1.This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 56W,112W,168W and so on .
2.It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3.Industry-leading thermal management utilizing technology
4.Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5.The LED retrofit kits contain no any mercury or lead.
6.Does not produce UV rays that harm people’s eyes.
7.Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like 90x120°, 140x70°,120x60°, 90x126°,70x70° etc.

Competitive Advantage:

1)..Using high quality USA 1w high power led chips
2).CE driver, very easy for repair/replacement
3).Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4).Higher lumen compared to similar models of others
5).Positive cooling technology
6).Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7).Industry-leading thermal management utilizing technology
8).Top quality with warranty of 1 years warranty
9).LM80 testing reports available

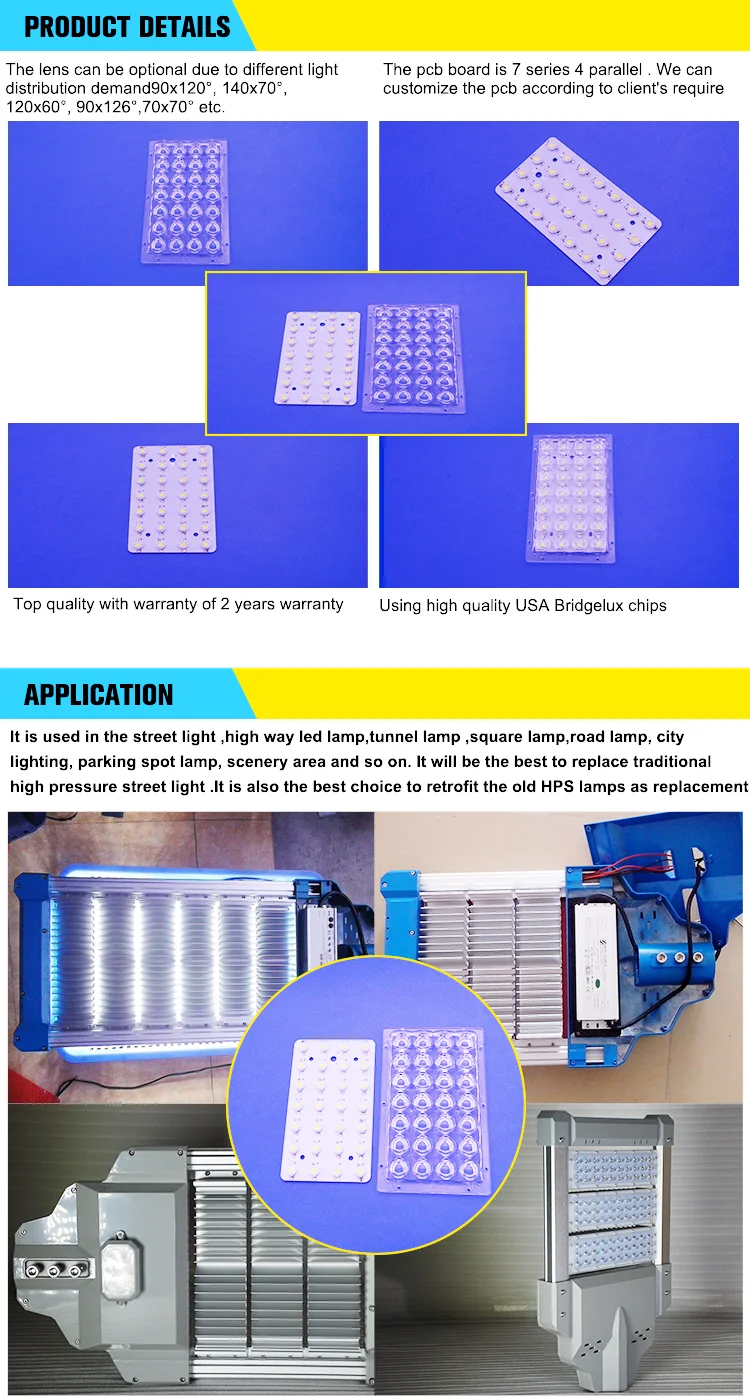

Product Details
Hot Products

Packaging & Shipping



Company Information

FAQ



Why choosing us - SUNSHINEOPTO ?

1. About 7 years specializing in High Power LED

2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components

3. Strict process and quality control

4. Good raw materials used in production

5. Strong design and production capability



How To Order Our Product ?

1,Customers offer general drawing of the product.

2,Our designer will make a professional drawing according to your product layout.

3,After your confirmation of the drawings,inform us the material and types you need.

4,We will do quote once get the confirmation of you.

5,Note Customers can order all product samples we put or you can also have your own idea as we are custom-made product supplier,so different colors and types are available.
