Applicable to electrocnic products DZQ-600E taybe-type pumping vacuum or gas charging sealing machine

Feedback Ratings
US $1350.00 / Set |1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping:
China
Please confirm the quantity of the goods.
Overview
Quick Details
Type:
Vacuum Packing Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material:
Glass, Metal, Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
0.75kw
Place of Origin:
China (Mainland)
Brand Name:
YUTE
Model Number:
DZQ-600E
Dimension(L*W*H):
730*1030*1050mm
Weight:
120kg
Certification:
CE ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Food Vacuum Sealer
Model:
DZ-600E
Name:
Food Used Vacuum Packaging Machine
Usage:
Outer
Function:
Sealing Bags
Material:
Sainless Steel
Warranty:
1 Year
Packing machine:
Plastic Bag Sealing Machine
Operate:
Easy
Product Description


Product Application


Dry Fish Vacuum Packing Machine
Vacuum Sealer
Vacuum Packer/ Vacuum Sealing Machinery
With CE Certification

DZ-600E vacuum packing machine is a newly designed packing machine and is both fit for "vacuum packing" and "vacuum aerated packing" (aerated limited).

Vacuum packing exhaust the air in the bag vessel, and rapidly seal it. For inside the bag vessel, there is only little air, so it can easy avoid the bacteria, avoid the goods oxidation, goes moldy, and goes bad. At the mean time, for loose goods, after vacuum packing, the volume can be reduced and more convenient to delivery and stored.


DZ-600E vacuum packing machine use the multiple file bag to pack all kinds of food, medicine, water products, chemicals, steel elements and electric components, in the shape of solid, meanliness, and pasty, and liquid, applying vacuum hot packing. it can easy avoid the bacteria, avoid the goods oxidation, goes moldy, and goes bad.

SPECIFICATIONS OF VACUUM MACHINE
Vacuum Room Minimum Pressure
<1kpa
Size of Vacuum Room
Exernal chamber
Hot sealing Belt Size
600×10mm
Hot Sealing Belt No.
1 Pcs
Packing Speed
1~3times/portion
Voltage and Power
AC 220/50 110/60; Sealing Power: 0.8KW; Pump Power: 0.75KW
Exhausting Speed
3.0 L/S
Dimension
 730×1050×1050mm
Weight
180KG

Main Features

1)  Main body is made by S304 stainless steel & processing by anode of aluminum metal

2) This machine is built up by 5 main parts: up working room , down working room, main body, electric equipment and vacuum system.
3) There is a team of hot sealing part at the top of the up working room.
     The heating element is nickel chromium triangle belt.
     It is fixed on the hot wood pressing shelf and it is completely insulating from the working room.
    The shelf is joint with the air cell. Before hot sealing, the air cell is lack of air, when hot sealing, the air cell is connected with outside so that the air cell increase in size and press the head of the nickel chromium triangle belt. The hot press sealing and heating ,and the time and the temperature can be adjusted.

Detailed Images



Sealing Length

600*10mm





Vacuum Chamber

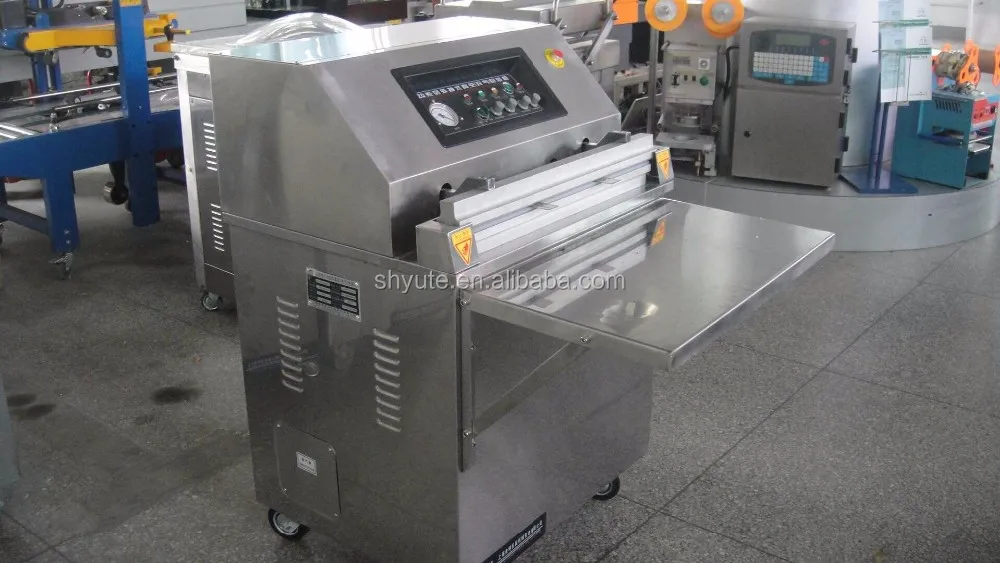

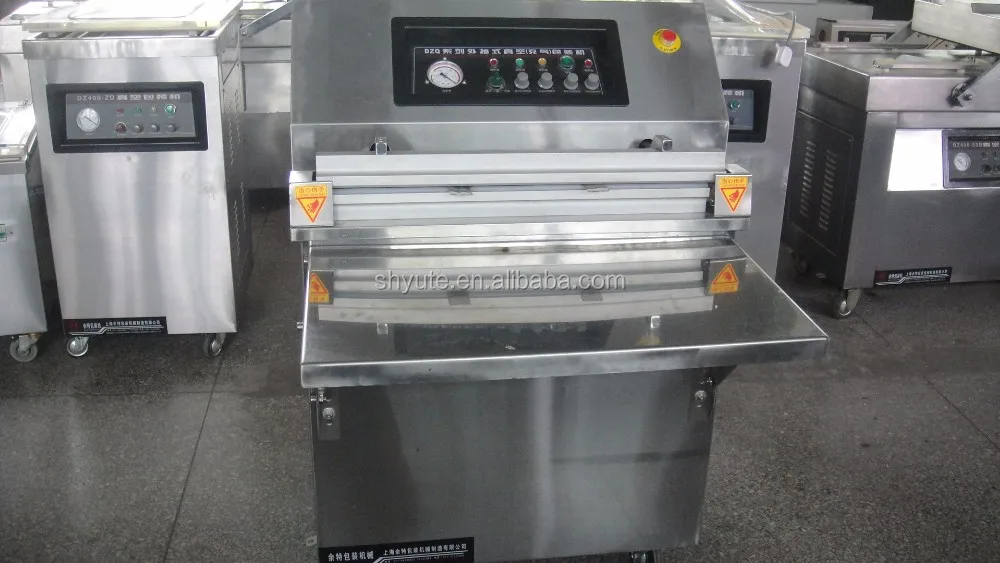

Table-type pumping Vacuum or Gas-charging Sealing Machine


Vacuum Degree


Can reach to vacuum -0.1.

Related Products
Vertical Vacuum Packing Machine

91.8% Response Rate

Tray Vacuum Packing Machine

91.8% Response Rate

Vacuum Packing Machine

91.8% Response Rate

Tray sealing machine

Beans / Grains Double Room Vacuum Packing Machine

tea brick automatic food vacuum packing machine

Automatic Vacuum Packing Machine/ Vacuum Sealer for food

2016 good quality fully automatic DZ-7002SC vacuum packing machine for big bags (for 15 years experience)

table top stainless steel vacuum packaging machine dz300

Packing & Delivery
Packaging
Size
840×1140×1200 mm
Weight
135KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
Qulification


                    CE cetificate

                      CE cetificate

                          CE cetificate

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Guide and training how to install and operate the   machine

* Engineers available to overseas after-sale service.
