Auto liquid filling and sealing equipment

$9,600.00 / Set | 1 Set (Min. Order)
Power:
2KW
Model Number:
HX-006
$9,600.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Different tube size (Min. Order: 1 Sets)
Double jacket hopper with stirring function (Min. Order: 1 Sets)

More

Refill pump (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 1year
Packaging Type:
tubes
Packaging Material:
Plastic
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant
Condition:
New
Application:
Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Beverage
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
AC 220V 50/60HZ
Place of Origin:
Guangdong, China
Brand Name:
HX Machine
Dimension(L*W*H):
1300*900*1550mm
Weight:
230kgs
Certification:
CE SGS BV TUV
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Key Selling Points:
Easy to Operate
Frequency:
20KHZ
Sealing Dia:
5-50mm
After wooden packing:
280KGS
Key word:
Auto liquid filling and sealing equipment
Max.Tube length:
10-250mm
Over look:
stainless steel body
Use For:
Auto liquid filling and sealing equipment
date coding:
one set in free charge
application:
Auto liquid filling and sealing equipment

Packaging & Delivery

Selling Units:
Single item
Single package size:
125X110X168 cm
Single gross weight:
400.0 kg
Package Type:
Auto liquid filling and sealing equipment 1.Outside packing :Standard export wooden case . 2.Inner packing :Stretch film Please contact us for shipping cost before order!
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description
Detailed Images

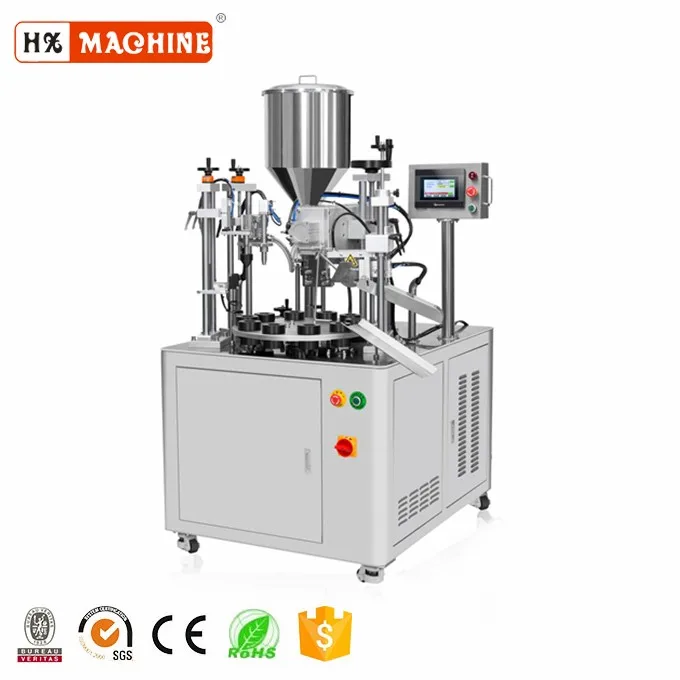

Machine Details
SPECIFICATIONS FOR FOR PASTE GLUE TUBE FILLING AND SEALING MACHINE
Model
HX-006
Sealing Dia
16-50mm
Output power
2000W
Voltage
AC220V/single phase 50/60HZ
36Machine weight
360kgs
After packaging
400kgs
Machine size
1300*900*1550mm
Filling Range
A:6-60ml, B:10-120ml,C:25-250ml,D:50-500ml (Customer made available)
Control Style
PLC control
Time adjust
directly from touch screen
Packaging
Ply wooden case packaging

Main Features

1. Easy to operate and maintain.
2. Automatic positioning, filling, sealing, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .

Advantages

1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material. No need preheating before sealing and no need working with industrial chiller.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1%)

Machine Video

Utube Link:

https://youtu.be/LmOmFFv54Zo

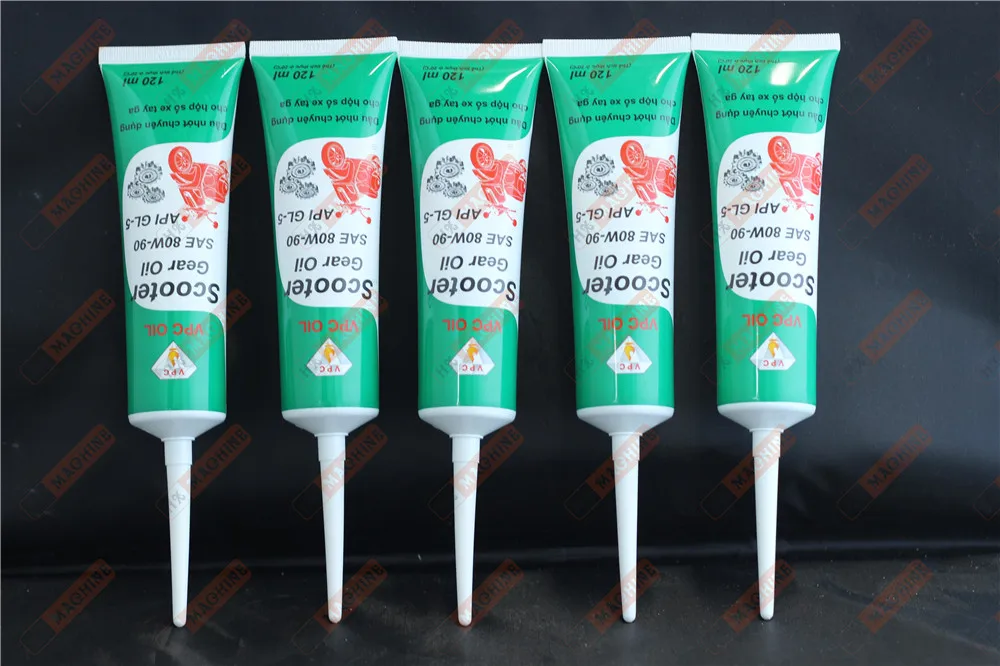

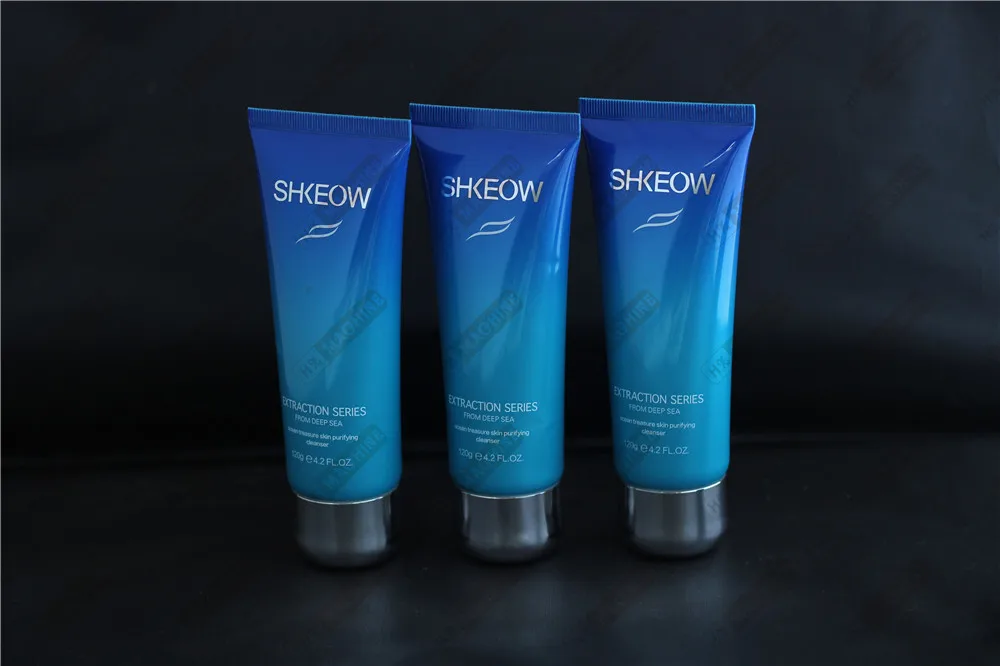

Samples
Certifications
Packing & Delivery

Packing

We use ply-wood case for packing machines, it will meet export standard like safety, protection requirement and durable performance in long time shipping by sea or air, our package no need fumigation.

Delivery

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.

Customer & Feedback
FAQ & Service

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machines are made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before

Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

3. We focus on providing you One-step

solution for your requirements

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
4.Engineer can service door to door.
