Biodegradable Plastic Bag Machine

Feedback Ratings
$7,000.00 / Set | 3 Sets (Min. Order)
Power(W):
SHXJ-C800
$7,000.00
- +
available
SHXJ-C1000
$7,000.00
- +
available
SHXJ-C1200
$7,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Bag Forming Machine
Bag Type:
T-shirt Bag
Condition:
New
Material:
Plastic
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SANBI
Model Number:
SHXJ-C1000/1200
Voltage:
220V,50HZ single phase
Dimension(L*W*H):
6000X2000X2200MM
Weight:
1600KGS
Certification:
CE,ISO9001;2015,SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training
Name:
Biodegradable Plastic Bag Machine
Model:
SHXJ-C800/1000/1200
The max bag width:
150-300/400/480mm
The max bag length:
200-700mm
Speed:
(30-130pcs/min) x4 lines
Step /Servo motor with driver:
1 set
PLC with touch screen:
Include
Automatic punching:
Include
Application:
Biodegrable T shirt bag ,flat bag
Certificate:
CE,ISO9001;2015

Packaging & Delivery

Selling Units:
Single item
Single package size:
5800X2000X2200 cm
Single gross weight:
1800.0 kg
Package Type:
Biodegradable Plastic Bag Machine : wooden pallet packing with stretch film
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 8 >8
Est. Time(days) 20 To be negotiated
Product Description

Product Application



Full Production Line Automatic Biodegradable plastic bag machine for T-shirt bag

Description:

This machine lines used for t shirt shopping bag production. including high speed blown film extrusion machine , flexible printing machine , double lines t shirt heat sealing heat cutting bag making machine , waste pe plastic recycling machine . it's extruding new or recycled pe plastic granules to blow into film , as the project , it can print on the film then sealing and cutting to shopping bags.



film blowing machine  ⇒ printing machine ⇒bag making machine  ⇒ T shirt bag.jpg

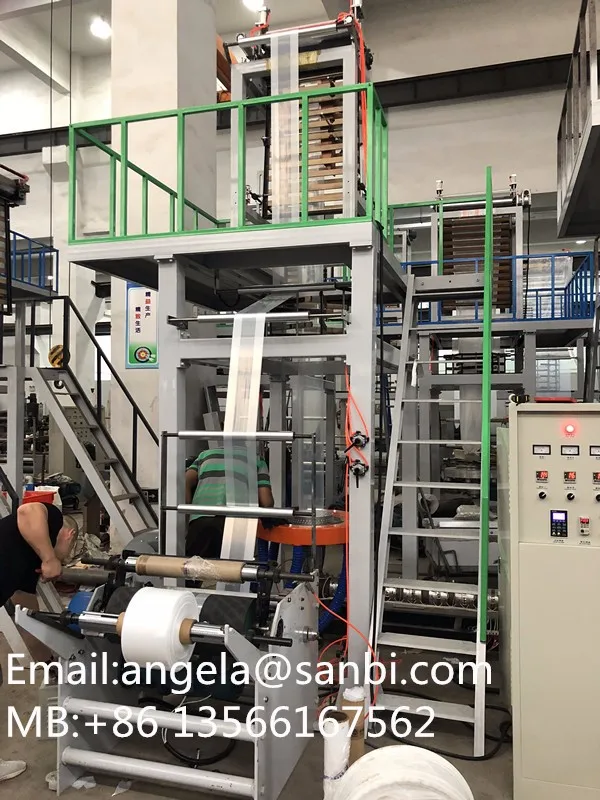

A.. Blown Film Extrusion Machine




single layer blown film extrusion machine

It is used for blowing PLA ,PBAT , which has been widely used for producing biodegradable T shirt bag and flat bag. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.It equip with double vent air ring and center single rewinder .

Model
SJ-A50
SJ-A55
SJ-A65
Max folding width of film
100-600mm
200-800mm
300-1000mm
Screw diameter
50mm bimetallic alloy material
55mm bimetallic alloy material
65mm bimetallic alloy material
Screw ratio(L/D)
30:1
30:1
30:1
Screw speed
10-100r/min
10-100r/min
10-100r/min
Power of main motor
11kw
15kw
22kw
Max extrusion
35kg/h
50kg/h
65kg/h
Single –sided thickness of film
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Die head diameter
Φ150mm
Φ250mm
Φ350mm
Rewinder Torque motor
10 N/M X1pc
10 N/M X1pc
10 N/M X1pc
Air compressor
1.1kw
1.5kw
2.2kw
Power of heating
10kw
15KW
20KW
Outline dimension
5000x1600x3800
5600x2200x4700
6500x2400x5200
Weight
1.9T
2.3T
2.7T

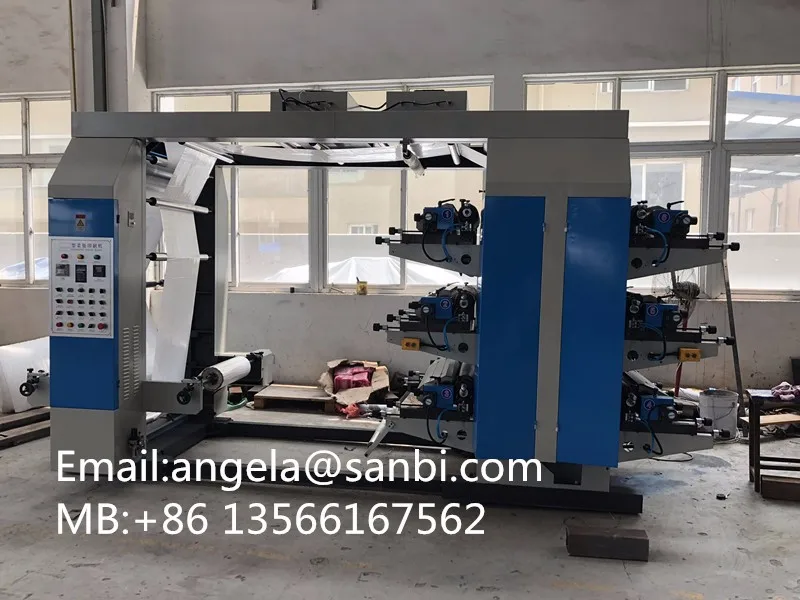

B Flexible Printing Machine


Flexgraphic printing machine, also called aniline press which uses photosensitive resin plate as the printing plate of printing machine. It adopts environmental ink and has advantage of low edition-producing cost, this is an ideal machine for small mass lots, large variety production manufacturer. This machine is suitable for printing such packing materials as HDPE, LDPE polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc

Model of Machine
YT-4600
YT-4800
YT-41000
Max printing colors
4 colors
4 colors
4 colors
Max. Width of Printing Material
600mm
800mm
1000mm
Max. Printing Width
560mm
760mm
960mm
Length Range of Printed Product
191-1000mm
191-1000mm
191-1000mm
Max. Diameter of Roll Material
φ450mm
φ450mm
φ450mm
Printing Speed
5~50m/min
5~50m/min
5~50m/min
Printing roller
400mm
400mm
400mm
Straight gear driving
Include
Include
Include
Thickness of plate (Including Two-sides Glue Paper)
2.38mm
2.38mm
2.38mm
Main motor
3kw with inverter
3kw with inverter
3kw with inverter
Meter counter
Include
Include
Include
Total Power
15kw
18kw
20kw
Weight of Machine
2500kg
3000kg
3500kg
Overall Dimensions
4800x1200x2400
4800x1600x2400
4800x1800x2400

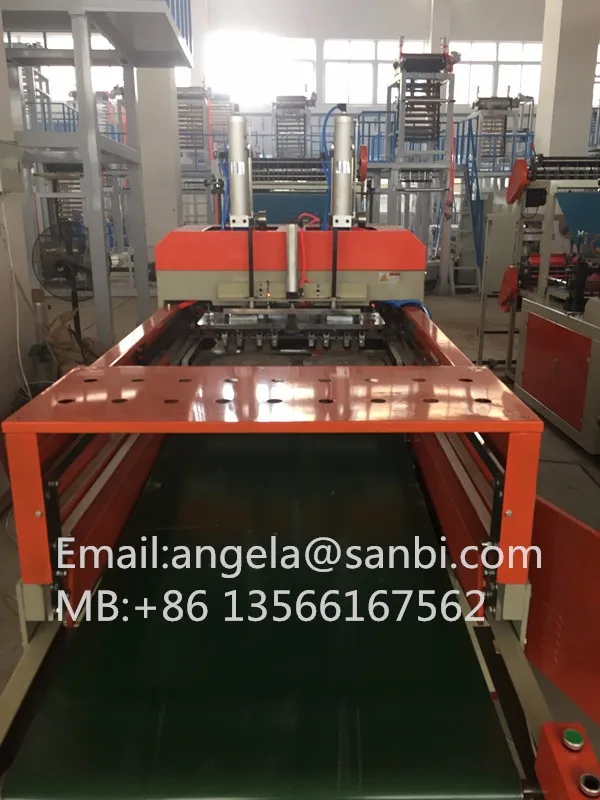

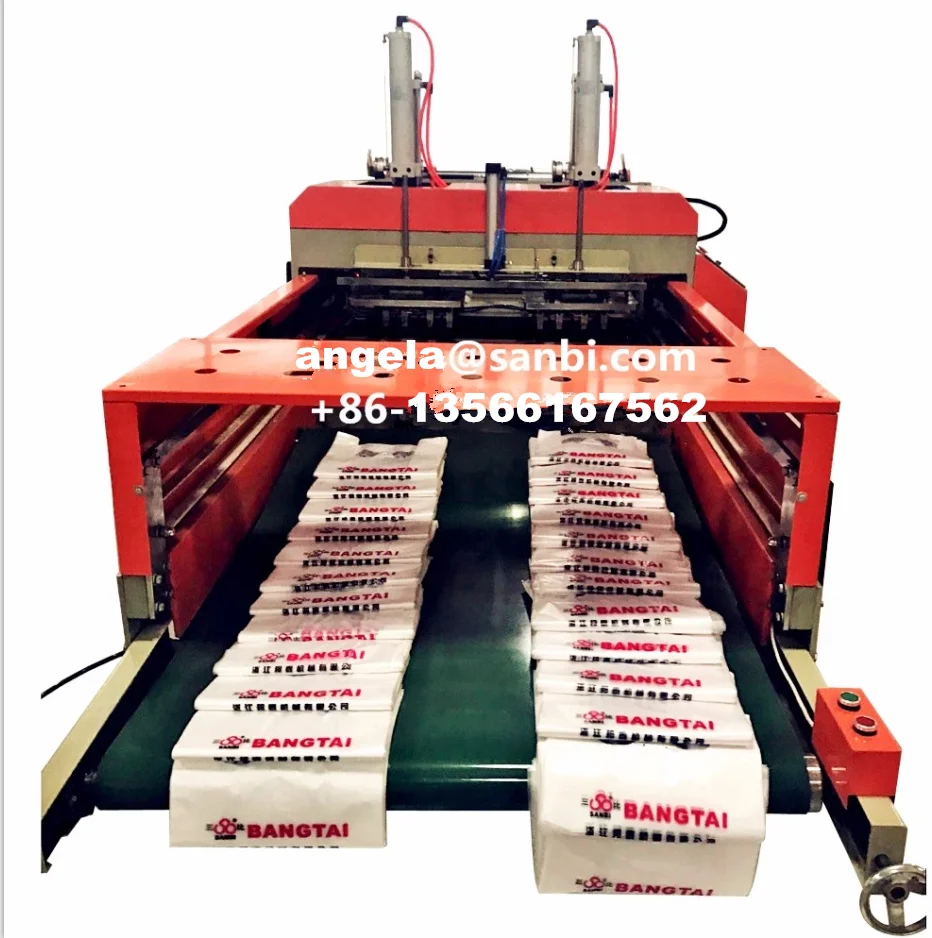

C. Biodegrable Bag making Machine


Model
SHXJ-C800
SHXJ-C1000
SHXJ-C1200
Max.Width of Sealing & Cutting (mm)
300x2 lines
400x2 lines
480x2 lines
Max.Length of Sealing & Cutting(mm)
700mm
700mm
700mm
Speed of Bag-making (pc/min)
(30-130)x4
(30-130)x4
(30-130)x4
Tracking Photocell
1 pc
1 pc
1 pc
Step/ servo  motor and driver
1 set
1 set
1 set
Number of Strip (pc)
4
4
4
Main motor
1.5kw
2.2kw
2.2kw
PLC with touch screeen
1set
1set
1set
Weight (kg)
1400KGS
1600KGS
1800KGS
Outline Dimension (LXWXH)mm
5000X1600X2000
6000X1800X2000
6000X2000X2000
Certifications
Company Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Contact information
