CCS Adapter combo 1 and 2 PLUG CHAdeMO EU EV America Electric car

Feedback Ratings
  • 1-99 Pieces
    US $1400.00
  • >=100 Pieces
    US $900.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 10000 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SETEC
Model Number:
SET450
Warranty:
2 Years
Output:
DC 1000V
Product name:
EV Charger
Application:
electric vehicle FAST charging
Usage:
CCS 2 IEC to CCS 1 SAE
Color:
EV Charger , Paul(at)setec-power.com

Packaging & Delivery

Selling Units:
Single item
Single package size:
130X40X30 cm
Single gross weight:
8.0 KG
Lead Time :
2

Product model :

This CCS Combo 2 to CCS Combo 1 adapter is specifically for European and American markets’ Drivers.

When there are CCS Combo 2 EV Chargers around them and their EVs are from American Standard (SAE J1772 CCS Combo 1), they need to use CCS Combo 2 to converter to CCS combo 1 to charge their EVs.

So the CCS2 to CCS1 Adapter will help EV drivers to use CCS Combo 2 EV charger to charge the SAE J1772 CCS Combo 1 EVs.

1. High Flexibility and Durability

Easy-bend and tough rubber are used for the cable.

2. User-friendly Design

This connector is designed to operate viscerally by having handle shape.

3. Excellent Operability

Charging is performed by only inserting a plug into a vehicle-side inlet. After charging is completed, push a button and withdraw the plug.

4. Safety Design

The connector has automated triple safety lock system which prevents the disconnection of the connector from vehicle side inlet accidentally during charging.

5.A Wide Range of Operation Temperature

It can be used under a wide range of environmental temperature from -30 to 50.

Combined Charging System (CCS SAE J1772) – (BMW, GM, VW, and other USA car makers)

Rated voltage

1000V

Rated current

200A

Ambient temperature

-30°to +50°

.jpg

Product Description

Electric Vehicle Charging Station Mobile Phone/Telephone 008613925204306
Mail: paul(AT)setec-power.com Skype: Paulsetec
More detail send email to me about Electric Vehicle Charging Station, Quick response.

10kw Chademo Portable Charger Description

CHAdeMO EV charging station is Combined with CHAdeMO connectors.

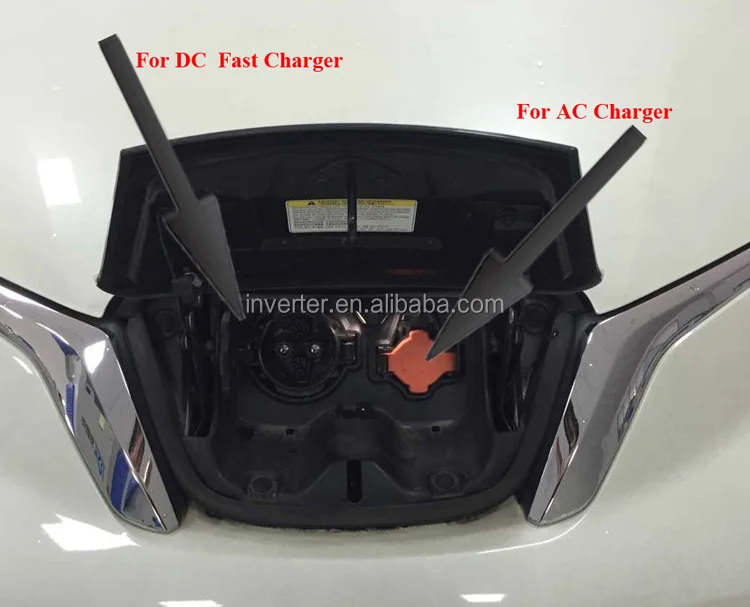

That can be fit for all CHAdeMO EVs, Like Nissan Leaf.

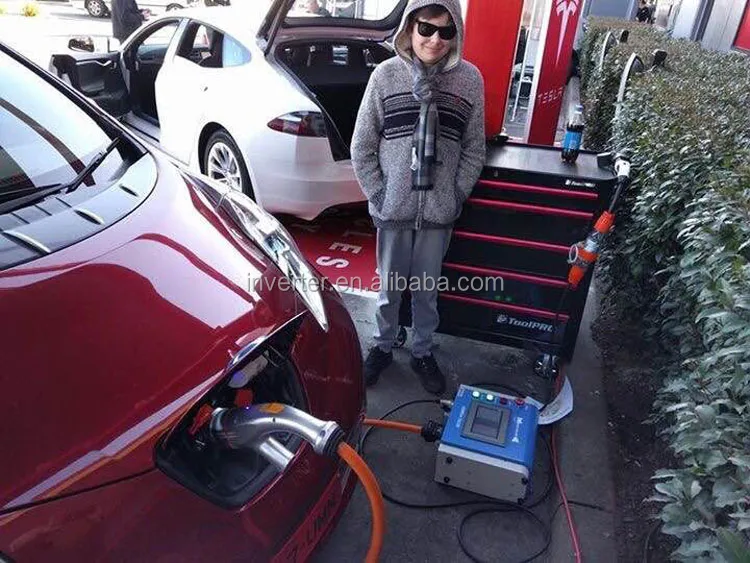

In order to enable users to more convenient and efficient, SETEC has developed out of portable EV charger. No matter where you go, how far is it, you can charge your electric car anytime. Due to the light and small size, it can put into your car.

DC quick charger consists of charging modules, monitor, smart meter, HMI, communication module, charging connector, management and cabinet.

DC Quick charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly. A typical electric car with 24kWh battery pack may be charged as quickly as 2 hours to get up to 80% of its capacity.

The Charger combines industry standardization with advanced charging technology to support next-generation electric vehicles.

·Soft-switching technology, efficiency up to 95%

·Data management and metering option

·Built-in safety measures

·User friendly interface

·Wireless communication remote monitoring and assistance

·Available in several models for different applications

10kw  123.jpg10KW 1.jpg10kw 234.jpg10kw CHAdeMO Charger.jpgCHAdeMO.jpgCharger1.jpg

AC Input3phaseLine Voltage(VAC)380
Voltage TypeAC three-phase five-wire
Frequency(HZ)50/60Hz
Power Factor0.99
Current THD value≤5%
Input undervoltage protection value(V)323±5V
Single phaseLine Voltage(VAC)85~300
Current (A)0~30A
Frequency(HZ)45~55
Power Factor0.99
Current THD value≤5%
DC OutputNominal output voltage(V)450/750
Output Current(A)0~20A
Regulation accuracy≤0.5%
steady current accuracy≤1%
Ripple Peak factor≤0.5%
The output voltage range(V)0~450V or 0~750V
Short circuit current(A)≤30A
Output Power10kW
Mechanical indicatorsPackagingCarton
Dimensions(W×D×H)mm420×315×173
System Weight20Kg
Protection gradeIP31
Operating  Temperature-25°C to +50°C
Protective  FunctionShort  circuit  protection/ Over temperature protection / Over-voltage / Under-voltage protection/ Communication failure
BMS  CommunicationCAN2.0   [CHAdeMO]/ [GB/T]
PLC [SAE Combo]
CoolingForced Ventilation
DisplayLED: 7 inch Touch Screen
LCD: 3 Color LED lights  - status indicator
DC PlugsCHAdeMO/CCS/GB/T
Company Information

 2

Shenzhen SETEC Power Co., Ltd was established in 2004.We are one of the leading manufacturer in China specializing in designing, researching, developing, manufacturing and processing professional power supply. With professional experience and loyal practical service, our products can be divided into 5 big parts:

·DC Fast Electric Vehicle Charging Station(standard: CHAdeMo,CCS,GB/T)
·DC AC Inverter ( off grid inverter, solar pump inverter)
·DC DC Converter
·Rectifier (AC/DC power supply : parallel system and single unit )
·Battery Analyzer

Our goal is "customer first, good quality and best services". Our products have passed the ISO9000:2000 quality system certification and CE certification as well.
Our main products, such as switching power inverter have been tested by the national Ministry of Information Quality Inspection Center and received Certification of Shenzhen High-tech Industry!
Business partner always welcome, please send us your requirement, then we can obtain mutually beneficial business.
We always try our best to meet customer’s requirement as possible as we can. In recent years, we have made rapid growth in our business. We mainly export our products to USA, Europe, Middle East and Africa.
