CE approved 4500lbs ATV Winch with synthetic line

  • 1-19 Sets
    $125.00
  • 20-49 Sets
    $102.00
  • >=50 Sets
    $95.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
JNDO
Model Number:
JNDO
Power Source:
Electric
Application:
ATV/UTV
Capacity:
4500lbs
Motor:
3.9hp/2.9kw 12V, Permanent Magnet Motor
Certification:
CE
Gear train:
3 Stage Planetary
Gear reduction ratio:
176:1
Cable:
D1/4"x49"(d6.35mmx15mm)
Drum size:
D2.4"x8.81"(d60.5mmx113mm)
Gross weight:
37.5lbs(17kg)
Color:
Customized
Sling Type::
Synthetic Rope
Remote Control:
Included

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X27X16 cm
Single gross weight:
17.0 kg
Package Type:
Carton
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Product Description

CE Approved 4500lbs ATV Winch with Synthetic Line

 With the JNDO 4500lbs Electric Winch, you will no longer be stuck on the road in the middle of your journey. No one expects to get off the car and push it out of a hog or be stuck over fallen tree during your joyful drive, therefore, you need our JNDO Electric Winch to winch your ATV out of the unpleasant unexpected circumstances.

 The high performance 4500lbs Electric Winch has all the features for emergency rescue during your journey. The case is made of the toughest material which is waterproof and corrosion resistant to withstand the harsh weather. No matter you are in a tropical swamp and snowy mountain, JNDO Electric Winch will give you the best performance.

 Not only its exterior, but also its functionality that differentiates us from the others. With the high tensile steel cable, your winch can pull your ATV out of the most strenuous conditions imaginable. For your maximum comfort, the package comes with both wired and wireless remote control to let you just sit back and watch the rescue.

SPECIFICATIONS FOR 12V 4500LBS ELECTRIC WINCH
Rated Line Pull
4500LB(2040kg) single-line
Motor
3.9hp/2.9kw 12V, Permanent Magnet Motor
Gear Train
3-stage planetary
Gear Reduction Ratio
176:1
Clutch
rotate 90°
Cable
φ1/4”×49” (φ6.35mm×15mm)
Drum Size
φ2.4”×8.81”(φ60.5mm×113mm)

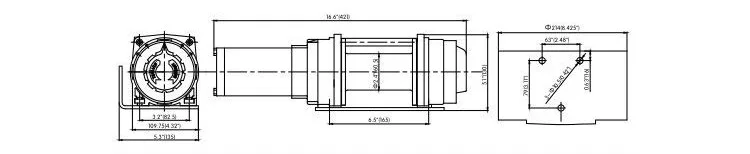

Overall Dimensions
(L×W×H)16.6”×5.3”×5.1”(421×135×130mm)
Gross Weight
37.5lbs(17kg)
Duty Cycle
Intermittently
Fairlead
Aluminum fairlead
Package
1pc/box, 19.7” ×10.6” ×6.3”(500×270×160mm)
Mounting Bolt Pattern
3.15”(80mm )
Remote Control
included
Note
solenoid can be chosen, Usd1.5 more for 120A
LINE PULL AND ROPE CAPACITY IN LAYER
Layer of cable
1
2
3
4
5
Rated line pull
Lbs
4500
4000
1875
1667
1429
Kgs
2041
1815
851
756
648
Cable of layer
Ft
12.3
13.3
20.24
29.95
42.60
M
3.74
4.74
6.17
9.13
12.98
LINE SPEED & AMP DRAW-FIRST LAYER
Line pull
Lbs
0
1000
2000
4500
Kgs
0
454
907
2041
Line speed
Fpm
10.5
7.5
3.6
7.8
Mpm
3.20
2.29
1.10
2.38
Amp
A
11
60
92
180

Noice

•    Do not use winch as a hoist, do not use for transportaion of people!
•   Don't operate and spool under full load over one minute continuously!
•   While motor is overtheating, please stop for a while to cool down!
•    Limited warranty!

Products Feature

Automatic braking action

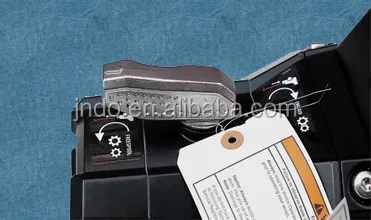

Free spooling clutch for fast line-out,automatic load-holding brake for maximum safety

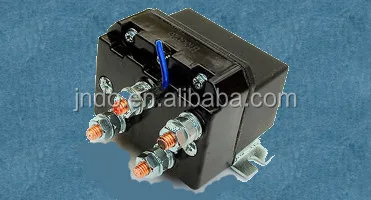

Solenoid control box supplied

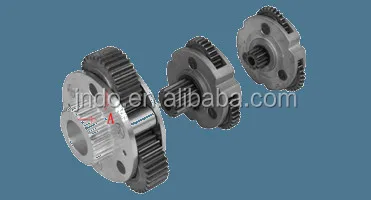

Pure steel,specially designed differential planetary gearing

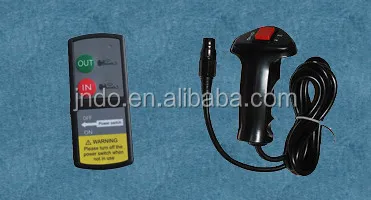

Wireless remote control works up to 12 ft. away

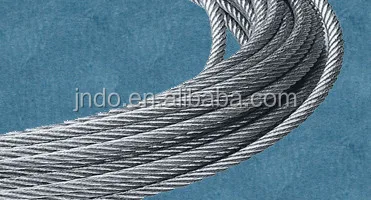

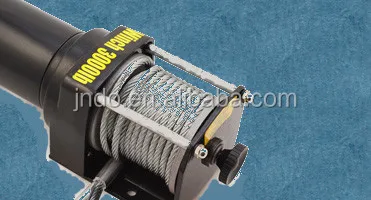

Aircraft grade wire rope,Extremely durable

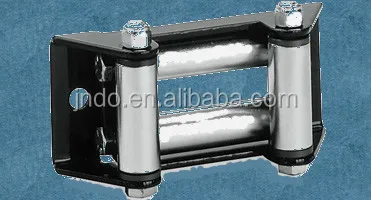

4-way roller fairlead

Galvanized and frosted surface,ultra high strength of waterproof.

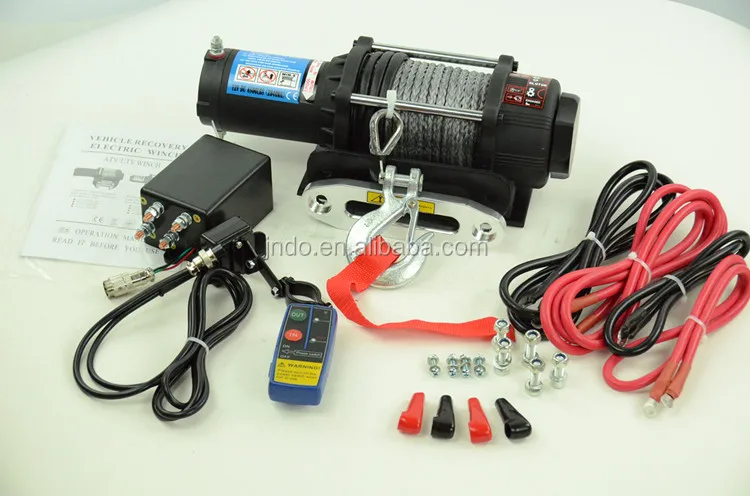

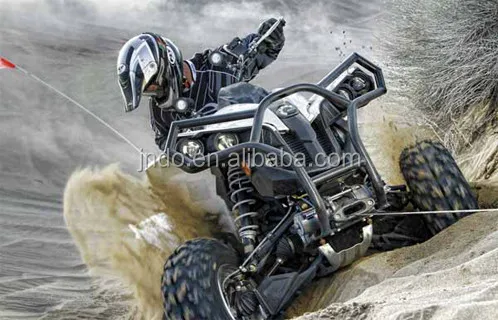

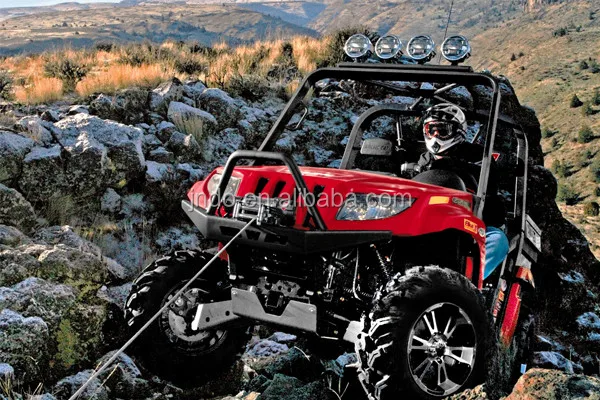

Product Show

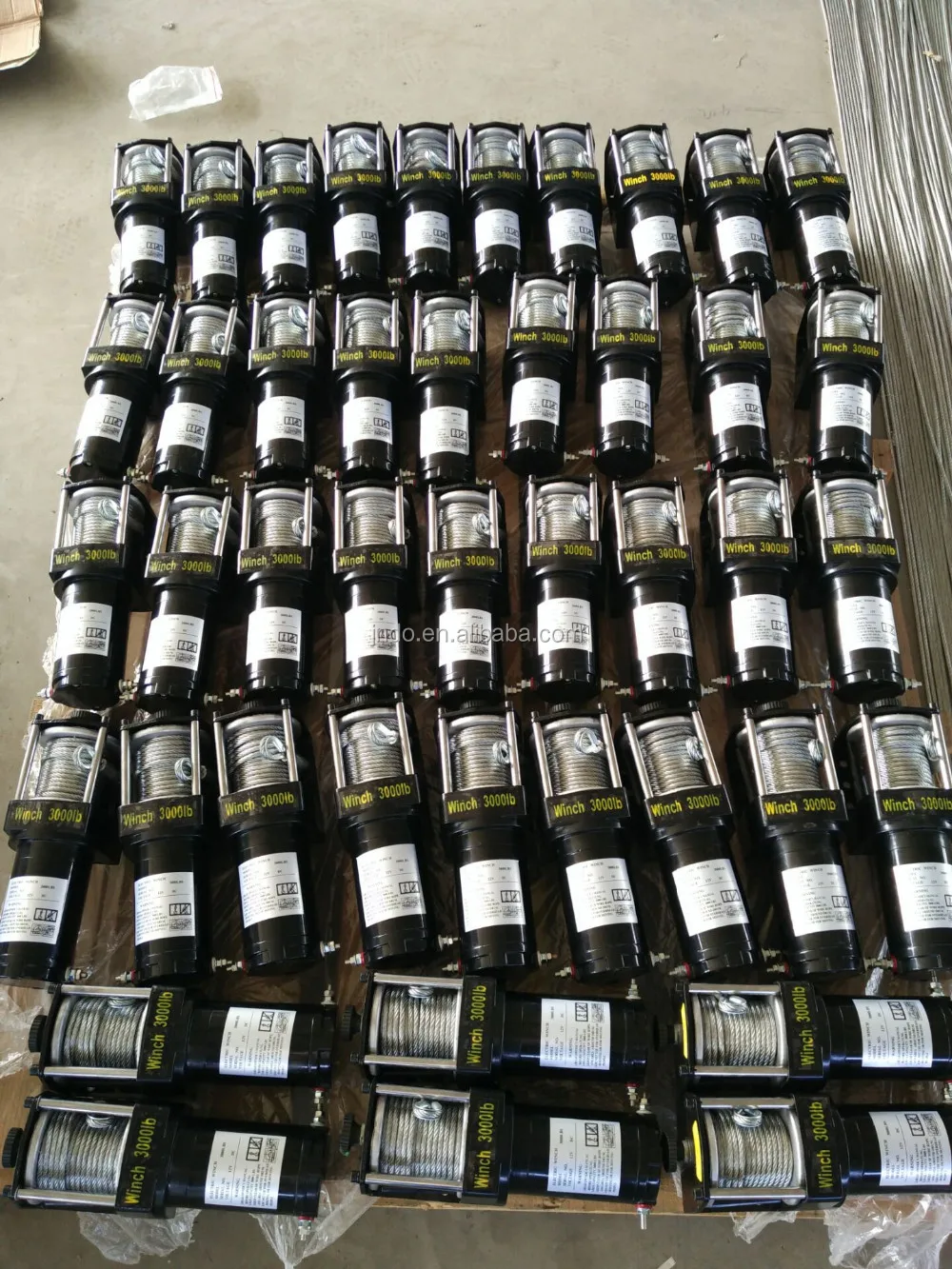

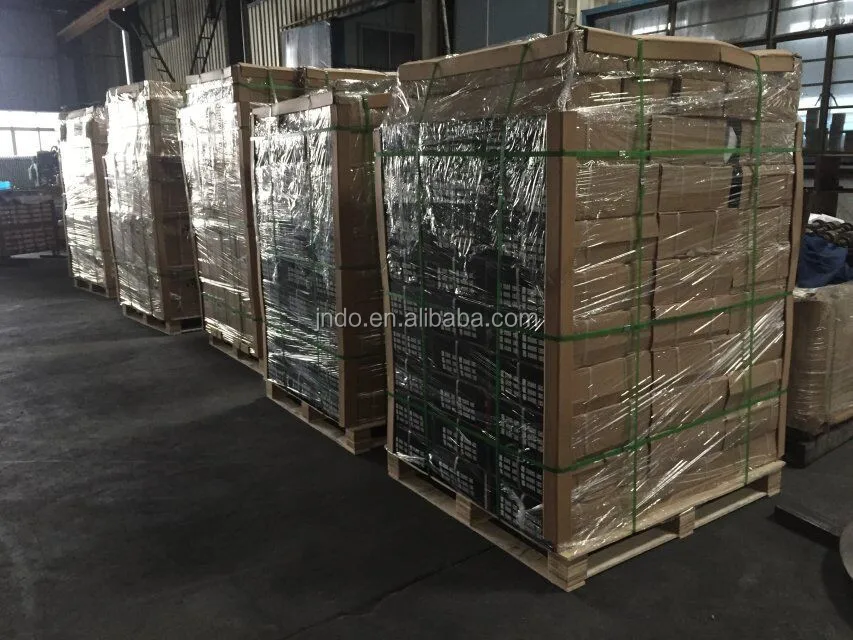

Packing & Delivery
Our service

Certification

  Strong quality control, each and every winch is tested by one specific designated worker for its amps with no load right after the assmeble of winch body to avoid any future problems.

 Of course,you can customize the color or engrave your company LOGO on it so as to make it easier to promote your brand.

 Besides all these,we offer free samples for your better reference.

Payment

Methods of payment we accept:

Paypal

Western Union

MoneyGram

L/C
T/T

Shipping

 All items are dispatched from our warehouse in Hebei, China.
 We work with different courier partners to provide reasonable freight costs and quality service. The type of courier is depending on the size and weight of each item and the delivery location.
 We currently dispatch products to all over the world.

Warranty

 For your peace of mind,this product comes with 1 year warranty.

 We value our customers and wish to make your purchase experience enjoyable.

 If something goes wrong with your product,you should always contact us for assistance.
