Christmas Light Addressable 0.3W 5V WS2811 RGB full color Diffused Digital RGB LED pixel string light

  • 100-99999 Pieces
    $0.14
  • >=100000 Pieces
    $0.11
Model Number:
RB-BN-5V- led pixel
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 20000 Pieces)
Customized packaging (Min. Order: 20000 Pieces)

More

Graphic customization (Min. Order: 20000 Pieces) Less
Samples: $0.11 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $0.11 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Chip Material:
AlGaInP
Emitting Color:
Digital color
Luminous Intensity:
650mcd
Luminous Flux(lm):
8
Optical Attenuation(%):
2
Power:
3W
Power Dissipation:
0.1W
Viewing Angle(°):
180
Color Rendering Index(Ra):
95
Color Temperature:
2700K-7000K
Operating Temperature(℃):
-40 - 60
Storage Temperature(℃):
-25 - 60
Place of Origin:
Guangdong, China
Brand Name:
Rebow
Certification:
CE, RoHS
Product Name:
led pixel rgb ws2811
IC chip:
ws2811/usc1903
LED Quantity:
50pixels/string
Controller:
50piece a string
Diameter:
12mm
pixel Qty:
50piece a string
wire:
20awg
shape:
Bullet or square
keyword:
Waterproof IP68 5V 12mm decoration rgb led light dmx pixel ws2811

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X32X28 cm
Single gross weight:
0.007 kg
Package Type:
50pcs/string, 5string in one Anti-static bag, 20bags in one box, Box size: 35*37*50cm
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 10000 10001 - 50000 >50000
Est. Time(days) 5 8 11 To be negotiated
Video Description
Product Description
Product Name
Digital Programmable RGB Led Pixels Nodes light
LED STRIP chips
SMD 5050
Input Voltage
DC5V
Pixel Qty
50 pcs/string
IC type
WS2811 or UCS1903
Beam Angle
180
CRI
>85Ra
Work Temperature
-20 ~ +60 °C
Certificates
CE & Rohs
Diameter
12mm diameter (0.45) 75mm deep (1.5)
IP Rank
IP68
Luminous intensity of led chip
640mcd
Wrie Length
10cm wires between each light,we also can 15cm wirre
Wire instructions
White wire: DAT;
Green Wire: CLK;
Blue: GND
Optical attenuation
2%
Controller
T1000 T4000 T8000

Advantages and features

A. Full color Pixels are digitally-controllable lights you can set to any color, or animate

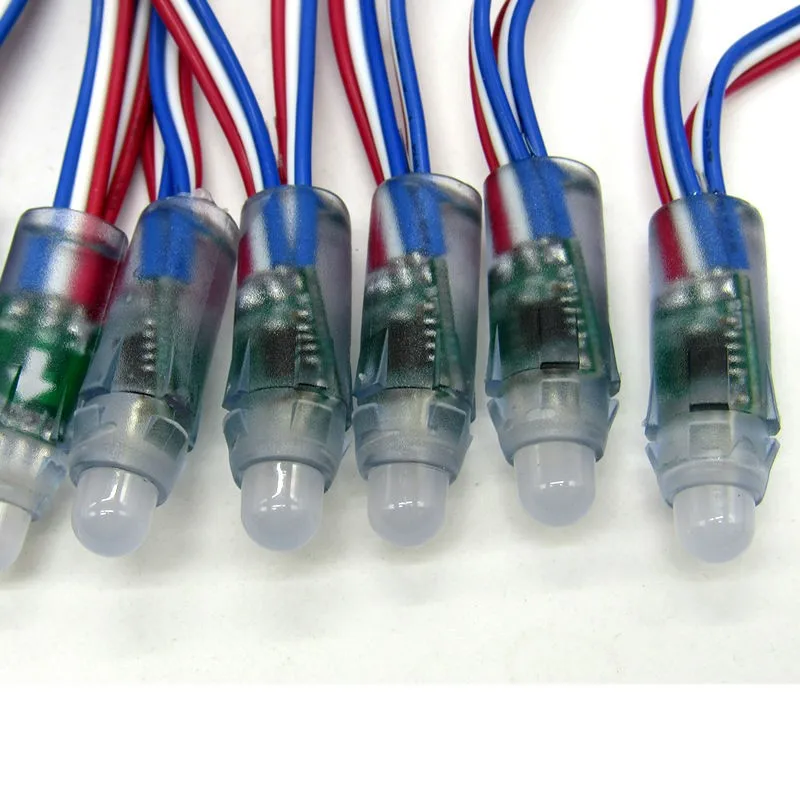

B. Each RGB LED and controller chip is molded into a 'dot' of silicone.
C. The dots are waterproof and rugged.
D. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
E. They are typically used to make outdoor signs. Compared to our other 20mm LED dots.
F. These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.
G. The pixels are connected by a 3-conductor cable. Red is +5V, white is Ground, green is Data and Data is shifted down from one pixel to the next, s
o that you can easily cut the strand or attach more onto the end.

H. The pixels use 8mm diffused RGB LEDs
with brightness of about 300 mcd per individual r/g/b LED.

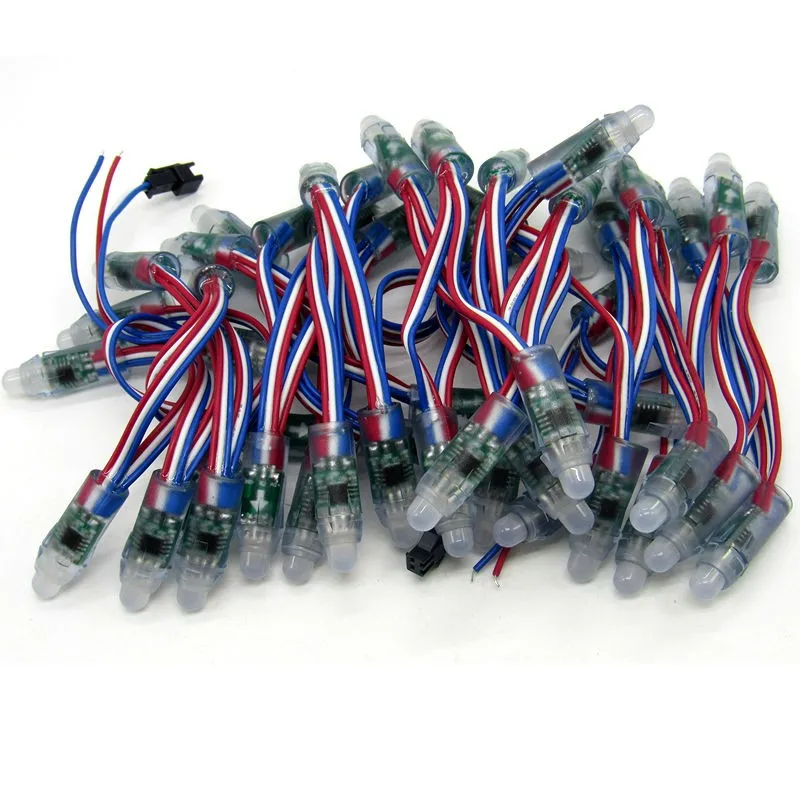

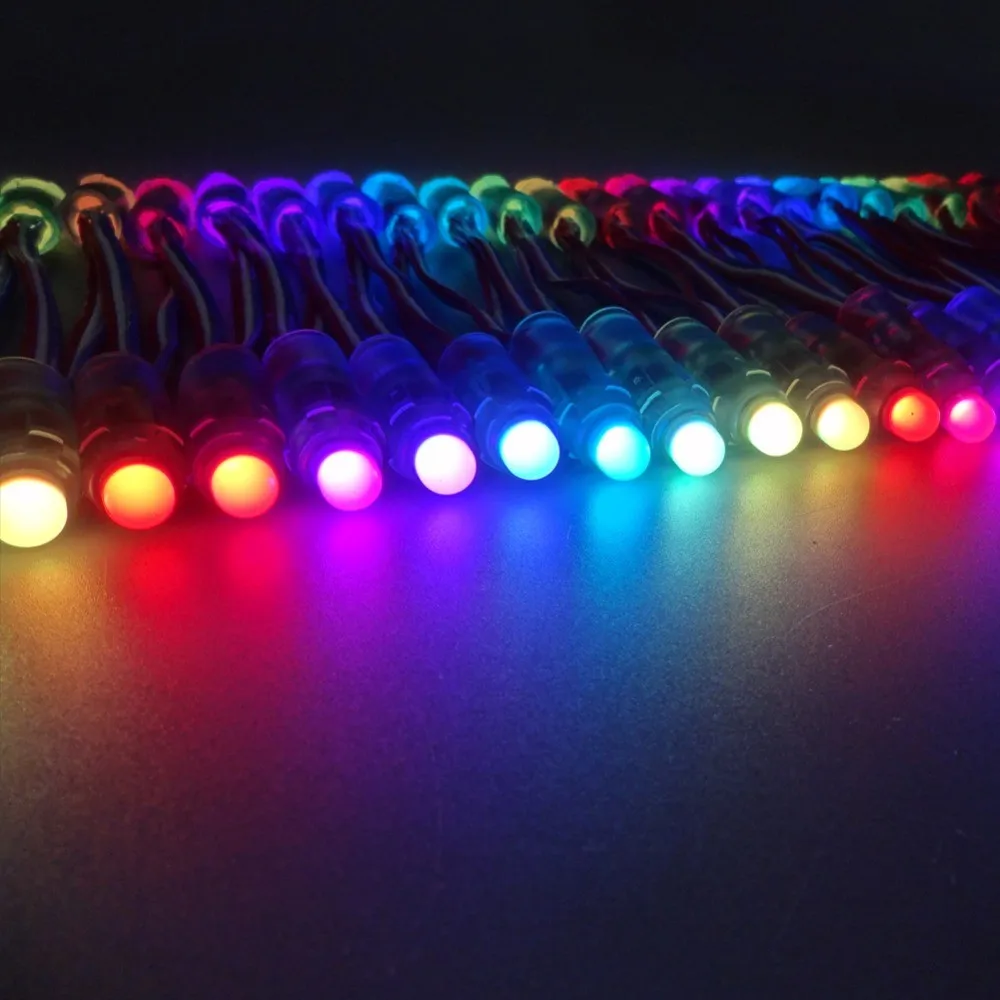

Detailed Images

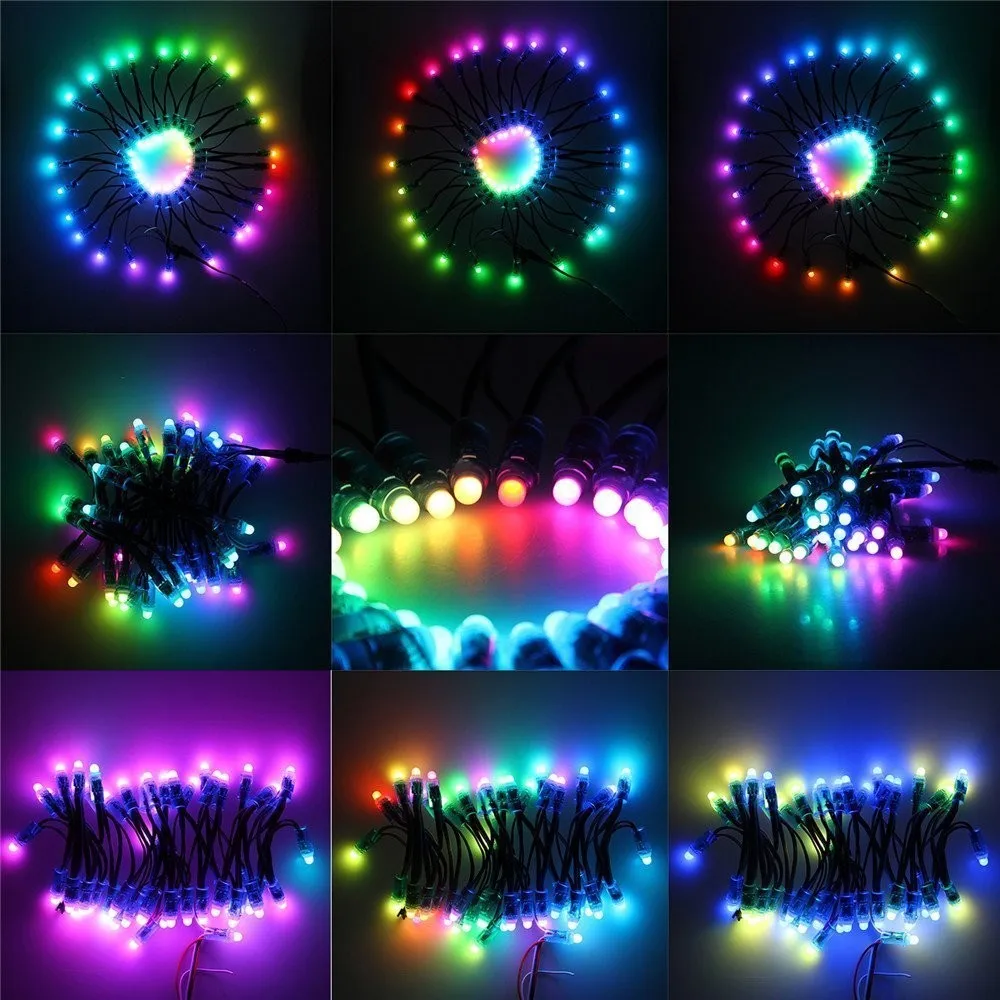

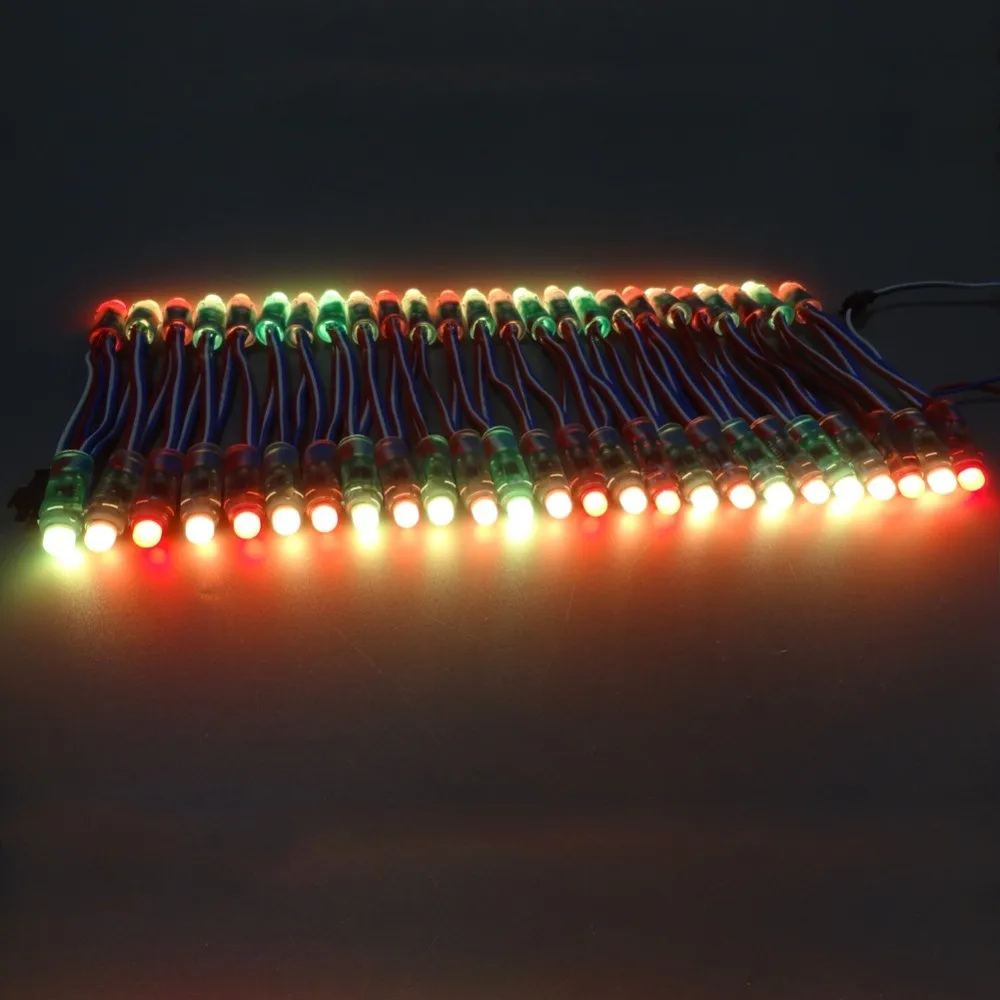

This product use the RGB full color fog lamp, have big light angle.




Special bayonet and unique technology, IP level reached more than 68, with anti-UV, good waterproof performance, high temperature resistant, ensure the product can perfectly use in outdoor..


These products need external led pixel controller, can realize then RGB colorful gradient, jump, full color scanning, chasing, running water, many kind effects. These pixel lights also can DIY program and effects by led software..

Application

Application of Led Pixel Light

Christmas decoration,Cove Lighting Path and contour lighting
Backlight for signage/ letters,Architectural lights for Canopy, Window,Corridor
DIY Lights for home use,Marine light,Task lighting,Replacement of Fluorescent light

Decorative lights for holiday, event, show, exhibition.

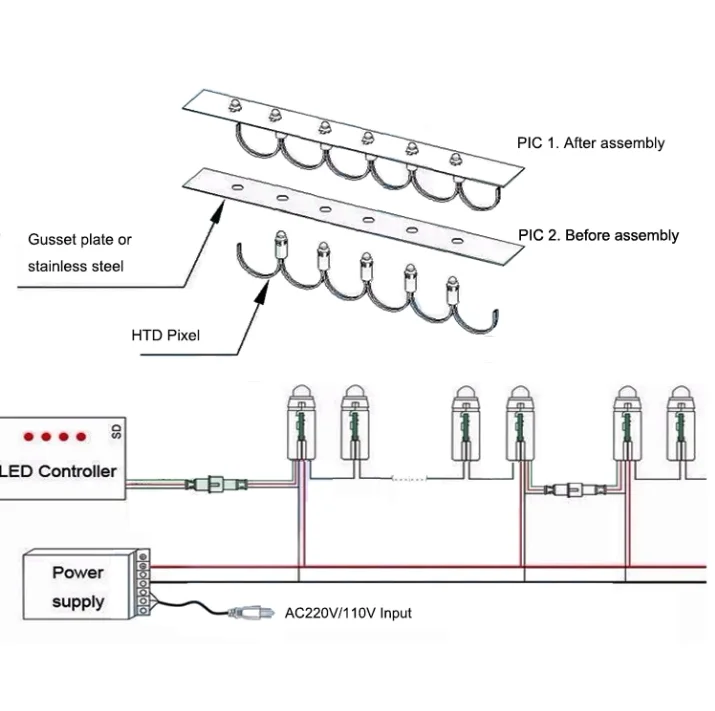

Installation Details of led pixel light

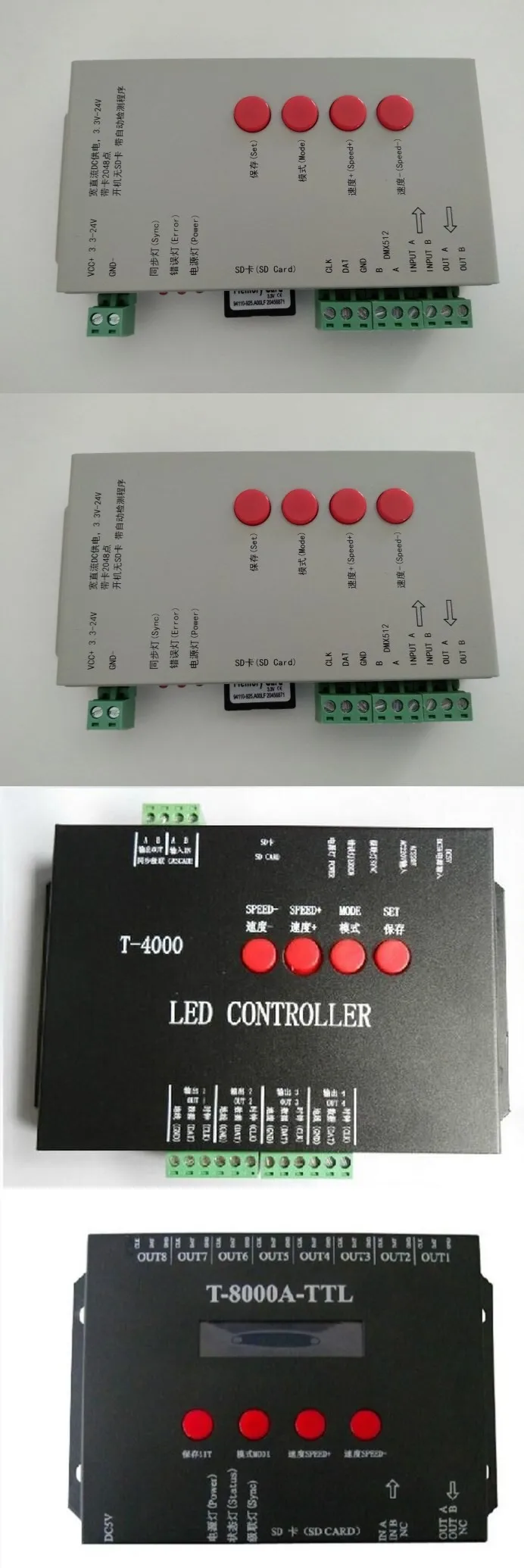

Controller

Digital color led controller RB-T1000S-A

Single-port output, Max control 1024 pixels
SD card included max store up to 16 files.
SD card capacity: 128M-2G
SD card file: FAT ; Store File: *.led

Voltage: 5V-24VDC input
Compatible with single and doub

Digital color led controller RB-T1000S-B.

Single-port output, Max control 2048 pixels
SD card included max store up to 16 files.
SD card capacity: 128M-2G
SD card file: FAT ; Store File: *.led
Voltage: 5V-24VDC input
Compatible with single and doub
32-265 degree brightness control

Digital color led controller RB-T4000S.

Four ports output, Max control 4*1024 pixels
SD card included max store up to 16 files.
SD card capacity: 128M-2G
SD card file: FAT ; Store File: *.led
Voltage: 5V-24VDC input
Single set offline control, max 16files in SD card
Speed adjustable and effect repeat play

Digital color led controller RB-T8000S.

Eight ports output, Max control 8*1024 pixels
SD card included max store up to 16 files.
SD card capacity: 128M-2G
SD card file: FAT ; Store File: *.led
Voltage: 5V-24VDC input
Single set offline control, max 16files in SD card

Speed adjustable and effect repeat play.

Related Products

Click on the picture to check more related products


 5050 RGB Led strip Light             6mm, 8mm Silicone Neon              Hot Led Pixel Light                     Digital RGB Led Strip

      PVC Led Neon Flex                 UV 365nm, 395nm Led Strip             Custome Neon Sign              Popular Led Neon Lamp

Packing & Delivery

PACKING for led pixel


Shipping method


1,shipping the goods by exress such as UPS DHL TNT EMS Fedex
2,shipping the goods by air
3,shipping the goods by sea

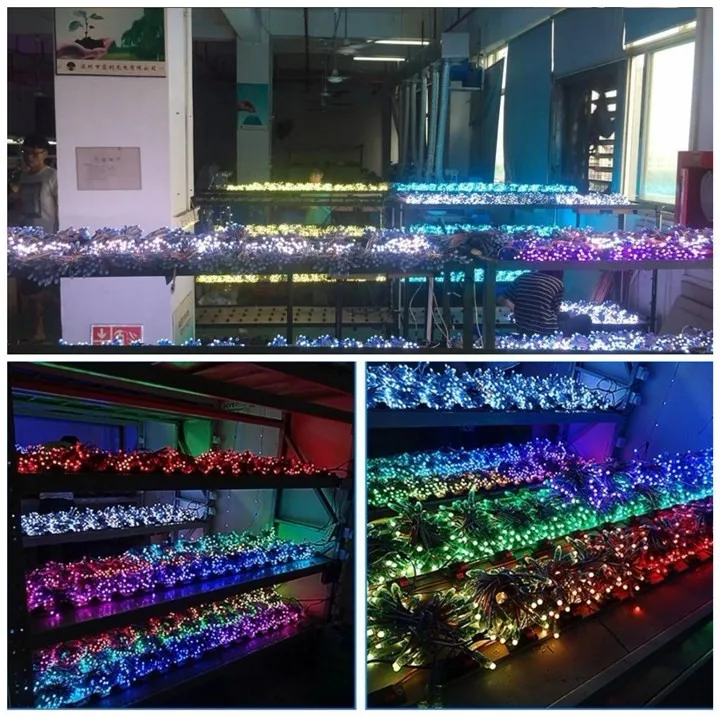

Company Information

    Shenzhen Rebow industry co.,Ltd was founded in 2007, With over 5000 square meters dust-free workshop, automatic production lines, modernized equipments and 100 employees,20 engineers, 30QC etc.qualitified work team.

    We are qualified for ISO9001, FCC, CE, ROHS, our products have been sold to over 200 contries.

    We are one of the most professional manufacturers for LED Strip lights and neon light in China.

    We have our own SMD LED packing line, we focus on color consistency,high efficiancy.

    We use all good quality material which imported from Japan & United States.

FAQ

Q1: Are you a factory or trading company?
A:We are integrated. We have our own factory and international trade groups.

Q2: What are your main product?
A: We mainly produce LED strip light, LED pixel, LED neon light including daily life indoor lighting and outdoor lighting.

Q3: Can I get the samples for free?
A: We welcome you buying samples for evaluation, but you have to pay the cost. There are many clients needing samples before the order. It is a big cost. Thanks for your understanding.

Q4: Can our logo or a simple parameter printed on the label if the led pixel light ?
A: Yes, it is ok.

Q5: Can you provide related certification?
A: Yes, related certification are available, such as CE, RoHS,etc.

Q6: Do you accept OEM services?
A: Yes, we accept and produce as to your requests.
