Commercial Fresh espresso automatic table coffee vending machine

$1,600.00 / Unit | 1 Unit (Min. Order)
Model Number:
Payment System:
Coin QR Code Banknote
Storage Capacity:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customized logo (Min. Order: 10 Units)
Customized packaging (Min. Order: 10 Units)


Graphic customization (Min. Order: 10 Units) Less
Samples: $1,600.00 /Unit, 1 Unit (Min. Order): Buy Samples
Contact Supplier
Samples - $1,600.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
1 year
After-sales Service Provided:
Video technical support, Online support
H 700mm, W 420mm, D 450mm
automatic espresso
5-35 degree
Product name:
coffee vending machine
cash, coin,mobile payment
Model Number:
one year

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X60X88 cm
Single gross weight:
70.0 kg
Package Type:
coffee vending machine package: wooden box,flight case
Picture Example:
Lead Time :
Quantity(Units) 1 - 1 2 - 5 >5
Est. Time(days) 15 30 To be negotiated

Commercial Fresh espresso automatic table coffee vending machine


Machine Dimension:  H 700mm, W 420mm, D 450mm

Model No.MACES4C-00


MACES4C machine is composed of the following parts:

Grinder, Brewer, coffee bean canister, 3units of instant powder canisters, 2 units of mixer, 1 unit of coffee residue bucket, 1uint of water dirp tray, hot water system, drink outlet mouth, control system(IO+ touch screen), Shell, door and other modules.


Option system ( Foam system, Fresh Milk system)

Ø  Optional module

Coin changer and boxer

4G router

Remote control




Main parts:(Include“*”means optional)

Ø  ES: Professional high temperature and high pressure Italian coffee brewing system

Ø  4C: 3units instant canisters and 1unit coffee bean canister(include 2units mixer)

Ø  *F: Foam system (Making high-quality cold and hot milk foam with milk powder)

Ø  *M: Fresh Milk system (Making high-quality cold and hot milk foam with fresh milk)


1.     Machine installation


Ø  Power supply: AC230 V / 50 Hz/60HZ

Ø  Installation power: 3000W

Ø  Fuse: 15A

Ø  Inlet water pressure: 0.5 – 7 BAR

Ø  Background installation space: 60 mm

Ø  The side of installation space: 0mm (suggest reserve 5mm)

Ø  Inlet water hardness: 2~8ºHD (Filter in need when out of range)

Ø  Operating temperature: 5-35°C, Humidity 80%

Ø  Weight: 50kg


2.     Volume Parameter


Ø  Water bucket used for residual air:200ml

Ø  Boiler:700ml 2700W AC230V

Ø  Drip tray volume:1000ml

Ø  Coffee residue bucket volume:100 coffee cakes(based on Espresso product of 8g coffee powder )

Ø  Instant canister volume:3groups,each group of 2.5L(volume can be adjusted based on customer)

Ø  Coffee bean canister volume:2.2L

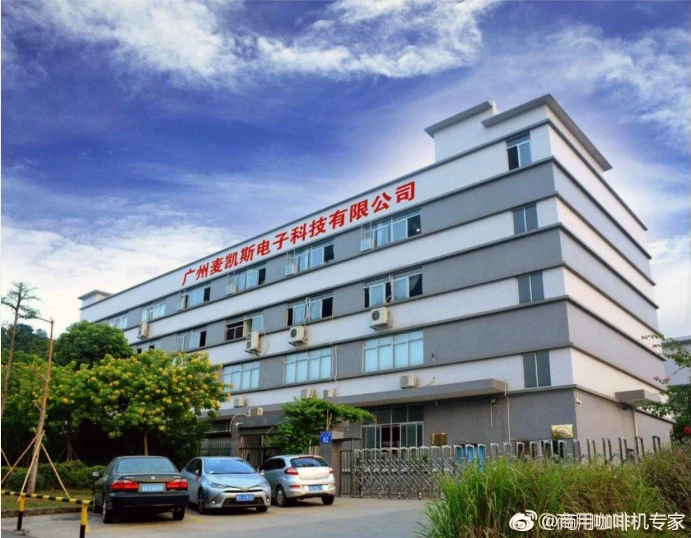

Factory picture:

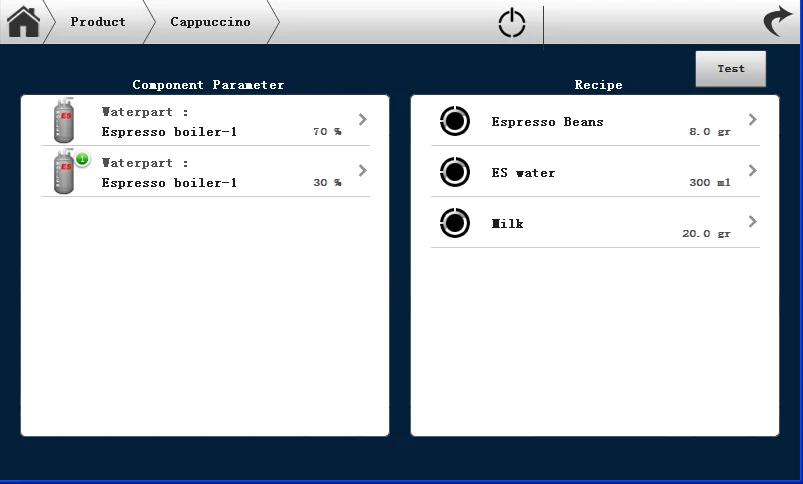

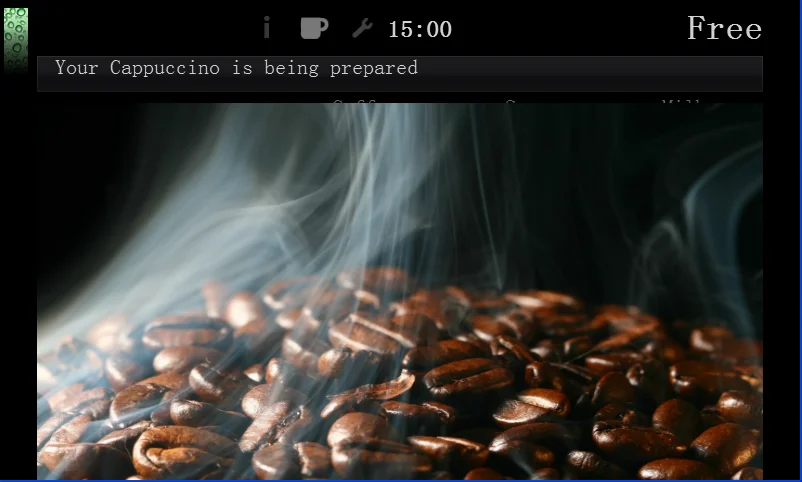

Software interface :






Q: what kind of drinks your machine can produce?


A: The products can be customized by clients with software tool kits, but normally including: Cacao, Milk, Espresso, Double Espresso, Long Coffee, Cappuccino, Latte, Milk Cacao, Mocha, Hot water, Sugar is optional on door.



Q:How to understand that your brewer is ZERO Pollution?


A: No need to take out for normal cleaning, the machine has clock rinsing. For deep cleaning, the brewer can be taken out.



Q: Your brewer can skip the remains ground coffee from grinder?


A: Yes, so the first cup coffee is nice, and it is important. ( no other brewer can do this)



Q: Does your machine accept customization?


A: Yes, our harware, software, machine, all can be customized on request, we can provide solution to meet your requirement.
