Customized IP67 GHW38 waterproof version length measuring wheel encoder

  • 1-9 Pieces
    $99.90
  • >=10 Pieces
    $94.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)
Contact Supplier
Samples - $68.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
CALT
Model Number:
GHW38
Usage:
Speed Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Encoder outer size:
38mm
shaft size:
5mm /6mm/8mm
resolution:
10~3600ppr
output phase:
A, B, Z, OR A, A-, B, B-, Z, Z-
output form:
PNP, NPN, Push-pull, line driver option
voltage:
5v, 5~26v option
protection grade:
IP67
Highest frequency response:
300kHz
Load current:
40mA-60mA
Current consumption:
≤80mA

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X13X11 cm
Single gross weight:
1.0 kg
Package Type:
carton
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description

Customized IP67 GHW38 waterproof version length measuring wheel encoder

Used in automatic control, measurement, robot X-Y working platform, printing and packaging. Internal ASIC devices, high reliability, long life, strong anti-interference. Stability and protection of the stainless steel shaft has a higher capacity, more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

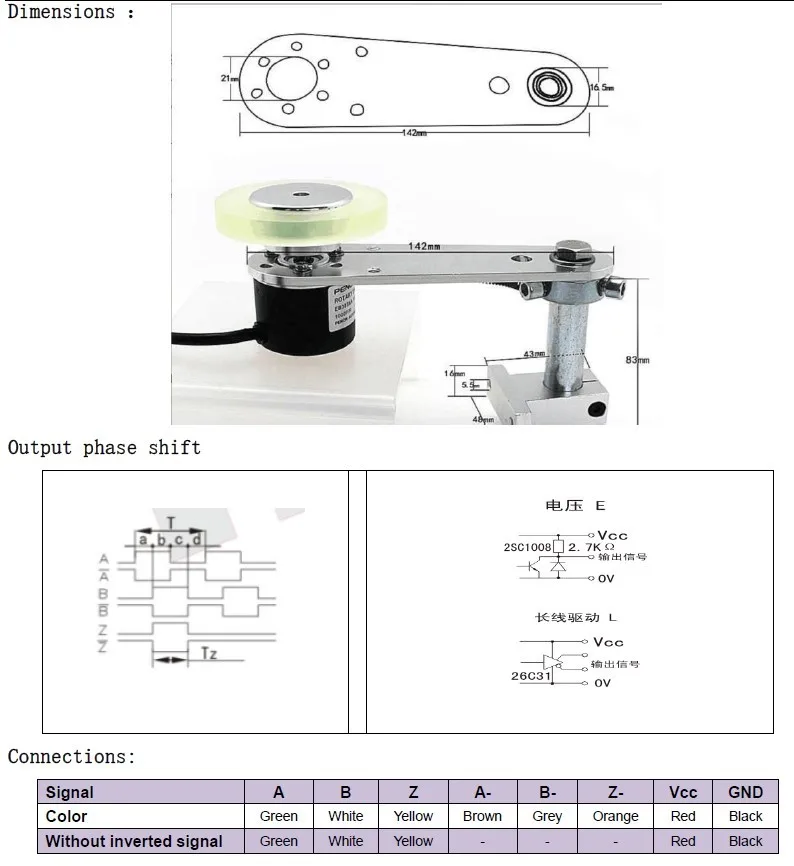

Selection guide

Other outer sizes encoder is available, just see the above selection guide and it can help you to come out the model number of the right encoder you are looking for.
Related Product

CALT 300mm perimeter wheel encoder Length meter measuring wheel sensor

CALT GHS58 Solid shaft Incremental rotary encoder

Hollow Shaft 300ppr resolution length measuring wheel encoder

Mitsubishi Fanuc Siemens CNC MPG emergency stop 6 axis 5V 12v TM2080

CALT CAS60 Solid shaft Single turn absolute rotary encoder

CALT GHW38 Wheel encoder Widely used in textile and packaging.

certifications
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

Welcome to vist us!

Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?
A: 12 months. If the items you purchased from our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?
A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
