DC, 24V linear actuators, high-speed, high load, sexual supplies actuators

Feedback Ratings
  • 1-99 Pieces
    US $30.00
  • >=100 Pieces
    US $25.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
H&T
Model Number:
HTKC-55
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, currency
Certification:
CE, ROHS
Type:
Tubular Motor
Torque:
Requests
Construction:
Other
Commutation:
Brush
Protect Feature:
IP56
Speed(RPM):
4500RPM
Continuous Current(A):
0.5A
Output Power:
60W
Voltage(V):
12V
Efficiency:
IE 1
Protection class::
45
Colour::
Black or gray
Ambient temperature::
-45°C~65°C
Standard stroke::
50-600mm
Motor Power::
60W
Product Description
Working life
30000 Hours
Voltage
DC 12-48V
Color
Black or gray
Application
General
Lumen/Kit
1000
Certification
CE, RoHS
Power
60w
Warranty
2 years
Item Name
linear actuator
Function
Up and down movements around push and pull
Sort
Micro - motor equipment
MOQ
1 Piece
Model Number
HTA2500J
Price
1000000
Gender
****
Port
Ningbo/Shanghai

Specifications

1. Apply to the world
2.Matrial: aluminum, zinc alloy, stainless steel
3. Professional manufacture of linear actuators for 15 years

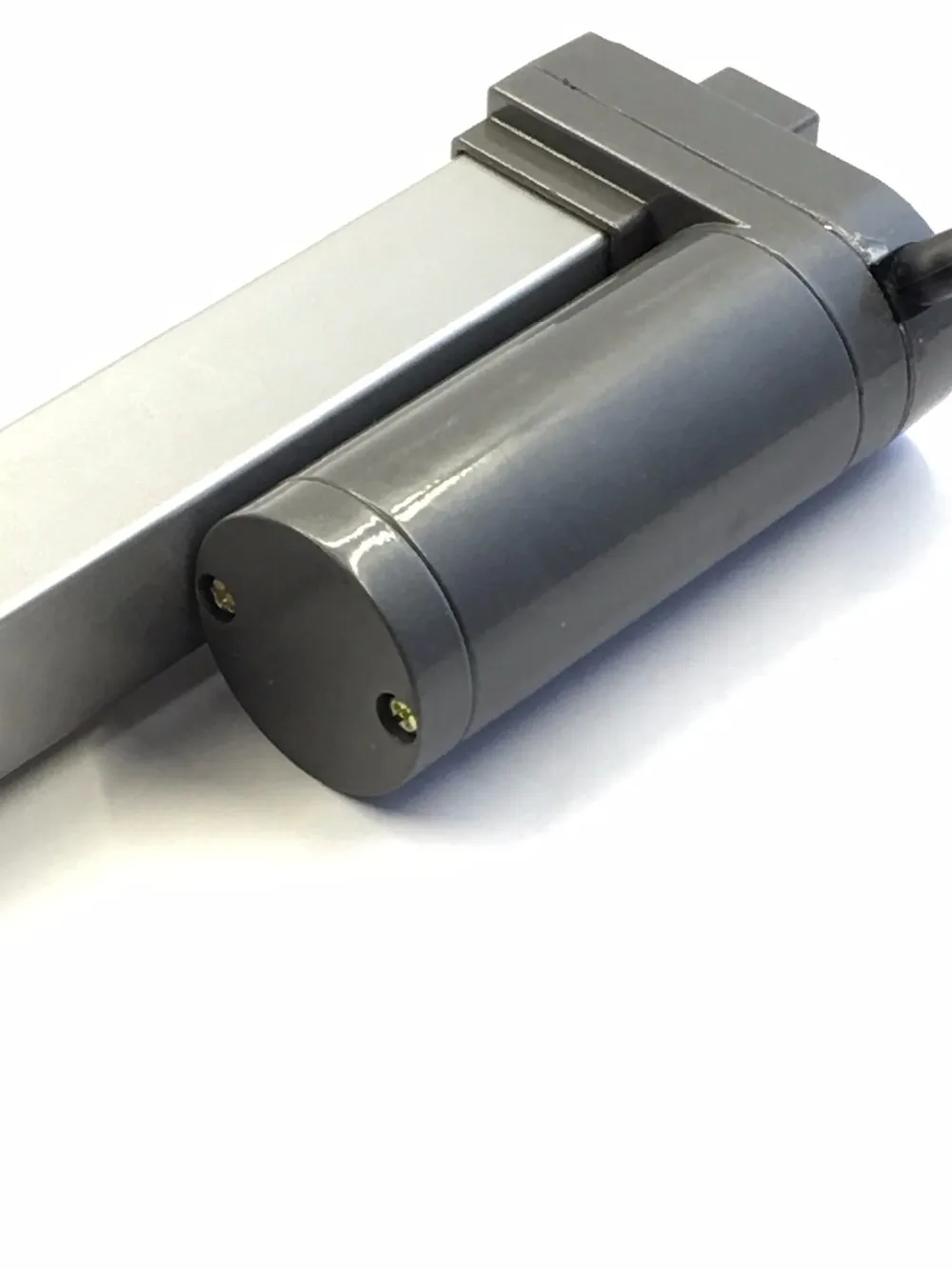

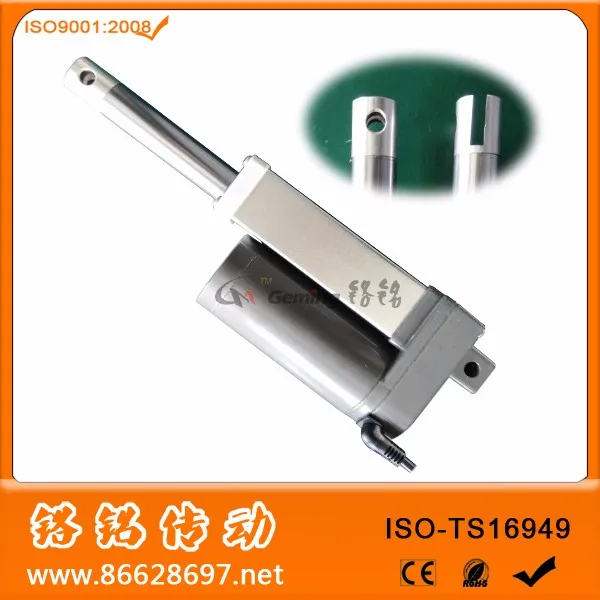

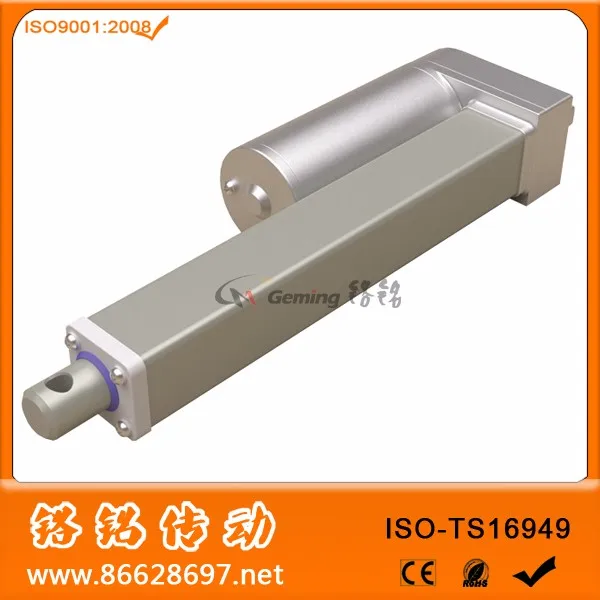

60 W motor linear actuator Load 2500 N High quality! (Linear Actuator)

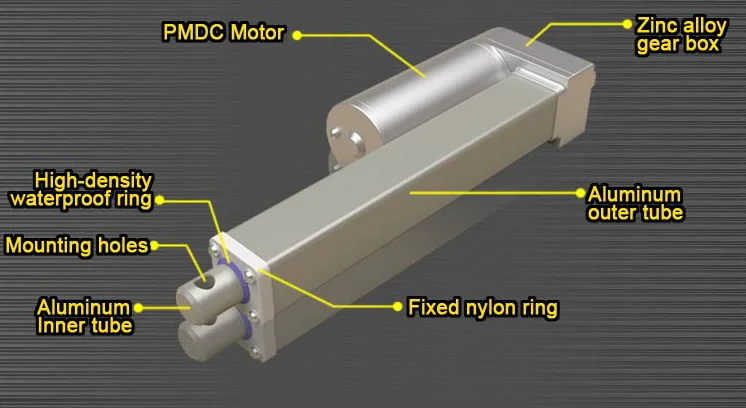

The Linear Actuator parts are as follows:

1) Linear Actuator:

(ABS plastic shell, stainless steel tubes, micro-switches, circuit boards, bearings, micro motor, reduction gear, screw, nut, bushings, putter, slide, spring, and nylon turbine) and other components.
2)Feature:
* Load capacity: 2500 N 1000 N 800 N
* Protection class :IP54
* Built-in limit switches,not adjustable after leave factory
* Motor Power: 45W
* Colour: Black or gray
* The special stroke could be designed according to your request

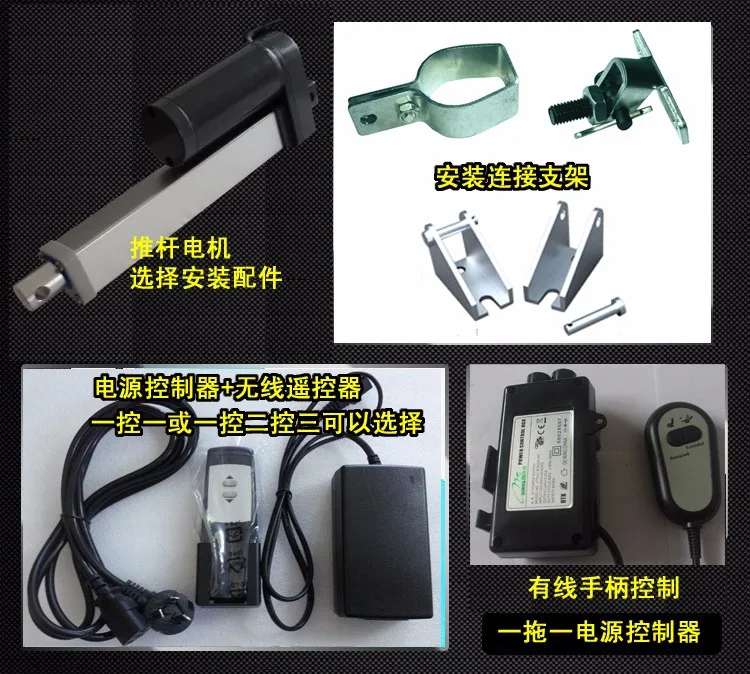

3)Handle: (ABS plastic shell, PCB, micro-switches, electronic components) and other components.
Linear actuator Simple Introduction:  HTA 2500 is a miniature linear actuators for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and other automatic control windows application design actuators. The product volume capacity is small, compact design, protected to IP65 optional, HT series linear actuator is a power-driven device, its installation is not the terrain. Distance constraints, are replaced by hydraulic, pneumatic products ideal for saving energy consumption, but also through computer control, easy to automate. Existing furniture, chairs, a variety of equipment used in actuators, mainly for manual operation, use when multi inconvenience this end the utility model for the problem of a linear actuator,

Model: HTA 2500

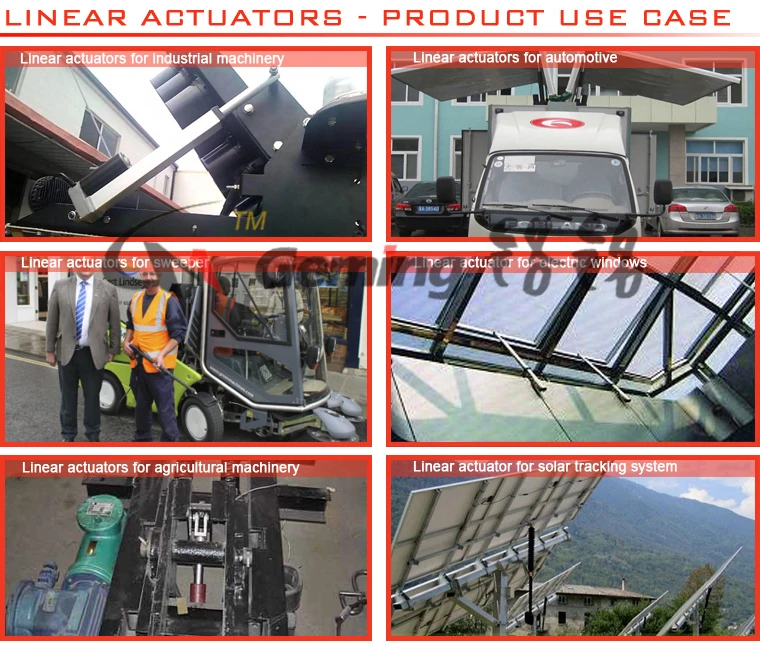

Usage: Boat, Car, Industrial machinery, windows, cleaning cars,, Other
1)Voltage: 36VD Cor 12VDC 24VDC permanent magnet
2)Motor Power: 60 W

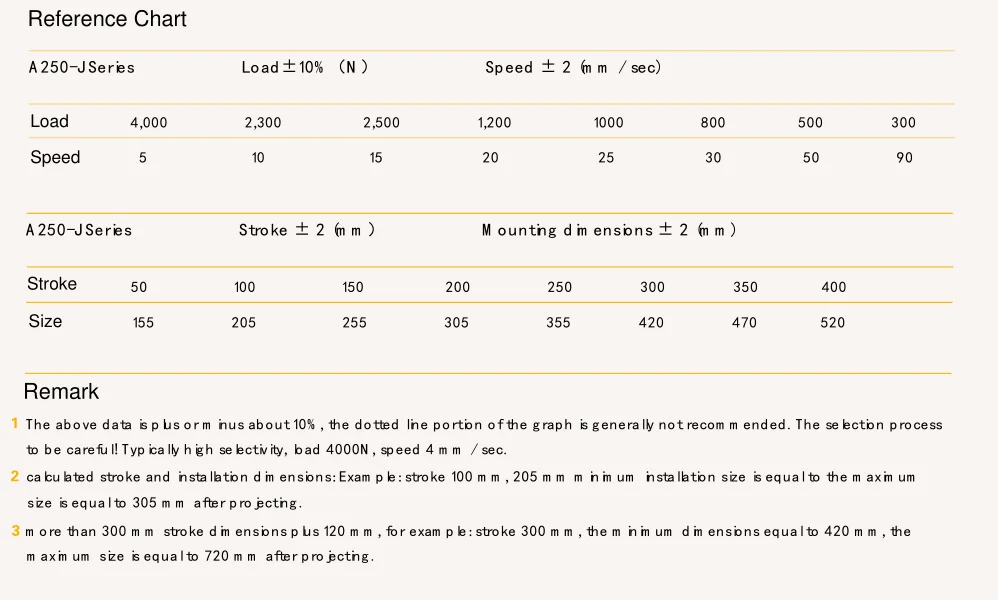

3)Standard stroke:100 150 200 250 300 350 400 mm,(option)

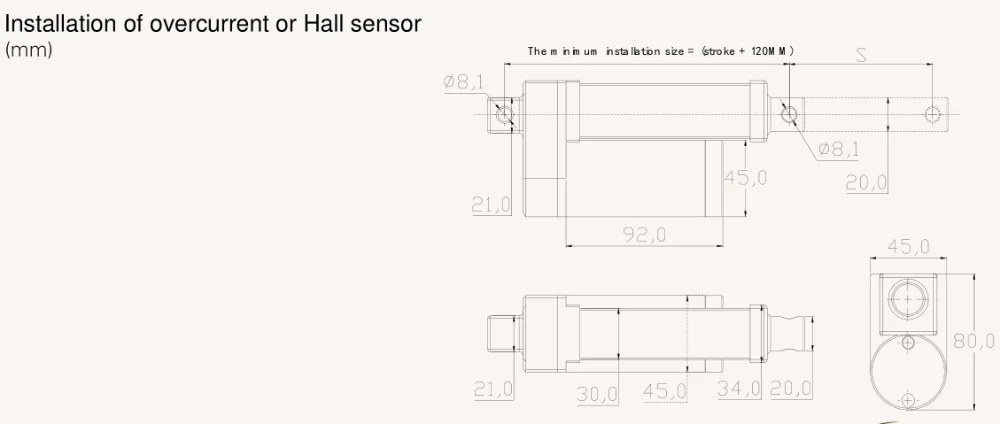

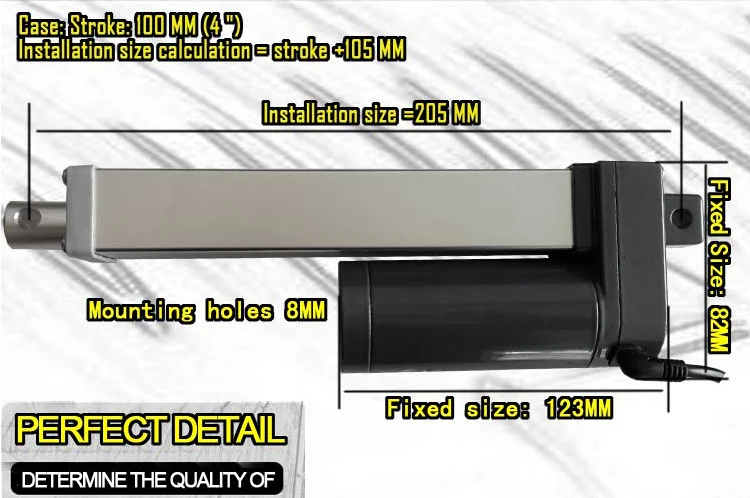

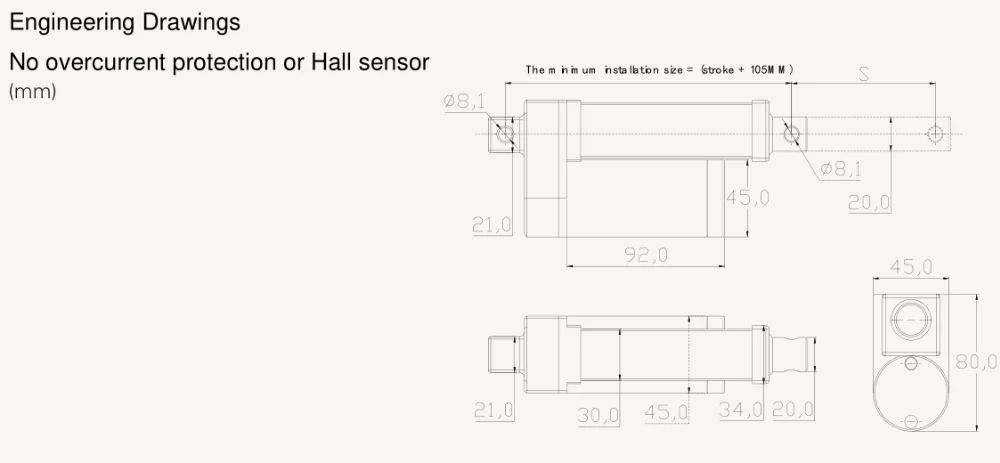

4)Standard mounting dimensions:Stroke+105 MM (Potentiometer)
5)ps :The special stroke could be designed according to your request
6)Load capacity: 2500 N

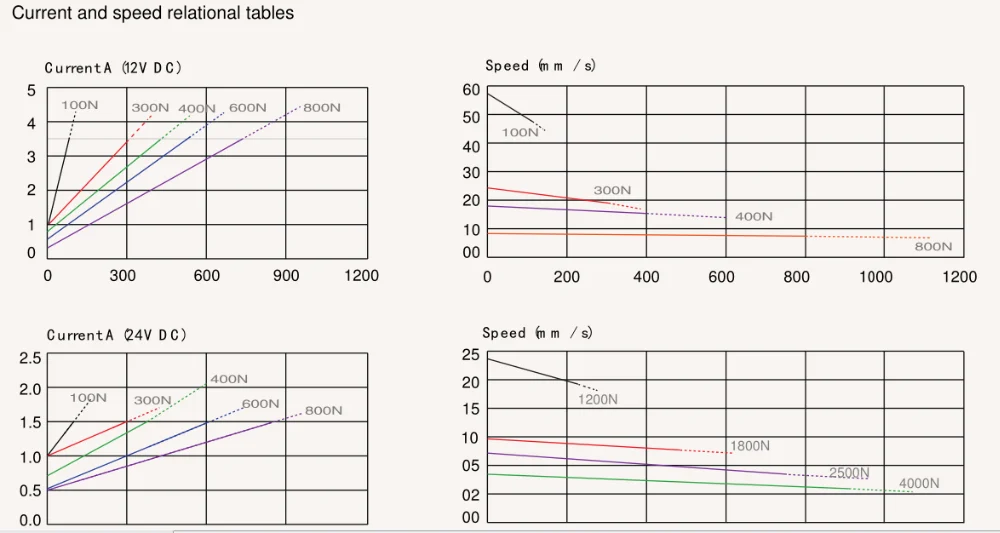

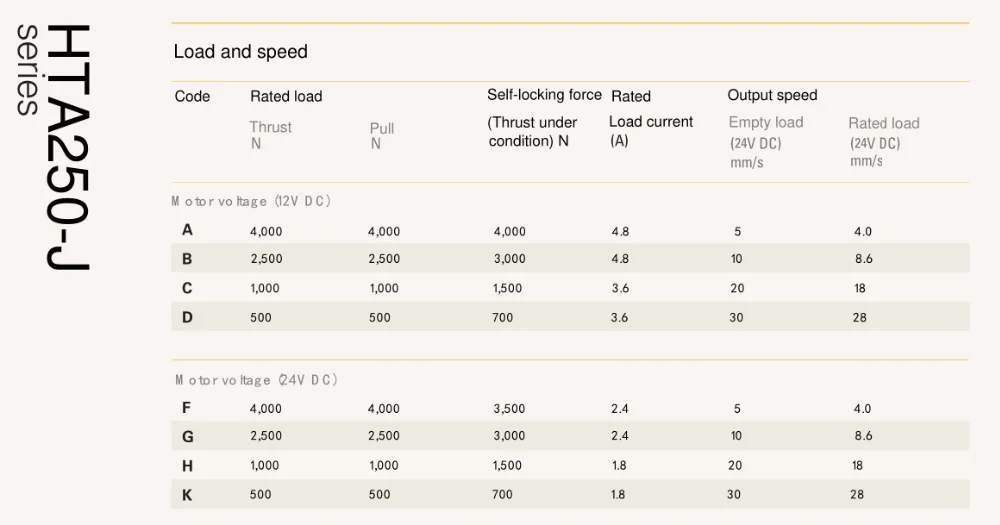

7)No load speed: 30mm/s(800N) 20mm/s(1000N) 10mm/s(2500N)
8)Type of duty:25%
9)Ambient temperature:-25°C~65°C
10)Protection class:  IP54
11)Built-in limit switches,not adjustable after leave factory
12)Low noise design,db<53
13)Certification:CE, ROHS
14)Colour: Black or gray

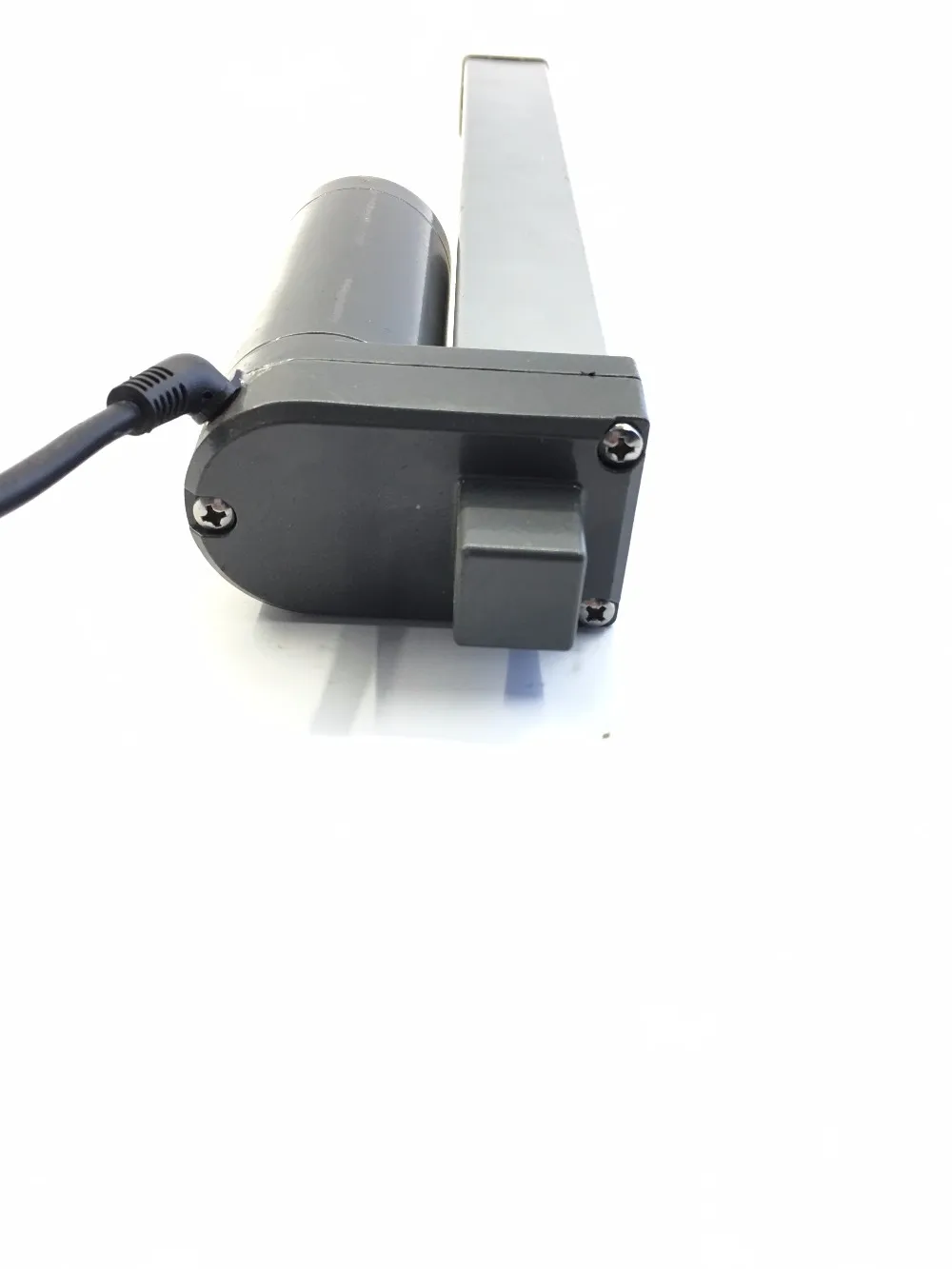

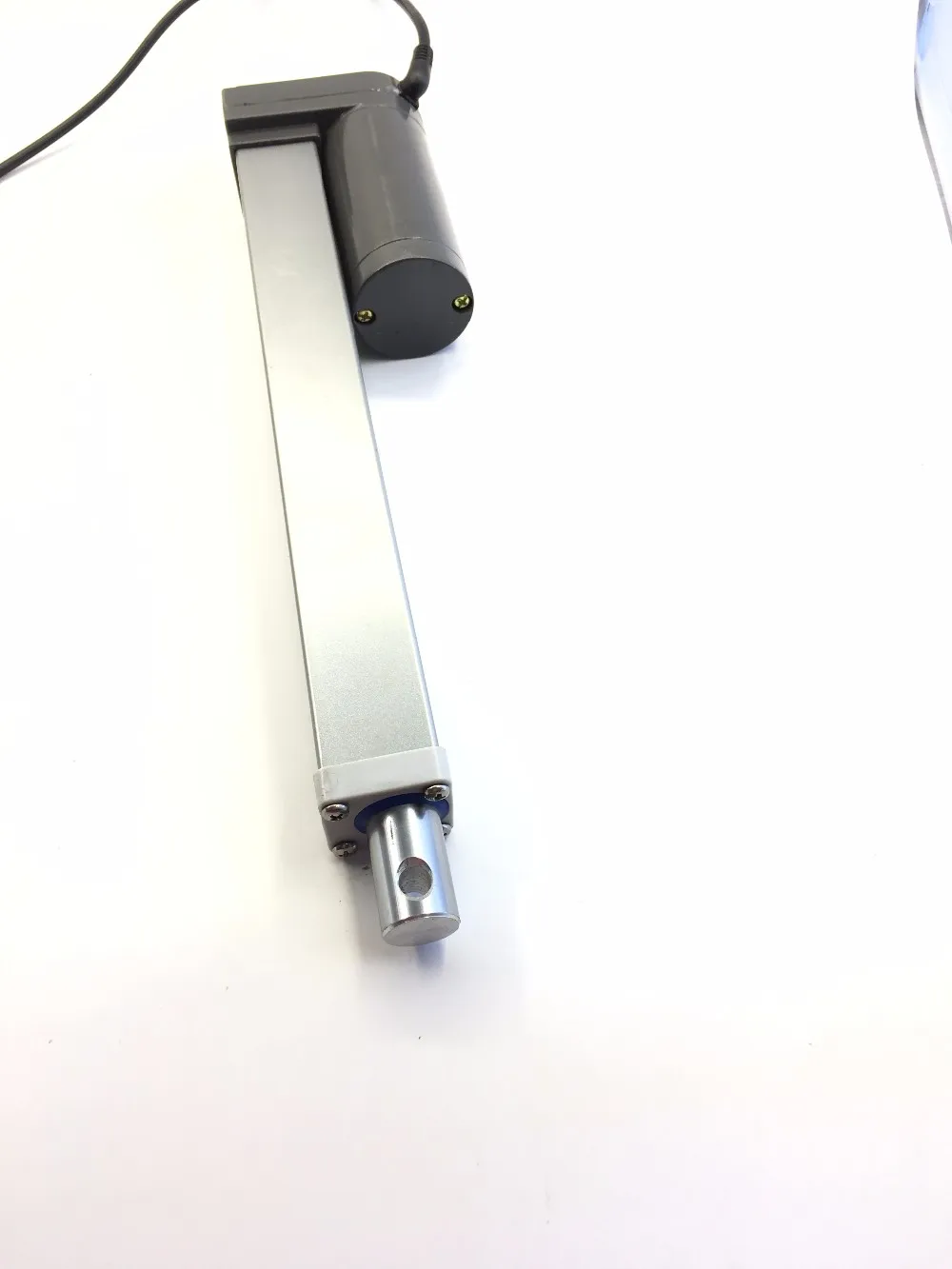

Detailed Images
Special treatment

HTKC55.

Tubular linear actuators

use:Solar tracker, ventilation equipment

Product Size:56MM

HTA1500.

linear actuator

use:Cars, sweeping vehicles, new energy vehicles
Product Size:40*75

HTJC-A2.

Lifting column

use:Lift desk, lifting test bed


Product Size:216*160

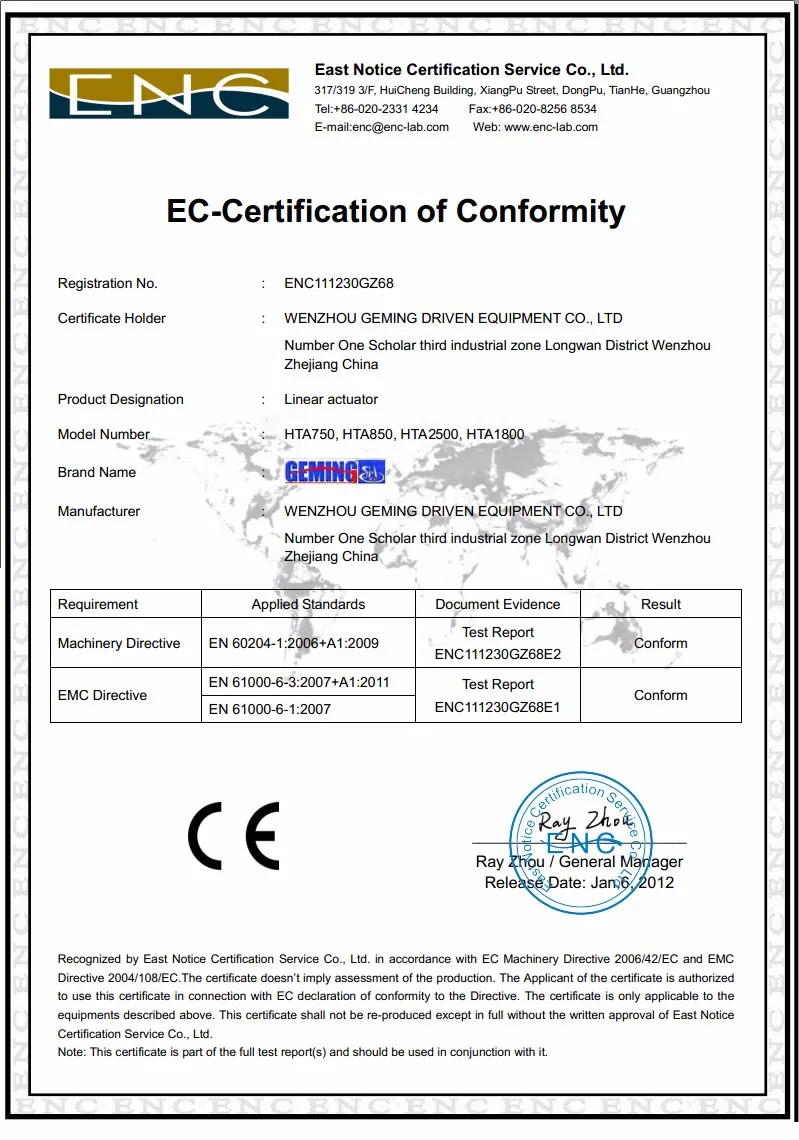

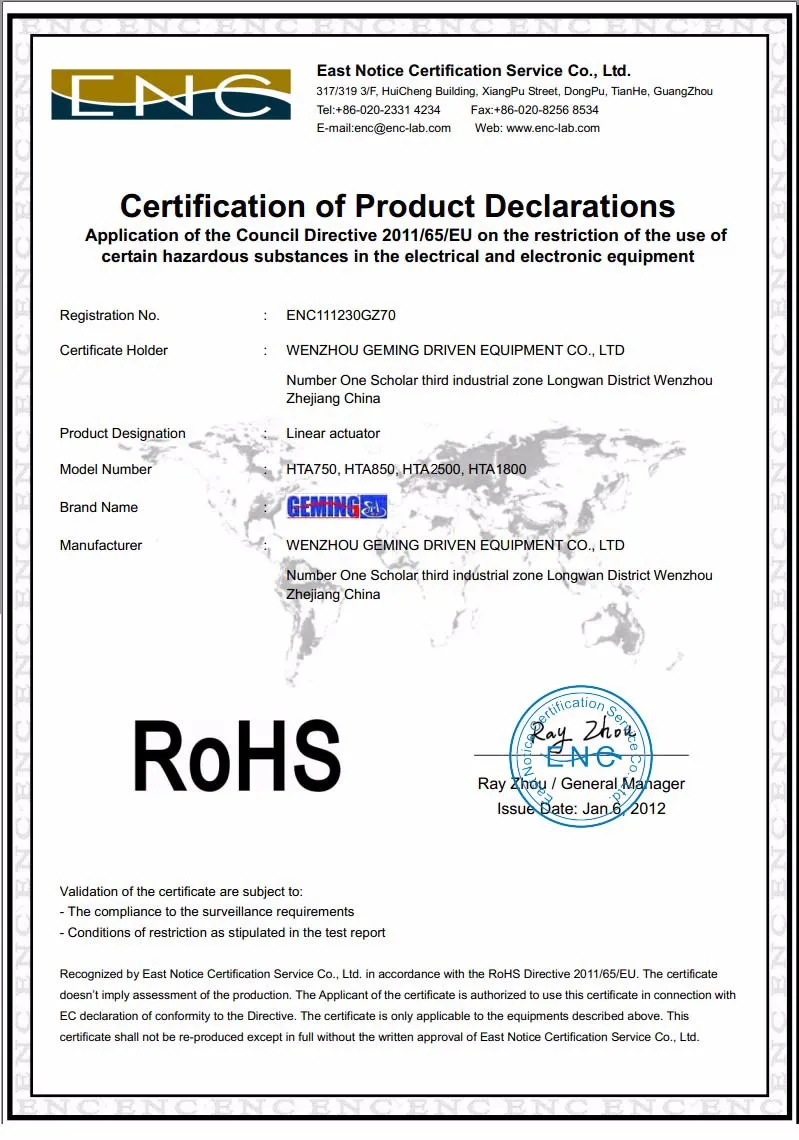

Certifications
Our Company

GE Ming transmission equipment Co., Ltd. is the best choice for your electronic drive automatic control system.
GE Ming has on global health, furniture, industrial, ports, construction, fire, military equipment, nuclear power plant, environmental protection sewage processing equipment, to provide high quality products and competitive prices, and get a loud reputation. Our engineering and R & D team in the field of electric push rod and an integrated control system has more than 10 years of experience, chromium Ming more to provide diverse clients in more than 10 years experience of design team support, chromium Ming will focus on depth of electric linear push rod, both in product quality or specifications, will maintain the highest standards.

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
