DC12-24V 2.4g touch remote wireless control rgb led controller for LED module 360W

  • 10-299 Pieces
    $7.50
  • >=300 Pieces
    $6.49
Voltage:
12-24v
Model Number:
GLH-CG04
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Samples - $7.20 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GLH
Type:
5V:<150W, 12V:<360W, 24V:<720W
Max. Load Power:
5V:<150W, 12V:<360W, 24V:<720W
Voltage:
DC5V~24V
Working temperature:
-20-60℃
Output:
3 Circuit
Connection mode:
Common anode
Static power consumption:
<1W
Output current:
<10A/ch
Output power:
5V:<150W, 12V:<360W, 24V:<720W
Controller size:
74X110X24mm
Net weight:
195g
Gross weight:
230g
Remote control distanc:
20-30m

Packaging & Delivery

Selling Units:
Single item
Single package size:
11.7X9.5X5.5 cm
Single gross weight:
0.23 kg
Package Type:
white box per set(controller and remote)
Lead Time :
Quantity(Piece) 1 - 200 >200
Est. Time(days) 5 To be negotiated
Product Description

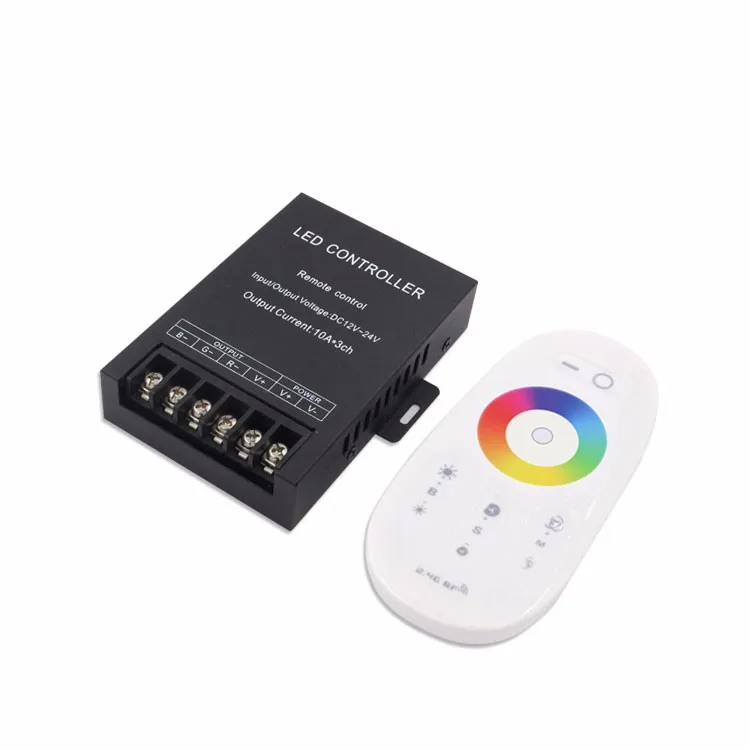

2.4G wireless metalclad touch remote LED controller for 12-24V led strip light

This is a high-performance RGB LED touch remote controller, which is adopting the most advanced PWM control technology, controlling all RGB LED products with Four lines and three circuits( common anode). It also own 640 thousand colors and 20 automatical changing modes to choose.
Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in LED RGB strip light, LED module and so on. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc.
The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
Technical Parameter
①The controller parameters
Working temperature
-20-60℃
Input voltage
DC5V~24V
Output
3 circuits
Connection mode
Common anode
Static power consumption
<1W
Output current
<10A/ch
Output power
5V:<150W, 12V:<360W, 24V:<720W
Net weight
195g


Connection:The input and output by using the screws to be fixed.

②The remote parameter

Supply Voltage
3V,2*AAA battery
Transmission frequency
2400-2483.5MHz
Transmission power
6db
Standby power consumption
10uA
Modulation method
GFSK
Remote control distance
20-30m
External dimension
110×52×20mm

The Functional specifications

Program List (for "Mode+" and "Mode-")

No.
Mode
Brightness state
Speed state
1
Static white color
Adjustable
Unadjustable
2
White color gradual changes
Adjustable
Adjustable
3
All colors gradual change
Adjustable
Adjustable
4
Red/green/blue 3 colors gradual change
Adjustable
Adjustable
5
7 colors jump to change
Adjustable
Adjustable
6
3 colors jump to change
Adjustable
Adjustable
7
Red/green jumps to change
Adjustable
Adjustable
8
Red/blue jumps to change
Adjustable
Adjustable
9
Blue/green jumps to change
Adjustable
Adjustable
10
White color frequently blinks
Adjustable
Adjustable
11
White color glitters
Adjustable
Adjustable
12
Red color frequently blinks
Adjustable
Adjustable
13
Red color glitters
Adjustable
Adjustable
14
Green color frequently blinks
Adjustable
Adjustable
15
Green color glitters
Adjustable
Adjustable
16
Blue color frequently blinks
Adjustable
Adjustable
17
Blue color glitters
Adjustable
Adjustable
18
Yellow color frequently blinks
Adjustable
Adjustable
19
Yellow color glitters
Adjustable
Adjustable
20
Circulation mode

Programming (code matching and code clearing):
The item already coding between remotes and light before shipping, one remote control multiple LED lamps/strips or use a new remote control need coding operation as follows.
Code matching:
For a new kit (remote & controller), the remote can work only when it is programmed to the controller. Please follow the below instructions:
Confirm it is correctly connected between power supply, LED controller and LED load. Switch off the power, then switch on again, and press key "Speed+" once (within 3 seconds) the moment you see the light is on. The LED light flash twice slowly code matching is successful.

Code clearing:
The code can be cleared as needed. The kit (remote & controller) will stay in the original state after code clearing, and it can work again when code rematching is done. Pleases follow the below instructions:
Confirm it is correctly connected between power supply, LED controller and LED load. Switch off the power, then switch on again, and long press key "Speed+"(within 3 seconds) the moment you see the light is on. The LED light flash nine times swiftly code clearing is successful.

Connection diagram

2.4G rf wireless metalclad touch remote LED controller for DC12-24V led strip light

DC12-24V 2.4G rf wireless metalclad touch remote LED controller

2.4G rf touch remote  wireless metalclad LED controller for led strip light
