DLC listed 150W LED High Bay Light Aluminum reflector Industrial Factory Warehouse Commercial Shed Roof

  • 1-499 Pieces
    $72.00
  • >=500 Pieces
    $70.00
Lamp Power(W):
100 180 200 150w 240w 300w 400w
Model Number:
SPL-HBL01-150W
Emitting Color:
Green
- +
available
Cold White
- +
available
Blue
- +
available
All 5 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
AC100-277V/AC180-520V
Lamp Luminous Flux(lm):
20200
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CCC, CE, EMC, FCC, LVD, RoHS, SAA, UL
Place of Origin:
Guangdong, China
Brand Name:
Spring-lighting
Light Source:
LED
Product name:
LED High Bay Light 150w
PF:
>0.95
THD:
<12%
Reflector:
45°/90°/120°/PC80°
Size:
D 285*320mm
Driver:
UL driver
Application:
Warehouse/Factory Lighting
Housing Color:
Aluminum color
Power available:
60w/80w/100w/120w/150w/200w/240w/300w/400w
N.W.:
6.2kg
Item Type:
High Bay Lights
Color Temperature(CCT):
2200-8000k
LED Light Source:
smd 3030
Warranty(Years):
5
Lamp Luminous Efficiency(lm/w):
135

Packaging & Delivery

Selling Units:
Single item
Single package size:
28X28X41 cm
Single gross weight:
4.8 kg
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Specification

DLC listed 150W LED High Bay Light Aluminum reflector Industrial Factory Warehouse Commercial Shed Roof



LED High Bay Light
Power
50W 80W 100W 150W 200W
240W 300W 400W
Input voltage
100-277VAC / 347V / 480V
LEDs & Driver
SMD 3030 + UL driver
LM/W
130lm/w
CCT
3000K - 6500K
Beam Angle
45° 90° 120° 80°
Material
Aluminum
Lifespan & Warranty
>50000 hours
5 years
Product Description

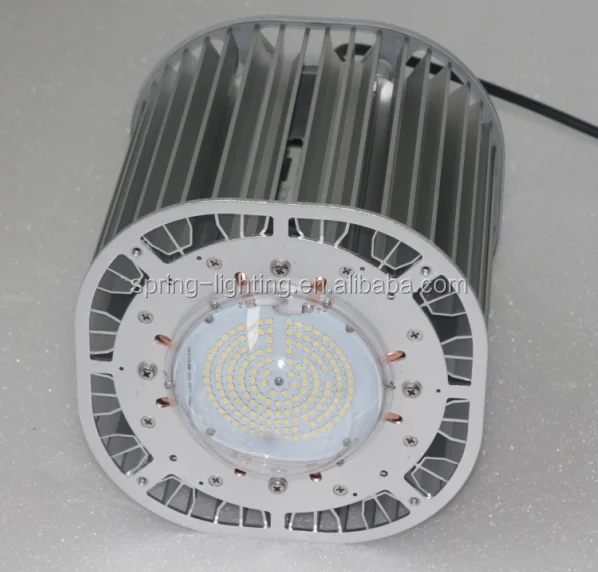

LEDs & Driver

Top brand smd 3030 chip, >130lm/w high brightness

Top brand M W driver, PF > 0.98

100-277V / 347V / 480V wide voltage options

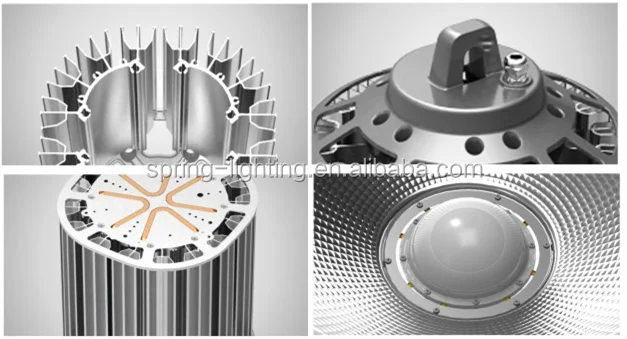

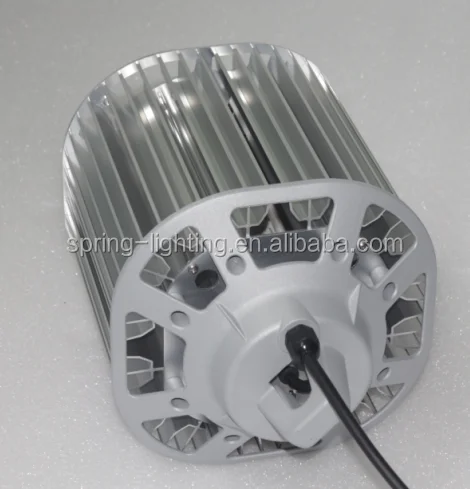

Excellent Heat sink

Aluminum Heat sink,
Thermal conductivity copper tube
Max surface temperature is 65℃

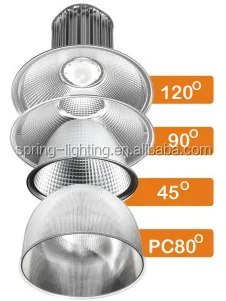

Reflectors

Aluminum / PC optional
optional angle: 45° / 60° / 80° / 90° / 120°

For different application choose the right angle, anti glare option advice.

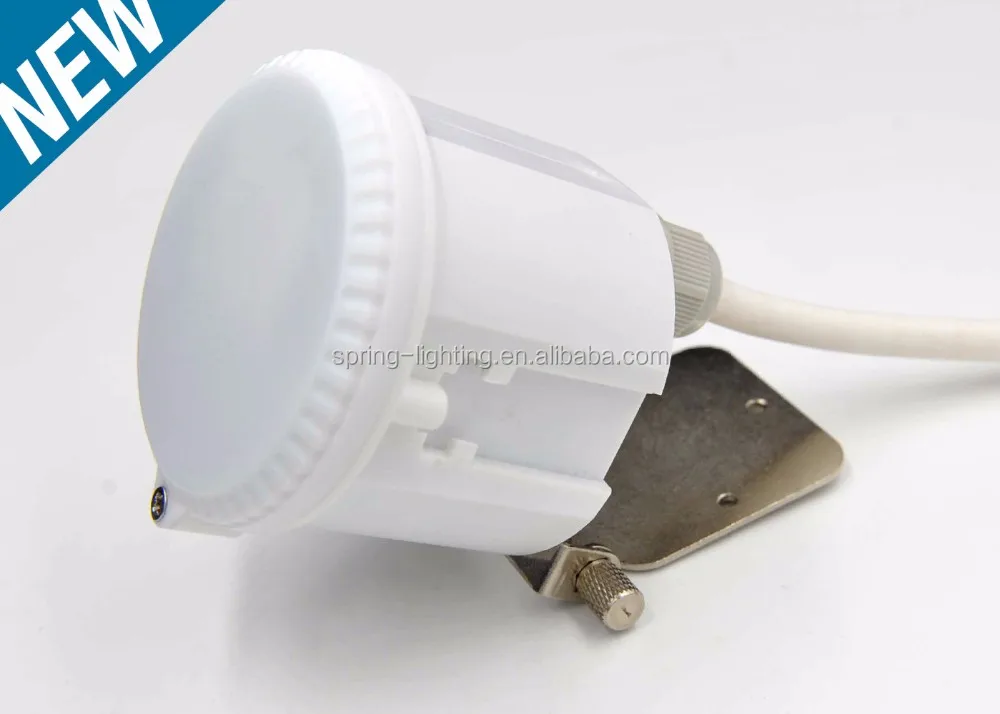

Microwave Motion Sensor

Microwave motion sensor, PIR ON/OFF sensor, 0-10V dimmable special solution are available for request.
Provide the best energy saving solution.

Watt
Size
Parameters
N.W.
50W
Φ182*163mm
Input Volt.:100-277VAC,50/60Hz
SMD 3030 chip + UL Driver
Lamp:>130LM/W
CCT:2200-8000K(RA>80)
Waterproof level: IP54
 Beam Angle:45° 90° 120° 80°pc
Shell color optional: silver / black
3.4kg
80W
Φ182*163mm
3.9kg
100W
Φ182*200mm
4.5kg
150W
Φ225*200mm
5.8kg
200W
Φ225*240mm
6.2kg
240W
Φ285*220mm
7.2kg
300W
Φ285*260mm
8.9kg
400W
Φ285*320mm
10.5kg

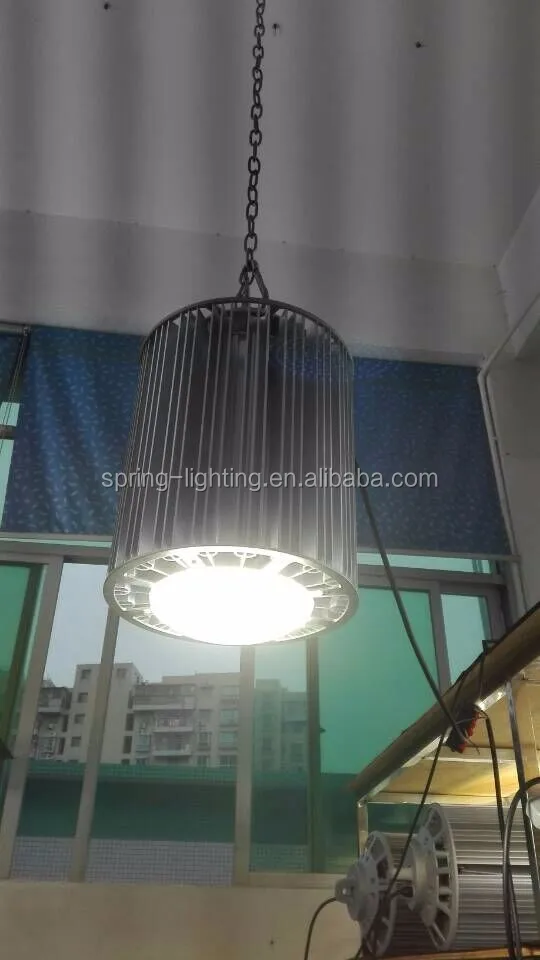

Aging Test

Every unit must be aging test more than 24h before ship out, to ensure all are the best.

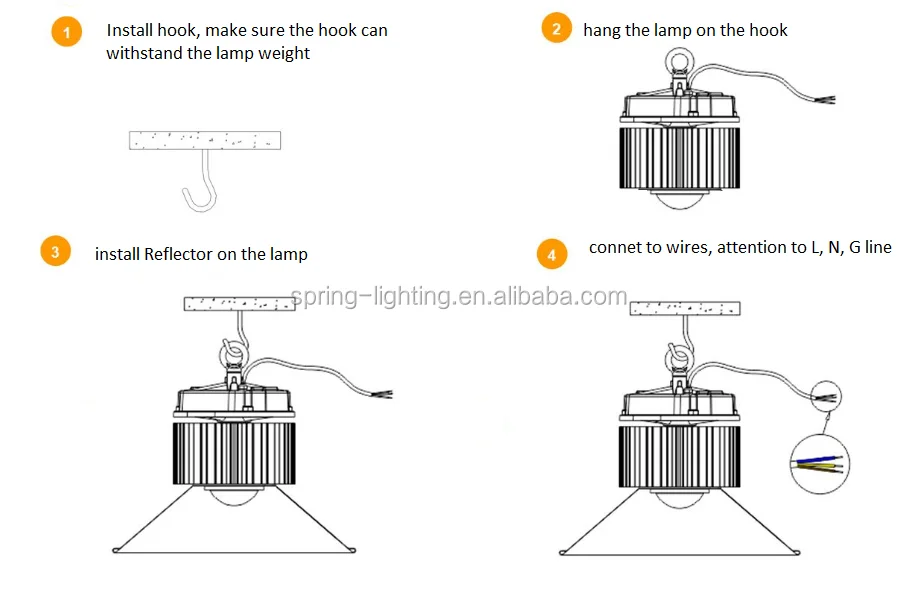

Installation Process
Applications
Related Products
Certifications

Spring-Lighting LED High Bay Light certifications include UL cUL DLC SAA FCC CE Rohs

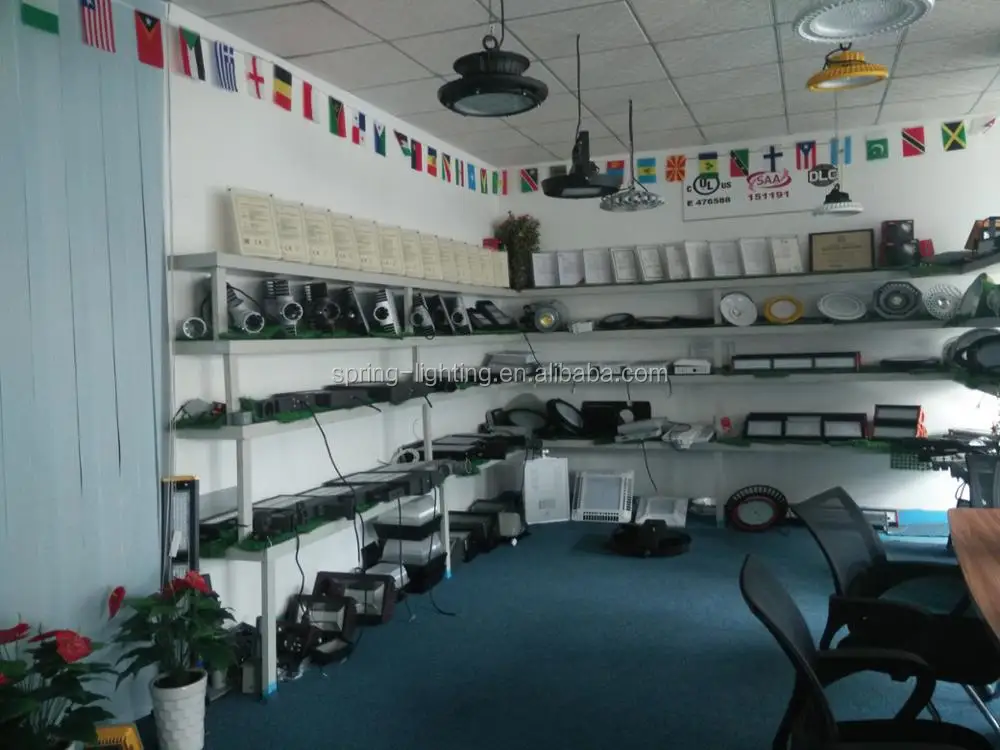

Company Information

SPRING-LIGHTING ELECTRONICS CO.,LTD was founded in 2008 who has been specilizing in developping, manufacturing and selling LED lamps.We are 100% factory,with 1800 square metners.Our professional R&D team are over 10 years experienced engineers,we can do OEM/ODM orders according to customer's requirement.

Our main products are now including: (UL&cUL DLC SAA)`s LED High Bay Light,LED Floodlight, LED Street Light, LED High Bay Tube,LED Canopy Light,LED Corn Light. Through SPRING-LIGHTING teams' ongoing efforts,our led lamps are sold to over 70 countries,and now over 100% of our customers are forwarding their great feedbacks.We keep on manufacturing and supplying best led lamps to all customers now and future.

We welcome you to contact with us today!

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

Contact us today for more details, your inquiry will be replied in 2 hours!
