Digital Multi-functional Meter GV57 Ampere Meter

Feedback Ratings
  • 1-4 Units
    $30.00
  • 5-9 Units
    $28.00
  • >=10 Units
    $25.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Mebay
Model Number:
GV57
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
0-999999
Accuracy Class:
±1%
Output Voltage:
AC165-275V
Operating Temperature:
-20~65℃
Dimensions:
91mm * 91mm
Product:
BC-GV57 Three Phase Digital Current Meter
Working power:
AC165-275V
Consuming power:
MAX3W
Operation temperature:
-20~65℃
Accuracy:
±1%
Size(W * H * D)::
100mm*100mm*77mm
Installation size(W * H)::
91mm * 91mm
Weight:
0.2kg
Certification:
ISO9001
Display::
Line voltage, phase voltage, three phase current, frequent, hour

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
1.0 kg
Package Type:
carton box
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

Specifications

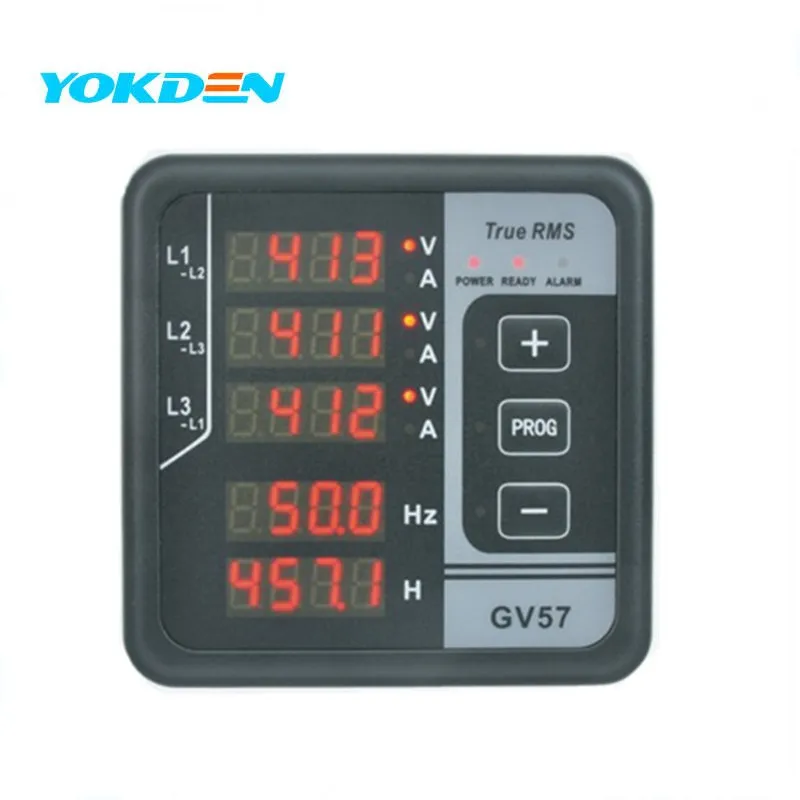

GV57 is one multifunctional Meter used for Three phase generator which can check the voltage and current. It is also with the auto protection and alarm functions. There are electricity, switch close and alarm indication as well as over frequency, over voltage and over current alarm so that the users can judge the faults occurred.

The output terminal is connected with relay which can burden large output current and set the parameters by the buttons

Main Features

Micro-computer Control

High-lighted LED tube Indication.

Five screen display.

AC power input

Configurable AC CT Ratio .

Wide voltage range

Parameters display

Line Voltage:L1-L2,L2-L3,L3-L1;

Phase Voltage:L1-N,L2-N,L3-N,

Three phase current

Frequency

Running hours

Range and accuracy

AC voltage:

Phase voltage AC165-260V,Line voltage AC300-450V;Deviation±1%(within the range)

Current:0-6000A;deviation±2%

Frequency:45-70HZ;deviation±0.5%;

Power Supply: AC165-275V;

Power Consumption:MAX: MAX3W

Size: 100mm*100mm*77mm

Panel cut-out:91mm * 91mm

Degree of Protection:IP54(Front Panel)

Operation Temperature : -20~65℃

Storage Condition:-40℃ ~ 85℃

Weight:200g

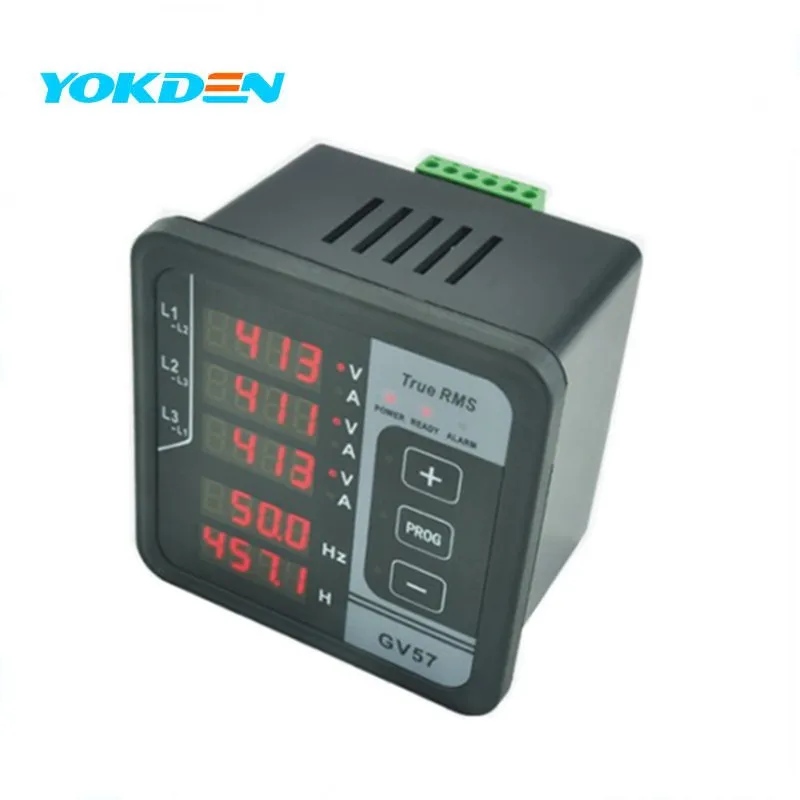

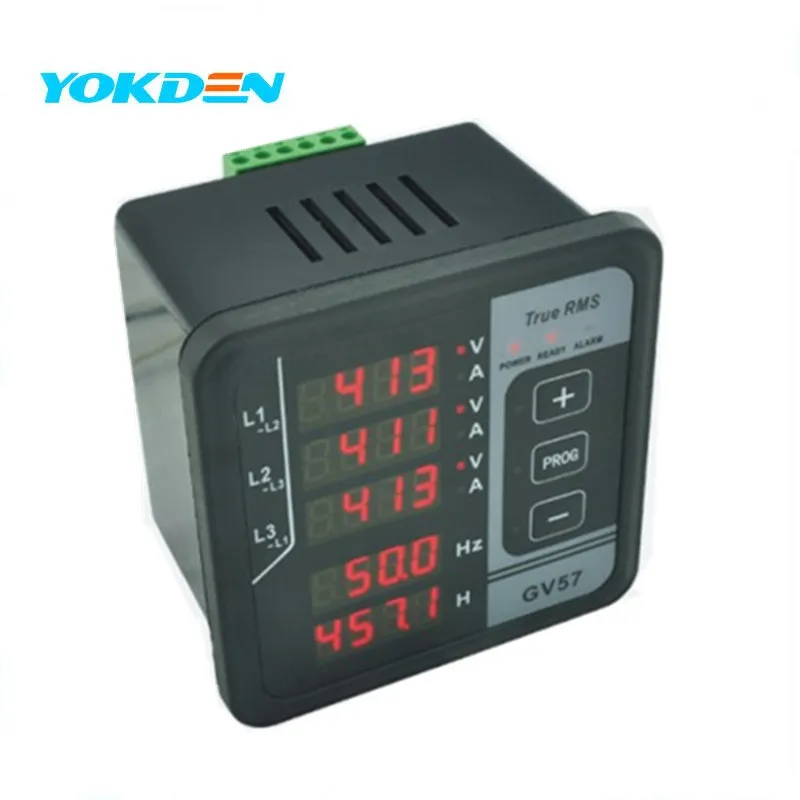

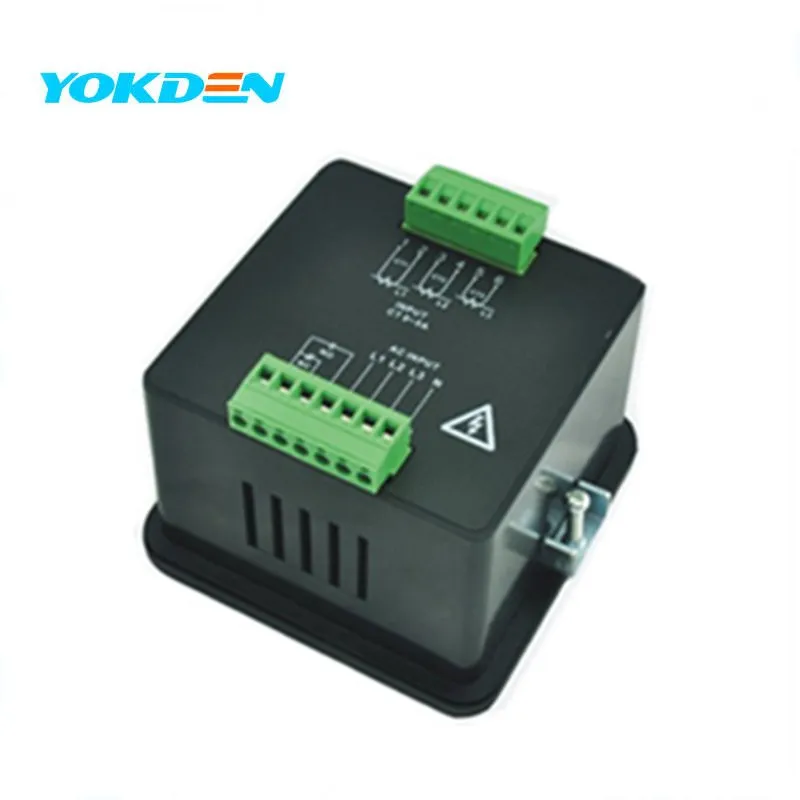

Detailed Images

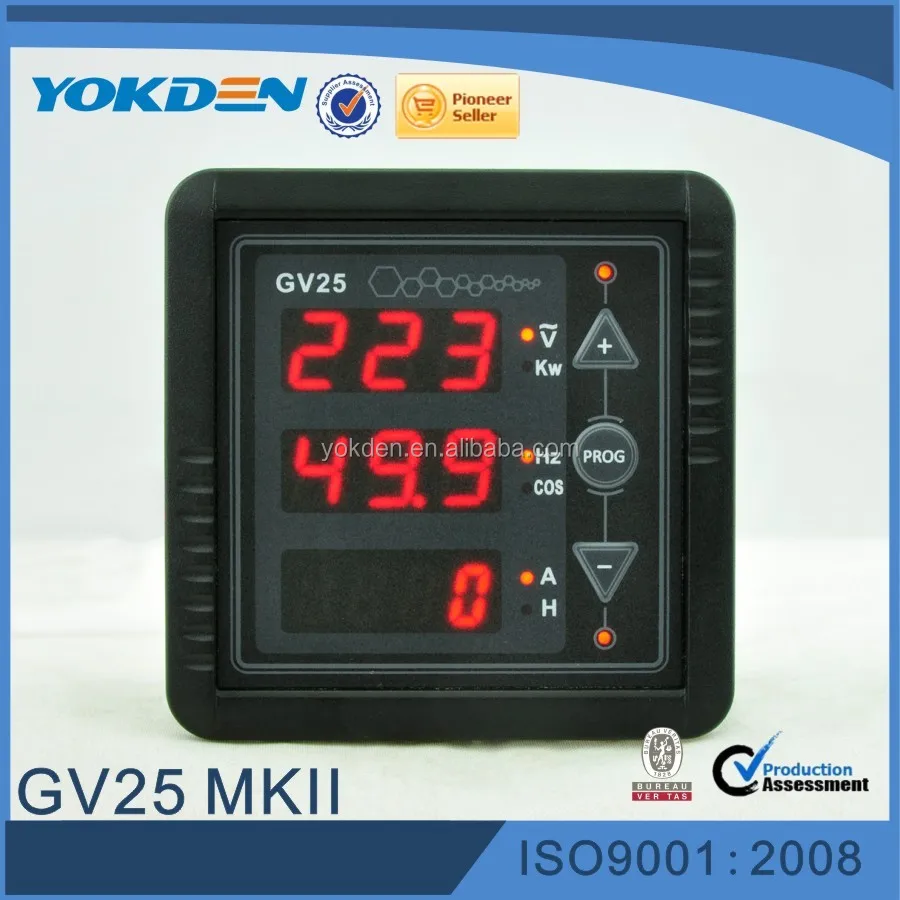

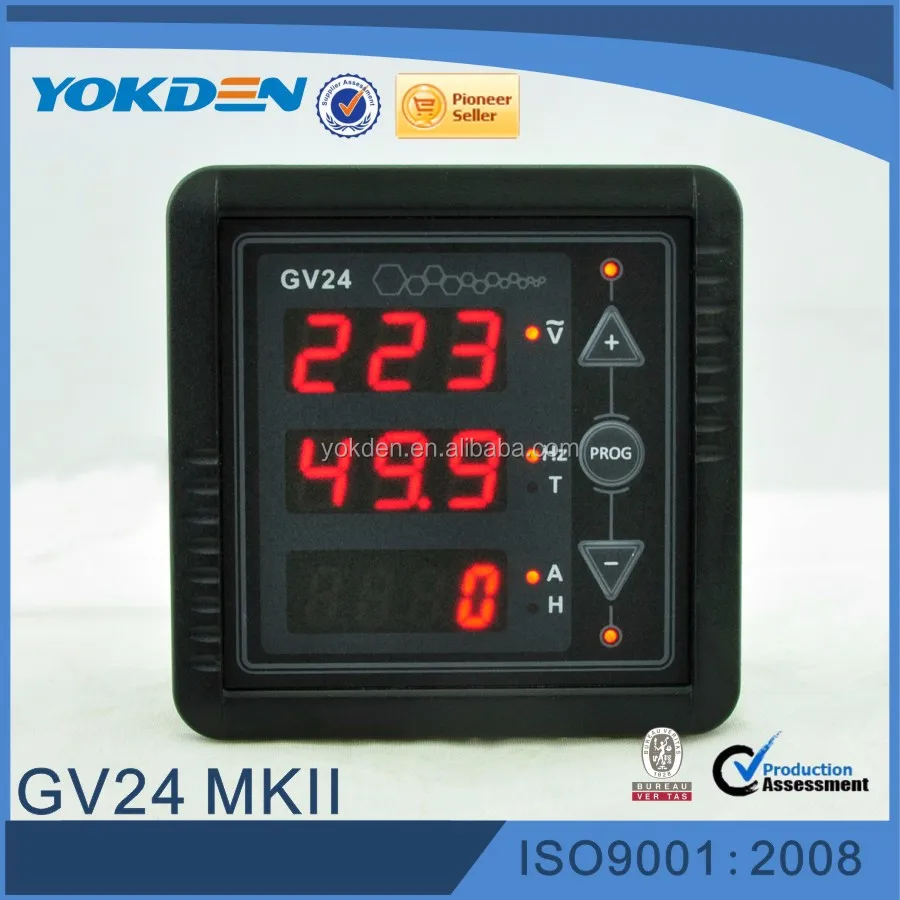

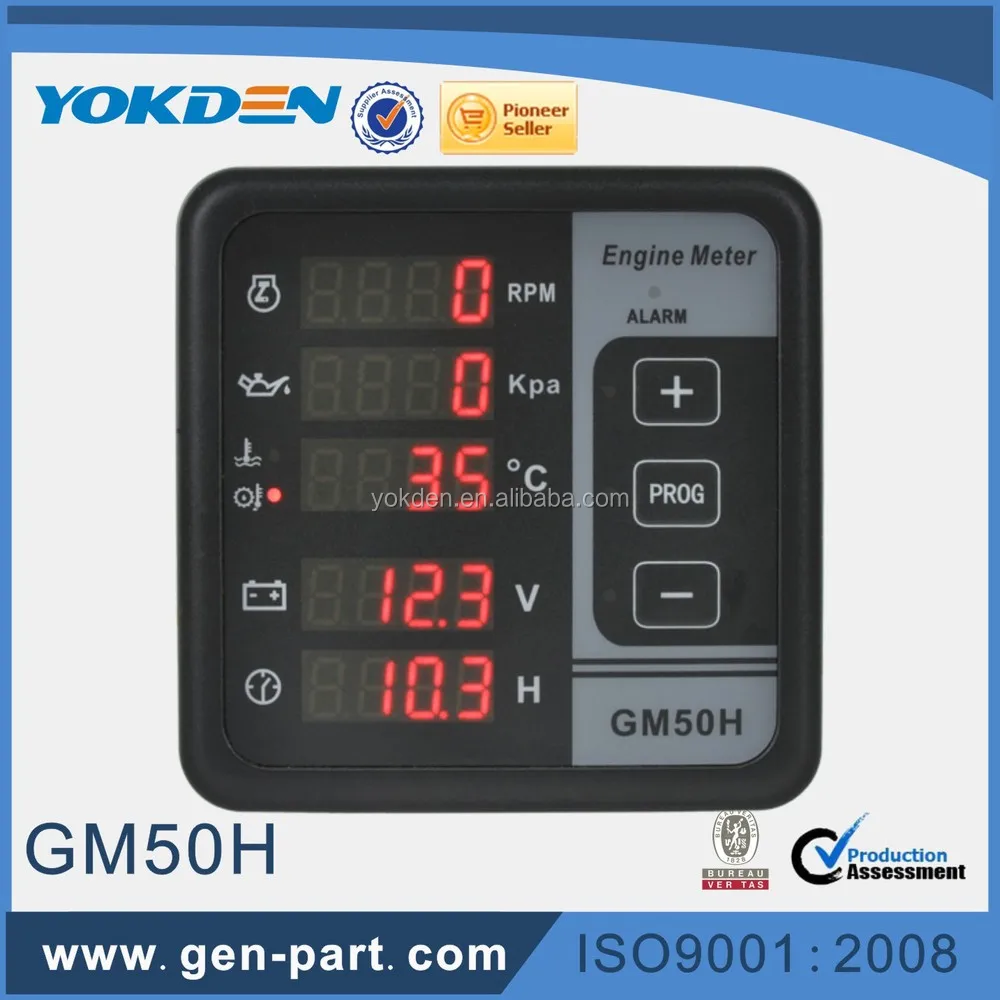

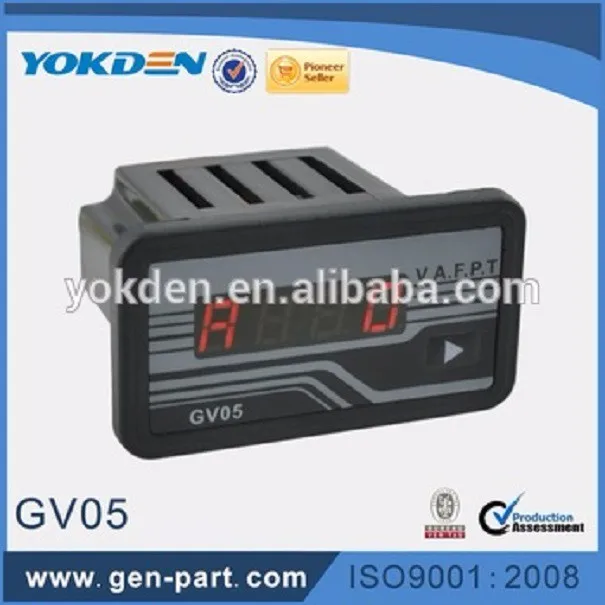

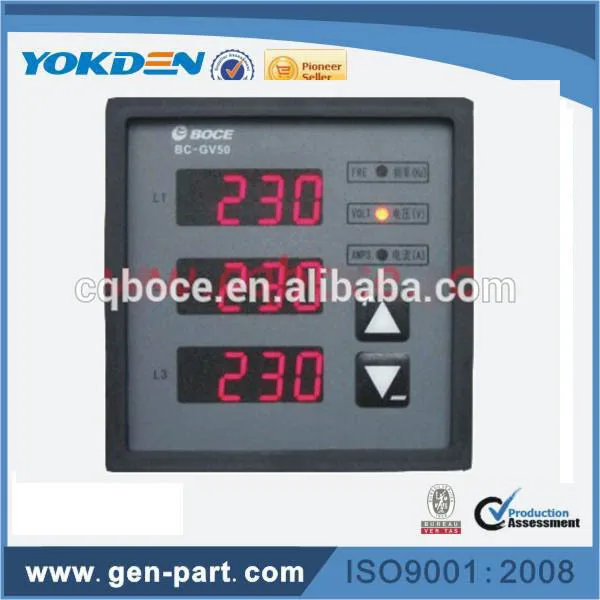

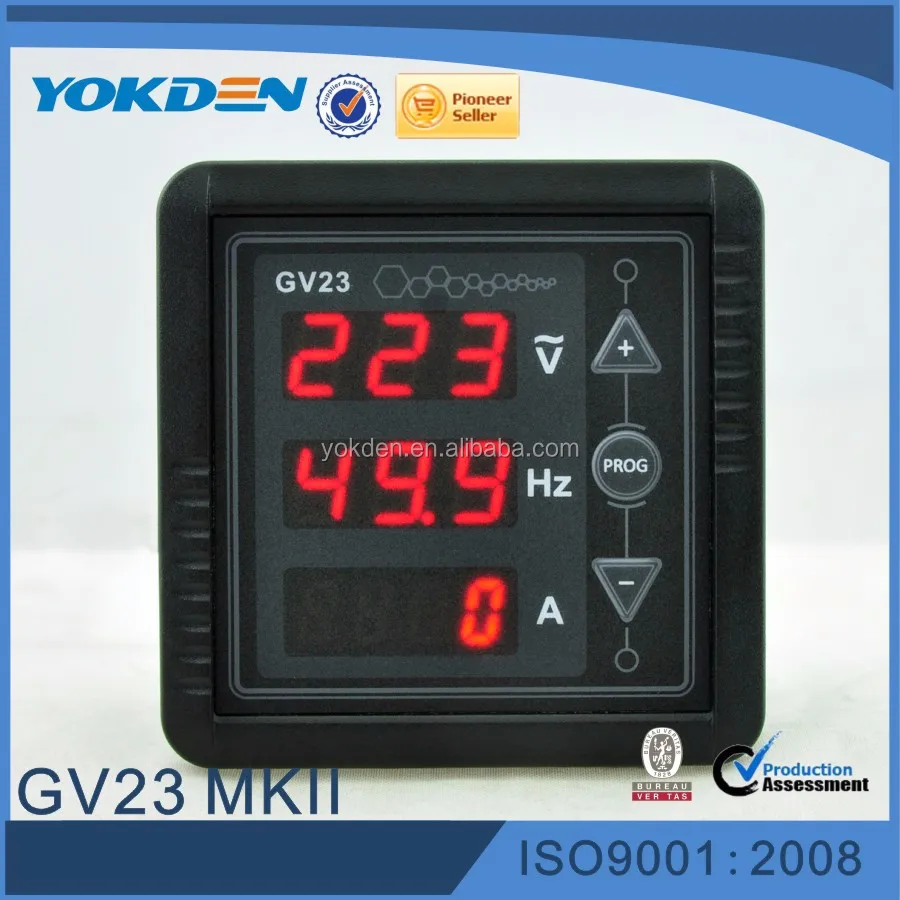

Other Products
