Digital temperature and humidity controller smart thermostat

Feedback Ratings
  • 10-49 Pieces
    US $35.00
  • 50-99 Pieces
    US $28.00
  • 100-499 Pieces
    US $26.50
  • >=500 Pieces
    US $25.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Inkbird
Model Number:
IHC-230
Usage:
Household
Theory:
Temperature Controller
Accuracy:
±0.5 ℃/ ±1℉
Temperature range:
-40℃~100℃/ -40℉~212℉
Type:
Household Thermometers
Application:
Widely
Product name:
Thermostat
Certificate:
CE ROHS
Power supply:
100~240VAC
Size:
140*68*x33*mm
Power consumption:
<3W
Power Input:
100 ~240VAC, 50Hz/60Hz
Warranty:
12 Months
Sensor Model:
HTG3515CH
Description

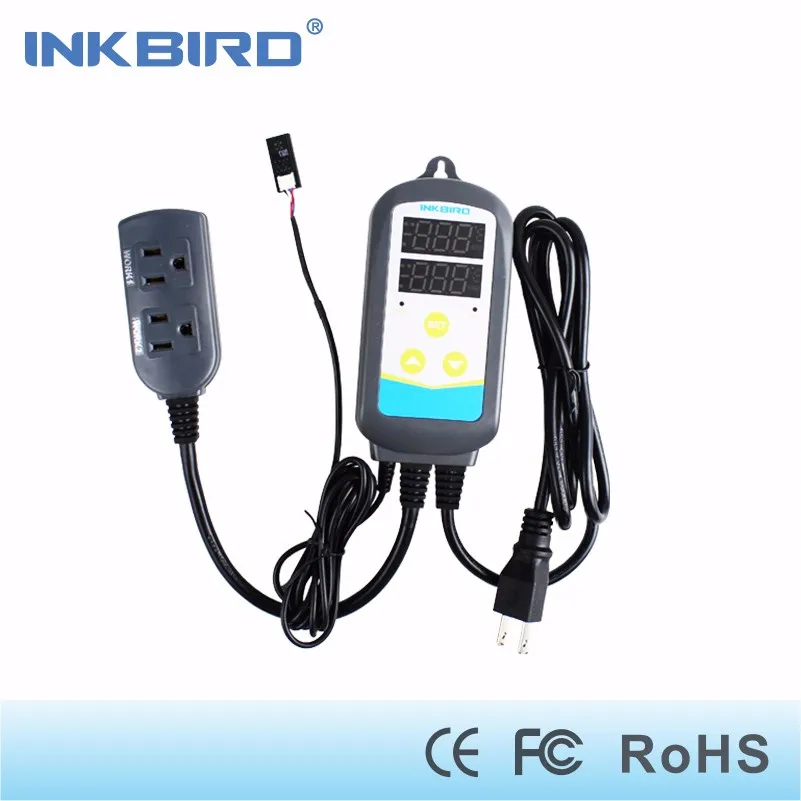

What's the IHC-230?

  IHC-230 is an easy-to-use, safe and reliable dual relay output humidity and temperature controller.

  It can output temperature control and humidity control at the same time, dual function design gives users more convenient and save much cost for not buying another temperature controller or humidity controller.

  Its play-n-plug designed, dual LED screens enabling more humanized. IHC-230 can control up to 1200 Watts (120v)/ 2200 Watts (220v) of Combined temperature and humidity control devices.

Main Features

* Work Mode: ON/OFF control. Humidifying or dehumidifying, heating or cooling are available.

Control up to 1200 Watts (120v)/ 2200 Watts (220v) of Combined temperature and humidity control devices.

* Plug-n-play design, easy to use.

* 2-in-1 remote temperature/humidity sensor with 6.5 feet cable.
* Temperature Controller Range: -40℃~100℃/ -40℉~212℉
* Humidity Measuring Range: 5%-99.9%RH (Relative Humidity)

* Built-in memory stores setting in case of power failure.

* Temperature and humidity can be calibrated.

* Delay protection for Cooling and dehumidifying devices.

* Alarm will be on when temperature or humidity exceeds high/low alarm setting value.

Specification




Humidity

Measuring Range

0%-100%RH




Temperature

Control Mode
On/Off Control, Heating and Cooling
Control Range
0%-99.9%RH
Control Range
-40℃~100℃/ -40℉~212℉
Resolution
0.1%RH
Resolution
 0.1℃/℉ -40.0~99.9℃/℉
Accuracy
3%RH​
Accuracy
±0.5 ℃/ ±1℉


Alarm​
Buzzer Alarm
Alarm High/Low Limit Setting


Sensor
Sensor model
HTG3535CH

Buzzer Alarm
High and Low Temperature Alarm
Sensor Length
2m / 6.56ft

Relay Contact Capacity

Humidification
12A, 100-240VAC


Storage
Storage Temperature
-30~ 75 ° C / -22~ 167 ° F
Dehumidification
12A, 100-240VAC
Storage Humidity
20~85% (No Condensate )





Dimension
Body
140x68x33mm (5.5x2.7x1.3inch)





Voltage
Power Input
100 ~240VAC, 50Hz/60Hz
US Socket
85x42x24mm (3.3x1.7x1.0 inch)
Power Output
Max. 10A, 100V ~240V AC
EU Socket
135x54x40mm (5.3x2.1x1.6 inch)
Power Consumption
<3W
UK Socket
140x51x27mm (5.5x2.0x1.0 inch)
Input Power Cable Length
1.5m ( 5ft )

AU Socket
112x46x27mm (4.4x1.8x1.0 inch)
Output Power Cable Length

30cm ( 1ft )
Weight
Net Weight
350g​

Package
1x IHC-230 humidity and temperature controller;
Gross Weight
500g​
1x Manual
Warranty
1 year
Application

This IHC-230 can be widely used in home brewing, aquarium, pet breeding, hatching, egg incubator, barbecue, boiler temperature control, geothermal temperature control, heating pump constant temperature cycle, strain culture fermentation, seed sprouting, sous vide, electric heating, electric oven, over-temperature protection and automatic temperature control system of all kinds of electrical equipment, reptiles and pets (amphibians, such as snakes, lizards, etc.), storage moisturizing.

Package Content

1 x IHC-230 Humidity and Temperature Controller (110V/220V)
1 x User Manual


Packaging & Delivery


Packaging Details: Carton Packing: 30pieces/per carton,
Carton Size: 44.5cmx38.5cmx32cm
Weight: 15kg
Delivery Detail: One week




FAQs

Application:

Q: Can I use this device to control humidity?
A:
This humidity controller works great. You can use it to control my humidifier in the winter and my dehumidifier in the summer. It keeps the humidity at a constant level and is more accurate and easier to adjust and the humidity control on the appliance. The best part is the dehumidifier fan will stay off till it is needed saving on electricity and noise in the room.

Q: Can I use this product to control temperature?
A: Yes. It is humidity and temperature Controller, can control humidity and temperature.


Q: Can this be used to cool a meat locker?

A: It can be used for heating and cooling any normal appliance, within this temp range.


Q: Does the heating and cooling work together or do I need to switch it from heating to cooling?

A: When it reaches the heating set value, the heater stops and then the cooler is on. Cooler has delay function, we default it as 3 minutes delay. If you want it works immediately, you need set the PT=0. In contrast, the cooler stops and the heater is on. You don't need to switch it, it is automatic.


Features:

 Q: Will this unit "remember" the rh settings if it loses power. Would like to wire this unit with a photocell for daytime only operation.
A: Yes it will. You set what you want and it stays in memory until you change it.

Q: Will this work with a two prong plug fan?
A: Yes. It can.


Sensor:

Q: What is the length of the humidity sensor?
A:
2m / 6.56ft.


Setting Up:

Q: How can I quickly start to set up THC-4?
A: You can download our IHC-230 user manual on our website and set up it according to the specifications.
