Easy operation flat and tube metal cutting 3d laser machine

$79,171.00 - $116,516.00 / Set | 1 Set (Min. Order)
Model Number:
LX-QG6018A
Power(W):
1000W
$79,171.00
- +
available
1500W
$101,578.00
- +
available
3000W
$116,516.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
diameter 4-200mm
Cutting Speed:
maximum speed 0.8 second /branch
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:
Laser Cutting, Laser Cutting
Applicable Industries:
Manufacturing Plant, Farms, Construction works , Advertising Company
Condition:
New
Cutting Thickness:
Depending on the material
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
professional
Place of Origin:
guangdong
Brand Name:
longxin
Certification:
CE, ISO, SGS
Warranty:
1 Year
Laser Source Brand:
MAX
Laser Head Brand:
Empower
Servo Motor Brand:
DELTA
Guiderail Brand:
PMI
Control System Brand:
Empower
Key Selling Points:
Multifunctional
Cutting material:
stainless steel pipe ,Carbon steel pipe,iron pipe,metal pipe ,
Color:
blue
Control system:
Semi auto /cnc control
Power:
300-2500w
accuracy:
± 0.1mm
Name:
pipe fiber laser cutting machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
1208.6X298.6X224.2 cm
Single gross weight:
2250.0 kg
Package Type:
A. The protective film package, wooden package. B. Can be packaged according to customer requirements Easy operation flat and tube metal cutting 3d laser machine
Lead Time :
Quantity(Set) 1 - 1 2 - 10 >10
Est. Time(days) 45 35 To be negotiated
Product Description

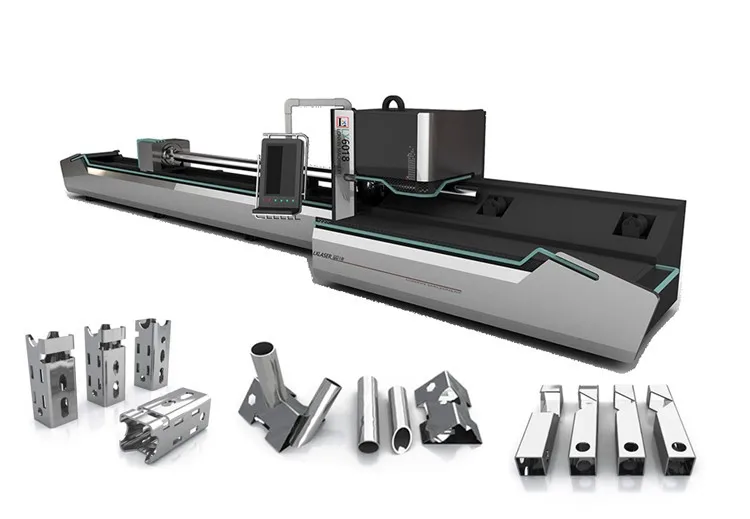

Easy operation flat and tube metal cutting 3d laser machine


Product feature

1. Multifunctional cutting

Freely design and enable immediately cutting of complex graphics and words , help you to trigger more new tube design inspiration and quickly complete new product development, thus to minimize development costs.

2. Good accessibility

The humanized structure design makes the machine accessible, making manual feeding easy.

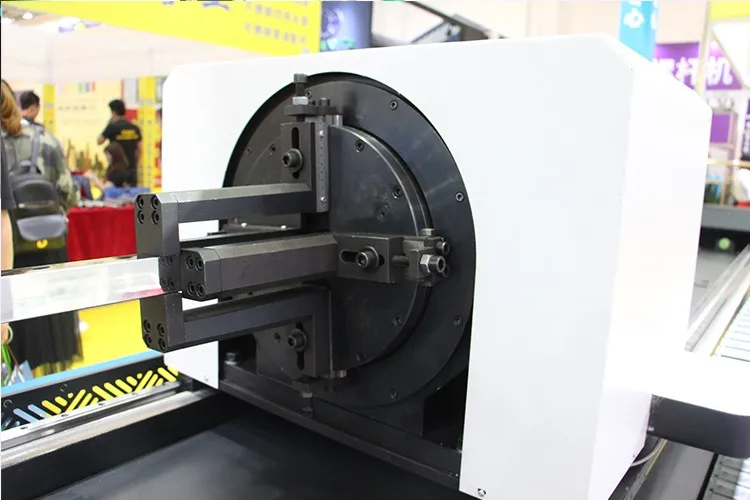

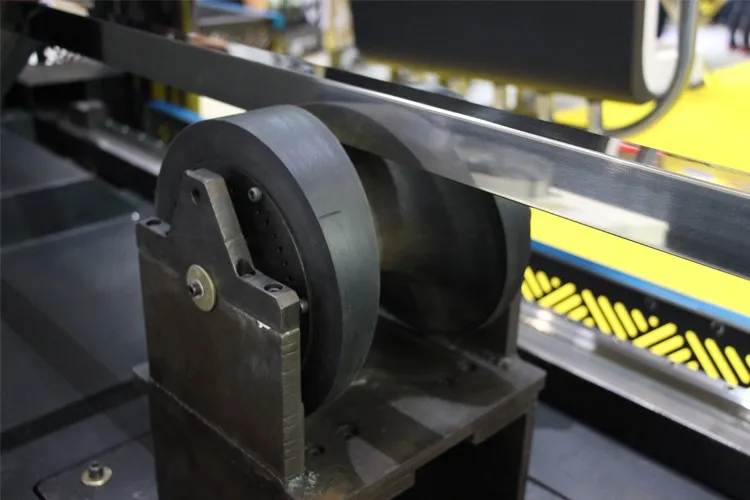

3. Automatic clamping

Tubes of various diameters can be produced across the entire clamping range without the need for retooling

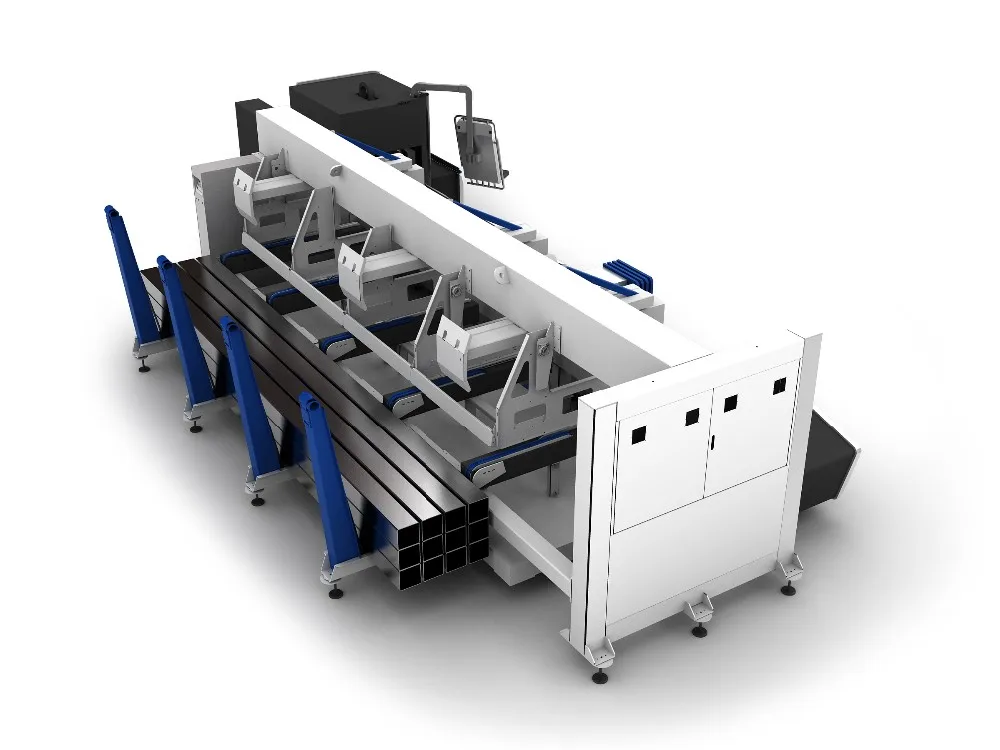

4. Fully automatic feeding function (optional)

Minimize labor cost and maximize efficiency.

5. Protective collecting rack (optional)

Automatically collect long-sized workpieces & protect its appearance, saving labor cost and optimizing efficiency.

6. Easy operation

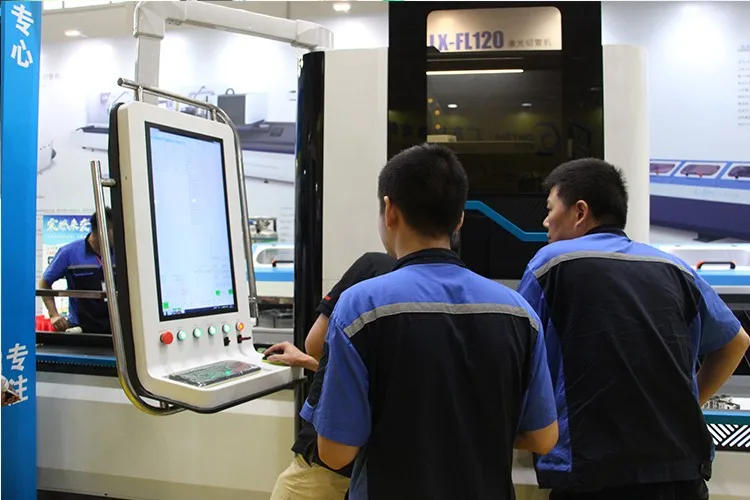

The man-machine interface is easy to operate with remote control.

7. Reduce processing steps

Allows you to save complex multi-step machining (sawing-punching-grooving-grinding) while economize intermediate logistics and storage costs. A single workpiece price is more competitive than traditional machining.


                   Click here for more details


Easy operation flat and tube metal cutting 3d laser machine

Main Features

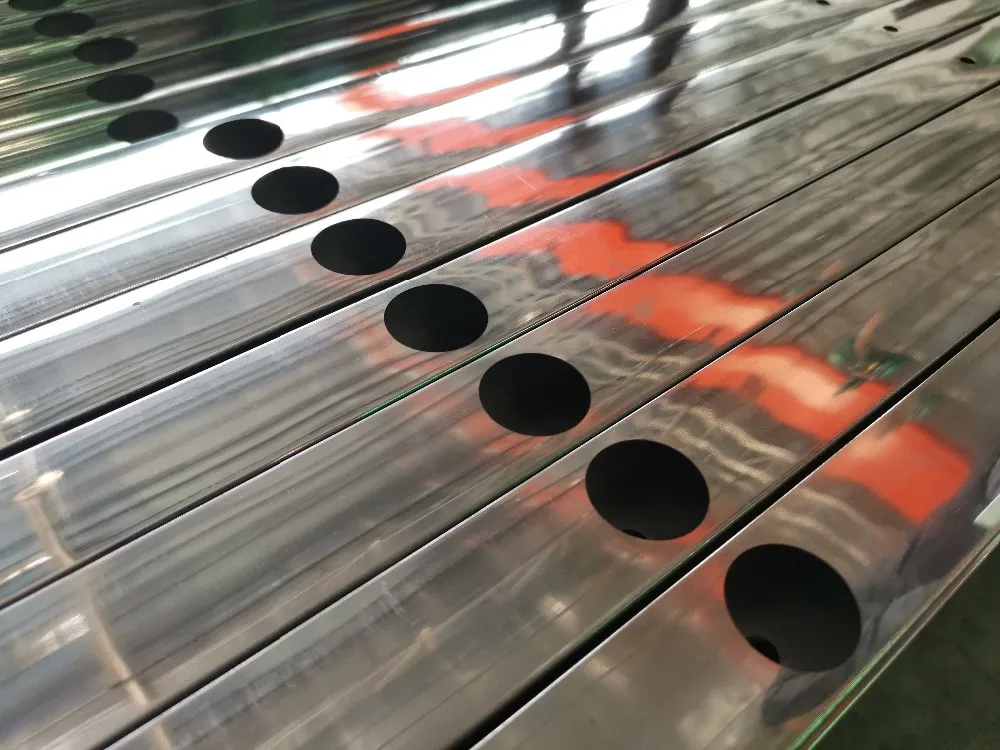

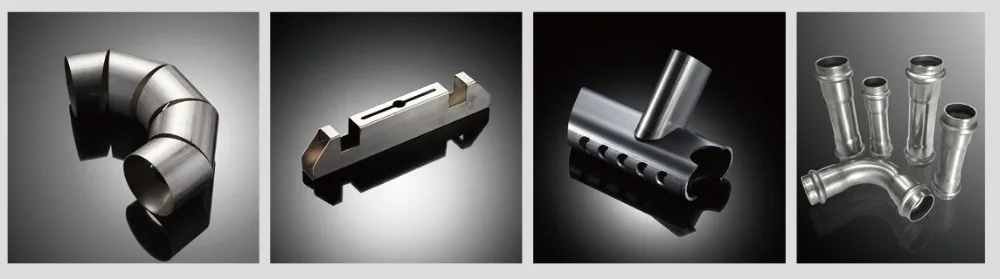

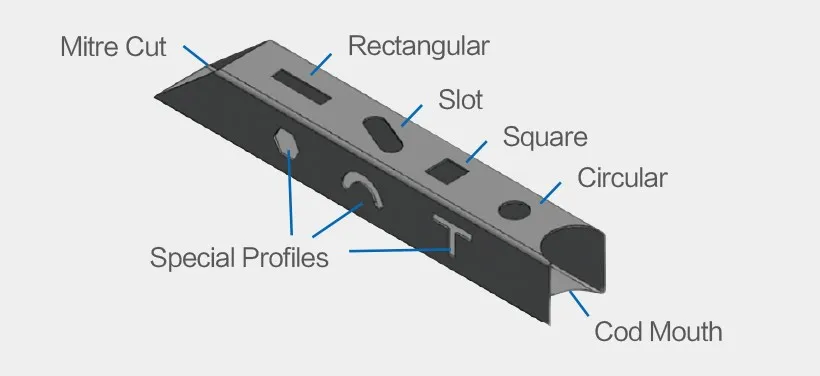

1. It can cut lines and holes with different diameters from different directions on the pipe and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.

2. It can cut column crossed lines at the end of branch pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.

3. It can cut inclined section at the end section of the pipe.

4. It can cut branch pipe intersected with main circular pipe.

5. It can realize angle groove face, square hole, waist-shaped holes cutting.

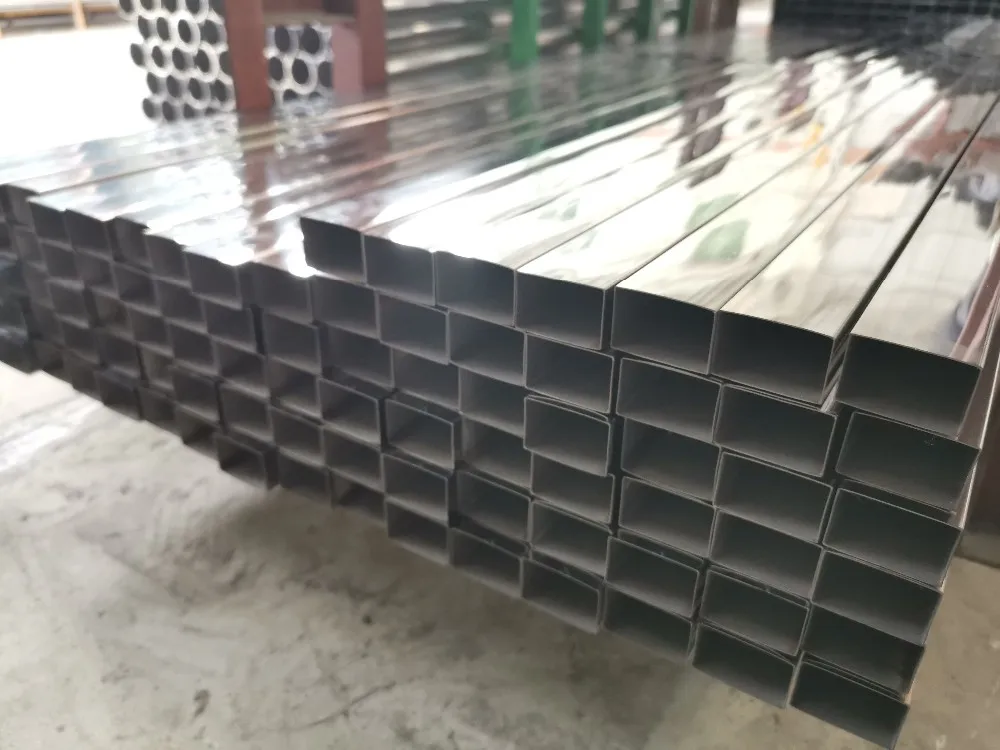

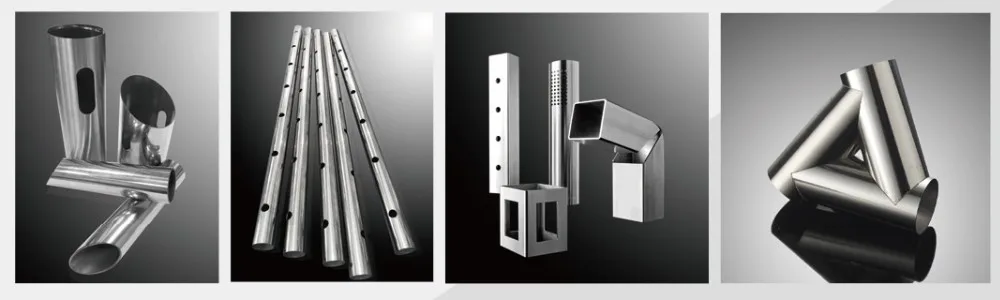

6. Both round and square pipe/tube can be processed.


Techinical parameters

Model
LX6018
Power
500-1500w(Optional)
Max.outside diameter of round tubes(mm)
20-210(Customized to 250)
Max . raw material length (mm)
≤6200
Max. finished part length (mm)
1200
Pipe remain length (mm)
180
Accuracy
±0.1mm
Machine weight
8T
Machine dimension (mm)
1200*2450*2400
Certifications


                         Click here for more details


Related Products

Semi automatic laser pipe cutting machicne


Fully automatic laser pipe cutting machine


Fully automatic circular saw machcine


Company information

Foshan Longxin Laser Technology Co.,Ltd. was founded in 2003. We are specialized in pipe processing machines designing and manufacture.

We have our own R&D department and we focus on technology and product innovation .we not only produce machines, but also provide pipe processing solutions including customized design and modification. We also have a professional after-sales team to provide the machine installation, debugging and comprehensive technical support.

We have CE certification and many technology patents. Our machines have been exported to more than 50 countries.

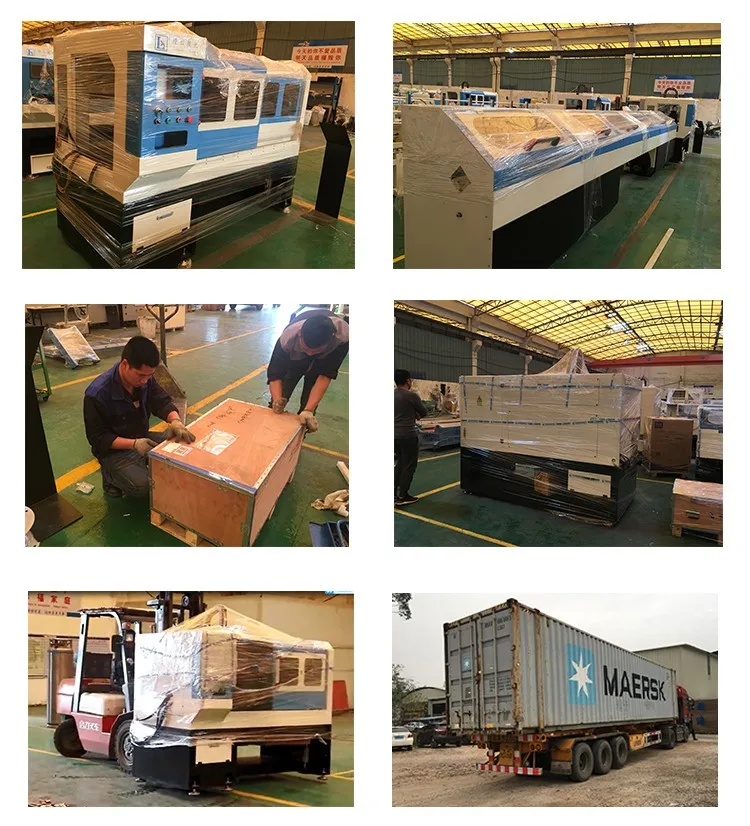

Packing & Delivery
FAQ

1. How long is the warranty time of the machine?

We offer 13 months warranty, starts from the issue date of bill of lading. The warranty time for laser generator, laser head is 24 months. And we offer lifetime technical supports.

2. How can I use the machine?

We offer on-site free operation training for customer in our factory. User manual, installation and operation videos are available. If you still have doubts, welcome to contact us anytime. And oversea service is available, clients need to afford the tickets ,visa and accommodation and 100USD per day.

3. What are the wearing parts?

The wearing parts for laser machine are including laser head glass and laser mouth, etc. Normally 1pc glass and 1pc mouth can use for 1week to 2months, depends on the machine usage condition. The cost for them are about USD16/pc. We suggest you have 50-100pcs each part for spare.

4.What should I do if this machine has a problem during the warranty?

Our engineers offer 24 hours online service and free technical support.
Most components are free for replacement during warranty, such as PLC, touch screen, servo motor, laser generator, etc. Customer only need to pay for the courier cost.

5. How strong is your company?

We are a professional pipe processing equipment manufacturer with 16 years experience. We have professional R&D department and after-sales department to offer you the best solution and technical support.

Welcome to visit our factory to view more details.
