Everlite Hot Selling 30W LED Street Light With Good Quality

Feedback Ratings
  • 1-99 Pieces
    US $112.01
  • 100-999 Pieces
    US $107.73
  • >=1000 Pieces
    US $102.45
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
LED Light Source:
CREE XTE
Input Voltage(V):
90-305 VAC
Lamp Power(W):
30
Lamp Luminous Flux(lm):
7200
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra>):
70
Color Temperature(CCT):
27000-7000
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE, EMC, GS, LVD, RoHS, SAA
Warranty(Year):
5
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EVERLITE
Model Number:
EL-SL58B-30w
LED Driver:
Mean well -HLG/Inventronics
LED Quantity:
24PCS
Frenquency Range:
50-60HZ
Power Factor:
>0.95
Working Humidity:
10%-95%
THD:
<15%
Light Angle:
120-140
Package Dimension:
580X570X275mm
G.W:
10.5kg
Installation Pipe Diameter:
60mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
59X59X29 cm
Single gross weight:
10.9 kg
Package Type:
Individual carton packaging, good impact resistance, protecting luminaires from factory to installation site. Logo printing Service is available
Lead Time :
10

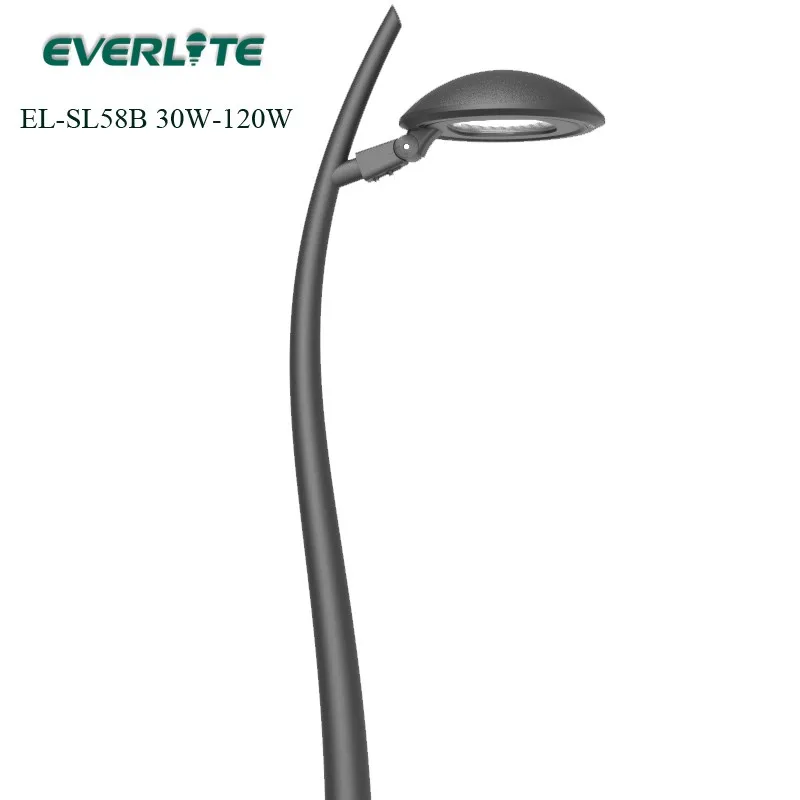

 Everlite 30W LED Street Light With CB CE GS
Overview


Product Description

  Product features and benefits



EL-SL58 series is Everlite 2016 newly designed LED street light . It has 3 different series, for Garden light/ street lamp/ cable lamp . EL-SL58 30W-120W, could replace HPSL 60W-250W. We supply 3/5 years warranty. This LED street light is equipped with high quality Multiple-LED, delivering 110lm/w, and high-end driver.

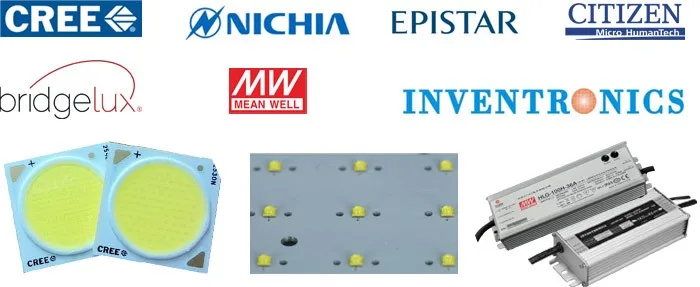

LED LUMINOUS SOURCE



EL-SL18 series are generally equipped with CREE XT-E / Philips LUXON LED. The finished system efficiency can reach 110lm/w, CCT 4000K-5700K.



LED DRIVER



Full range EVERLITE LED street lights are utilizing MEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan, 7 years warranty and optional performance status. Input Voltage: 90-305V/160-265V, PF>0.95.






Specifications



Product Name

  Everlite ADC12 Aluminum Alloy Led Street Lamp 60w 120lm/w

Model

EL-SL58B
Power Comsuption 30W
LED Brand Cree XT-E/Luxon

Lamp Rated Lumen output

3300lm (Lumen tolerance +/- 5%)

Lamp Rated Luminous Efficiency

110lm/w

Color Rendering Index

Ra>70

Color Temperature

2700-7000K

Driver Brand Mean Well/Inventronics
Input Voltage90v-305v AC/12-24v DC
Power Efficiency>90%
Power Factor>0.95
Surge Production Class3KV/6KV/10KV

IP / IK

IP65/ IK08

Working Environment

Between -40℃~50℃,10%~90%RH

Total Harmonic Distortion

<15%

Life Span and Warranty

50000 hours/ 5 years

Wind Index

Force 12

Body and Shell Materials

Aluminum Alloy



Optional Function



0-10V DC or PWM Signal  or Resistance Dimming

Timer/ Photocell Contral

Certificates

CE&ROHS , CB,SAA

Fixture Dimension



520X520X320mm



Fixture Weight

9.2kg

Packing Dimension

580X570X275mm

Packing Weight

10.5kg

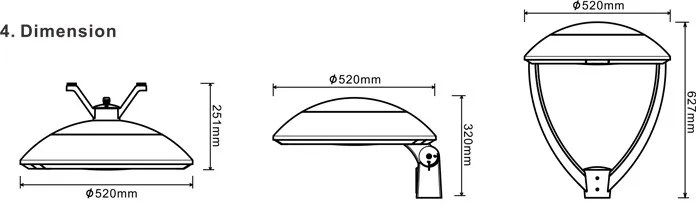

Product Dimensions& Light Distribution

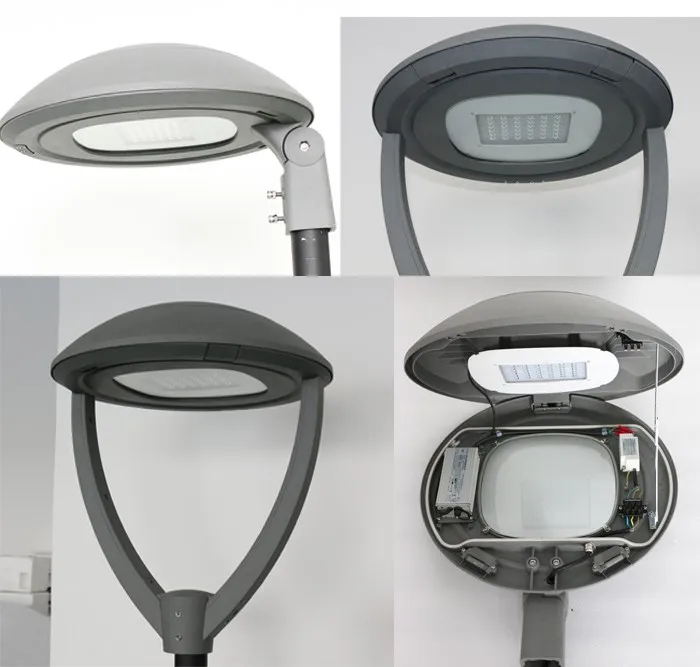

Real Product Image

Real Products Pictures


Company Information
  • Everlite is professional in LED outdoor lighting and LED Lights Research , Development and Production for 8 years.
  • We have very experienced LED R&D team, with 5 knowledgeable engineers, helping our customers customerize products, making thermal simulation, desining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
  • We can help clienst in modifying module design and developing module .
  • We could supply technical support , including project lighting designing( indoor/outdoor) and optical simulation.
  • We have Europea Union appearance patent , as well as versatility patent.
  • All of our LED street lights are approved by TUV-GS certificate.

 LED Street Light Certifictes


Customers Visiting




Business Activities




FAQ



Qestions and Answers



Q1:  Can we get the sample and how?

A1:  Yes we can provide you samples for testing. When you choose one model, please contact us, we make a PI for you, after your payment, we will prepare the samples for you.



Q2:  Delievery time

A2:    For container order, generally 30~45 days.For sample orders sometimes within 7 days.



Q3:  MOQ

A3:   We can be exporter, wholesaler, or even retailer to you, there is no MOQ, but depend on the items.



Q4:  Payment terms

A4:  T/T 30%+70% preferred, but also L/C,T/T, D/A, D/P, accepted.



 Q5:  Delivery method

A5:  By sea preferred, also by air, courrier, available too.



Q6:  Who are our main customers

A6: Wholesaler, Contractor, Importer& Exporter, Manufacturer.



Q7:  What products certificates do we have

A7:  GS, CE, RoHS for general Europe market. SAA for Australian market.



Q8:  Product Guarantee

A8:  We are very flexible, could supply 3 years or 5 years warranty plan according to your requirements.



Welcome to contact us!
