Factory audio 720P wifi Could p2p Mini indoor Security ip camera
- Supply Ability:
- 6000 Piece/Pieces per Week
- Port:
- Shenzhen/Hongkong
- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
woshijia
- Model Number:
-
IL-HIP321-1M-JZ
- Type:
-
wifi ip camera
- Style:
-
Dome Camera
- Sensor:
-
CMOS
- Technology:
-
Infrared
- Special Features:
-
wifi ip camera
- Chipset:
-
H42+T10
- Resolution:
-
720P(1280*720)
- Lens:
-
3. 6mm(F:1.2 ) 3Mega Pixel lens
- IR distance:
-
10M
- IR leds:
-
6x5EA
- Video output:
-
RJ45
- Keyword:
-
WiFi camera
- App:
-
360sight
- Other function:
-
Alarm push,Motion detection
- Warranty:
-
2 years
- Packaging Details
- Standard Export Package
- Delivery Time
- Shipped in 7 days after payment
Factory audio 720P wifi Could p2p Mini indoor Security ip camera
Model:IL-HIP321-1M-JZ
Specification:

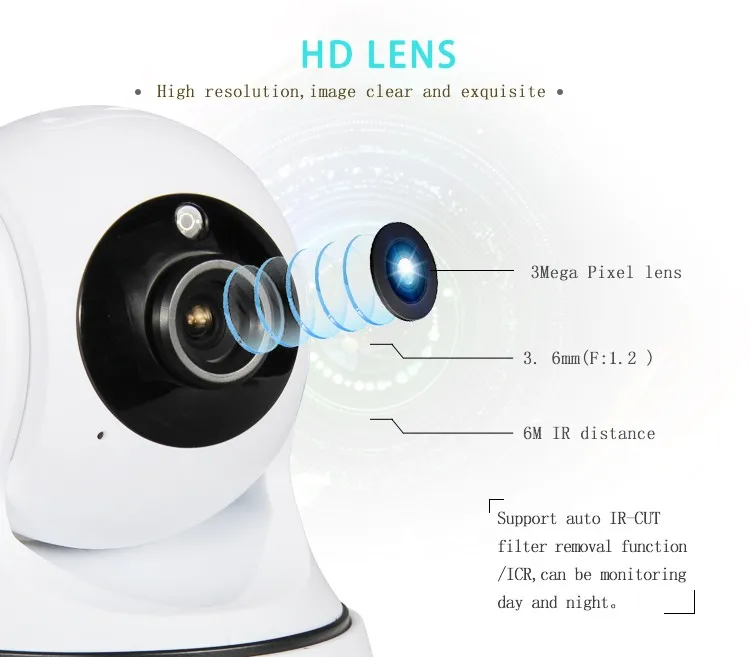

- High resolution,image clear and exquisite
- Use the advanced H.264 High Profile compression technology,which can be the lowest code rate and HD image quality
- Low illumination,0.1Lux@(F1.2 , AGC ON),0 Lux with IR On

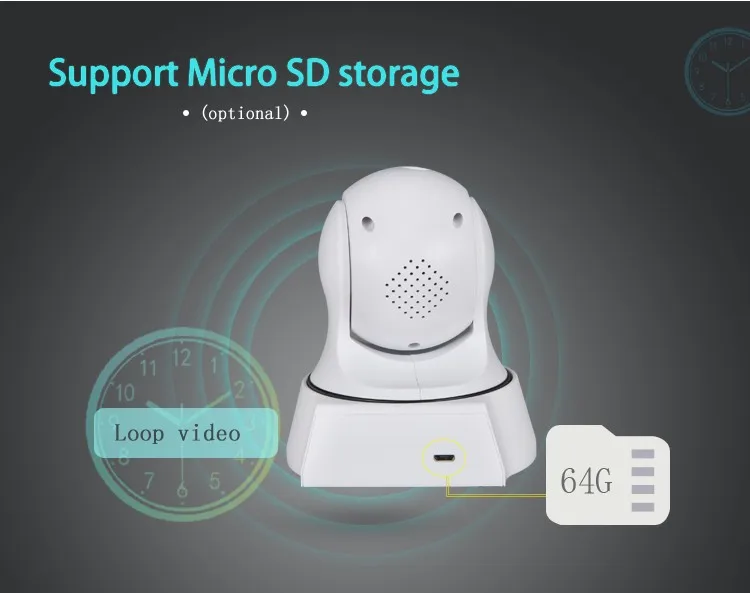

- Support dual-stream,support Micro SD storage(optional)
- Support Mobile view(iPhone,Android,Windows Mobile, BlackBerry, Symbian)
- Support the view by browser(IE,Chrome,Firefox,Safari)

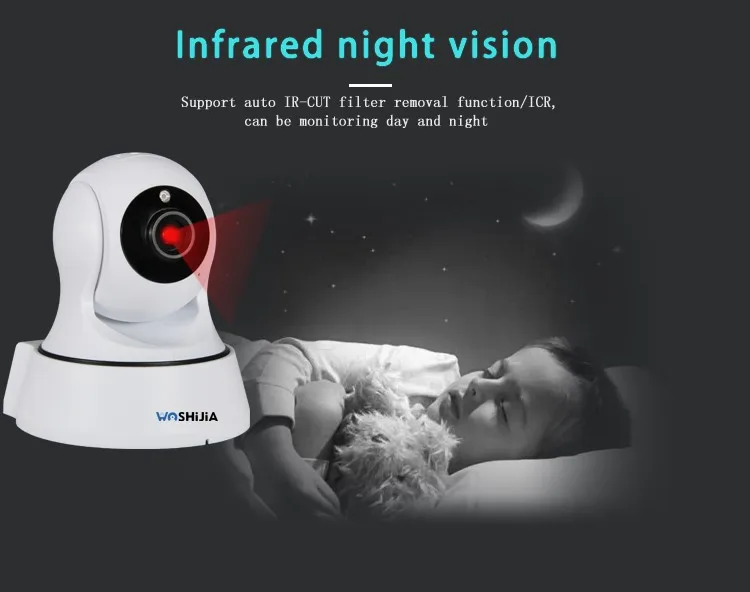

- Support auto IR-CUT filter removal function/ICR,can be monitoring day and night
- Support butt join with HVR/NVR,support ONVIF

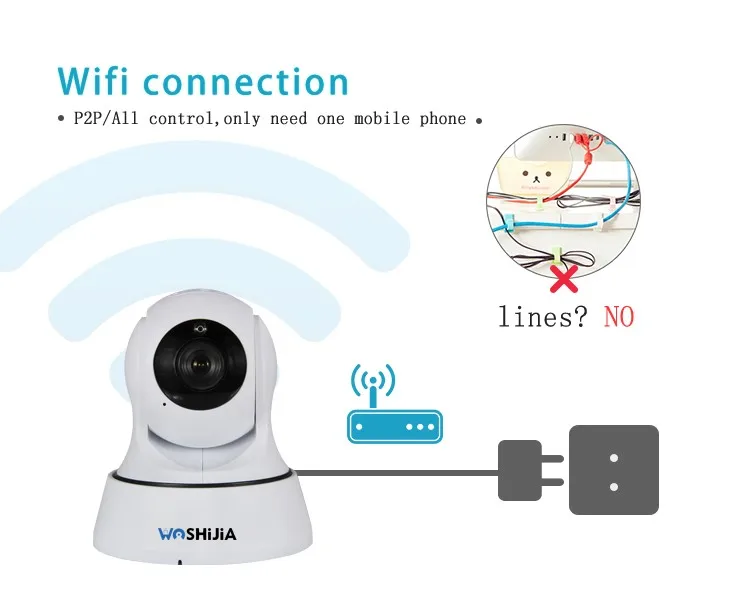

- Support Cloud,P2P,WIFI
- With the WEB,CMS management software,can provide the SDK for secondary development









Model | IL-HIP321-1M-JZ | |
Image Sensor | Image Sensor | 720P(1280*720) |
Display Resolution | 1MP, 1280 x 720(720P), 640 x 480(VGA), 320 x 240(QVGA) | |
Min. Illumination | Low illumination,0.1Lux@(F1.2 , AGC ON),0 Lux with IR On | |
Audio | Input/Output | Built in Microphone, 3.5mm audio Jack output |
Audio Compression | G.711, ADPCM/32kbps | |
Video | Image Compression | H.264 |
Light Frequency | 50Hz, 60Hz | |
Image Resolution | 1MP, 1280 x 720(720P) | |
Image frame rate | 1~25fps | |
View | H.264 dual streaming | |
Image adjust | The brightness, contrast, saturation, chromaticity, is adjustable | |
White balance | Automatic, Indoor, outdoor , is adjustable | |
Infrared mode | Automatic , manual (on/off) | |
Network | Ethernet | One 10/100Mbps RJ-45 |
Supported Protocol | TCP/IP,UDP/IP,HTTP,SMTP,FTP,DHCP,DDNS,UPNP | |
Wireless Standard | WIFI(IEEE802.11b/g/n) | |
Data Rate | 802.11b: 11Mbps(Max.) 802.11g: 54Mbps(Max.) | |
802.11n: 150Mbps(Max.) | ||
Support IP address | static IP address, dynamic IP address | |
Hardware Interface | POWER Interface | DC 5V/2.0A (EU,US,UK adapter or other types optional) |
Power Consumption ,8 Watts | ||
Audio Input/Output | Built in audio input, One audio output jack. | |
Reset Buttons | One Reset | |
Wireless Interface | WIFI antenna | |
Other | Pan/Tilt Angle | Horizontal:350° & Vertical: 90° |
Environment | Operate Temp | -20° ~ 55°C (32°F ~ 131°F) |
Operate Humidity | 10% ~ 80% non-condensing | |
Storage Temp | -20°C ~ 60°C(14°F ~ 140°F) | |
Storage Humidity | 0% ~ 90% non-condensing | |
Certification | CE FCC ROHS ISO9001:2008 | |
Warranty | Limited 2 years warranty |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years repair Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express (DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Q: How long is the warranty?
A: 2 -year warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose Woshijia Co., Ltd; Choose a qualified HD DVR/Camera Kit manufacturer!
We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to Know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
