Fukuda 12 lines MW-93T laser leveler Red Green beam laser level 3D 360 Vertical Horizontal Self-leveling Cross Line laser nivel

  • 8-15 Pieces
    $119.90
  • 16-47 Pieces
    $117.90
  • >=48 Pieces
    $110.90
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Samples: $129.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $129.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Fukuda
Model Number:
MW-93-2-3R
Size:
0.670kgs
Precision:
±1.5mm/7m
Wavelength:
660nm
laser level Rotary cross line:
Laser level 360 3D 12 line
Auto-self-leveling range::
±2.5°
Working range:
15m-70m(Working with laser receiver)
Leveling time:
<=2s
IP rating::
IP 54

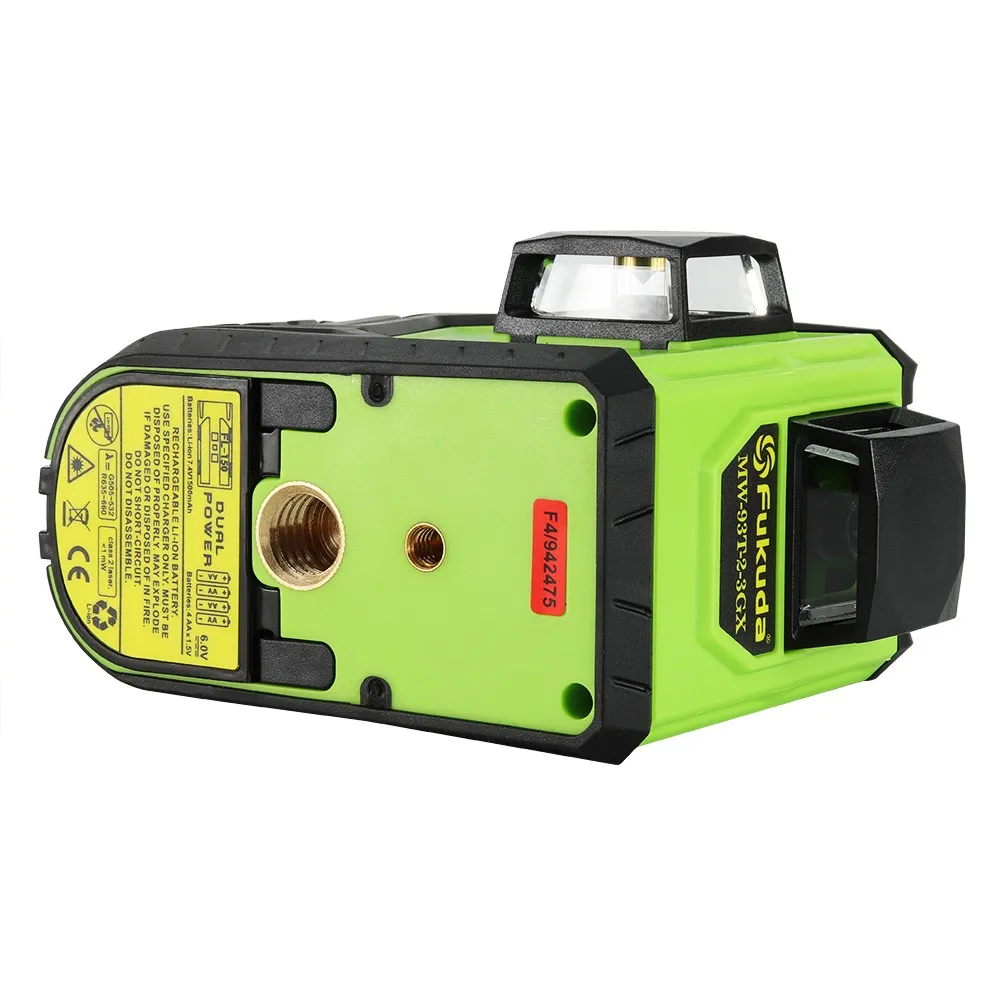

Tripod thread:
1/4" & 5/8"
Slash locking function:
yes
Pulse Function:
yes
Laser level:
4 Horizontal /8 Vertical
Line width:
3.5mm @ 10m

Packaging & Delivery

Selling Units:
Single item
Single package size:
28X21X16 cm
Single gross weight:
2.5 kg
Package Type:
Gift box + hard case + polyfoam
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 40 To be negotiated
Video Description
Product Description

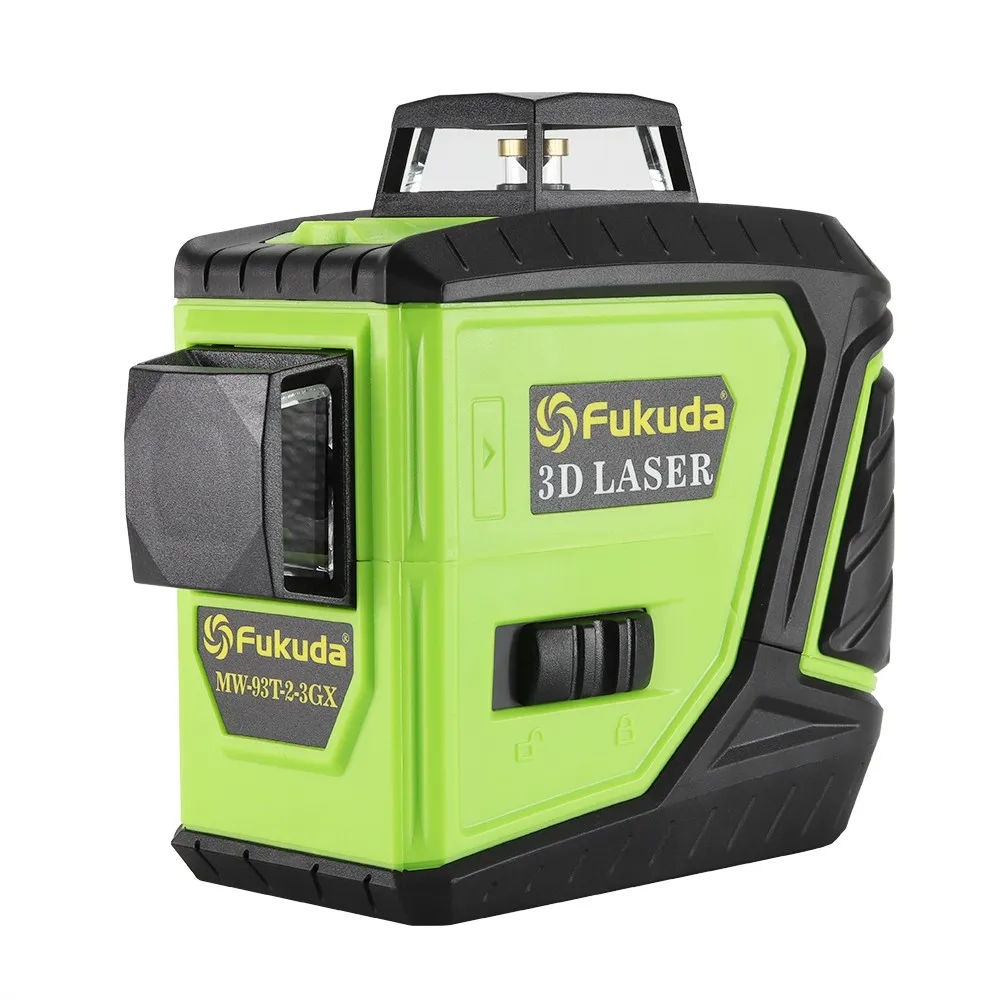

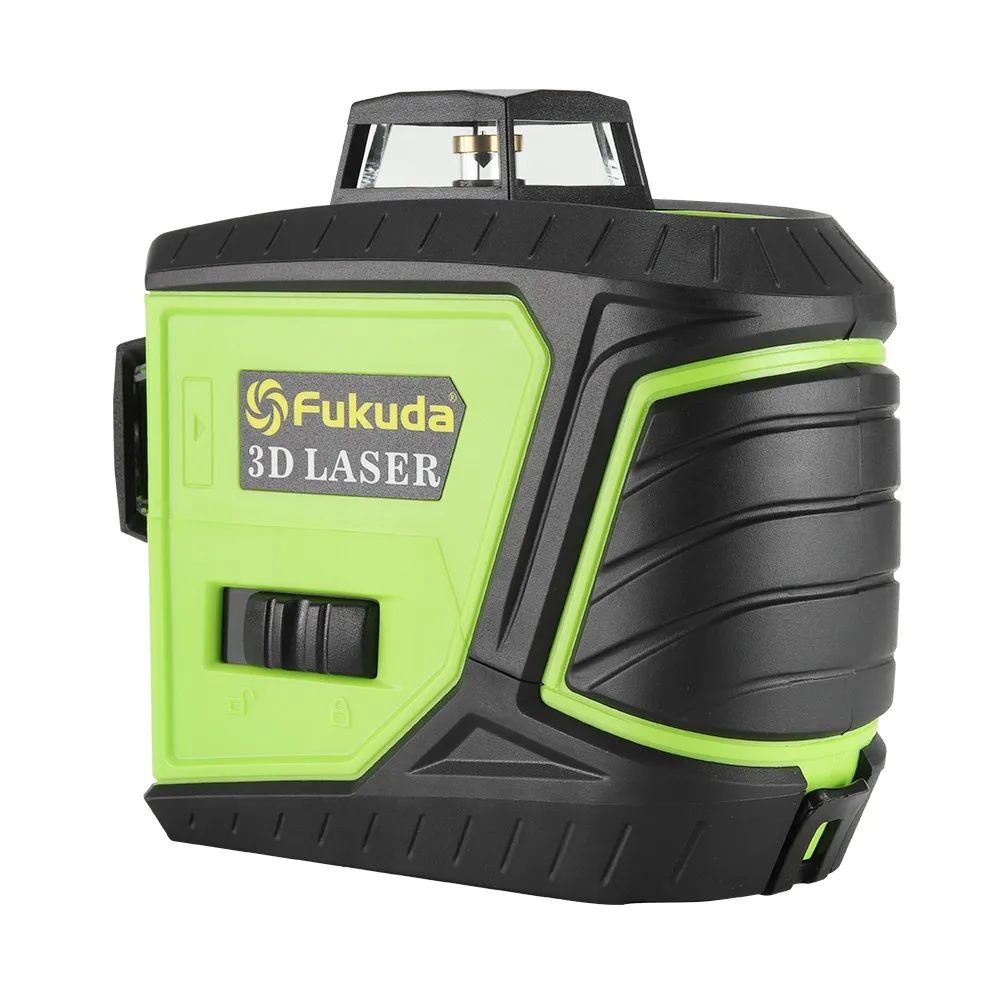

360 Self-leveling 3D 12 line red Green beam light Rotary cross line laser level


Features:

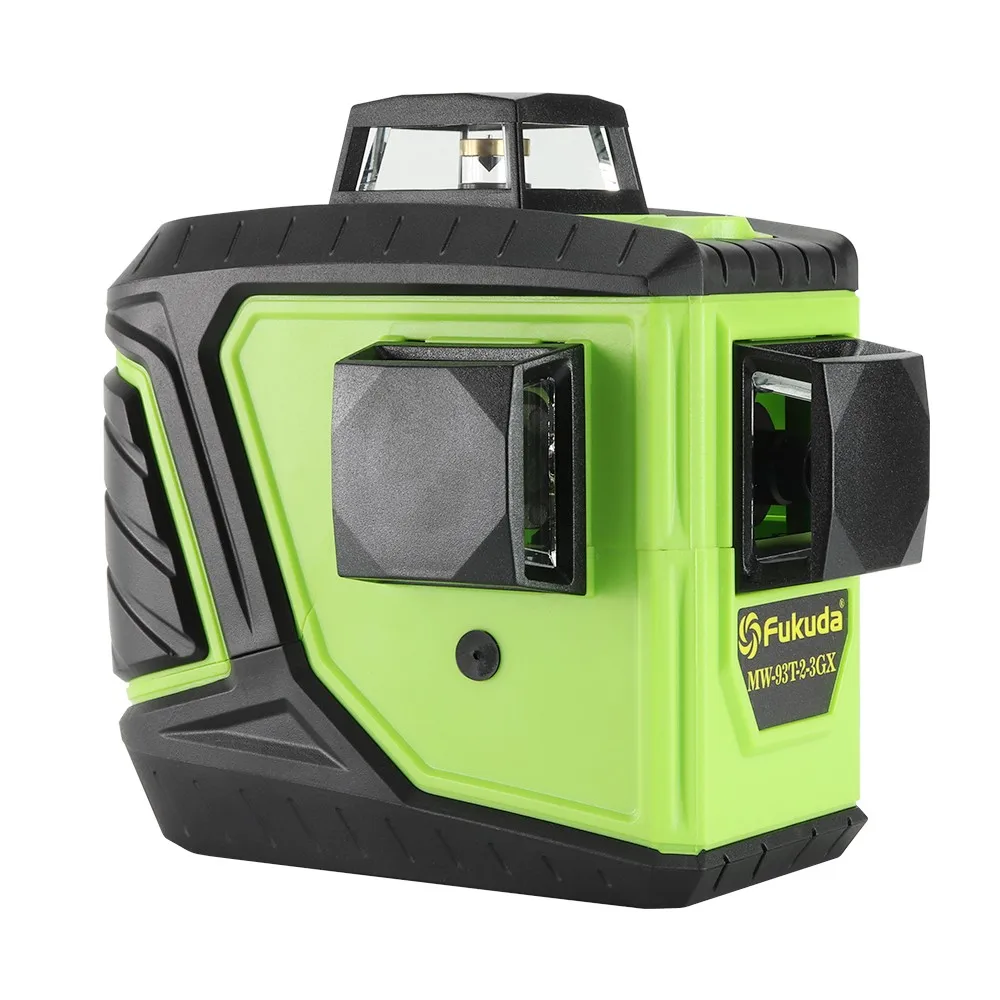

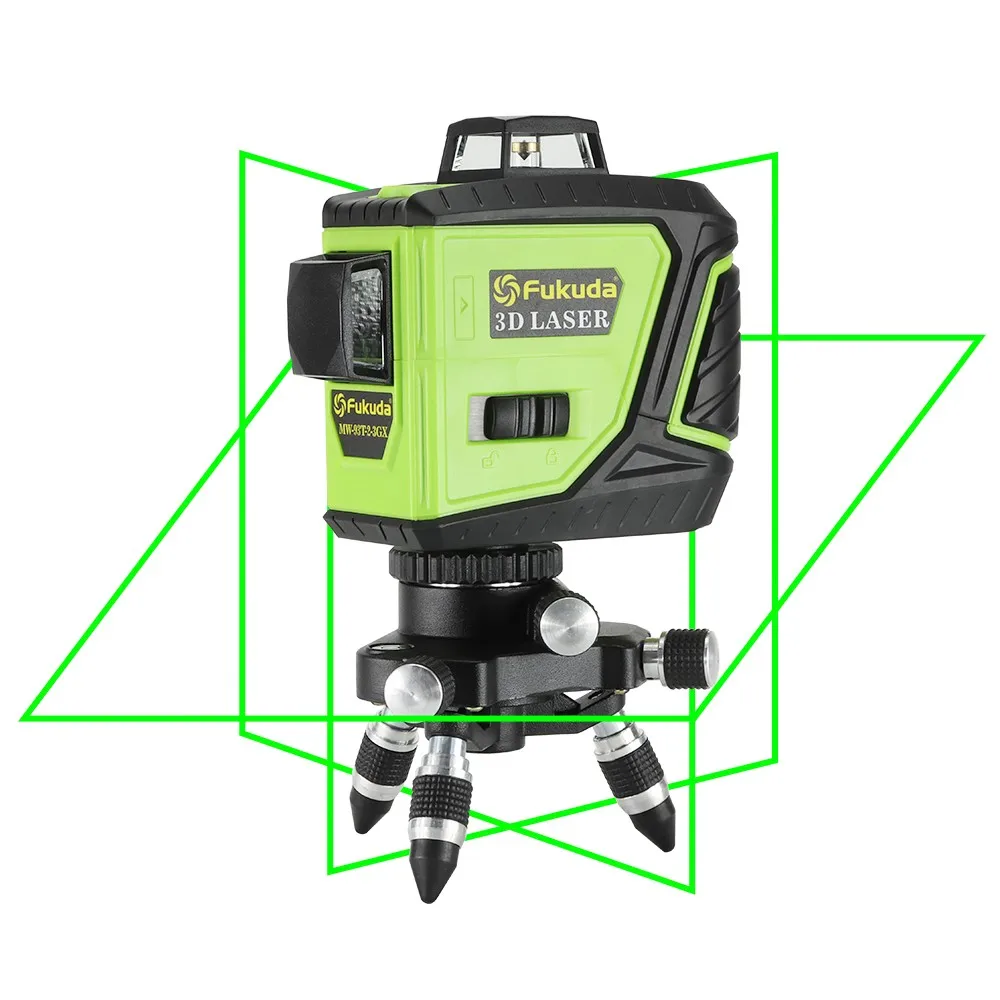

The laser level has three laser windows, each window can launch 4 laser lines, totally 12 laser lines(4 laser lines combine to a plane). Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines

1. The 3D laser is a cross line laser level. This unit is self-leveling with accuracy range of within ± 3.5°. The working range of this laser is up to 20m, depending on the work area's illumination.

2. Design: The Fukuda 3D laser level is a compact, practical option for basic cross line leveling work. Measuring at 1/4 ", the laser can fit comfortably in the palm of your hand.

3. Mounting Options: It has a hard plastic housing to protect the laser beams and pendulum leveling system within. The housing has a ribbed rubber casing that protects it from scratches while giving extra friction to make it slip resistant.

4. Leveling function: Once the pendulum is in unlocked condition, the instrument will be self-leveling within 3.5 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.

5. Pendulum Lock: The Fukuda 3D laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.


Specifications:

Laser:
Red / Green laser
Type:
1H(360) 2V (360)
Expanded Angle:
3 * 360 °
Laser Class:
Class II
Laser Wavelenght
Red beam: 660nm / Green beam: 515-520nm
H/V Accuracy:
±1.5mm/7m
Self-leveling range:
within ± 3.5°
Orthotroipc Accurancy:
90° ± 30"
Working distance:
15m-70m(Working with laser receiver)
Power supply:

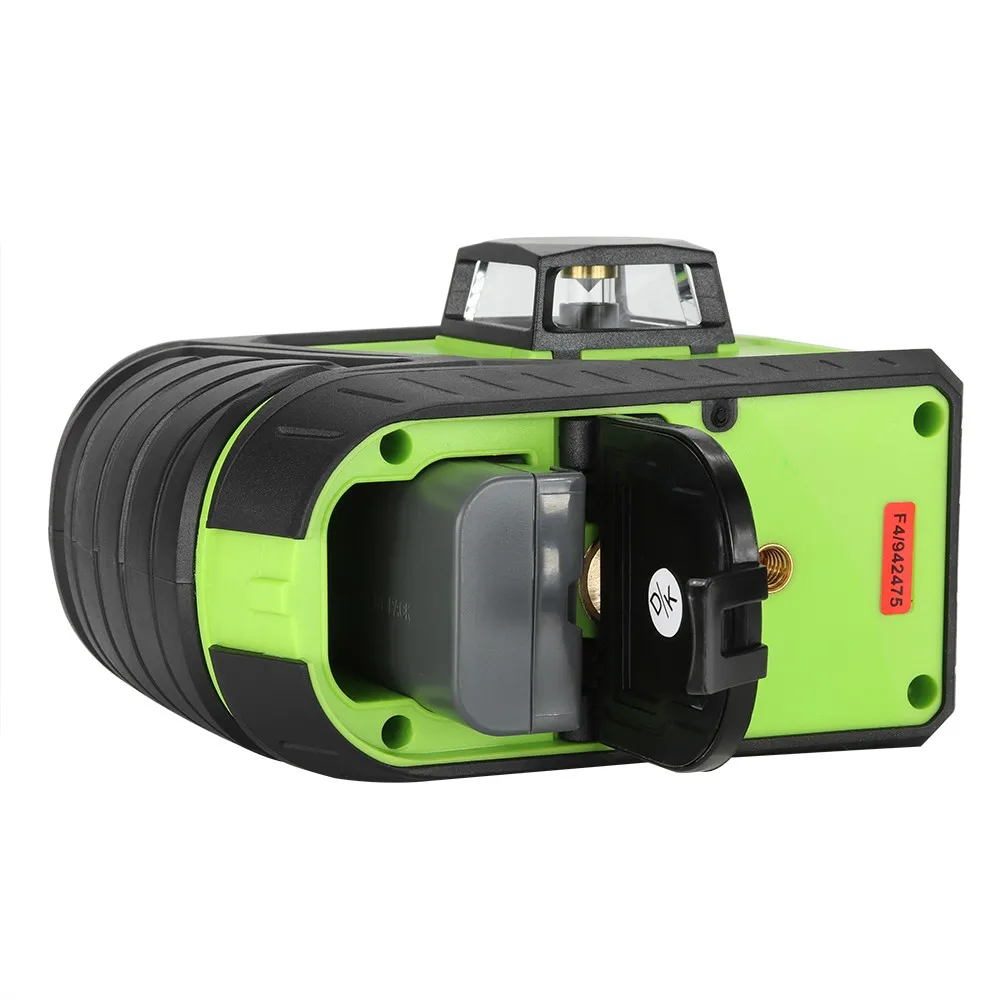

1500mAH lithium battery or 4pcs 1.5V AA battery
IP ratng:
IP54
Operating temperature:
-10° C to 50°C
Mount Size:
1/4 Thread interface

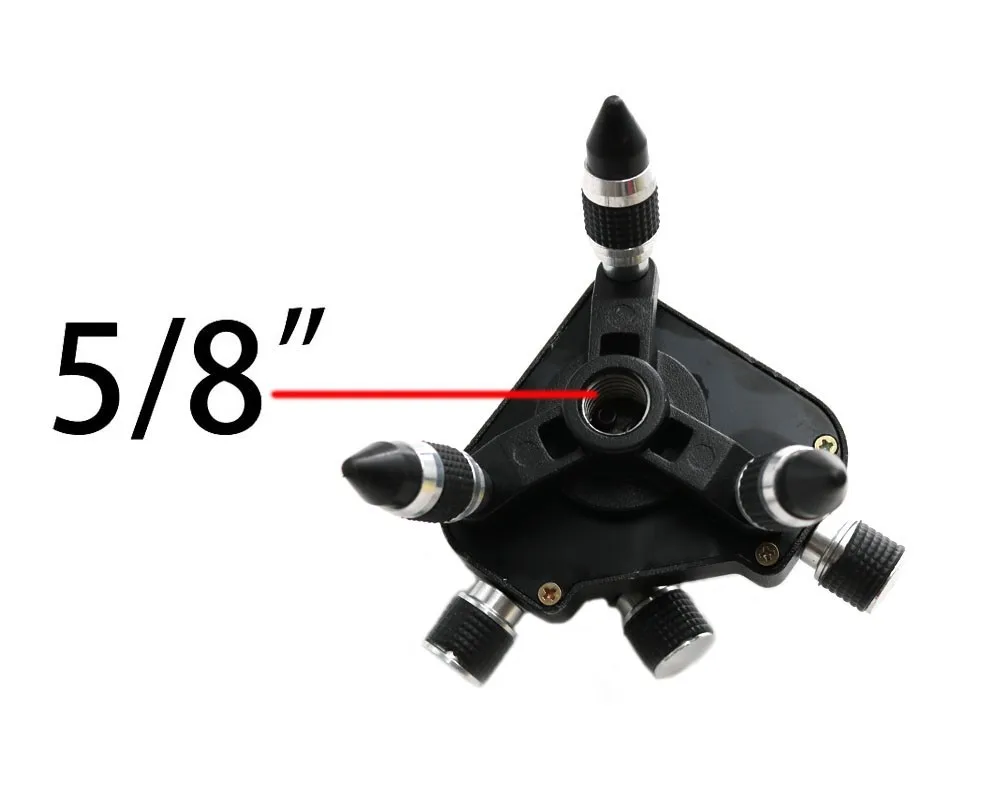

5/8 thread interface
Product Weight
 Product: 0.670kgs
Product + Tripods base:1.119kgs
Product Size
15 x 8.5 x 13cm
Package Weight
1.75kgs
Package Size
28 x 21 x 16cm

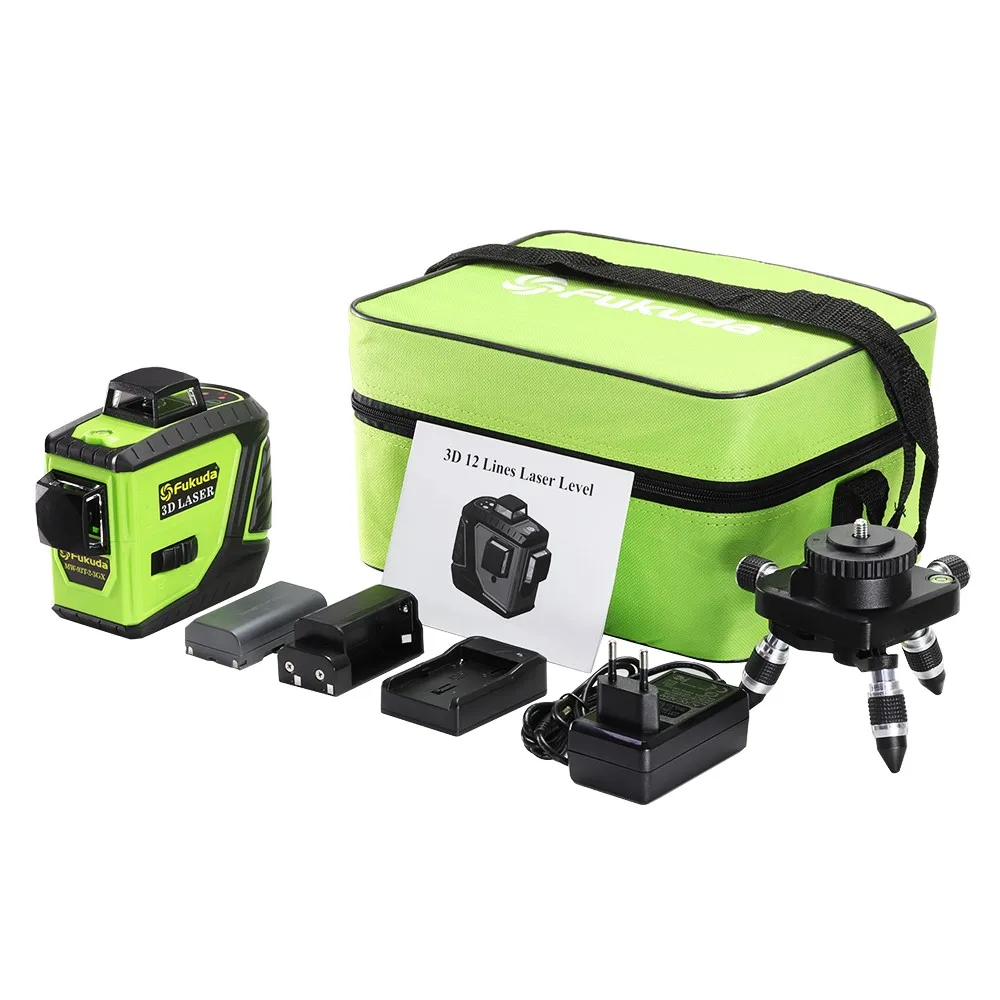

Package Included:


1 * laser level
1 * Fall-proof cloth bag
1 * Lithium battery
1 * 1.5V AA Battery compartment (Do not include AA batteries)
1 * US power plug + EU adapter
1 * battery charger

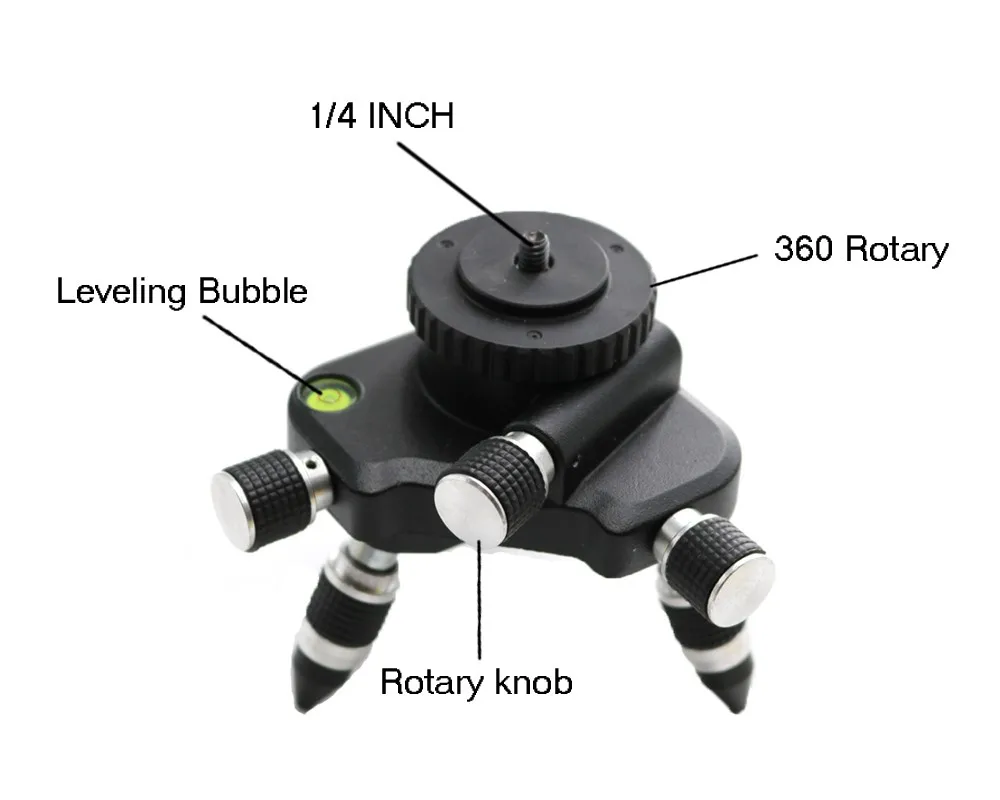

1 * Stand
1 * Reference Board
1 * manual

Product Introduction


Related Products

                        SW-T60

                     Laser Distance Meter 60m

                         SW-T80

                      Laser Distance Meter 80m

                      SW-T100

                       Laser distance Meter 100m

                         SW-S50

                  Laser Distance Meter 50m

                        SW-S100

                 Laser Distance Meter 100m



                      SW-S120

     Laser Distance Meter 120m Camera

Company Profile

We are a professional manufacture and sale of instrument. Our instrument has more than 10 years of instrument development and production experience.

We have a large number of personnel of research and development of cutting-edge technology in the industry. We create a platform for technical exchange with domestic universities.

Our independent R & D team develop our products from key components to finished products.Leading core technology, strong R & D capability and innovative team spirit brings us strong competitiveness.

Our products including laser distance meter, infrared thermometer, vibration meter, thickness gauge, sound level meter, anemometer, temperature hygrometer, range finder, gas detector, metal detector, voltage insulation meter, earth resistance tester, leakage current tester and other products have a good reputation and market share in the industry.

we can  provide ODM/OEM and Processing services, OEM services are applicable to all models

Customer Service

Sincere, professional and efficient service for every customer

if any urgent issue, you can call us at any time,

 24 hours Customs service phone: 86-755-27597356

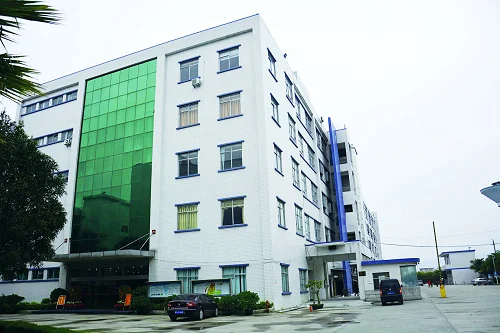

Factory Workshop 1st

Take quality as the root of our company and keep pursuing excellence, Guided by the policy of "concerted effort, pursuit of excellence, meet users' needs", we have set up a complete quality management system and standard quality inspection system and formed an industrial chain that integrates design, manufacturing, installation and service. We are fully aware that quality is the lifeline for Smart Instrument to survive. Only by continuous pursuit of excellence and constant improvement can we supply excellent products to the public.

Factory Workshop 2st

Based on solid business foundations and adhering to the pioneering spirit, our Instrument overcomes all obstacles to dedicate itself to the development, manufacturing, sale and service of the national electronic instrument industry and never changes its determination. We firmly believe that only profession and devotion can lead to superior quality and leading technologies, and only serving users wholeheartedly can satisfy them in the real sense.

150M Long Testing Workshop

150m Long Testing Workshop, 100% all inspectoin, we do each products is accurate!  With the faith "Quality, Innovation and Service", we will become one of the most popular Laser Distance Meter in the world!

Certifications
FAQ

1. Q: Is your company accept customization?

       A: We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.

2. Q: What's the delivery time after an order placed?

     A: It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.

3. Q: How long have your company run on Laser Range Finders?

      A: We have been manufacturing and developing laser range finders since 2010.

4. Q: What's the MOQ?

      A: Regular products only 1 standard carton. but no limit for sample order!

5. Q: What's the warranty of the product?

   A: We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.


6. Q: What Shipping way Customer can choose?

     A: DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order q'ty!

7. Q: How to place an order?

a: send us an inquiry.
b: confirm your wanted products
c: confirm the price, freight and other details
d: complete the payment
e: we start production and arrange the shipment
f: you got your products
