Full-automatic Meat Brine Injector

Feedback Ratings
$3,700.00 / Piece | 1 Piece (Min. Order)
Model Number:
YZ48
$3,700.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Sausage
Application:
meat
Automatic Grade:
Automatic
Production Capacity:
700 kg/h
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
SURE
Voltage:
220V/380V
Power(W):
4.1 KW
Dimension(L*W*H):
1400*660*1660 mm
Weight:
460 kg
Certification:
CE
Warranty:
12 months
After-sales Service Provided:
Video technical support
Maximum Capacity (kg/h):
700
Dimension (mm):
1400*660*1660
Amounts of Needles:
48
Injection Pressure (Mpa):
0.2-0.7
Injection Width (mm):
390
Stepping rate (m/min):
0.2-0.4
Step Distance (mm):
25-48
Needle Dimension:
2/3/4
MOQ:
1PC
Port:
Tianjin port

Packaging & Delivery

Selling Units:
Single item
Single package size:
140X66X166 cm
Single gross weight:
460.0 kg
Package Type:
seaworthy packing Full-automatic Meat Brine Injector
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 2 >2
Est. Time(days) 15 To be negotiated
Product Description

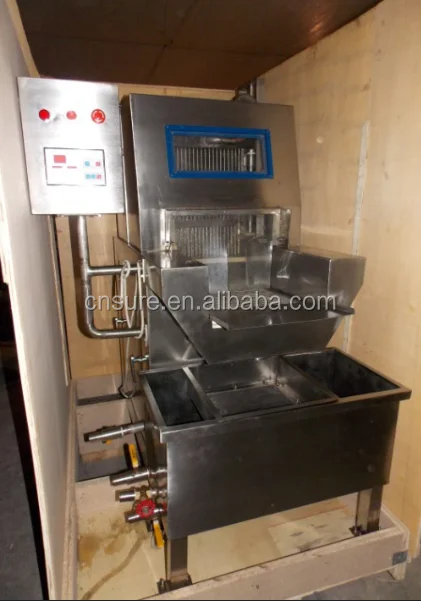

Full-automatic Meat Brine Injector

The salt water injection machine injects the salt water into the meat to be fully pickled, and the meat piece injected into the prepared aqueous solution can tenderize and soften the meat, and improve the taste and yield of the meat product. We can also provide manual saline injection machine.

1. Adopt food grade stainless steel;

2. Equipped with automatic protective device for injecting chops;

3. Equipped with filtration system on the upper part of the water tank which can discharge small meat grain from the injecta, avoid blocking the brine pump and the hole of injection needles;

4. Detachable transmission plate chain, easy to clean;

5. The pressure of injection can be controlled;

6. CE Certificate.
Main Parameters
Model
Capacity
Power
Injection rate
Needle dimension
Injection pressure
Injection frequency
Step speed
 overall size
(kg)
(kw)
(%)
(mm)
(Mpa)
(time/min)
(mm/min)
(mm)
SR-SZ8
400
0.75
-
-
0.1-0.4
-
 -
 1150*750*740
SR-YZ48
200-300
4.1
40-80
dia2/dia3/dia4
0.45-0.9
15-40
40-70
 1350*750*1650
SR-YZ60
300-500
4.1
40-80
0.45-0.9
15-40
40-70
 1550*880*1650
SR-YZ80
500-700
5.1
40-80
0.45-0.9
15-50
40-70
1550*1060*1720
SR-YZ108
700-900
6.2
60-90
0.45-0.9
15-50
40-70
1850*1350*1800
SR-YZ180
900-1000
7
60-90
0.45-0.9
15-50
40-70
1950*1350*1850
Detailed Images

Needles

Motor and Pump

Skip Car for Injector

Stainless Steel Pump

packing
