Good Quality Cheap Ultrasonic Flowmeter Portable

Feedback Ratings
$108.00 - $960.00 / Unit | 1 Unit (Min. Order)
Transmittter housing:ABS Sensor:Aluminum(standard temperature) Sensor:PEEK(high temperature)
Transmitter size:212*100*36mm
- +
Sensor size:Type S(DN20-50)
- +
Sensor size:Type M(DN40-1000)
- +
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Model Number:
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Product Name:
Good Quality Cheap Ultrasonic Flowmeter Portable
Reading+/- 1%
High Temp:
-35-200 °C
Transducer Type:
Transducer Material:
Power supply:
Measuring Fluid
Flow velocity range:
0.01~12m/s, bi-directional
Sensor Type:

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X35X38 cm
Single gross weight:
13.0 kg
Package Type:
Carton Packing
Lead Time :
Quantity(Unit) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Product Description

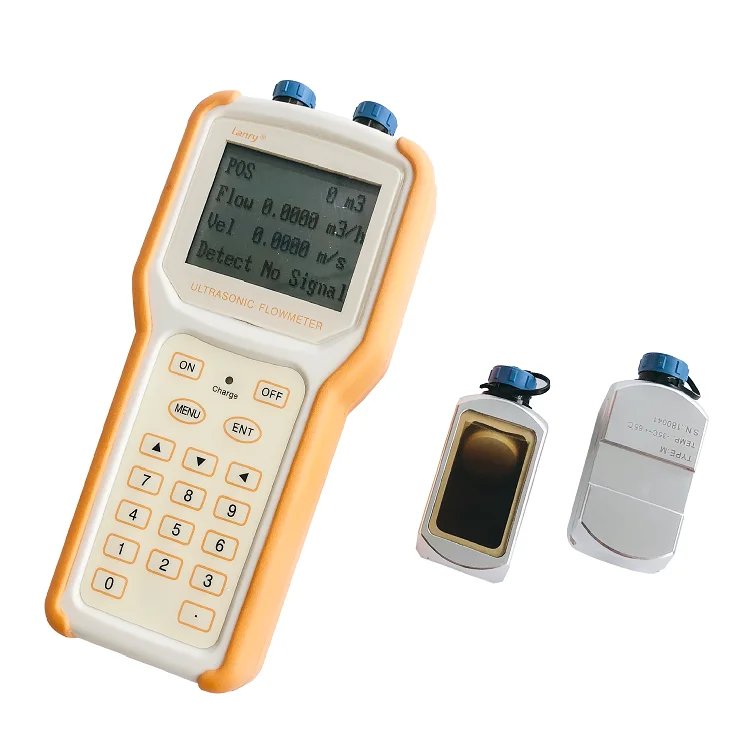

TF1100-CHGood Quality Cheap Ultrasonic Flowmeter Portable works on the transit-time method. The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges.

User can use hand to hold as well as to operate the flow meter main unit. This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.
Good Quality Cheap Ultrasonic Flowmeter Portable
1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function.
4. 14 hours battery(rechargeable), back-lit 4 lines display.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.


● Service and maintenance

● Replacement of defective devices

● Support of commissioning process and installation

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

● Energy efficiency audits

Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

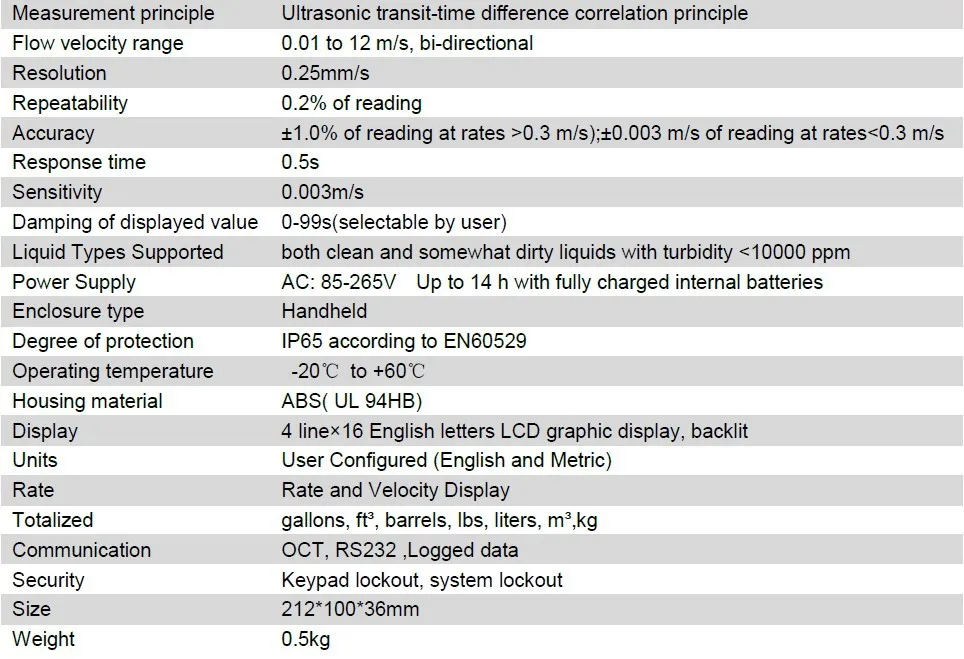

Specifications :Transmitter

Specifications :Transducer

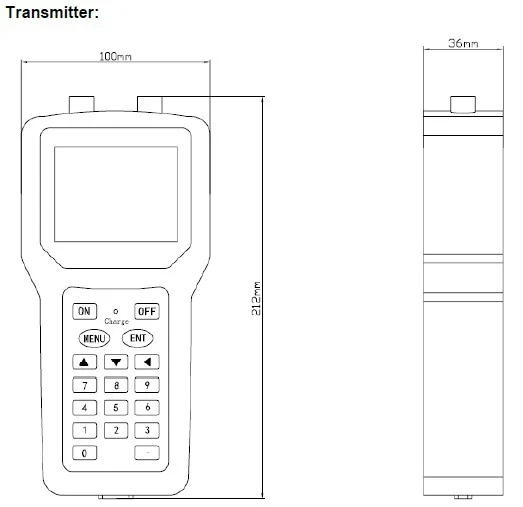

Diamensional Sketches:

S      48(h)*28(w)*28(d)mm
M    60(h)*34(w)*32(d)mm
L      80(h)*40(w)*42(d)mm

Factory Equipment
Customer Visiting
Previous Exhibition
Packing & Delivery


Good Quality Cheap Ultrasonic Flowmeter Portable

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.


Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
