HARFOL led airfield light/beacon/lantern/aircraft warning light/bulb/lamp for telecom tower/chimney/building

Feedback Ratings
  • 1-19 Pieces
    US $52.00
  • >=20 Pieces
    US $50.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
85-265VAC
Lamp Power(W):
5
Lamp Luminous Flux(lm):
10cd
Lamp Luminous Efficiency(lm/w):
110
CRI (Ra):
1
Color Temperature(CCT):
RED
Beam Angle(°):
360
IP Rating:
IP66
Certification:
CE, EMC, LVD, UL
Emitting Color:
Red
Lamp Body Material:
Aluminum
Base Type:
NONE
Light Source:
LED
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HARFOL
Model Number:
LILxxS
Mounting:
E27 Screws
International standard:
ICAO(Aerodromes Annex 14)Low Intensity Light TYPE-A
Our Experience:
10 years experience in this field
Our Advantage:
High Quality Standard Products With Competitive Factory Price
HS Code:
85308 00000
Application:
Telecom Tower/High Building/Power Transmission
Application more:
Wind Turbine/Airport/Chimney/Crane/etc

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X25X20 cm
Single gross weight:
1.0 kg
Package Type:
HS Code: 85308 00000 1) each one put in inner box 2) outer box is 5 layer carton. Cartons size is decided by quantity of inner box. 3) All the packages have passed Broken Test.
Lead Time :
5
Introduction

Aircraft warning lights are high-intensity lighting devices that are attached to tall structures and are used as collision avoidance measures. Such devices make structures more visible to passing aircraft and are usually used at night, although they may be used during the day as well. These lights need to be of sufficient brightness in order to be visible for miles around the structure.

Showing Details
Specification
Key Specification
Product
Low Intensity Obstruction Light
Intensity
10cd;32.5cd;50cd;100cd;200cd
Light source
Cree high power LED
Light color
Aviation red
Power
5W
Supply voltage
110~240VAC;
48VDC;24VDC;12VDC
Waterproof
IP66
LED lifetime
100,000 hours
Intensity
10cd/32.5cd
Standard
ICAO: Low Intensity Type A/B
FAA: L810
Product Description

Product Details

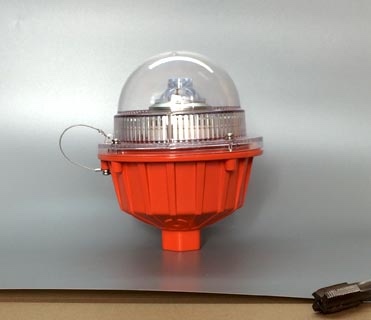

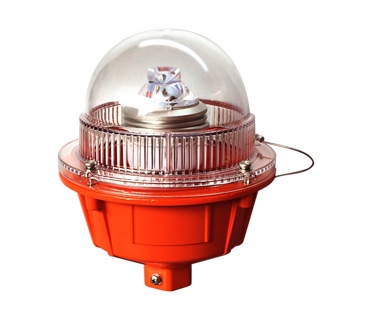

This Harfol light fixture is a dedicated maintenance-free obstacle light for aviation warning purposes. It is complying with ICAO and FAA internation standards. This light can be used for marking obstacles which pose a threat to aircraft, such as telecom towers, buildings,wind turbines ,power transmission towers,airports and general aviation waring purposes.

Product Details

Its advanced high-power LED with optimized optical design is able to minimal power consumption and maximize light intensity based on only one single LED. Energy saving compare to incandescent lighting technology. Meanwhile increasing safety thanks to low failure LED technology. Harfol’s LED obstruction light offer an ultra bright,energy efficiency, reliability and freedom from maintenance mean that Harfol light will save you money over time!

Features:

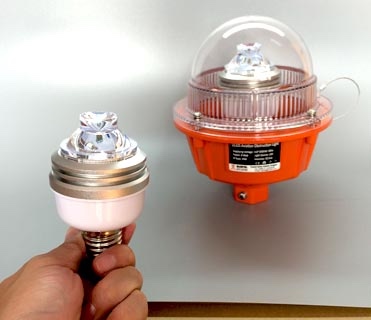

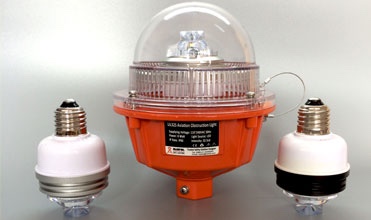

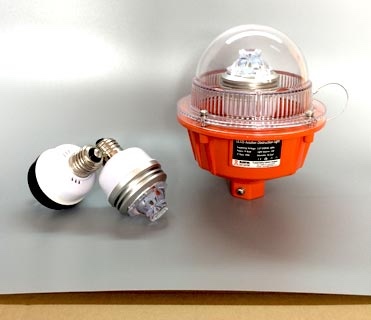

 It is with LIBxxS series LED bulb. The bulb is E27 holder. Easy for installation, replacement and free of maintenance.
 Using first brand Cree LED as light source. It has extremely high light efficiency and saving energy.
➢  One single LED and lens can reach optical requirements, and reduce light pollution so as to improve light efficiency.
 It is driven by LED constant current to extend LED life.

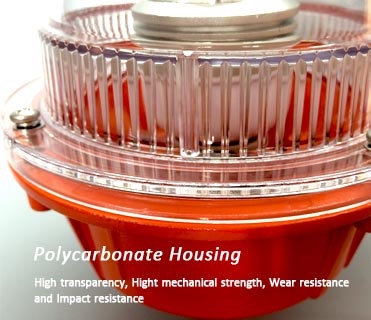

 Light house is made of PC material. It is able to anti-UV, good at impact strength, thermal stability and flame retardancy.
 The base is made of alloy aluminum. Its surface is with special spray process. It is lightweight and corrosion resistance.

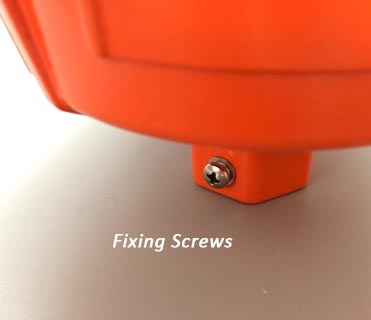

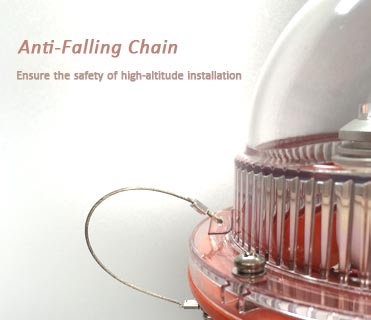

 It is with a high-altitude anti-dropping device to ensure easy and secure on site in installation.
 Available in universal DC: will accept between 12–48VDC .
 Available in universal AC: will accept between 110-240VAC .
 Option function: light sensor for day/light operation.

Specification
Light model
LIL10S
LIL32S
Light source
Cree LED
Cree LED
Intensity
10cd
32.5cd
Horizontal Output(degree)
360
360
Vertical Output(degree)
10
10
LED color
Red as standard.
Other colors available on request.
Electrical characteristics
Operating voltage
110~240VAC, 12VDC, 24VDC, 48VDC
Power consumption
5W
8W
Driven mode
Constant current
Constant current
Mechanical characteristics
Body material
Die casting aluminum
Die casting aluminum
Lens material
PC UV Stabilize
PC UV Stabilize
Weight
0.80KG
0.80KG
Dimension
See diagram
Lamp holder
E27
E27
Working temperature
-­‐40˚C+70˚C
-­‐40˚C+70˚C
Humidity
100% with condensation
100% with condensation
Wind speed
Up to 150mph(240kph)
Up to 150mph(240kph)
Waterproof
IP66
IP66

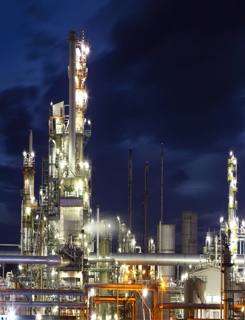

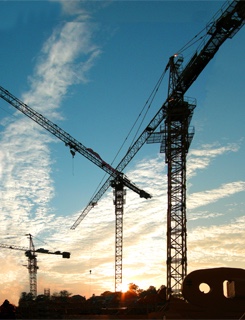

Applications
Our Service

We provide 5 years warranties for our products.

Check below important tips before you placing an order :

1.Inquiry-Professional quotation. Please tell us your application for the product(Applying for tower/windturbine/crane/building/chimney/etc). Our sales will offer you with professional quotation basing on your application.

2. Confirm the price, lead time, artwork, payment term etc.

3.our sales send the Proforma Invoice with our seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection .

6. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients.

7. Order can be say “finish” when you receive the goods and satisfy with them .

8. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better .

Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 pcs.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
