Handheld Digital Ultrasonic Wave Velocity Thickness Meter 1.2~225.0mm (Steel) Range Metal & Non-Metal (OEM Packaging Available)

  • 1-3 Sets
    $55.90
  • 4-14 Sets
    $51.95
  • 15-29 Sets
    $50.59
  • >=30 Sets
    $49.29
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 200 Sets)
Contact Supplier
Samples - $55.90 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Gainexpress
Model Number:
TM100
Measurement Range:
1.2~225.0mm (Steel)
Accuracy:
+/- (1% H + 0.1 mm) (H denotes the measured thickness)
Sound Velocity Range:
1000~9999m/s
Operating Temperature:
0~40 degree C (32~104 degree F)
Power supply:
3 x 1.5 AAA Alkaline Batteries
Working frequency:
5MHz
LCD Digital display:
4 digits
Minimum display unit:
Minimum display unit
Weight:
approx. 202g (7.12oz) (Batteries and probe included)
Size:
approx. 72 x 146 x 29mm (2.83 x 5.75 x 1.14inch)

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X17X5 cm
Single gross weight:
1.1 kg
Package Type:
Standard Factory Package
Lead Time :
Quantity(Set) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 3 7 14 To be negotiated
Our OEM Service
Product Description

The Digital Ultrasonic Thickness Gauge is an intelligent that adopts ultrasonic measuring principle. Controlled by micro processor, offers immediate and precise measurement of thickness for most of industrial material.



The measurement range of 1.20~225.00mm combined with ultrasonic wave velocity measurement function of 1000~9999m/s provides accurate measurement readings.Widely used in various precise measurements for different hardware/parts in industrial realm. One of its important applications is to monitor the level decreasing thickness during operation of various and pressure container.



Diffusely applied in manufacture fields, metal processing as well as commercial inspection and can be applied for materials that conduct and reflect constant sonic velocity.

Features

- Auto Calibration to assure the accuracy
- Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer

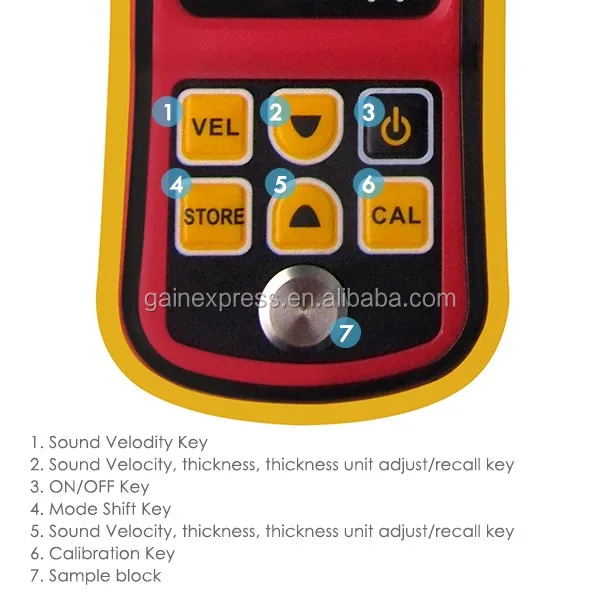

- Use upper and lower keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data

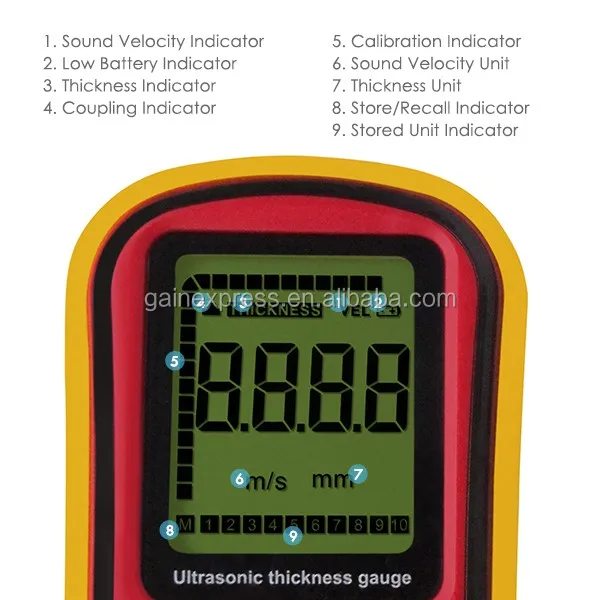

- Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
- 10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
- Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table

- 12 sound velocity for different material which also adjustable
- Low battery indication
- Auto power off mode designed to conserve battery life
- More than 10000 times long life keys
- The unit has a special memory that retains all of its setting even when the power is off

Specifications

- LCD Digital display: 4 digits
- Minimum display unit: 0.1mm
- Working frequency: 5MHz
- Measurement Range: 1.2~225.0mm (Steel)

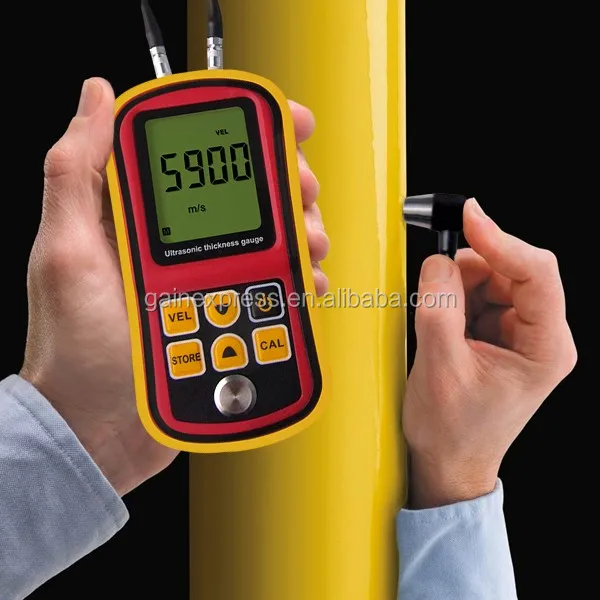

- Minimum limit for Tubes measurement: (phi) 20 x 3mm (Steel)
- Accuracy: ± (1% H + 0.1 mm) (H denotes the measured thickness)
- Sound Velocity Range: 1000~9999m/s
- Measuring Sound Velocity with a given thickness
- Measuring Range: 1000~9999m/s
- When the given thickness over 20mm, the accuracy is ±1%; when the given thickness less than 20mm, the accuracy is ±5%
- Operating Temperature: 0~40°C (32~104°F)

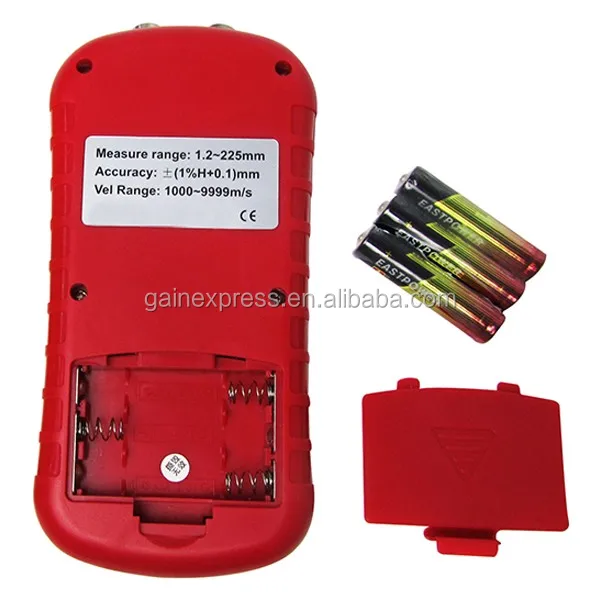

- Power supply: 3 x 1.5 AAA Alkaline Batteries (Included)
- Operation Current:
         **Normal Operation Current ≤50mA
         **With Backlight turn on current ≤120mA
         **Stand-by Current: ≤20 µA
- Size: approx. 72 x 146 x 29mm (2.83 x 5.75 x 1.14inch)
- Weight: approx. 202g (7.12oz) (Batteries and probe included)Sound Velocities of Common Materials

- Material Velocity (m/s) Material Velocity (m/s)

Sound Velocities of Common Materials
Material
Velocity (m/s)
Material
Velocity (m/s)
Aluminum
6320
Acetate Resin
2670
Zinc
4170
Phosphor Bronze
35830
Silver
3600
Turpentine
4430
Gold
3240
Glass
5440
Tin
3230
Incoloy Alloy
5720
Iron/Steel
5900
Magnesium
6310
Brass
4640
Monel Alloy
6020
Copper
4700
Nickel
5630
SUS
5790
Steel 4330 (mild)
5850
Acrylic Resin
2730
Steel 330
5660
Water (20°C)
1480
Titanium
6070
Glycerin
1920
Zirconium
4650
Soluble Glass
2350
Nylon
2620

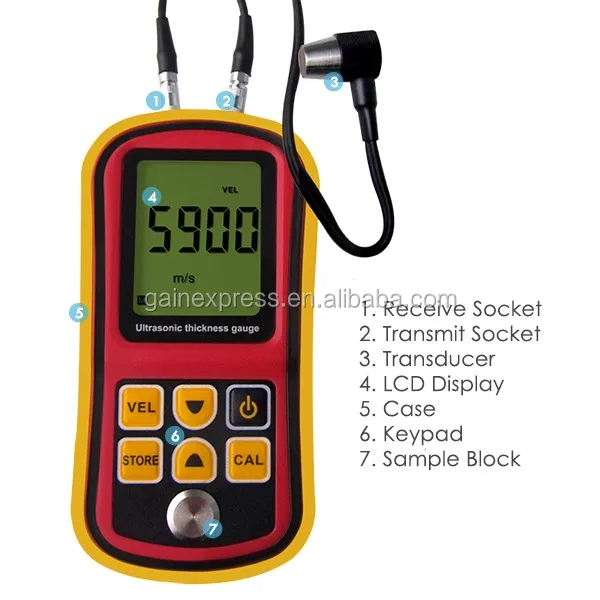

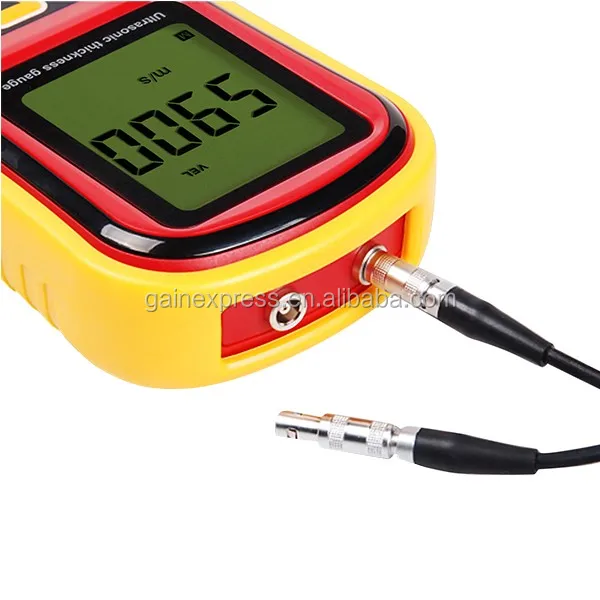

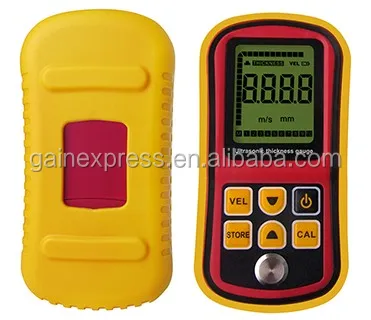

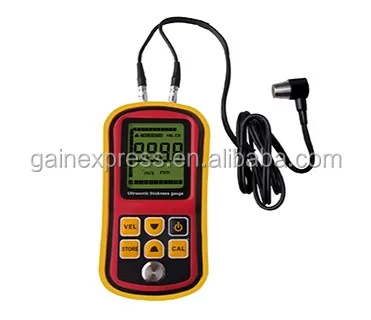

Detailed Images

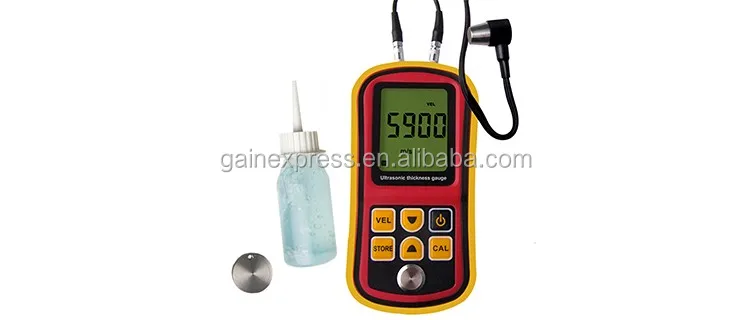

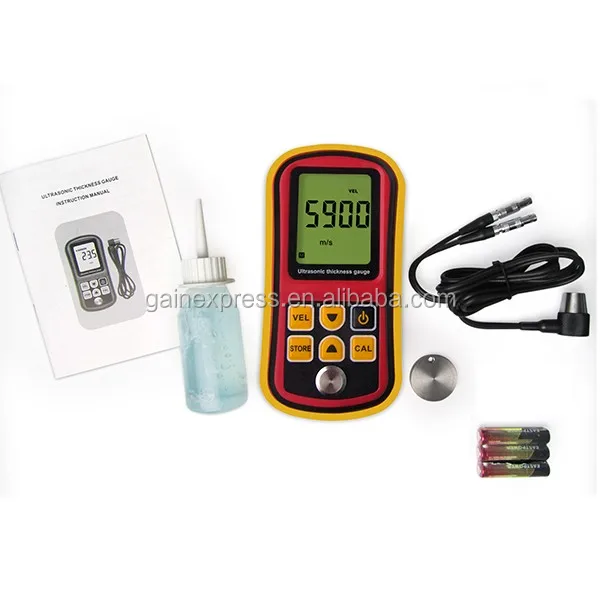

Set Includes

1 x Ultrasonic Thickness Meter
1 x 10mm, 5MHz Transducer
1 x 4mm Sample Block
1 x 50ml Bottle of Coupling Agent
1 x English Operating Manual
3 x AAA Alkaline Batteries
Standard Factory Package

Packing & Delivery

Selling Units: Single item
Single package size:  27X17X5 cm
Single gross weight: 1.1 kg
Package Type: Standard Factory Package

Lead Time:

Quantity(Piece)
1 - 5
6 - 10
11 - 20
>20
Est. Time(days)
3
7
14
To be negotiated
