Heat Press Machine Heat Transfer Press Heat Press Machine T Shirt 12x10 Inch Digital Timer Control

  • 1-4 Sets
    $100.00
  • 5-9 Sets
    $90.00
  • >=10 Sets
    $80.00
Gross Power:
550W
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Plate Type:
Flatbed Printer
Color & Page:
Multicolor
Certification:
CE Certificate
Usage:
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, digital t-shirt printing machine
Type:
Heat Press Machine
Applicable Industries:
heat press machine
Condition:
New
Place of Origin:
China
Brand Name:
Vevor
Model Number:
HP230B-STHJ000001
Automatic Grade:
Automatic
Voltage:
110V/220V
Dimensions(L*W*H):
46*42*40CM
Weight:
15.7kg
Warranty:
2 Years
Keywords:
Heat Press Nachine
Temperature range:
32 - 430F (0 - 250C)
Timer control:
0 - 999 seconds
Element:
12" x 10" (30 X 24CM)

Packaging & Delivery

Selling Units:
Single item
Single package size:
46X42X40 cm
Single gross weight:
18.0 kg
Package Type:
carton and foam package, one carton for one set.
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description

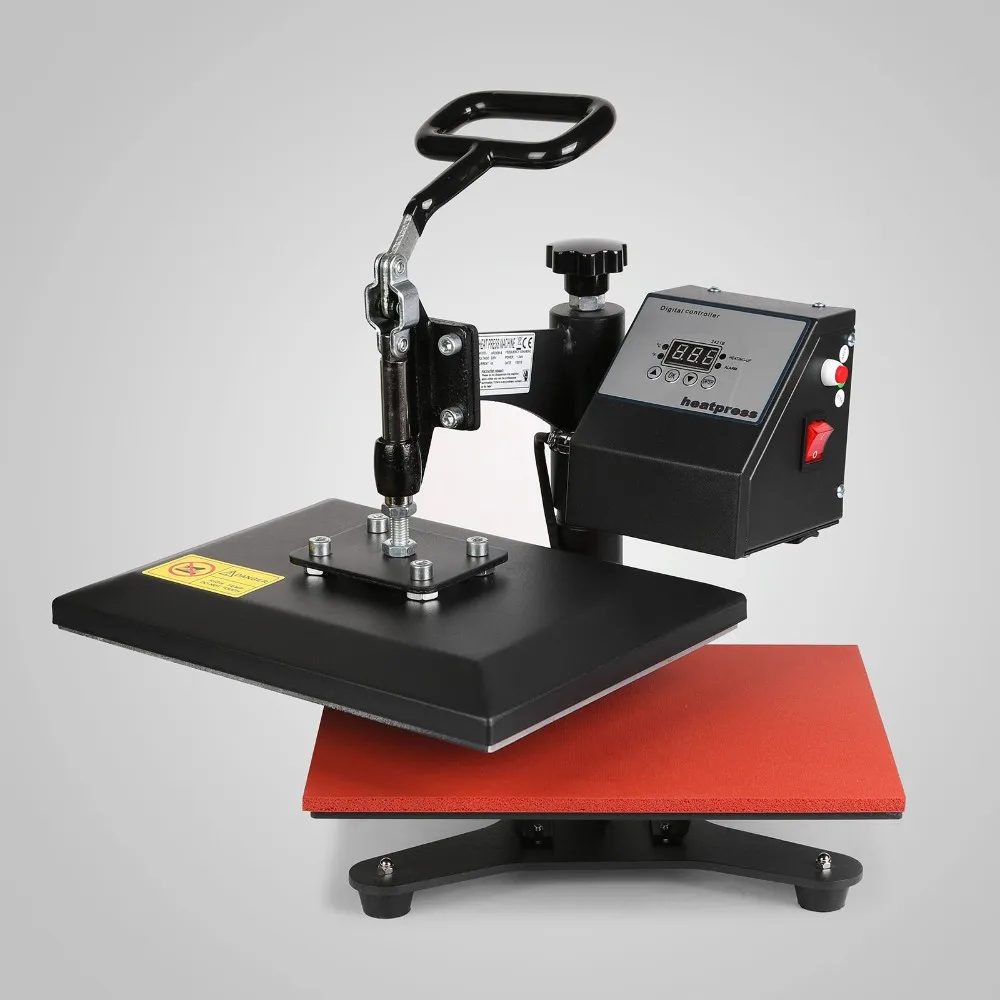

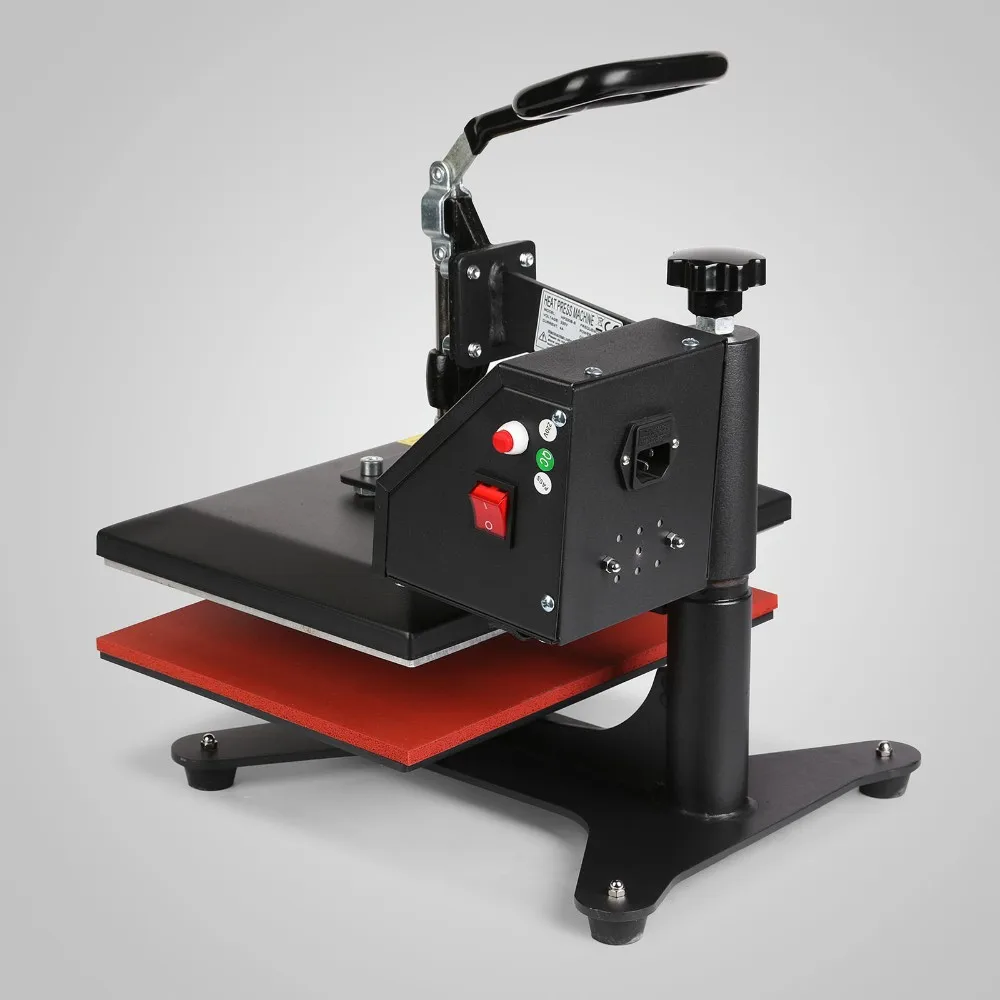

 Heat Press Machine Heat Transfer Press Heat Press Machine T Shirt 12x10 Inch Digital Timer Control Swing Away Rigid

Introduction

This swing-away 12" X 10" (30 X 24cm) heat press machine could transfer photos, words on cotton, fiber, metal, ceramic, glass and so on, suitable for producing gift, advertisement and so on. It can be able to apply transfers, letters, numbers and images onto T-shirts, garments, bags, mouse mats, jigsaw puzzles, ceramic tiles, plates and other flat surfaced items. The HP230-B has a built-in Teflon coated 12" x 10" heat platen with a full range of heating coils to allow for consistency throughout its surface. Its unique swing-away feature allows you to rotate the upper heat platen 360 degrees around. By moving the heating element aside and reducing the chance of accidentally contacting the area of heat distribution, you can work more freely with your garments and transfers on the base plate. Unlike the traditional clamshell heat press machines, the HP230-B heat transfer applies direct top-to-bottom pressure providing even contact with the surface below. The digital timer control is adjustable up to 999 seconds. The HP230-B also features a digital temperature gauge ranging from 0 - 399ºC (about 750ºF). The manual open and close handle is easy to operate and can be adjusted with the pressure knob at the rear of the machine. Its industrial strength and durability allows for long-term use. The machine is CE certified and come with 2 years free warranty.



Versatile operation - Large element 12" X 10" (30 X 24cm) allows transfers onto many flat surfaced items, such as fabric, metal, wood, ceramic & glass. Create your own custom t-shirts, mouse pads, tote-bags, license plates, and many other unique & fun items.
Swing-away design - This design is an improvement over clamshell designs, as pressure is directed straight down and is therefore more evenly applied; this improves the quality of the finished transfers. Full 360-degree rotation of swing arm; allows the heating element to be moved safely aside, reducing the chances of accidental contact.
Digital LCD timer control - Preset desired time and an audible alarm will sound when time is complete; helps avoid over exposure.
Digital LCD temperature control - Set the desired temperature (in Fahrenheit) and element will stop heating when preset temperature is reached.


Full-range pressure-adjustment knob - Easy to access, top-mounted control.   This allows the pressure to be adjusted according to the thickness of the material you're transferring to.
Coated handle - Comfortable rubber grip for everyday-use and long production runs.
Teflon-coated element - Unlike other machines with bare-metal heating elements, the element on this machine is teflon coated. The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
Elevated lower platen - Lower platform with integrated hi-temp silicone pad is elevated with dual supports; these allow room for t-shirts to be easily placed into and removed from the machine.
Rigid steel frame - Machine is heavy-duty, commercial-grade, super stable and built to last.
Easy to use - Arrives fully assembled and ready to use (printer and paper not included).



Features

  • Large element 12" X 10" (30 X 24cm) allows transfers onto T-shirts, garments, bags, mouse mats, jigsaw puzzles, ceramic tiles, plates and other flat surfaced items.
  • The machine could transfer photos, words on cotton, fiber, metal, ceramic, glass and so on.
  • Swing-away design allows you to rotate the upper heat platen 360 degrees around and the heating element to be moved safely aside.
  • Digital LCD timer and temperature control makes setting more accurate.
  • Full-range pressure-adjustment knob allows the pressure to be adjusted according to the thickness of the material you're transferring to.
  • Upgraded elevated lower platen allows room for t-shirts to be easily placed into and removed from machine.
  • Teflon-coated element is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
  • Rigid steel frame industrial strength and durability allows for long-term use.
  • 2- year warranty.



Technical

  • Element: 12" x 10" (30 X 24CM)
  • Temperature range: 0-250°C (up to 480°F)
  • Timer control: adjustable from 0-999 seconds
  • Power: 550W rated
  • Voltage: 110V or 220V
  • Weight: 17KG
  • Package: 45*41*37CM



Packing list

  1. Fully-assembled machine with double boxed
  2. Pre-installed teflon-coated element (separate teflon/silicone sheets not required)
  3. Operating instructions
