Heat Shrink Packing Machine for Picture Frames

$10,100.00 / Set | 1 Set (Min. Order)
Model Number:
ESD450C+BS4522N
$10,100.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Type:
Other
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Chengqi
Power:
1.5KW
Voltage:
Customized
Weight:
600KG
Automatic Grade:
Automatic
Certification:
CE
Packaging Type:
Bags, Barrel, Belt, Bottles, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Driven Type:
Pneumatic
Dimension(L*W*H):
(L)1930*(W)1000*(H)1550mm
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Easy to Operate
Product name:
Heat Shrink Packing Machine for Picture Frames
Packing material:
POF
Machine type:
Auto Wrapping Machine
Warranty:
12 Months
Packing speed:
15~30pcs/min
Item:
ESD450C series
Usage:
Outer
Function:
Heat shrink packaging
Keyword:
Heat Shrink Packing Machine for Picture Frames
Customized:
Accept
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X110X170 cm
Single gross weight:
630.000 kg
Package Type:
Standard Export Wooden Box Heat Shrink Packing Machine for Picture Frames
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 3 To be negotiated
Video Description
Product Description

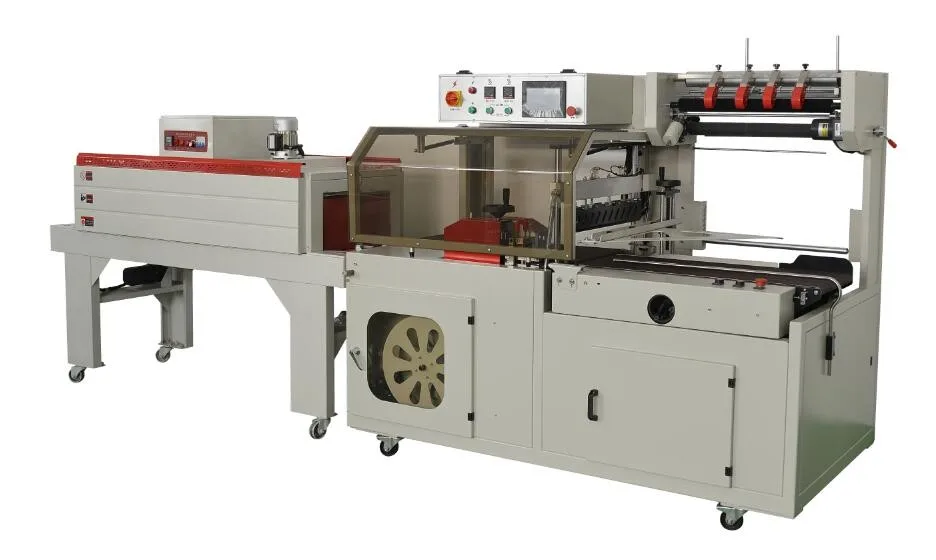

Heat Shrink Packing Machine for Picture Frames

Performance Features

•ESD-450C is a fully automatic side sealer machine with the function of automatic film feeding punching, coating, sealing cutting, waste film automatically rolling in one time which is widely used in mass production packaging line with high efficiency.
•The sealing part is consist of transverse sealing and side sealing, both can be lifting controlled independently. We can guarantee sealing line in the middle of the product to achieve perfect sealing effect.
•Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
•Side sealing part can continuous pull film sealing and cutting, the product length is unlimited.
•Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect.
•Waste film automatically rolling. Using independent motor control, rolling speed uniform and smooth will not too tight or too loose which can avoid break the waste film and the rewinding plate is easy disassembly.
•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
•The sealing blade itself is equipped with automatic protection function which effectively prevent from accidental cutting.
•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
•The entire machine realizes unmanned operation with the production line connecting.

•BS4522N shrink tunnel adopts the design of internal recycling air fan, so that the hot air in the tunnel is even, constant temperature.
•The machine uses stainless steel finned heating tube which has a long service life and high heating efficiency.
•Chain bar conveying , using hollow steel covered with durable imported silicone tube, each bar can rotate freely.
•Suitable for POF, PVC, PP, PET heat shrinkable film.

Technical Parameter

ESD450C Side sealer

Model
ESD450C
Power Supply
AC 220V 1/3PH 50/60Hz
Power
1.5KW
Max. Packing Size
(L)unlimited;(W+H)≤450mm; (H)<180mm
Sealing Size
(W)450mm
Table Height
800mm
Packing Speed
15~30pcs/min
Air Source
6kg/cm2
Shrink Film
POF
Film Size
(W)≤530mm;(D)≤250mm;(G)≤35KG
Sealing Type
Fully closed
Machine Size
(L)1930×(W)1000×(H)1550mm
Package Size
(L)2100×(W)1110×(H)1660mm
G./N. Weight
630/600KG

BS4522N Shrink tunnel

Model
BS4522N
Power Supply
AC 380/220V 3PH 50/60Hz
Power
12KW
Table Height
770+50mm
Conveying Load
30KG
Conveyor Speed
1-10m/min
Tunnel Size
1500×450×220mm
Machine Size
1910×700×1320mm
Package Size
2000×810×1450mm
G./N. Weight
220/180KG

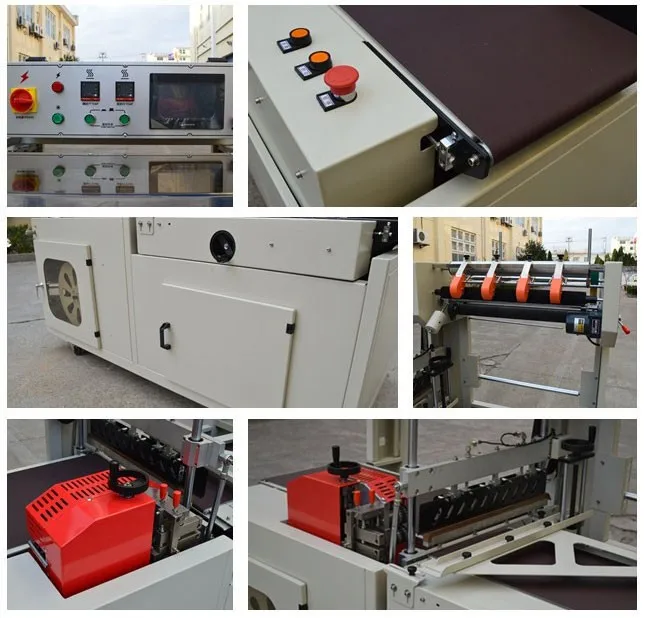

Detailed Images
Application Range

The machine is suitable for door panel, photo frame, picture frame, floor, ceramic tile, wood, plastic, hardware industryother longwide product packing, have a completegood contraction effect use with PE film shrink packaging machine together. This machine is applicable to a wide range, high economic efficiency, easy to operate. This machine is suitable for packaging materials PE heat shrinkable film. Compared to the traditional packaging forms, such as cartons, winding, greatly saving the cost of packaging, the packaging of the goods with the appearance clean, beautiful, compact, to ensure the quality of goodssuitable for long-distance transport features.


Sample Packaging

Our Company
Packing & Delivery

Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock

Our Service

1. We can customize machine according to your requirements and your products.

2. One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.

FAQ
Q1: How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.

Q2: What information shall I provide you when I need your offer?
Normally, please send me the requirements of your product, like the packing speed, your products main specification, voltage, frequency, plug and other information as more as possible so that we can quote you exactly what you need.

Q3: More questions or information please feel free to contact us at any time!
