High Voltage 36v 1w smd led chip 2835 datasheet

$0.02 / Piece | 1000 Pieces (1 lot) (Min. Order)
1 batch = 1000 Pieces
Model Number:
HY-2835W28B100-2S
$0.018
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
SMD LED
Chip Material:
InGaN
Emitting Color:
Cool White
Luminous Intensity:
35000~38000mcd
Luminous Flux(lm):
100-110lm
Optical Attenuation(%):
0.3
Power:
1w
Power Dissipation:
0.001
Viewing Angle(°):
120 Degree
Color Rendering Index(Ra):
80
Color Temperature:
2800-3000K
Operating Temperature(℃):
-40 - 85
Storage Temperature(℃):
-40 - 85
Place of Origin:
Guangdong, China
Brand Name:
HY
Certification:
CE, RoHS
Chip Size:
12*37mil
Chip Brand:
Sanan
Material:
Gold Wire, Copper stand
Voltage:
2.9-3.4V
Current:
30mA
Color tolerance:
<6
Color:
2800-3200K
Package:
4000 Pcs/Anti-static vacuum Bag
Lifespan:
50000 Hours
Warranty:
3 Years

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
17X17X2 cm
Gross weight per batch:
0.2 kg
Package Type:
4000pcs /reel, each reel Anti-static vacuum Bag
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 500000 >500000
Est. Time(days) 3 To be negotiated
Video Description
Basic info

Dimension

Model No.
HY-2835W28B100-2S
Power
1W
Lumens
White:10-110LM CRI>80
Color Temp
White:2800-3200K
Voltage
2.9-3.4V
Current
30mA
Chip Brand
Sanan
Chip Size
12*34MIL
Lifespan
50,000 hours
Warranty
3 years
Detail Description

LED Chip 2835 smd led 36v 1W

Electrical / Optical characteristics

Absolute Maximum Ratings (TA=25ºC)

Item
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
30
mA
Pulse Forward Current
IFP
60
mA
Reverse Voltage
VR
9
V
Power Dissipation
PD
90
mW
Operating Temperature
Topr
-40ºC To +85ºC
°C
Storage Temperature
Tstg
-40ºC To +85ºC
°C
Soldering Temperature
Tsld
Reflow Soldering: 260ºC
Hand Soldering : 300ºC
for 10sec.
for 3sec.

1/10 Duty Cycle, 0.1 msec Pulse Width.

Initial Electrical/Optical Characteristics (TA=25ºC)

Symbol
Item
Units
Min.
Typ.
Max.
Test Conditions
VF
Forward Voltage
V
2.9
3.0
3.2
IF=30mA
IR
Reverse Current
uA
-
-
1
VR=5V
Viewing Angle
º
-
120º
-
IF=30mA
ø
Luminous flux
lm
100
110
IF=30mA
TC
Color Temperature
k
2800
3200
IF=30mA
RA
Color Rendering Index
Ra
80
85
IF=30mA

Application

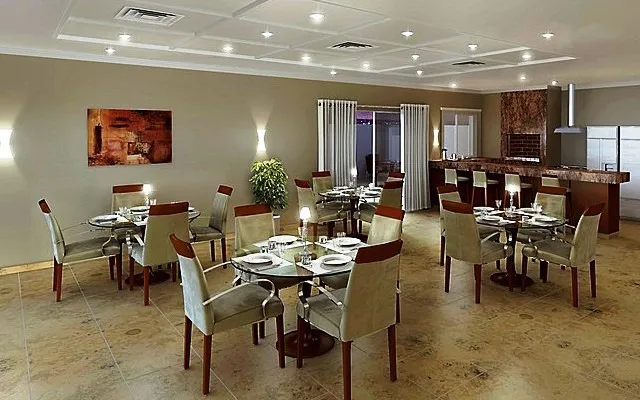

Use for LED indoor lighting, outdoor lighting such as LED Tubes, LED panel lights, led Down Lights.

2835 Detail photos

Certificate

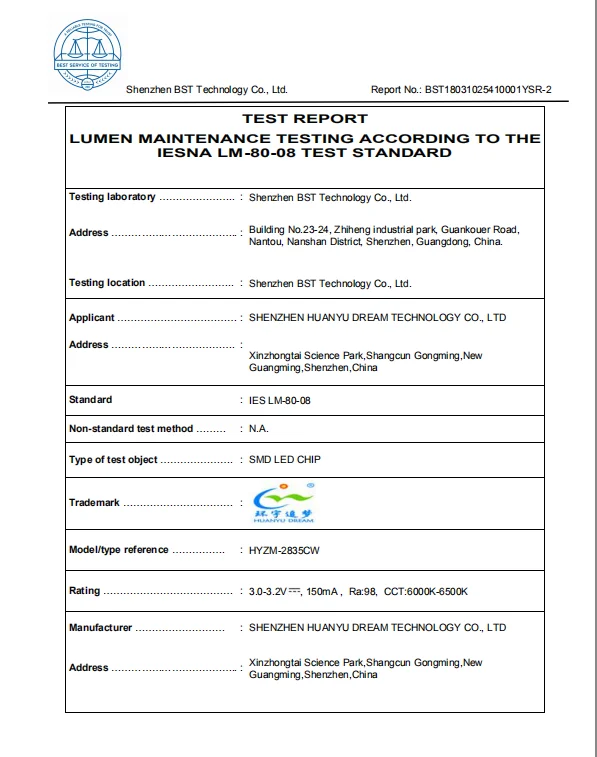

2835 SMD LED passed the LM-80, CE,RoHs and EN62471

Relate products

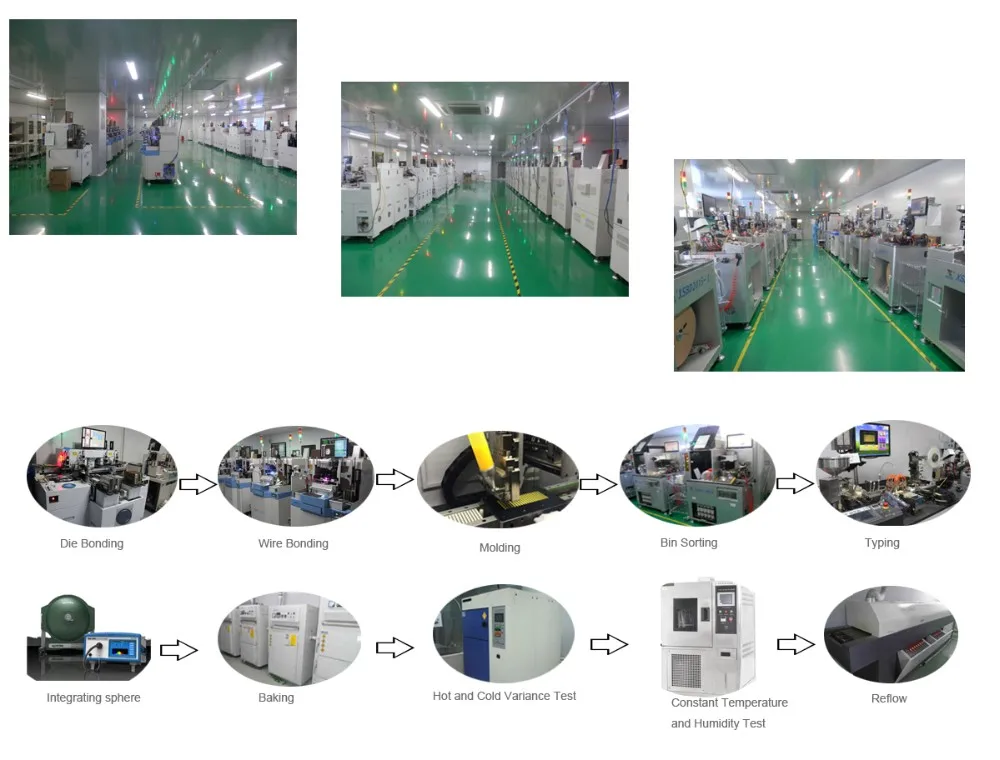

Factory Shows

Our Advantage: own the LED special dust-free, anti-static workshop.
Formed a number of world-class United States ASM automatic machine crystalline solid,
ASM automatic soldering machines, H120 automatic LED light colour scanner
100% sure our quality is best.more detail pls check below.

Company info

Huanyu Dream Technology is a professional manufacturer of SMD LED Chip, supply mainly products such as SMD5730, SMD 2835,SMD5050, SMD3528, SMD 3014,SMD4014, High power 1w 3w LED etc.

Our LOGO has been registered as a Trademake, please identified our Logo when you looking for the products,
and factory local in Shenzhen city Guangming district, welcome to visit us!

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than

Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways paymant

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
