High temperature resistance Two part Black epoxy adhesive

  • 150-499 Kilograms
    $4.50
  • >=500 Kilograms
    $3.70
Quantity:
- + Kilograms available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $5.00 /Kilogram, 1 Kilogram (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
CAS No.:
38891-59-7
Other Names:
Epoxy adhesive
EINECS No.:
230-391-5
Place of Origin:
Shanghai, China
Classification:
Double Components Adhesives
Main Raw Material:
Epoxy
Usage:
Other
Brand Name:
Beginor
Model Number:
BEEP 6225
Type:
Two Component
Application:
motor, automotive electronics, power tools, reactors
color:
white and black,light yellow
Material:
epoxy
Hardness:
80
Keywords:
epoxy comound
using temperature:
-60-200℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
34X34X39 cm
Single gross weight:
35.0 kg
Package Type:
We can make packing as your request.
Lead Time :
Quantity(Kilogram) 1 - 500 >500
Est. Time(days) 7 To be negotiated

Product Description

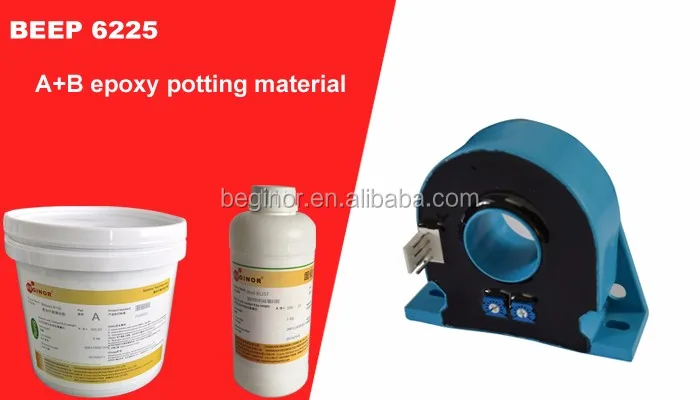

BEEP 6225A /B is a two components Epoxy encapsulating product, cured at room or high temperature, final formed to be flexible elastomer. It’s designed for pouring and protecting Auto mobile parts and supply physical strength to the elements, where excellent properties and exceptional thermal shock at elevated temperatures are required.

l  Flexible and medium hardness

l  Excellent adhesion, rupture resistance

l  Good and steady dielectric at -40~100

l  Good hydrophobic feature, low hydrophilic rate

l  Good flame retardant, UL 94V-0, No: E340199

Keywords:epoxy  potting compound



Application

Typical Features

Properties

Test Standard

PART A

PART B

Before mixing

Appearance

\

Black Liquid

Clear Liquid

Viscosity, cps, 25

GB/10247-2008

5000±1000

150±100

Density, g/cm3

GB/T 13354-92

1.60±0.05

1.12±0.05

After mixing

Mix rate, by  weight

\

A:B = 100 : 12

Viscosity after mixing

\

1500±500

Potting time,112g, 25℃,min

GB/T13477.5-2002

60

Cured condition

GB/T13477.5-2002

24h(25)/ 3hr(80)

After cured    Test after curing 7days

Hardness, shore A

GB/T 531.1-2008

75

Thermal Conductivity, W/K.T

GB/T 10297-1998

0.35

Hydrophilic rate ,24hr/25

GB/T 8810-2005

< 0.28 %

Dielectric strength, kV/mm,25

GB/T 1693-2007

>15

Volume resistance, DC500V,Ω·CM

GB/T 1692-92

1.0×1014

Tensile strength, Mp

GB 6328-86

>10

Shear strength, Al-Al, MPa

GB 6328-86

2.8

Elongation,%

GB/T 528-1998

30%

Tg,

GB 11998-1989

-40

Temperature Range,,

Service Temp:                       Occasional:

DSC



Up to 100ºC

Up to 120ºC

Coefficient of Thermal Expansion

GB/T 20673-2006

100

Process

l  Some filler in part A,  Mixing throughly before using.

l  Measure part A&B with a ratio 100:12 by weight, mixing fully and degas under vacuum.

l  Pls use up in 60 mins.

l  Degas the elements if need after potted the glue, in order to strength the properties.

l  Curing condition: 25*24hrs or 80*2hr or 100*1hr

l  suggest curing at 25*24hrs,It can be only cured 80% degree of cross linking, cured another

    24hr or 80℃×1hr to reach 100% degree.

l  Dispenser choice advice please ask our marketing department.

Packaging & Shipping

 Packing and Stocking

l  Avoid the sun and heat, stock under sealing.

l  Shelf life at 25 : Part A 12 months, part B 12 months;

    if expired should be tested first.

l  Part A :25 kg/plastic drum;  Part B: 1kg/plastic bottle
