Indoor HD Full Color SMD Led Module Display P10 RGB 16x32 Led Panel

$502.00 / Square Meter | 1 Square Meter (Min. Order)
- + Square Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Led Screen Type:
16x32 Led Panel
Pixel Pitch:
10 mm
LED type:
Pixel configuration:
Pixels per sqm:
10000 dots
Module size:
320*160 mm
≥ 2000cd/sqm
Scan method:
Fresh rate:
≥ 1200Hz
Grey Level:
Display Function:
Screen Dimension:
16x32 Led Panel as your request
Tube Chip Color:

Packaging & Delivery

Package Type:
According to your inquiry and request,honeycomb carton is recommended to save cost. Flight case is recommended for rental project ,as it is more convenient for transpotation and dismantling.
Lead Time :

Indoor HD Full Color SMD Led Module Display P10 RGB 16x32 Led Panel

Product Description
16x32 Led Panel Features:

1. The first level LED chip from Taiwan Epistar.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Die-casting aluminium material cabinet ensures perfect flatness and no gap between cabinets.

8. Disassembly and assembly are quick and easy.

9. Three years warranty.

16x32 Led Panel Module Parameters:

Below you can find the technical specification of the P1016x32 Led Panel .

Pixel Pitch :10mmPixel Density :10000 dots/m2
Brightness :≥2000 cd/m2Viewing Angle :H:160°, V:120°
LED Specification :SMD 3528Pixel Configuration  1R1G1B
Module Size :320×160mmModule Pixel Density :32×16 dots
Driving Method :1/4 scanRefresh Rate :≥960Hz
Gray/Color :8192Gray, Color 1billionControl System :Synchronous/off-line control system, fiber transmission
Working Voltage :AC 110/220VWorking Temperature :-20°C~50°C
Max. Power Consumption :<700W/m2Life-span :>100,000hrs
MTBF :>10,000hrsDead Dot Rate :<0.0002

WIFI/LAN/WAN/3G/WIMAX control system available upon request.

Intelligent multifunctional card available with automatic brightness sensor to save energy including outside temperature sensor.

Two years warranty extension program available.

16x32 Led Panel Module Pictures:

1 HD SMD P10 Indoor China Full Color LED Display Screen.jpgP10 HD SMD P10 Indoor China Full Color LED Display Screen.jpg

16x32 Led Panel Packing: For fixed installatin project, cellular carton or honeycomb carton packing is recommended to save cost.

For rental project,flight case is the best choice.

Flightcase~HD SMD P10 Indoor China Full Color LED Display Screen.JPGcelluar carton~HD SMD P10 Indoor China Full Color LED Display Screen.jpg

Company Information

LongRun Optoelectronics Co.,Ltd,a professional indoor and outdoor full color led screen display manufacture,which can offer any kinds of led panel in competitive price.Tag: Led Outdoor TV Billboard ,Stage Background Led Display Big Screen ,Advertising led display,Led video wall,led billboard,led display panel,truck mobile led display,indoor advertising led display screen,stage led screen for concert,outdoor led advertising screen,P4 indoor led exhibition display,theatre led display,led screens for events,rental mobile led screen ect with great quanlity and excellent support after sale.

Our engineers have vast experience in the industry having developed all kinds for led panel solutions includign message boards,graphic panels,time/temperature displays,full color video screen.

Over the years we have installed thousands of led displays into numerous industries-shops,shopping center,corporate offices,factories,call center,government buildings,transport links,stadiums and arenas.

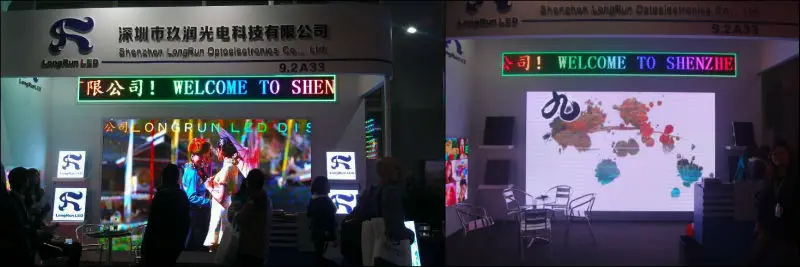

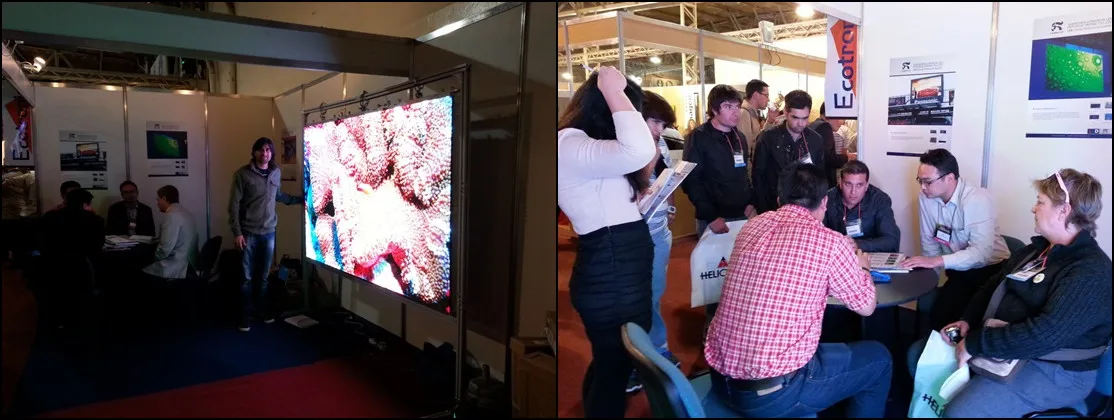

Outdoor Advertising LED Display Screen LongRun Factory touring.jpg

1 HD SMD P10 Indoor China Full Color LED Display Screen.jpgHD SMD P10 Indoor China Full Color LED Display Screen.jpg

16x32 Led Panel CE Certification

CE-Indoor HD SMD RGB Full Color P3 Led Module.jpg

Our Services

1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributorship are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.

Thank you for your interest in 16x32 Led Panel from LongRun. We look forward to the opportunity to provide you with our best service!
