Intel Celeron J1900 Quad Core Dual Lan Industrial Mini PC Desktop Computer w/ 2*RJ45 2*RS485/RS232 1*HD 1*VGA 4*USB WIFI

$92.00 - $185.00 / Unit | 2 Units (Min. Order)
Model Number:
No Ram No SSD No WIFI industrial mini pc
$92.00
- +
available
2G Ram 30G SSD industrial mini pc
$128.00
- +
available
2G Ram 60G SSD industrial mini pc
$139.00
- +
available
All 9 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Industrial Chassis
Brand Name:
XCY
Place of Origin:
Guangdong, China
Onboard CPU:
Intel Celeron Processor J1900
Memory:
1* SO-DIMM Solt Support DDR3L 1333/1600 MHz, 1.35V
Hard Disk:
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated Graphics:
Intel HD Graphics
Onboard LAN:
2 x Intel I211-AT- 10/100/1000 Controller
Operating System:
Support Win 7/8/10, Linux, etc
Case Color:
Black (Other Color Can Be Customized)
Product name:
X30G J1900 industrial PC
Warranty:
1 Year
Product Certification certification
CCC Certified.
Valid from 2017-11-15 until 2021-07-26
CE Certified.
Valid from 2018-11-21 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
26X19.5X10 cm
Single gross weight:
1.800 kg
Lead Time :
Quantity(Units) 1 - 1 2 - 500 501 - 1000 >1000
Est. Time(days) 6 10 15 To be negotiated
Video Description
Related Products
Product Description
XCY Mini industrial pc dual lan computer with intel celron J1900 Qoad core RS485/RS232
Features:
• Support Intel Celeron N2810/ N2830/ J1800/ J1900
• One channel DDR3L 1333/16000, Max 8GB
• Support Dual display configuration by multiple interface: HD/ Vga
• Support 1 x mSATA and 2.5" SSD or HDD
• With 2 x gigabit Ethernet and 2 x COM( RS232 )
• Support automatic start the computer when plug in power
• Support wake up on Lan
• OS Support: Win 7/ Win 8/ Win 10/ Linux
• Palm-size from factory: 13.3 x 12.5 x 4cm
• Fan-less design, 0dB noise, Low power consumption
XCY Mini industrial pc dual lan computer Specification:
Onboard CPU
Intel Celeron Processor J1900(Quad-Core 2 MB L2, 2.00GHz, up to 2.42 GHz)
Memory
1* SO-DIMM Solt Support DDR3L 1333/1600 MHz, 1.35V Max support up to 8GB Memory
Hard Disk
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated Graphics
Intel HD Graphics(Base Frequency 688.00 MH,Max Dynamic Frequency 854.00 MHz)
Onboard LAN
2 x Intel I211-AT- 10/100/1000 Controller
Audio Card
Realtek ALC662 HD Audio CODEC
Front-Panel Connectors
• Power on/off
• Power LED ( POWER/ SSD)
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Port
• 2 x COM port (RS232)

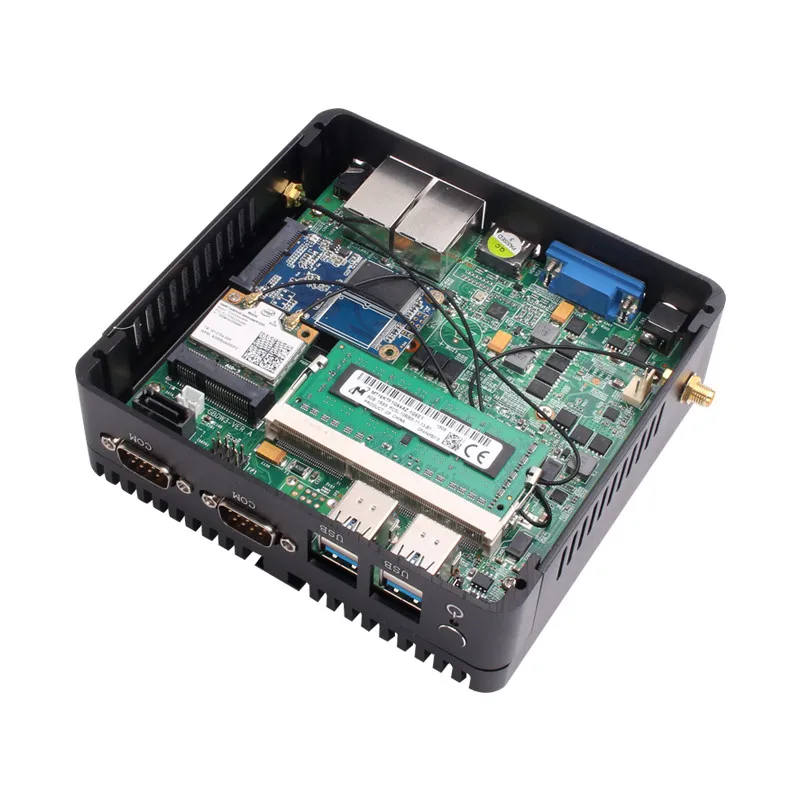

Internal Connectors
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x Mini pcie port (only for WIFI, only for USB singal)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper

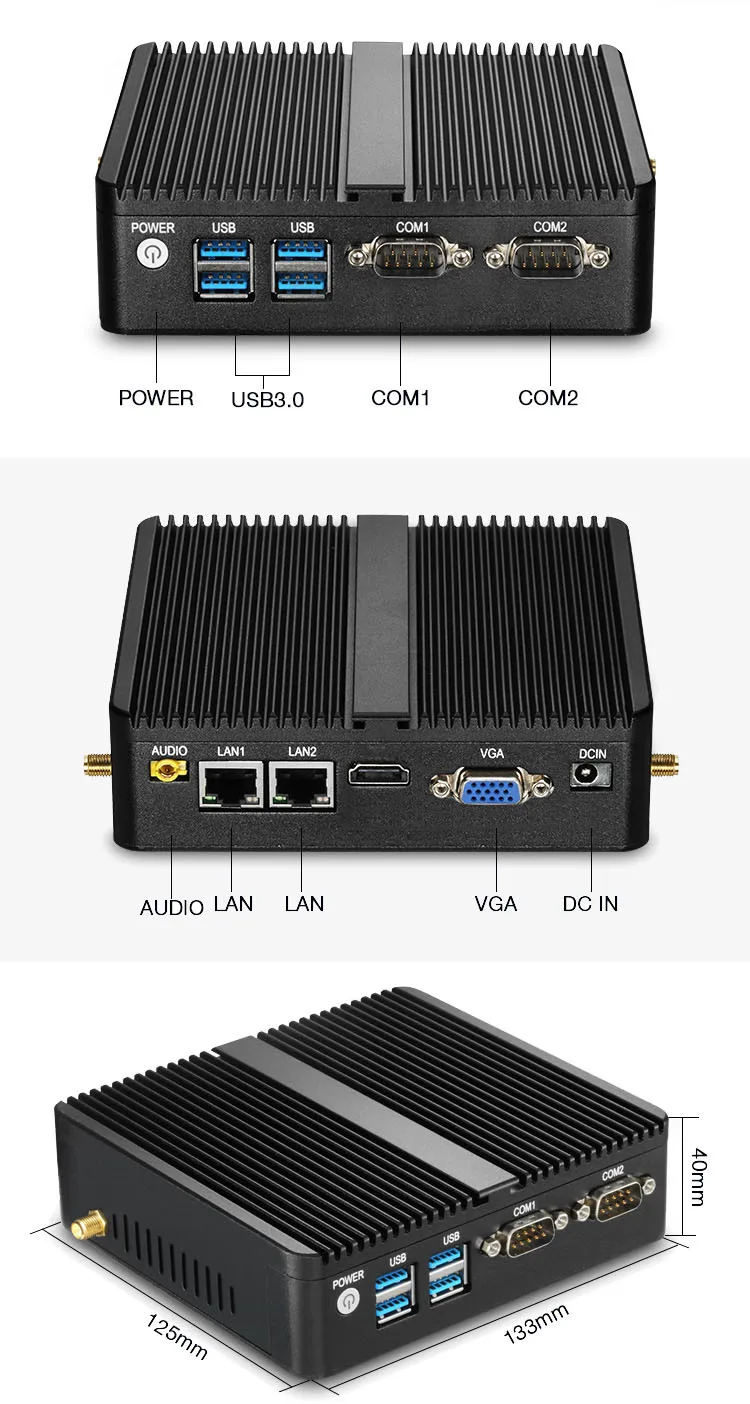

Back-Panel Connectors
• 1 × DC 12V input
• 1 × SPK +MIC
• 2 x RJ-45 Ports
• 1 x HD
• 1 x VGA
• WIFI (option. only for USB singal)
Operating System
Support Windows 7/8/10, Linux, etc
RAM(optional)
2GB / 4GB / DDR3L SO-DIMM
SDD/HHD(optional)
8G/16G/32G/64G/128G/256G/512G mSATA SSD
500G / 1TB 2.5 HDD
WiFi
RT3070, USB Signal (150M)
Power Consumption
TDP 10W
Case Color
Black (Other Color Can Be Customized)
Power
DC100-240V AC/50-60Hz
Operating Temperature
(-10°C~70°C )
Storage Temperature
(-20℃-80℃)
Relative Humidity
10%~90% (non-condensing)
Dimension
13.3x12.5x4 cm
Gross Weight
1.35kg
Configuration of this link
Memory
NONE
Hard disk
NONE
WIFI
NONE
Detailed Images
The XCY Mini Desktop computer is a strange and beautiful creature that looks like no other mini PC on the market.On the outside is a premium aluminum that is 80 percent more compact than a traditional desktop PC,with a soft blue glow that comes from the inside.For connectivity, it features two USB3.0 ports and two USB2.0 port, a HD port,a VGA port, Supports synchronous asynchronous display, two Ethernet port, two RS-232 serial connection. a headphone jack, It also has a 360-degree omnidirectional speaker from Harman Kardon that pushes out surround sound
The all-around high-performance mini PC
For the Industrial users, XCY X30G J1900 is a industrial computer which has compact dimensions and staggering performance, that what you get with XCY X30G J1900, whether you're using it at industrial area, X30 J1900 with versatitile modular design with four configuration options for wide range of applications and is the smallest mini PC that can house up two SSD storage drive, with a desktop-grage Intel celeron processor "J" series, has the power range of computing tasks. A Fan-less cooling and smallest case allows for space-saving design, so it can be placed horizontally or vertically to offer you best placement options, and you'll set it on a desk and forget its even there.
Why choose Aluminium alloy as the material:
Aluminium is becoming increasingly popular for engineering applications. There are many reasons for this that are outlined in the following sections.
Light/ Strong / High strength-to-weight ratio / Resilient/ Ductile at low temperatures/ Corrosion resistant/ Non-toxic/ Heat conducting/ Reflective/ Electrically conducting/ Non-magnetic/ Non-sparking/ Non-combustible.
Non-fan design, Efficient heat radiation
If equipped with a fan, the computer is OK at the first, As the time goes by, the noise of the fan will be growing. No matter how better your fan is, you still can't avoid it, which will lead to repair, at the same time the fan will generate air duct, which will inhale a lot of dust, More than half a year later, dust accumulates on the computer board, which is easy to lead to computer short circuit and repair again. Therefore, dust is considered a natural enemy to computers, but non-fan design guarantee not only the stability, but also long term use without dust to enter and non-noise. And you will never be worried that the fan is broken,Many computer users hope their computer are noiseless. If coupled with mini size,Low power consumption, the computer will be more stable.

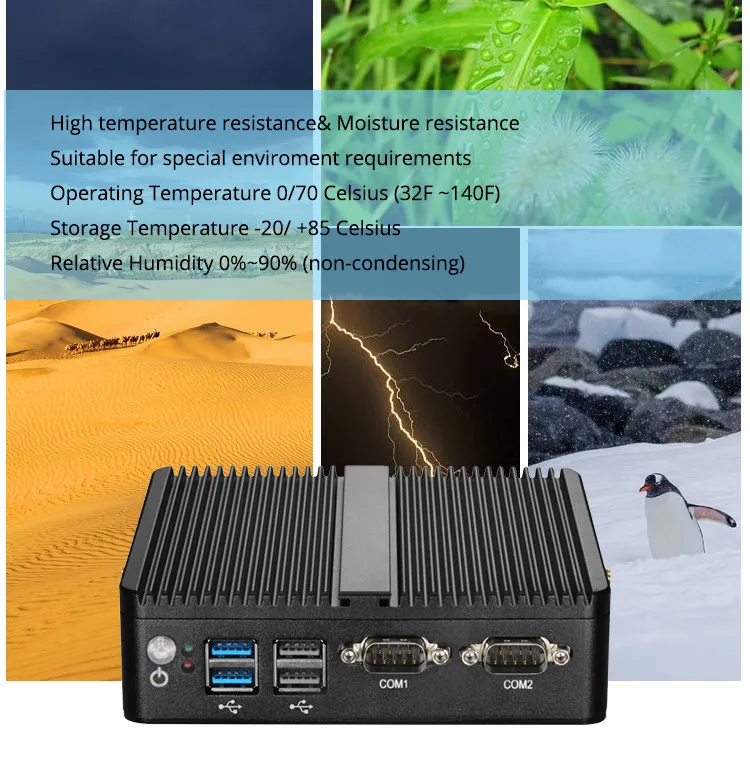

High temperature resistance & Moisture resistance
Suitable for special enviroment requirements
operating temperature 0/70 celsius(32F~140F)
stotage temperature -20/+80 celsius
Relative Humidity 0%~90%(NON-condensing)
Stunning graphics via Displayport, HD or VGA
X30G gives you ultra-realistic HD visuals. It's ideal for a home theater set-up, allowing you to browse the web, view photos from your SD card, or watch movies in stunning clarity. You can connect X30 to several displays for more onscreen desktop space; you can even extend a single windows across multiple displays. It works with any monitor, HD-equipped TV, or projector to give you a multitude of display options.

A energy-efficient mini PC that's as quiet as a library
X30 keeps the environment in mind, and delivers incredible energy efficiency- drawing as little as 26W at idle. This means you can leave X30 on overnight to download software updates or back-up files, all without racking up electricity bills. It also operates in remarkable silence – generating just 21dB of noise at idle. And it doesn't get much noisier at full load either – at just 35dB, that's as quiet as a library.

X30G mini PC using fanless technolog, with aluminum heatsink passive cooling can support 7x 24 hours, and Fanless make mini pc is no noise and dust resistant, that can be applied to industrial space& workshop

Application:

1.Digital signage
2.KIOSK,
3.Advertising Machine,
4.Self-service Terminal,
5.Electronic Whiteboard,
6.ATM, POS/Retail,
7.Networking,
8.Automation,
9.Surveillance Parking Pay Station,
10.Channel System,
11.Medical electronic
.Sectors
.Restaurants
.Shopping malls
.Campaigns
.Hospitality
.Cinema
Our Company
Shenzhen innovative cloud computer Co,.ltd (XCY) was founded in 2011 and maintains corporate headquaters in Shenzhen City. XCY is an engineering company, designing specialized computer systems for mission critical applications, with a client base that includes the transportation industry (rail, marine and air), various industrial and manufacturing enterprises as well as financial and federal and municipal agencies, in addition, with client of home and office.

The technical expertise of our highly knowledgeable and dedicated staff forms the backbone of our company. From the design stage to installation to our unsurpassed warranty, XCY clients are assured of the highest level of quality and service.

XCY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automation and control, thereby enabling XCY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients.

Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.
Our Service
1.Warranty: 1 year, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.

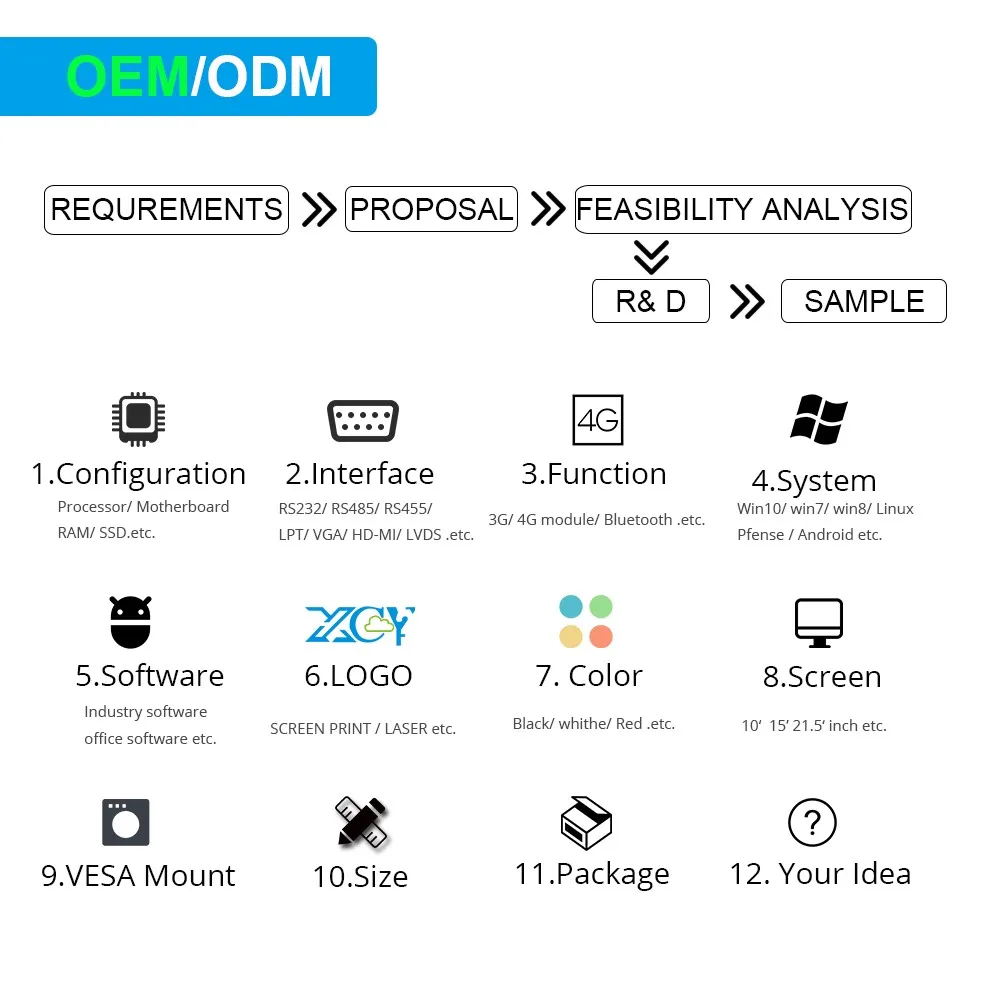

1. Can you put my brand name (logo) on these products?
Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What payment method do you accept?
T/T,Western Union,PayPal, LC

3. What is the Minimum Order Quantity(MOQ)?
We can sell one piece sample for your test.

4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.
Certifications
Packing & Delivery

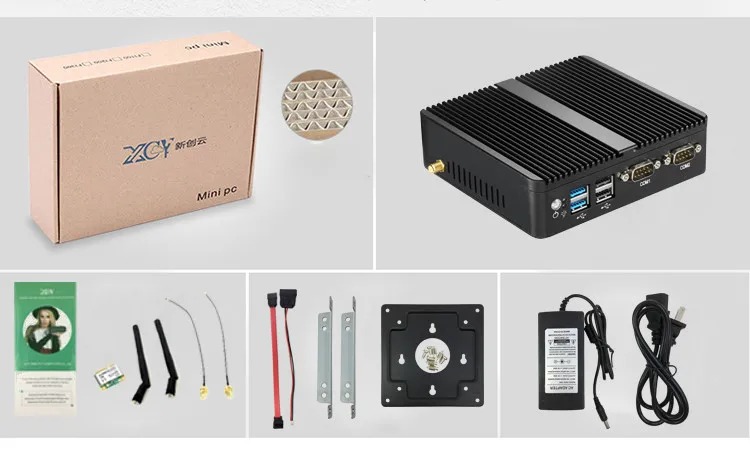

Packing List

Normally we use the carton box, 10pcs per carton, 18KG per carton, the size is :45 x 25 X 38
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket
1 x Warranty card & user manual

Payment Delivery:

we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,We will choose the right logistics according to your country.
