Large-Scale Integrated Circuits Single Phase Din Rail Watt Hour Meter With LCD Display

  • 1-1999 Pieces
    $8.00
  • 2000-9999 Pieces
    $5.00
  • >=10000 Pieces
    $4.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
16 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
GOMELONG
Model Number:
DDS5558
Display Type:
Analog Only
Phase:
Single Phase
Measuring Energy Range:
000000-999999.9kWh
Accuracy Class:
1.0 or 2.0s
Output Voltage:
220V
Operating Temperature:
10~55
Dimensions:
88mm*75mm*63mm
Rated current:
5(32)A
Frequency:
50HZ/60HZ
Communication:
N/H
Standard:
IEC62053-21
Display:
LCD Display
Function:
Active Electric
Installation:
35mm Din Rail
Type:
DIN Rail Mounting Energy Meter
Product name:
Single Phase Din Rail Watt Hour Meter With LCD Display

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X10X9 cm
Single gross weight:
0.5 kg
Package Type:
Standard export package,corrugated board carton.
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 16 To be negotiated
MASS_APP4_1159_BEGIN
MASS_APP4_1159_END

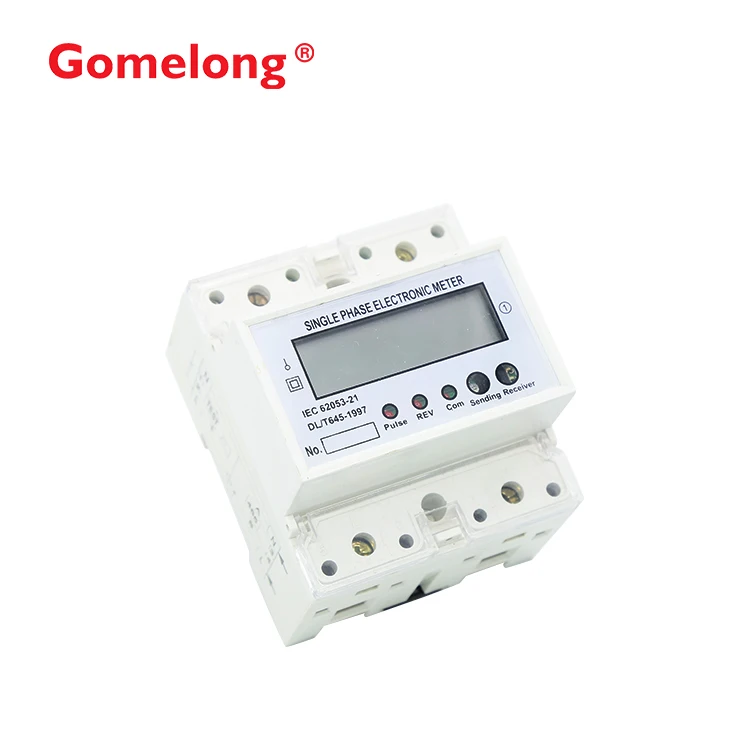

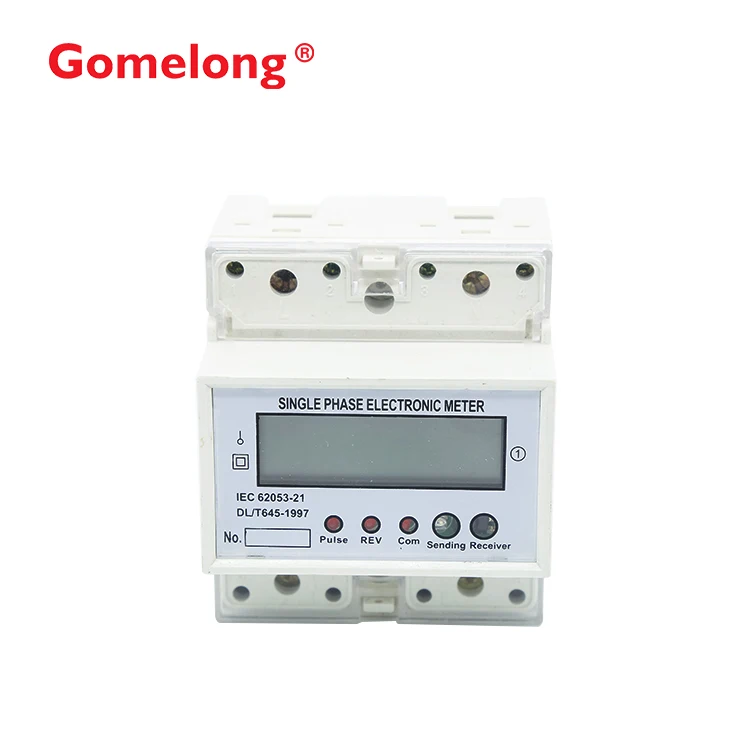

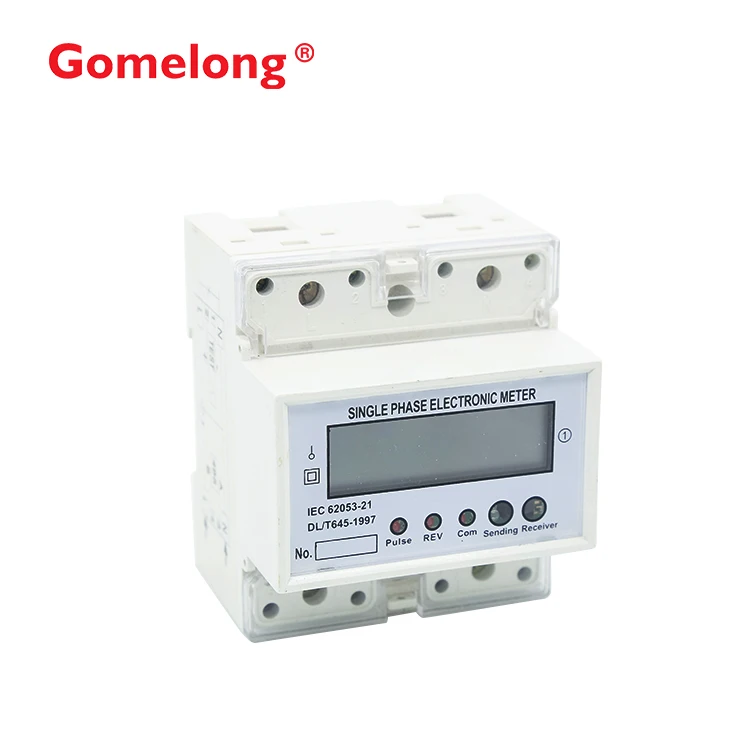

Large-Scale Integrated Circuits Single Phase Din Rail Watt Hour Meter With LCD  Display

Product Overviews







Application

Model DDS5558 single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has minimum size, and also a new single phase two wire active energy meter. It has already passed the test of the international authority CE. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has white backlight source eight digits LCD monitors shows the active energy power consumption. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Features

Bi-directional total active energy measurement

25mm standard DIN rail installation, complying with standard DIN En50022.

Single pole width (Modules17.5mm), complying with standard DIN43880.

 Small modular size, DIN rail mounted.

 Easy installation to distribution boards, load center, miniature & etc. by identifying where energy is being used.



Technical parameters

Specification

DDS5558L

DDS5558R

Accuracy

Active

Class1.0

Class1.0

Reactive





Voltage

Rated

110/120/220/230/240V

110/120/220/230/240V

Range

0.9Un~1.1Un

0.9Un~1.1Un

Limit

0.8Un~1.2Un

0.8Un~1.2Un

Frequency



50/60Hz

50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A

5(20)A ,5(25)A ,5(30)A,5(32)A

Starting Current



0.4%Ib

0.4%Ib

Constant

Active

2000imp/kWh

2000imp/kWh

Reactive

\

\

Display

Type

LCD

Register

Digit

6+1

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

≤0.8W,10VA

Current Circuit

≤4VA

≤4VA

Communication

Interface

\

\

Protocol





Temperature

Working Temperature

-45℃~+55℃

-45℃~+55℃

Storage Temperature

-40℃~+70

-40℃~+70

Humidity



≤90%

≤90%

Protection



IP54

IP54

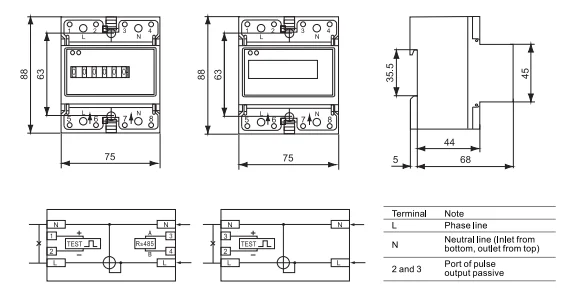

Dimension&wiring Diagram

Voltage (V); Current (A); Frequency ( Hz ); Power (KW); Power factor (COS)

LCD blue screen back light  ( Used in dark place  )

Optional voltage: 110V 120V  60Hz
