Leading Manufacturing Experience zigbee street light control

Feedback Ratings
  • 1-49 Pieces
    US $550.00
  • >=50 Pieces
    US $480.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
LED Light Source:
Bridgelux
Input Voltage(V):
AC85-265V
Lamp Power(W):
144
Lamp Luminous Flux(lm):
18000
Lamp Luminous Efficiency(lm/w):
80
CRI (Ra>):
75
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CE, EMC, REACH, RoHS
Warranty(Year):
5
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LEYVIEW
Model Number:
LYL300
Working temperature:
-20-60℃
Communication mode:
GPRS, WIFI, Ethernet communication
Communication protocol:
Leyview
Sensor access:
rain andsnow, light, traffic flow, temperature
Lightning rating:
anti-surge 6000V single phase
Single network capacity:
0 ~ 500 nodes
Zigbee communication distance:
200M between single points
Supply voltage:
single phase(AC 85 ~ 260V), three phase

Packaging & Delivery

Selling Units:
Single item
Single package size:
51X29X33 cm
Single gross weight:
5.0 kg
Package Type:
box packing
Lead Time :
2
Our Advantages

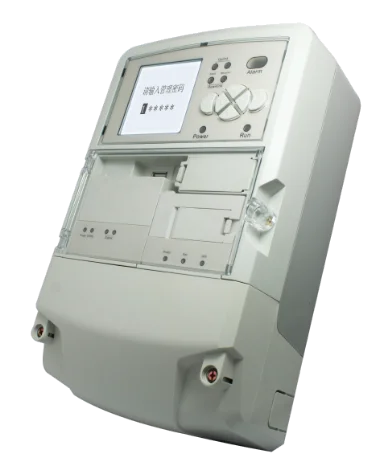

Product name:2017 CE Certification and  Energy Saving Streetlight Lighting Control System

Model No.: LYL300

 .png

1. Introduction of the system

  With the advanced wireless ZigBee technology, combined with GPRS, WiFi technology and embedded system, proposed wireless networking, single&multi point control solution for city LED streetlight lighting control system status, energy saving and actual demand of accurate control to realize remote control single lamp switch, dimming and detection,etc.In the client side to adopt mobile phones, tablet PCs, computers, convenient for different personnel to control the important data in the street. The system is widely used, such as: intelligent residential area (Park) lighting, intelligent landscape lighting, tunnel lighting, highway and other intelligent lighting occasions.



2.The Structrure of zigbee system

LYL300 system structure.png



3.Main parameters



Working temperature:-20-60℃
Supply voltage:AC85-225V
Communication mode: GPRS, WIFI, Ethernet
External dimension:L202.17*W133.12*H96mm
Package size:L450*W440*H185mm
Net weight:1800g
Gross weight:1960.7g
Static power consumption:less than 3.5w
Wireless spectrum:2.4G
Communication sistance:200m
Network capacity:0-500nodes
Circuit load:1-8 circuits/5A

Communication interface:

GPRS, RT-NET, USB, 485, CAN bus optional

Lightning protection level:

anti surge 6000v single-phase

Sensor access (cable access)

snow and rain, light, vehicle flow, and temperature

 Electric meter access

support access to the smart electric meter 485 interface





4.Main functions

  1. Button selection control (convenient to configure, menu selection to query view information, select send strategy).

  2. Receiving timing strategy from server and stored in the local, report data the server need to query, can realize local and remote query and configuration, and realize the query and modification of the strategies at the same time, also can carry out manually real-time control and queries commands.

  3. Timing control: : a multilevel timing control can realize local and remote modification of the regular.

  4. Latitude and longitude control: with the latitude and longitude automatic control function.

  5. Alarm function: after failure occurs, system center can accurately obtain the location of the trouble light, staff can rushed to the scene and maintain in the shortest possible time. Anomalies buzzer alarm (can set the upper limit and lower limit of the alarm, and alarm when query abnormal data information ).

  6. Record and show clock calendar information (timing query, control, effectively record time of the data ).

  7.  LCD display (can choose information what you want to display, color with back light )

  8. Spare lithium batteries (3.6 v, 80Mah)

  9. Device reference voltage detection ( low voltage detection )

  10. Status signal indicator ( show the real-time operating state of the reaction subsystem)

  11. Intelligent function: combine with a variety of sensors (temperature, rain and snow, light ) to automatically analyze the local weather conditions, environmental conditions automatically control the lights switch, brightness.

  12. The reserved function) : abnormal data alarm of text messaging on mobile phones; smart phones query embedded web through WIFI access, realize monitoring to the lights.

  13. Energy saving: timing control function can be set on the system, in case of much traffic, 100% brightness; When less traffic in p.m of the night , brightness can be set to 50%, thus to save electricity.

  14. Map monitoring: to add Centralized Manager, video equipment, sensors in the platform to the map, can see real-time data of these equipment, select the equipment need to control, can control the equipment directly and read data.

  15. Data query functions: system can generate curves and reports  of current, voltage, power factor, rate of lights and the analysis of the switching time.

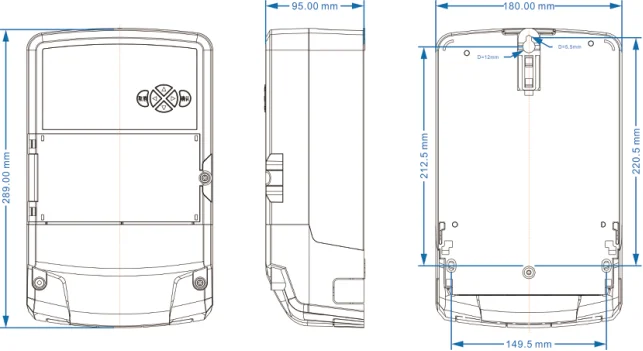

5.External dimension:

.png

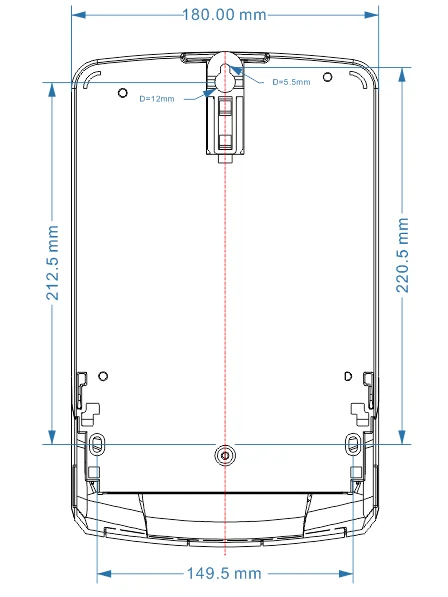

 6.Mounting holes

.png



1.Power 1-1/1-2 module power

2.Run: System operation indicator

3.Up link: Send

4.Up link: Receive

5.Down link: Send

6.Down link: Receive

7.GPRS

8.8-1 WIFI  8-2  WIFI Work

9.9-1 Zigbee  9-2  Zigbee Work

10.Alarm: Warning indicator

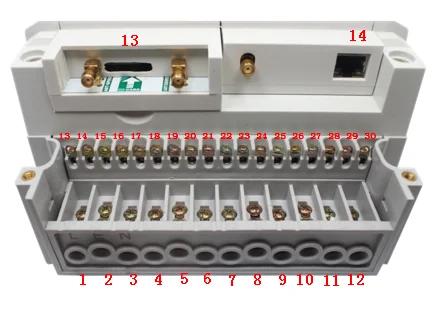

7.Interface Specification

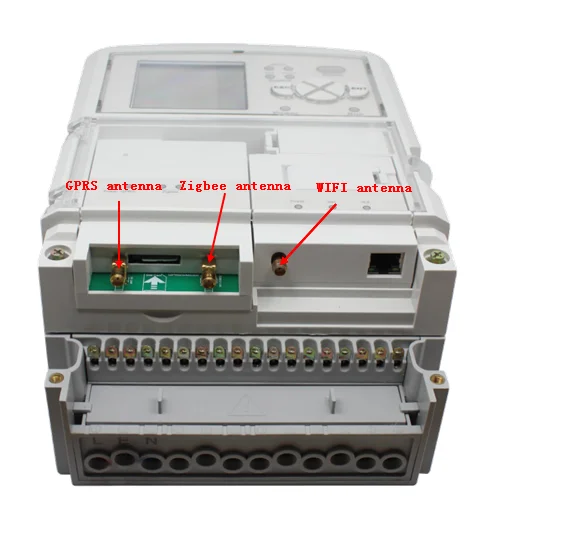

8. Antenna instruction




zigbee street light control

 High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.

 High Productivity

 Fast Delivery

 Leading Level R & D Department

 Experienced Marketing Manager

 Professional Design Department

 Accept OEM & ODM

 Excellent After-sales Service

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

zigbee street light control
Company Information

ABOUT US

zigbee street light control



Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and application of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leview brand.
We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.
Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.
