MODBUS protocol single phase 2 wire din rail digital modular prepaid electric energy meter

  • 5-49 Pieces
    $35.00
  • 50-99 Pieces
    $30.00
  • >=100 Pieces
    $28.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Contact Supplier
Samples - $35.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Compere
Model Number:
KPM31A
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
0-9999999.9 KWh
Accuracy Class:
1.0
Output Voltage:
110V/220V
Operating Temperature:
-25℃ ~ +70℃
Dimensions:
75*88
Rated Current:
1.5~6A, 10-60A, 20-100A
Frequency:
45~65Hz
Type:
single phase 2 wire din rail digital modular electric energy meter
Name:
single phase din rail digital modular prepaid electric energy meter
optional function:
Built-in relay
Communication:
RS485 Port MODBUS-RTU Protocol
Certificate:
ISO9001 CE 3C
Display:
LCD Display
Standard:
IEC62052-11/IEC62053-21
Relative Humidity:
5%~95% No Condensation
Product Certification Verified
CCC Certified.
Valid from 2017-11-27 until 2022-11-27
CE Certified.
Valid from 2018-08-02 until 2023-08-01

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.4 kg
Lead Time :
Quantity(Piece) 1 - 200 >200
Est. Time(days) 15 To be negotiated

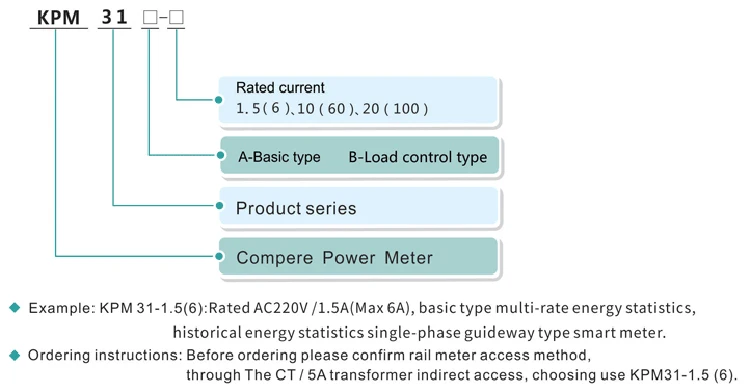

KPM31 MODBUS protocol single phase 2 wire din rail digital modular prepaid electric energy meter

Product Description

KPM31 MODBUS protocol single phase din rail digital modular prepaid electric energy meter in full compliance with the national standard GB /T7215-2008 and the international standard IEC62053:2003 on the class 1.0 energy meter of the relevant technical requirements,it use microelectronic technology and imported large-scale integrated circuits,it also application digital sampling Processing technology and SMT technology and other advanced technology,it can be directly and accurately measure the rated frequency of 50/60Hz AC active power,it use LCD7 + 1 bit LCD display,with high reliability,small size, easy installation and so on.





MODBUS protocol single phase din rail digital modular prepaid electric energy meter Application Occasion

1.Energy and energy efficiency management system.

2.Internal energy consumption statistical analysis and charging statistics basis.

3.Energy metering,automatic meter reading system.

4.Intelligent distribution management system.




Accuracy ClassVoltage: 0.2; Current: 0.2;  Frequency: 0.02 Hz; Power Factor: 1.0
Active Power: 1.0; Reactive Power: 2.0
Active Energy: 1.0; Reactive Energy: 2.0
InputRated ValueVoltage: AC110V/220V
Current: 1.5(6)A, 10(60)A, 20(100)A
Frequency45-60Hz
Functional ModulePulse Output1
Interface1*RS485; Modbus RTU protocol; Baud Rate: 1200-19200 bps
Power consumption< 2VA
Working ConditionTemperatureOperating: -25°C~+70°C. Storage: -30°C~ +75°C
Humidity5%~95% No condensation
Altitude<3000m
Dimensions:75*88*74mm



Company Information



Certifications

Packaging & Shipping

Our Service

1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
